Description
Technical Specifications
| Parameter | Value |
|---|---|

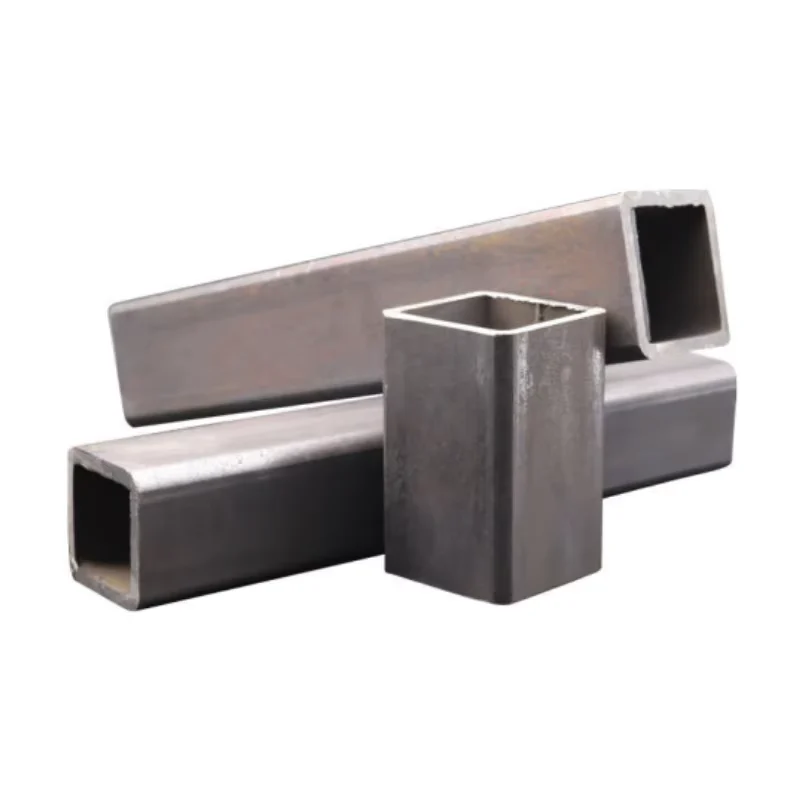

| Designation | Q235B Galvanized Square Steel Tube |
| Product Type | Galvanized Square / Rectangular Steel Tube (Hollow Section) |
| Steel Grade | Q195, Q235, Q235B, Q345, S235JR, A53, St37, St52 |
| Standard | JIS G3466, ASTM A53, ASTM A106, GB, BS, DIN |
| Section Shape | Square and Rectangular |
| Size Range | Square: 20×20 mm – 500×500 mm; Rectangular: 20×40 mm – 300×500 mm |
| Wall Thickness | 0.3 – 20 mm |
| Length | 2.0 m – 12 m (standard 6 m / 6.4 m / 12 m) |
| Technique | Cold-formed ERW / Hot-dip Galvanized |
| Surface Treatment | Galvanized (Zinc coating 60 g/m² – 600 g/m²) |
| Ends | Plain ends; cutting available |
| Tolerance | ±1% |
| Application | Construction structures, steel frames, solar mounting, fencing, greenhouse frames |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Building | Steel frame structures, column and beam assemblies, portal frames for warehouses |
| Industrial Facilities | Factory building skeletons, equipment support platforms, conveyor structures |
| Renewable Energy | Solar panel mounting structures, inverter support frames |
| Infrastructure | Fence posts, highway guardrail supports, lighting pole bases |
| Agriculture | Greenhouse framing, irrigation system support structures |
What Wall-Thickness Tolerance Costs on a Structural Frame Order
A galvanized square steel tube that fails tolerance at the bolted connection point can halt an entire erection sequence.
When overseas buyers source galvanized square steel tube from fragmented suppliers, the most common failure is not the steel grade — it is dimensional deviation. Wall thickness drifting below the lower tolerance limit means the connection plate does not seat flush, bolt holes misalign, and the structural engineer’s load calculation no longer holds. On a warehouse frame with hundreds of nodes, even a 5% deviation rate turns into days of on-site rework. Material traceability gaps compound the problem: without heat-number-linked mill test certificates, customs officers in the EU may hold the entire container pending chemical composition verification [NEED_CITE: EN 10219 cold-formed hollow section requirements].
How This Galvanized Square Steel Tube Matches Structural Frame Requirements
The Q235B galvanized square steel tube covers 20×20 mm through 500×500 mm in square sections and extends into rectangular profiles up to 300×500 mm, spanning the full range needed for primary columns, secondary purlins, and bracing members in a single procurement cycle. The zinc coating range of 60 g/m² to 600 g/m² allows specification matching to the actual corrosion environment — indoor warehouse frames need only the lower zinc range, while outdoor solar mounting structures in coastal zones demand the upper range. Wall thickness from 0.3 mm to 20 mm covers both light-gauge secondary members and heavy-load primary columns. The ±1% tolerance ensures that shop drawing dimensions translate directly to fabrication without on-site adaptation.
Engineering Compliance and Certification Path
For projects targeting European markets, the galvanized square steel tube must conform to EN 10219 for cold-formed welded structural hollow sections, which governs dimensional tolerances, sectional properties, and delivery conditions [NEED_CITE: EN 10219 cold-formed hollow section requirements]. North American projects reference ASTM A500 or ASTM A53, requiring equivalent grade mapping from Q235B to A53 Grade B or S235JR to ASTM equivalents. The structural design must account for the cold-forming process effects on corner mechanical properties — cold-formed sections develop higher yield strength at the corners due to strain hardening, which EN 10219 acknowledges in its sectional property calculations. For projects requiring CE marking under the Construction Products Regulation, the manufacturer must provide Declaration of Performance and factory production control certificates traceable to each production batch.
Steel Grade Selection and Galvanization Process Explained
The Q-series grades (Q195, Q235, Q235B, Q345) follow the Chinese GB standard system where the number indicates minimum yield strength in MPa — Q235B delivers 235 MPa yield with room-temperature impact toughness, making it the default choice for general structural frames. The S-series (S235JR) follows the European EN system with JR indicating +20°C Charpy impact energy, directly equivalent to Q235B for most structural applications. ASTM A53 covers the North American specification, while St37 and St52 represent the older DIN system still referenced in legacy projects across the Middle East and Africa.
The galvanization process directly affects corrosion resistance and coating adhesion. Pre-galvanized tubes receive zinc coating before cold-forming, resulting in thinner but more uniform coating suitable for indoor or mild environments. Hot-dip galvanized tubes undergo zinc immersion after forming, providing thicker coating (up to 600 g/m²) with superior coverage at weld zones and corners — essential for outdoor structural applications exposed to moisture or industrial atmospheres. The cold-forming ERW process creates a continuous longitudinal weld, and the subsequent galvanizing bath ensures the weld seam receives full zinc coverage, eliminating the corrosion vulnerability that untreated welds present.
Wall thickness tolerance of ±1% means that a specified 4.0 mm wall will measure between 3.96 mm and 4.04 mm — tight enough to ensure that theoretical weight calculations match actual delivered weight within acceptable variance, preventing the cost disputes that arise when negative tolerance exceeds contractual limits.
The Hidden Cost of Unverified Galvanized Square Steel Tube Procurement
Purchasing galvanized square steel tube without verified mill test certificates creates a cascade of downstream failures. Chemical composition that deviates from the specified grade means the structural engineer’s load calculations are invalid — the entire frame may require re-engineering or replacement. Zinc coating thickness below specification accelerates corrosion in outdoor applications, leading to premature coating failure and structural degradation within years rather than decades. Dimensional tolerance violations force on-site modifications: cutting, re-drilling, or welding adapter plates to make connections fit, each adding labor cost and schedule delay that far exceeds the initial material savings. Customs authorities in EU member states routinely detain steel imports lacking proper EN 10219 or EN 10210 documentation, holding containers for weeks while importers scramble to obtain retrospective certification [NEED_CITE: steel grade equivalence between EN and ASTM standards].
Why Procure This Galvanized Square Steel Tube From Our Facility
Our vertically integrated operation combines steel production with fabrication capacity, meaning the Q235B galvanized square steel tube you order comes from a single source controlling the entire chain from raw material to finished product. We maintain 2,800+ specifications in our inventory system, covering the full range from 20×20 mm light-gauge tubes to 500×500 mm heavy structural sections, eliminating the need to split orders across multiple suppliers. Our in-house metallurgical laboratory tests every heat of steel before it enters production, generating mill test certificates that trace chemical composition and mechanical properties back to the original heat number. For projects requiring third-party verification, we coordinate SGS, BV, or Intertek inspections at our facility before shipment, providing independent confirmation of coating thickness, dimensional accuracy, and material compliance. The sharp-corner technology we developed through patented processes produces square and rectangular tubes with tighter corner radii than standard cold-formed sections, improving connection fit-up and structural appearance for architectural applications. Our quality management system holds ISO 9001 certification, and our welding procedures are qualified to AWS and EN standards, ensuring that any fabrication work — cutting, drilling, welding — maintains the same quality level as the base material.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition (C, Mn, Si, P, S content) and mechanical properties (yield strength, tensile strength, elongation) per GB/T 700 standard, with heat number traceability
- CE certificate confirming EN 10219 compliance for cold-formed welded structural hollow sections, including Declaration of Performance for structural applications
- ISO 9001 quality management system certificate covering the entire production process from steelmaking through galvanizing and final inspection
- SGS or BV third-party inspection report verifying zinc coating thickness (60–600 g/m²), dimensional tolerances (±1%), and surface quality before container loading
- Material traceability documentation linking each bundle to its heat number, production date, and test results, enabling full chain-of-custody verification for project quality audits
- Complete customs documentation package including commercial invoice, packing list, bill of lading, and certificate of origin formatted to importing country requirements
Packaging, Loading & Delivery
- Q235B galvanized square steel tubes bundled with high-tensile steel strips at maximum 3-ton bundle weight, with edge protectors preventing zinc coating damage at contact points during ocean transit
- Hot-dip galvanized surfaces protected by chromate passivation layer and wrapped in waterproof paper for tubes destined for high-humidity environments or extended storage periods
- Container loading optimized for 6 m and 12 m standard lengths, with 20-foot containers carrying up to 25 tons of smaller sections (20×20 to 100×100 mm) and 40-foot containers accommodating longer lengths up to 12 m with proper dunnage and lashing
- Custom cutting to project-specific lengths available within the 2.0 m to 12 m range, with cut ends deburred and coated with zinc-rich paint to maintain corrosion protection at cut points
- Each bundle marked with heat number, steel grade (Q235B), size specification, and production date using stenciled identification visible without unpacking, enabling rapid site identification and inventory control
- FOB, CIF, and DDP shipping terms available from Qingdao port, with professional loading supervision ensuring weight distribution compliance with container specifications and maritime transport regulations
Start Your Galvanized Square Steel Tube Procurement
Submit your project specifications including section dimensions, wall thickness, steel grade, total quantity, and destination port to receive a detailed quotation with mill test certificate samples and production timeline. For non-standard sizes or specialized coating requirements, our engineering team reviews your drawings and provides technical recommendations within 24 hours.
Request Quotation and Material Certification
Share your galvanized square steel tube requirements via email at admin@xjystructure.com or contact our team at +86 188 5315 7756 (WhatsApp/WeChat available) to begin the procurement process with full documentation support.
Frequently Asked Questions
Q: What is the difference between pre-galvanized and hot-dip galvanized square steel tube for structural applications?
A: Pre-galvanized tubes receive zinc coating before cold-forming, resulting in 60–180 g/m² coating thickness suitable for indoor or sheltered applications. Hot-dip galvanized tubes are immersed in molten zinc after forming, achieving 275–600 g/m² coating with superior coverage at weld seams and corners, recommended for outdoor structural frames, solar mounting, and infrastructure projects exposed to weather.
Q: How does Q235B steel grade compare to S235JR and ASTM A53 for international projects?
A: Q235B (Chinese GB standard) and S235JR (European EN standard) both provide 235 MPa minimum yield strength with equivalent chemical composition limits, making them interchangeable for most structural applications. ASTM A53 Grade B covers similar mechanical properties for North American projects. We provide grade equivalence documentation and mill test certificates formatted to the specific standard your project requires.
Q: Can you produce non-standard sizes or sharp-corner profiles with specific quantity requirements?
A: Yes, our facility produces galvanized square steel tube in sizes from 20×20 mm to 500×500 mm square and 20×40 mm to 300×500 mm rectangular sections. Our patented sharp-corner technology produces tighter corner radii than standard cold-formed sections for improved connection fit-up. We accommodate project-specific quantities with flexible minimum order requirements based on section size and coating specification.
Q: What certification and documentation do you provide for EU projects requiring CE marking?
A: For European projects, we provide CE certificate confirming EN 10219 compliance, Declaration of Performance, mill test certificates with heat number traceability, and factory production control documentation. Third-party inspection by SGS, BV, or Intertek is available before shipment. All documentation is formatted to meet EU Construction Products Regulation requirements for customs clearance and project quality audits.
Q: How do you handle container loading and international shipping for oversized structural sections?
A: We optimize container loading based on section dimensions and standard lengths (6 m, 6.4 m, 12 m), with professional lashing and dunnage preventing transit damage. For sections exceeding standard container dimensions, we arrange flat-rack or open-top container shipping. Shipping terms include FOB, CIF, and DDP with complete export documentation and tracking until site delivery.
