Description
Mill-direct supply, no middlemen — Q235 seamless carbon steel pipe rolled from our own billet to finished OD 21.3–1420 mm, backed by full heat-number traceability.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Seamless Carbon Steel Pipe |
| Product Type | Seamless Steel Pipe |
| Steel Grade | Q235, Q195, Q215, Q345, 10#, 20#, 35#, 45#, 16Mn, 40Cr, 15CrMo, 45Mn2, ASTM A53A/A53B, A178C, A106B, API5L |
| Standard | API, ASTM, BS, DIN, GB, JIS |
| Section Shape | Round |
| Outer Diameter | 21.3–1420 mm |
| Wall Thickness | 2.11–300 mm |
| Length | 6 m / 6.4 m / 12 m |
| Technique | Seamless (Cold Rolled) |
| Surface Treatment | Slightly Oiled |
| Tolerance | ±1% |
| Ends | Plain (default) |
| Application | Fluid transport, Boiler, Drill pipe, Hydraulic pipe, Gas pipe, Oil pipe, Chemical fertilizer pipe, Structure pipe, Machinery parts, Automobile/tractor stress parts, Construction |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Well casing, flow lines, gas transmission pipelines, refinery process piping |
| Power Generation | High-pressure boiler tubes, superheater headers, steam transport lines |
| Industrial Construction | Structural columns, truss members, equipment support frames |
| Machinery Manufacturing | Hydraulic cylinder barrels, shaft sleeves, conveyor roller bodies |
| Chemical Processing | Fertilizer plant piping, heat exchanger tubes, process fluid lines |
What Negative Tolerance Really Costs on a Seamless Pipe Order
A ±1% tolerance window sounds tight on paper — until the ultrasonic tester catches a batch sitting at the lower edge.
Buyers sourcing seamless carbon steel pipe from overseas mills frequently discover that wall thickness claims on the MTC do not match physical measurements on site. When pipes arrive at the project yard and third-party inspectors pull out the ultrasonic gauge, a batch that looked compliant on paper gets flagged for negative tolerance abuse. The result is either a costly return shipment or an on-site downgrade that forces redesign. [NEED_CITE: international standards for seamless pipe dimensional tolerance verification]
Matching Wall Thickness to Pressure and Structural Demand
The Q235 seamless carbon steel pipe covers OD from 21.3 mm to 1420 mm with wall thickness reaching 300 mm, which means a single supply chain can serve everything from instrument lines to heavy-wall hydraulic cylinders. Cold-rolled production delivers a smoother internal bore and tighter dimensional control than hot-finished alternatives, making this pipe suitable for hydraulic systems where surface finish directly affects seal life. For EPC projects requiring mixed pressure ratings across a plant, sourcing multiple wall thicknesses from one mill eliminates the material traceability gaps that appear when buyers piece together orders from different suppliers.
Engineering Compliance and Certification Requirements
Seamless carbon steel pipe used in pressure-containing applications must comply with the dimensional and chemical requirements of the governing standard — whether that is ASTM A106 for high-temperature service, API 5L for pipeline transport, or GB/T 8163 for general fluid conveyance. Each standard defines acceptable tolerance bands for OD and WT, and third-party inspectors verify compliance against those bands, not against the MTC alone. For projects shipping to the EU or Middle East, additional documentation such as EN 10204 3.1/3.2 certificates and PVOC or SONCAP conformity marks become mandatory for customs clearance. [NEED_CITE: EN 10204 inspection document types for steel products]
Understanding Grade Selection and Production Method
The Q-series grades (Q195, Q215, Q235, Q345) follow the Chinese GB system where the number after “Q” indicates minimum yield strength in MPa — Q235 delivers higher structural capacity than Q195, while Q345 (equivalent to S355 in the EN system) serves heavier load-bearing applications. For high-temperature service such as boiler tubes, 20# grade carbon steel provides reliable performance up to 450°C, while 15CrMo adds chromium-molybdenum alloy content for creep resistance at elevated temperatures. The seamless cold-rolled process produces pipes with uniform wall distribution and no longitudinal weld seam, which is critical for high-pressure applications where weld integrity becomes a potential failure point. Surface treatment with light oil protects the bare steel during transit and storage without interfering with subsequent welding or coating operations at the fabrication shop.
The Hidden Cost of Unverified Material Claims
When a seamless pipe supplier sources billets from third parties rather than operating an integrated mill, the chain of custody breaks at the raw material stage. Heat numbers on the MTC cannot be traced back to the original melt, and chemical composition claims become unverifiable. On-site, this manifests as weld cracks caused by unexpected carbon equivalent levels, or coating adhesion failures due to surface chemistry mismatches. Engineering codes such as ASME B31.3 and EN 13480 require full material traceability for pressure piping systems, and inspectors will reject components lacking auditable heat-level documentation. [NEED_CITE: material traceability requirements in ASME B31.3 process piping code]
Why Source From an Integrated Mill-Fabricator
Our seamless carbon steel pipe rolls from billets produced in our own steel mill, meaning every heat number on the MTC traces directly back to our melt shop rather than an unknown third-party supplier. The facility maintains over 2,800 specifications in stock across OD and WT combinations, reducing lead times for urgent project requirements. An in-house metallurgical laboratory performs chemical composition analysis and mechanical testing before any batch leaves the mill, and third-party inspection through SGS, BV, or TÜV is available for buyers requiring independent verification. Professional loading teams handle the specialized lashing required for heavy-wall and large-diameter pipes, preventing transit damage that compromises dimensional accuracy.
Documentation & Compliance
- Mill Test Certificate documenting Q235 chemical composition and mechanical properties per GB/T 700, with full heat number traceability from billet to finished pipe
- Third-party inspection report from SGS, BV, or TÜV verifying dimensional accuracy, surface quality, and mechanical test results for each heat
- CE marking and EN 10204 3.1/3.2 type certificates for projects requiring European pressure equipment directive compliance
- ISO 9001 quality management system certificate covering the entire production process from raw material procurement through final inspection
- Material traceability documentation linking each pipe to its original heat number, chemical analysis report, and mechanical test results
- Export customs documentation including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

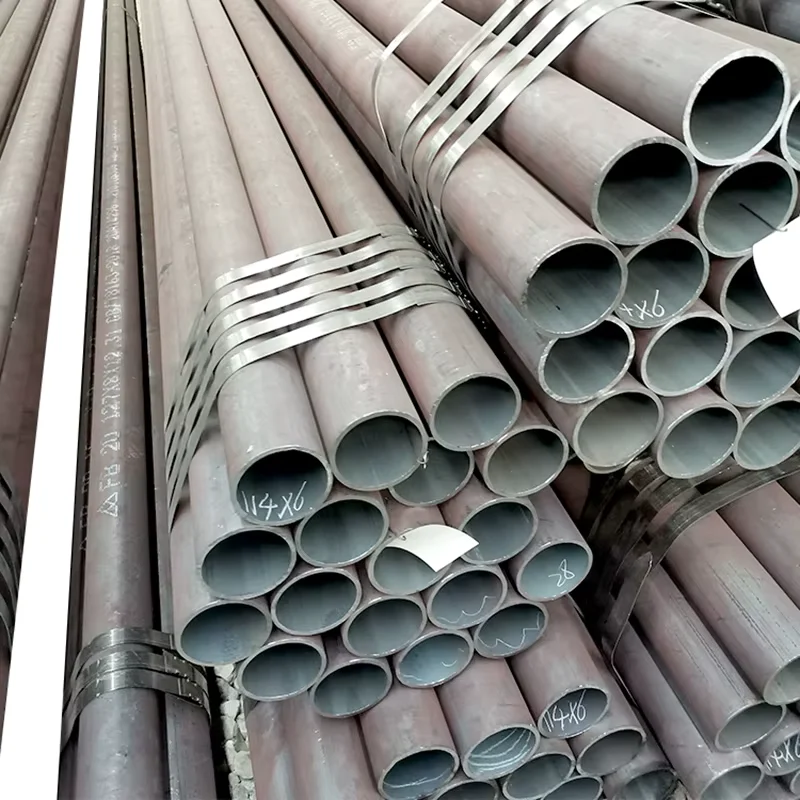

- Q235 seamless pipes bundled with steel strips and edge protectors to maintain the slightly oiled surface finish during ocean transit and prevent coating damage
- Heavy-wall pipes (WT above 20 mm) loaded with specialized cradles and dunnage to distribute weight evenly and avoid hull stress during container or breakbulk shipment
- 12-meter lengths optimized for 40ft open-top containers with professional lashing plans that maximize payload while preventing longitudinal movement
- Heat number and steel grade stenciled on each pipe end for on-site identification and traceability verification during installation
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination for project sites requiring direct delivery
Ready to Verify Material Traceability Before You Order?
Send your project specifications including OD, WT, length, steel grade, and required standards to receive a detailed quotation with mill test certificate samples and third-party inspection options. Our engineering team reviews shop drawings to confirm dimensional compatibility and suggests optimal wall thickness selections based on your pressure and structural requirements. Confirm your certification needs and destination port, and we provide a complete compliance package before production begins.
Frequently Asked Questions
Q: Can you provide MTC with heat number traceability for Q235 seamless pipe?
A: Yes, every Q235 seamless carbon steel pipe ships with a Mill Test Certificate documenting chemical composition and mechanical properties, with each pipe traceable to its original heat number from our own billet production.
Q: What is the tolerance standard for OD and wall thickness?
A: Our seamless pipes are produced to ±1% tolerance on both outer diameter and wall thickness, verified through in-house dimensional inspection and available for third-party verification by SGS or BV before shipment.
Q: Can you supply Q235 pipe equivalent to ASTM A36 or EN S235JR?
A: Q235 is the Chinese GB standard equivalent to ASTM A36 and EN S235JR in terms of minimum yield strength, and we provide cross-standard grade comparison documentation to support your engineering specifications and customs clearance.
Q: Do you offer third-party inspection before shipment?
A: Yes, we welcome SGS, BV, or TÜV inspection at our facility before shipment, and the inspection report is included in the documentation package for your project records and customs compliance.
Q: What surface treatment options are available besides oiled finish?
A: Beyond the standard slightly oiled finish, we can supply seamless carbon steel pipe with black surface, hot-dip galvanized coating, or 3PE anti-corrosion coating depending on your application environment and project specifications.
Get Your Seamless Carbon Steel Pipe Quote With Full Material Traceability
Submit your OD, WT, length, steel grade, and quantity to receive a quotation with mill test certificate samples within 24 hours. Contact Shandong Xin Jiyuan Special Steel Tube Co., Ltd at admin@xjystructure.com or WhatsApp +86 188 5315 7756.
