Q235 SSAW Spiral Welded Steel Pipe OD 219-2200mm API 5L Manufacturer

Description

Direct mill supply, zero trading markup — Q235 SSAW spiral welded steel pipe produced from our own hot-rolled coil, shipped with full heat-number traceability from steelmaking to final weld seam.

Technical Specifications

Application Suitability

Why Spiral Weld Geometry Lowers Your Piling Cost per Tonne

The helical seam distributes hoop stress across a longer weld path, allowing thinner walls at equivalent design pressure compared to straight-seam alternatives.

When procurement teams source SSAW spiral welded steel pipe from traders who subcontract coil slitting and forming to separate shops, weld seam continuity becomes a guessing game. I have seen batches arrive with mismatched coil edges — the inner bead was acceptable, but the outer cap showed cold-lap defects that only surfaced during ultrasonic inspection at the job site. With our vertically integrated line, the same coil that leaves our steel mill enters our forming station within days, so heat numbers on the mill test certificate match the physical pipe stamped on the dock. [NEED_CITE: API 5L spiral submerged arc welded pipe manufacturing requirements]

Matching OD 219–2200 mm to Piling, Fluid, and Pipeline Duty

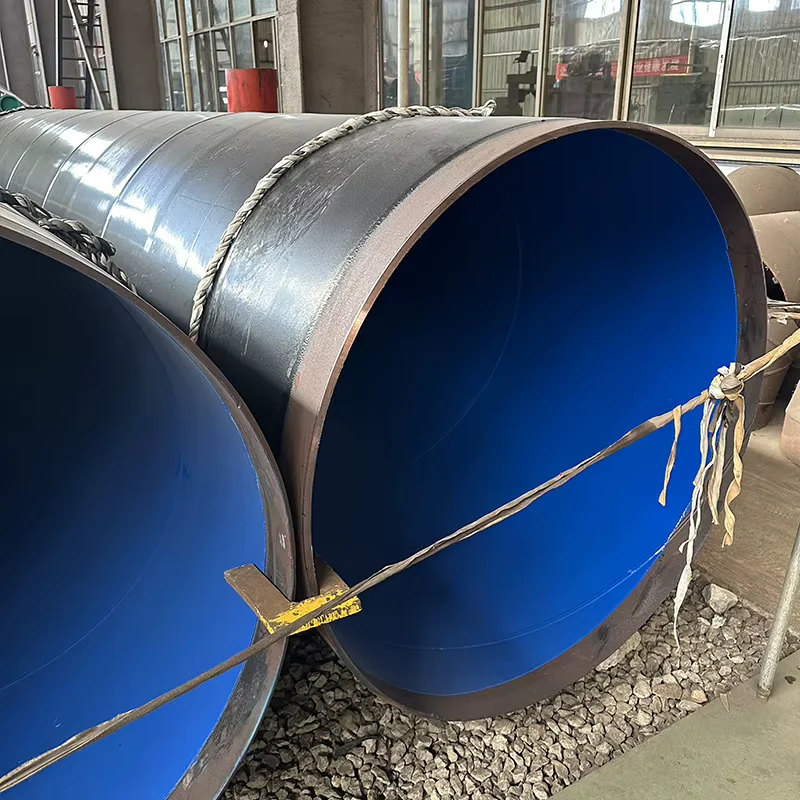

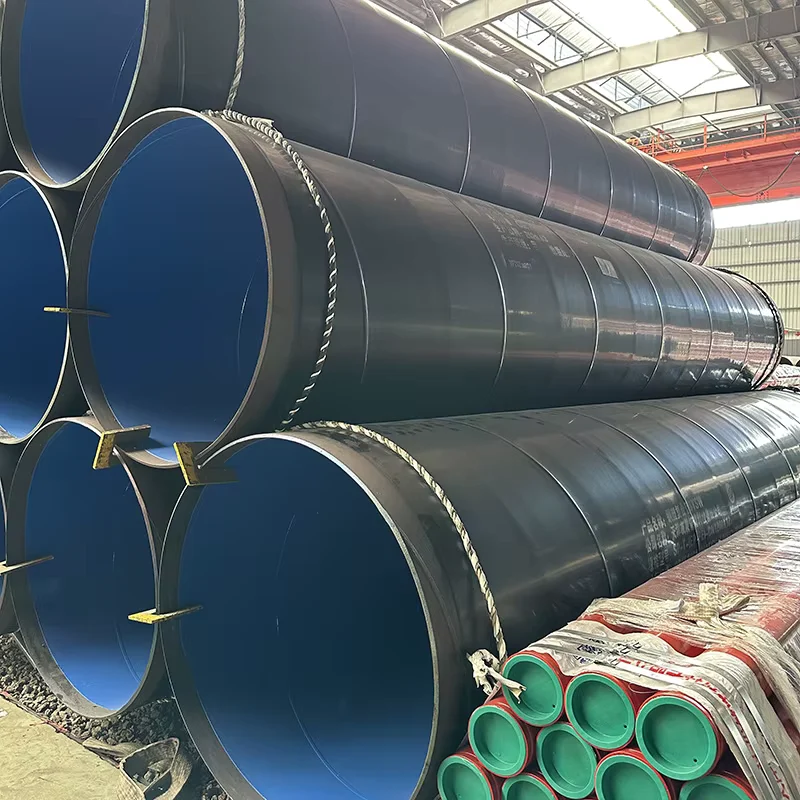

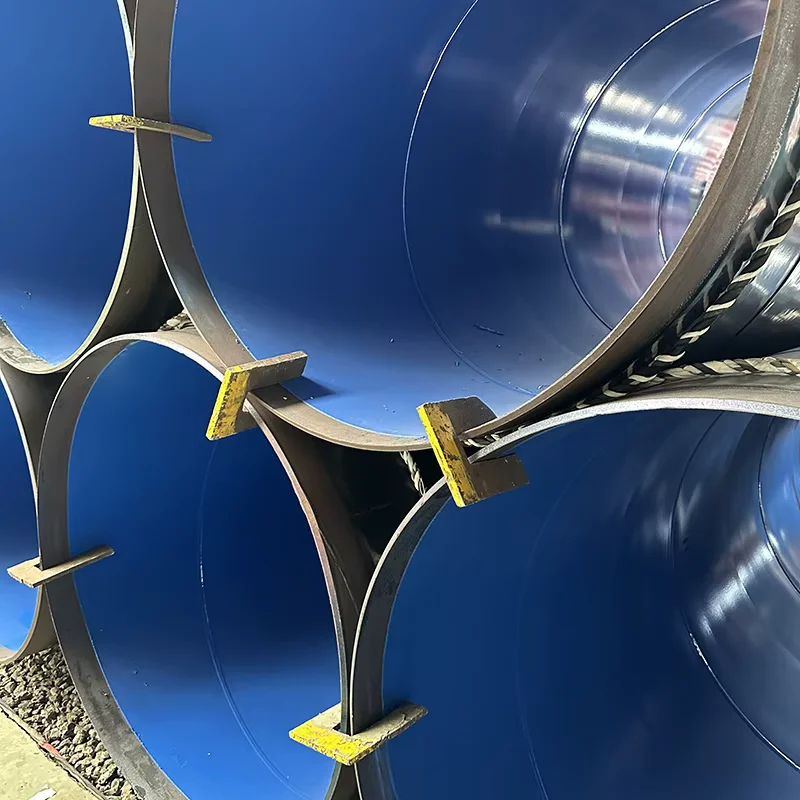

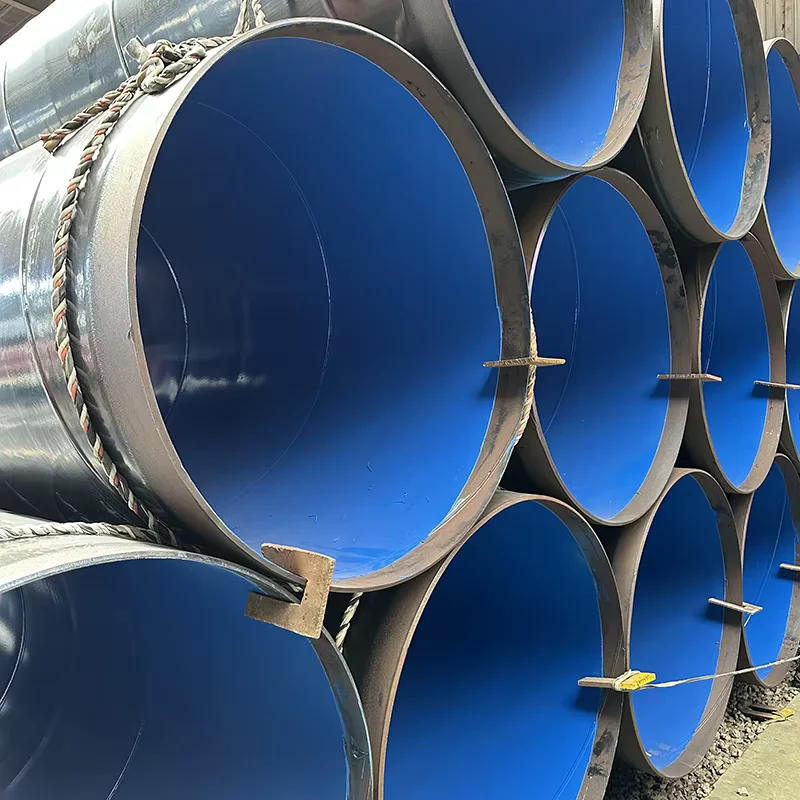

Piling rigs driving 219–610 mm piles into alluvial soil need tight ovality (<1%) so interlocking clutches seat properly; our continuous forming holds diameter tolerance within ±0.12%. For large-bore water mains in the 1000–2200 mm range, the spiral geometry means fewer girth welds per kilometre of trench, cutting field welding time and NDT cost. When you specify a SSAW spiral welded steel pipe for slurry transport, we match the internal lining — typically FBE or 3PE — to the abrasion index of your conveyed medium rather than applying a generic coating.

Engineering Compliance Across API, ASTM, and GB Frameworks

API 5L PSL1/PSL2 governs petroleum and gas pipelines, requiring Charpy impact testing and full-body ultrasonic inspection for PSL2 orders. Municipal water projects in Southeast Asia often reference AWWA C200 alongside ASTM A53, demanding hydrostatic proof tests at 1.25× design pressure. [NEED_CITE: AWWA C200 steel pipe water transmission standard requirements] Our production documentation package includes WPS qualified to AWS D1.1, dimensional inspection reports per GB/T9711, and coating adhesion pull-off tests — so your third-party inspector (SGS, BV, or TÜV) receives a complete dossier before stepping onto the mill floor.

Steel Grade Selection: Q235 vs Q345B vs API 5L X42–X60

Q195 and Q235 serve general structural and low-pressure water conveyance where formability matters more than yield strength. Q345B (roughly equivalent to S355JR in the EN system) steps up yield capacity for piling in dense soil or high-pressure heat-supply networks. When the project specification calls for API 5L X42 through X60, we source matching micro-alloyed coil from our own melt shop, avoiding the chemistry drift that occurs when fabricators buy commercial-grade plate from open-market traders. [NEED_CITE: steel grade equivalence between GB/T9711 and API 5L standards]

The spiral welding process itself offers a metallurgical advantage: the helical angle (typically 50°–75°) means the weld metal experiences lower residual stress than a longitudinal seam, and the longer weld path spreads thermal input, reducing the width of the heat-affected zone. This is why SSAW spiral welded steel pipe in wall thicknesses up to 30 mm can pass API 5L PSL2 impact requirements without post-weld heat treatment — a cost saving that straight-seam mills cannot always match at large diameters.

The Hidden Cost of Unverified Coil Source and Coating Thickness

A 0.1 mm shortfall in 3PE coating thickness may pass visual inspection at the mill, yet fail adhesion testing after six months of burial in chloride-rich soil — triggering full-line recoating at ten times the original coating cost. Similarly, pipes stamped Q235 but rolled from off-spec coil will show yield strength below 235 MPa during tensile coupon testing, forcing pile rejection or costly structural redesign. [NEED_CITE: 3PE coating adhesion failure mechanisms in buried steel pipelines] Material traceability from our own steel mill eliminates this risk: every heat number on the MTC links back to our ladle analysis, and our in-house laboratory performs chemistry verification before the coil ever reaches the slitting line.

Why Project Buyers Choose Our Vertically Integrated Supply

Our steel mill produces over 2,800 specifications of hot-rolled coil, so we control chemistry from the melt shop through to the finished SSAW spiral welded steel pipe — no third-party coil sourcing means no gaps in your material certification chain. The fabrication division operates dedicated SAW lines with qualified welders holding AWS and EN certifications, producing shop drawings and weld maps for every order. We handle oversized cargo loading for pipes exceeding 12 m or 1500 mm OD, arranging specialized lashing and route surveys so your pipes reach site without transit damage. Complete QC documentation — including WPS, PQR, dimensional reports, and coating certificates — ships with each container, satisfying even the strictest EPC audit requirements.

Documentation & Compliance

• Mill Test Certificate documenting Q235B / Q345B / API 5L X42–X60 chemical composition and mechanical properties per GB/T9711 or API 5L
• Third-party inspection report from SGS, BV, or TÜV covering dimensional checks, NDT results, and coating thickness verification
• Welding Procedure Specification (WPS) and Procedure Qualification Record (PQR) per AWS D1.1 or EN ISO 15614
• Coating inspection report detailing FBE / 2PE / 3PE / 3PP film thickness, adhesion pull-off values, and holiday detection results
• Material traceability sheet linking each pipe’s heat number to ladle analysis from our own steel mill
• Export customs package: commercial invoice, packing list, bill of lading, and certificate of origin

Packaging, Loading & Delivery

• SSAW pipes bundled with galvanized steel strips at 1.5 m intervals, with PVC end caps protecting beveled ends against moisture ingress during ocean transit
• 3PE-coated pipes wrapped with anti-UV woven fabric to prevent coating degradation from prolonged sunlight exposure on deck
• Large-diameter pipes (OD >1000 mm) loaded as breakbulk with timber cradles and welded sea fastenings, avoiding container stuffing damage
• Custom cut lengths (5.8 m, 11.8 m, or project-specified) nested to maximize 40ft OT or flat-rack container payload, reducing freight cost per tonne
• Each bundle tagged with heat number, steel grade, OD × WT, and length for rapid site identification and MTC cross-referencing
• FOB Jinan/Qingdao, CIF, or DDP delivery with door-to-door logistics coordination for oversized cargo to project sites in Southeast Asia, Middle East, and Africa

Start Your SSAW Pipe Inquiry With Drawings and Specifications

Send your project drawings (PDF or DWG), required steel grade, OD and wall thickness, coating system, and destination port — we return a detailed quotation including material, fabrication, coating, packing, and shipping costs within 24 hours, along with a shop drawing timeline and production schedule.

Request Your SSAW Spiral Welded Steel Pipe Quotation and Mill Test Certificate

Share your project specifications, steel grade, and target port to receive a detailed quotation with full material traceability documentation.
