Description

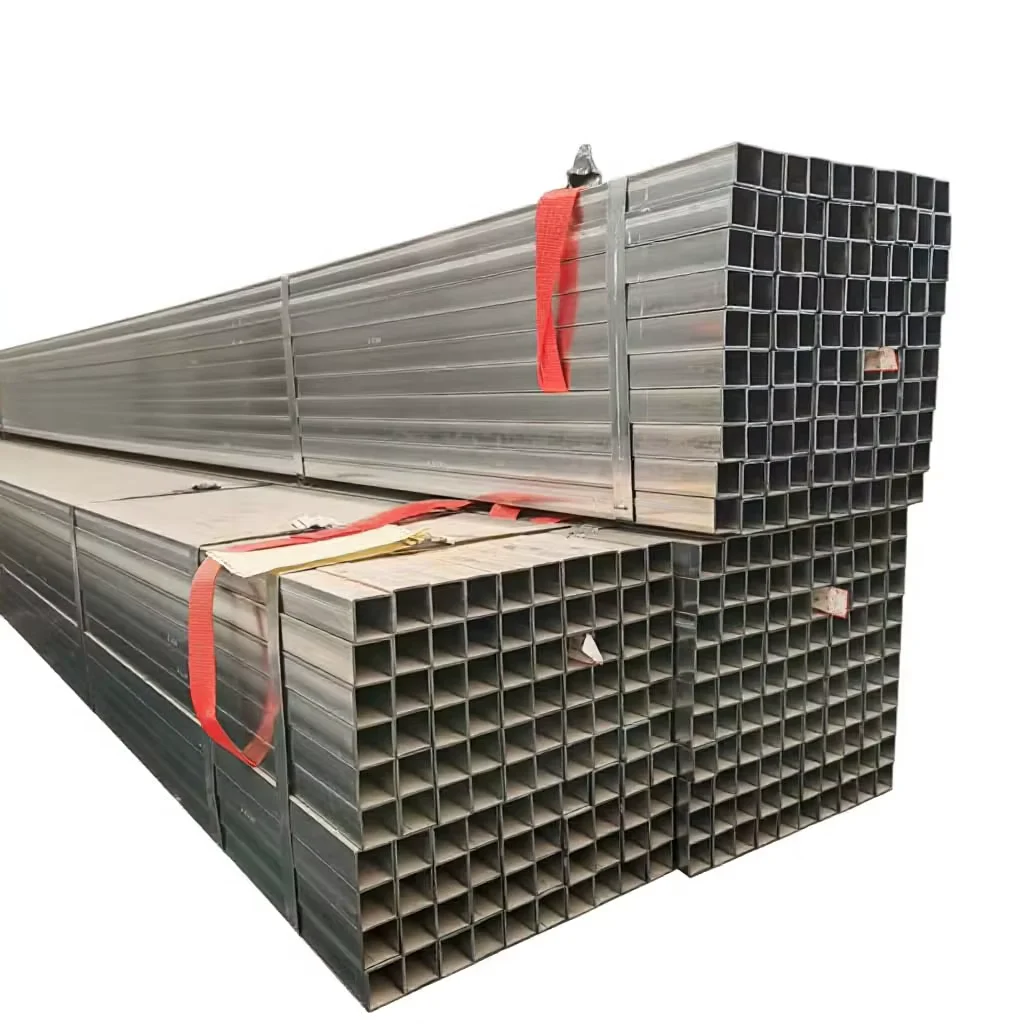

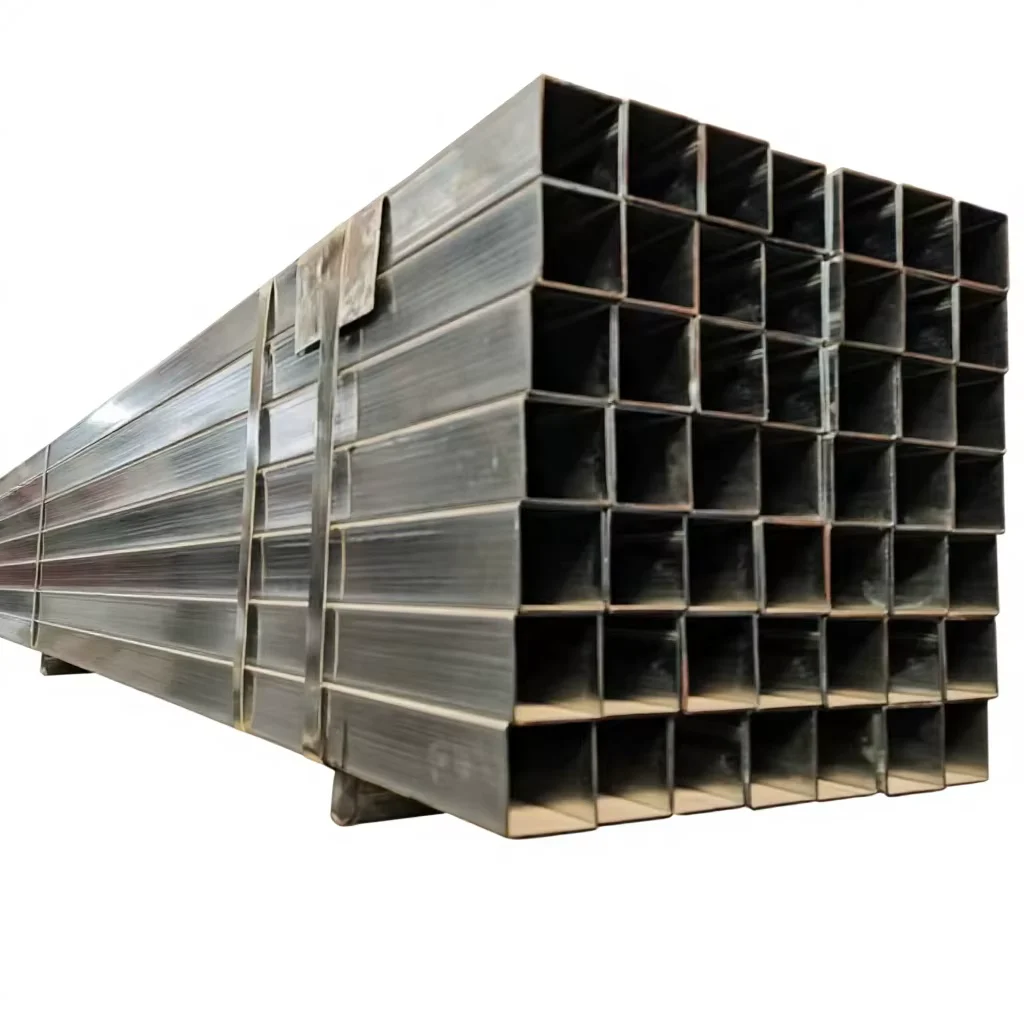

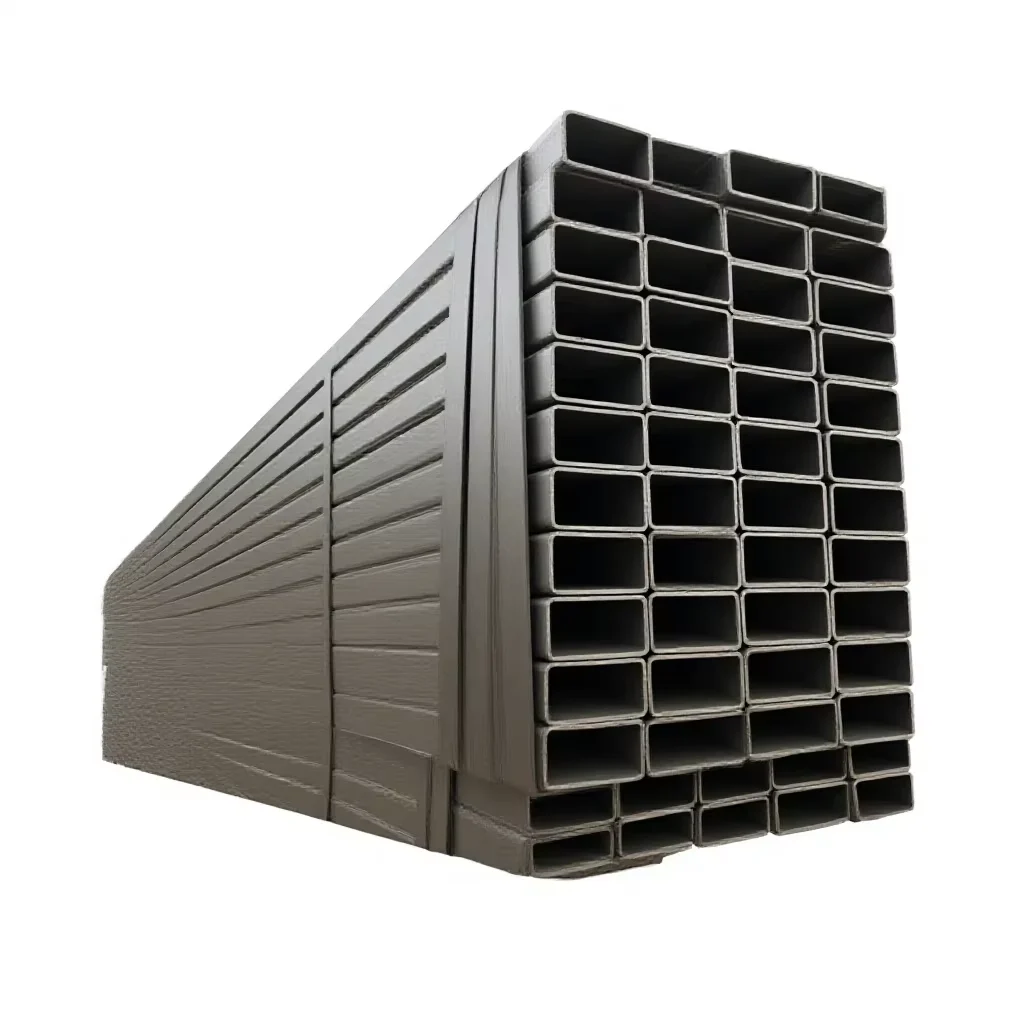

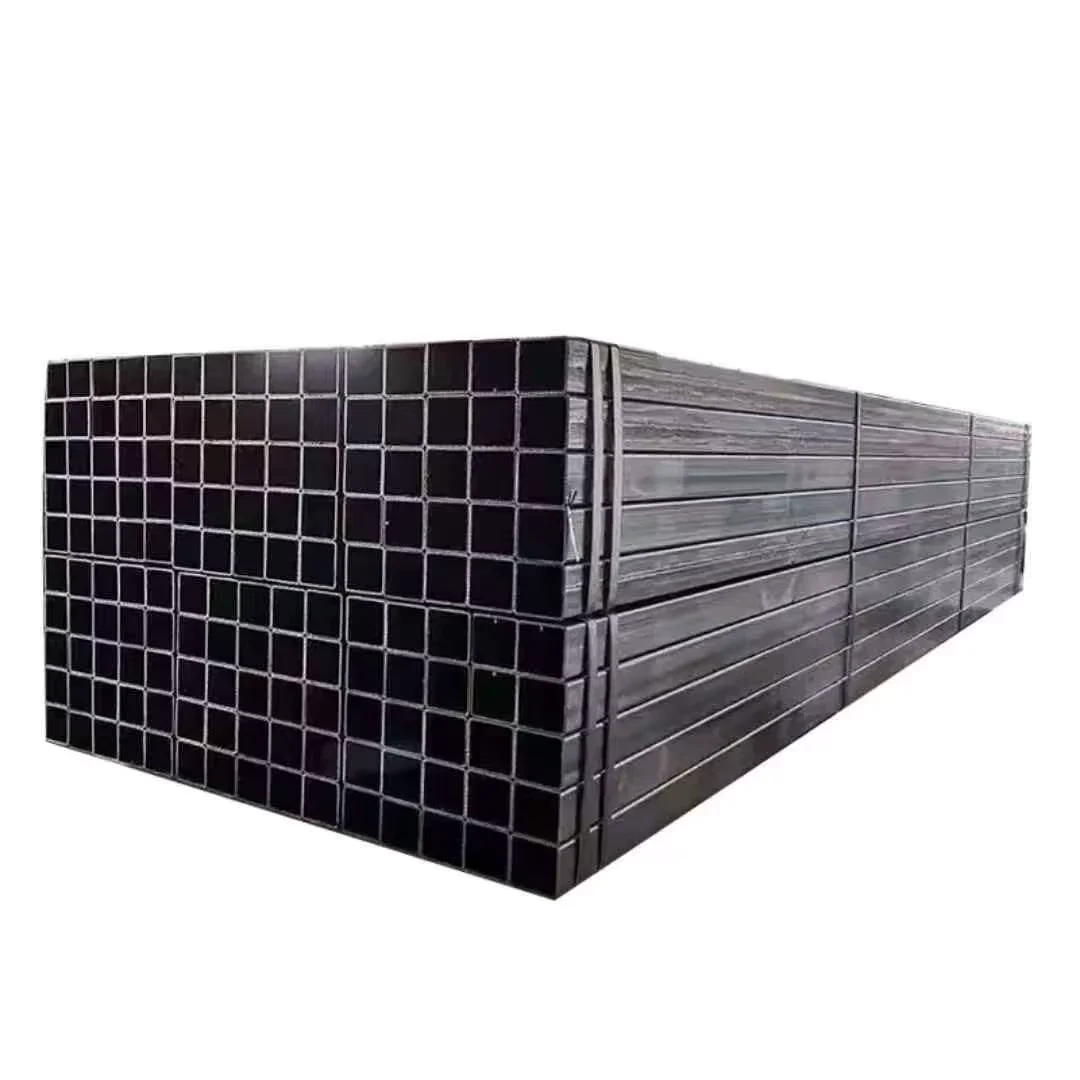

Factory-Direct Galvanized Tubes — Q235B and Q345B grades rolled, welded, and hot-dip galvanized under one roof, with zinc coating verified per batch before shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B/Q345B Galvanized Square Steel Tube |
| Product Type | Galvanized Square and Rectangular Steel Tube |
| Steel Grade | Q195, Q235, Q235B, Q345, Q345B |
| Standard | ASTM, ISO 9001, API, CE, RoHS, JIS |
| Section Shape | Square / Rectangular |
| Size Range | Customizable outer diameter / side length |
| Wall Thickness | 1–30 mm |
| Length | 6 m / 12 m / Customizable |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot-dip Galvanized (Z235 / Z450 zinc coating) |
| Tolerance | ±1% |
| Ends | Plain / Customizable |
| Application | Greenhouse structures, steel structures, construction frames, scaffolding, fluid/gas/oil pipelines, machinery |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Agriculture | Greenhouse frame structures, irrigation support posts, livestock shelter frames |
| Construction & Infrastructure | Building frames, platform structures, scaffolding systems, conveyor supports |
| Industrial Facilities | Machinery frames, equipment supports, pipeline racks |
| Fluid & Energy Transport | Gas distribution lines, water supply pipelines, oil field support structures |
What Zinc Coating Weight Decides on a Galvanized Structural Tube Order
Z235 and Z450 coatings serve entirely different service environments — specifying the wrong one means either premature rust or wasted budget.
When buyers source a Hot Galvanized Square Steel Tube Manufacturer from overseas, the zinc coating weight is often treated as a minor line item on the drawing. In reality, Z235 (approximately 35 µm) suits indoor or mild outdoor applications like greenhouse frames, while Z450 (approximately 50 µm) is needed for industrial atmospheres or coastal construction where chloride exposure accelerates corrosion [NEED_CITE: hot-dip galvanizing coating thickness classification per ISO 1461]. The gap between the two is not just a few microns — it translates directly into service life, repainting cycles, and total cost of ownership. Yet many fabricators default to the lighter coating to cut costs, leaving buyers to discover the shortfall only after rust appears on site.
How Wall Thickness and Tolerance Match Structural Frame Requirements
For greenhouse structures and building frames, the Hot Galvanized Square Steel Tube must carry both dead loads and environmental loads — wind, snow, and crop weight in agricultural settings. The ±1% dimensional tolerance on our ERW-welded tubes ensures that connection plates and bolt holes align without on-site reaming, which is critical when hundreds of joints must fit together on a tight erection schedule. Wall thickness from 1 mm to 30 mm covers everything from lightweight greenhouse purlins to heavy-duty industrial column sections. Because we control both the steel rolling and the galvanizing line, thickness consistency is verified at the black tube stage and again after galvanizing, eliminating the tolerance stack-up that occurs when buyers source black tube and galvanizing from separate suppliers.
Engineering Compliance and Certification for Global Projects
Structural projects in the EU require EN 10219 cold-formed hollow section compliance, while North American EPC firms typically specify ASTM A500 or A53. Our Q235B grade maps closely to ASTM A36 and S235JR in mechanical behavior, while Q345B aligns with ASTM A572 Grade 50 and S355JR — though formal equivalence testing should always be confirmed per project specifications [NEED_CITE: steel grade equivalence between Chinese GB, European EN, and American ASTM standards]. We supply CE-marked tubes with full mill test certificates covering chemical composition and mechanical properties, and we arrange third-party inspection through SGS or BV before shipment. For projects requiring specific end treatments, beveling, threading, or grooving can be completed before galvanizing to preserve the zinc layer on the finished product.
Understanding Q-Series Steel Grades and ERW Welding for Galvanized Tubes
The Q-series designation (Q195, Q235, Q235B, Q345, Q345B) follows the Chinese GB/T 700 standard, where the number after “Q” indicates the minimum yield strength in MPa. Q235B is the workhorse grade for general structural applications — it offers adequate strength for most building frames and greenhouse structures while maintaining good weldability and formability. Q345B steps up to higher yield strength for load-bearing columns and heavy industrial frames. ERW welding produces a clean, uniform longitudinal seam that is fully compatible with hot-dip galvanizing — the zinc bath flows evenly over the weld zone without the porosity risks that can occur with submerged arc welding on thicker sections. Hot-dip galvanizing at Z235 or Z450 coating weight provides metallurgical bonding between the zinc and the steel substrate, forming a series of zinc-iron alloy layers that resist mechanical damage during transport and erection far better than electro-galvanized or pre-galvanized alternatives.
Hidden Costs of Sourcing the Wrong Galvanized Tube
Specifying Q195 when the structural calculation demands Q345B means the frame will deflect beyond allowable limits — a failure that only surfaces during load testing or, worse, under service loads. Similarly, accepting a galvanizing job with actual coating below Z235 specification leads to premature corrosion at weld seams and cut edges, triggering costly field repainting or full member replacement [NEED_CITE: consequences of substandard galvanizing coating thickness on structural steel service life]. Negative tolerance abuse — where wall thickness consistently falls below the nominal value — reduces load capacity while the buyer pays for theoretical weight. These are not hypothetical risks; they are recurring issues in overseas procurement when buyers lack direct visibility into the mill’s production and QC process.
Procurement Confidence Through Integrated Production
As a vertically integrated Hot Galvanized Square Steel Tube Manufacturer, we operate our own steel mill with three production lines covering over 2,800 specifications in raw material inventory. This means the Q235B or Q345B black tube going into the galvanizing bath is material we rolled ourselves — with full heat-number traceability from slab to finished galvanized product. Our fabrication division handles CNC cutting, drilling, and welding to project drawings, so buyers receive finished components rather than loose tubes that require secondary processing on site. Every batch carries a zinc coating thickness report verified before release, a lesson we learned the hard way after an early West African greenhouse project failed third-party inspection and had to be returned for re-galvanizing at a cost exceeding the original freight. We also hold CE certification for EN 10210 and EN 10219 compliance, ISO 9001 quality management, and we routinely arrange SGS or BV inspection for buyers who require independent verification before shipment.
Documentation & Compliance
- Mill Test Certificate documenting Q235B or Q345B chemical composition, yield strength, and tensile properties per GB/T 700, with heat number traceability to the original slab
- CE certificate confirming compliance with EN 10210 for hot-finished structural hollow sections or EN 10219 for cold-formed sections, as specified by the project
- ISO 9001 quality management certificate covering the full production chain from steelmaking through ERW welding and hot-dip galvanizing
- SGS or BV third-party inspection report verifying zinc coating thickness (Z235 or Z450), dimensional tolerance, and surface quality before container loading
- Material traceability documentation linking each bundle’s heat number to the corresponding mill test certificate and galvanizing bath record
- Export customs documents including packing list, bill of lading, and certificate of origin formatted for the destination country’s import requirements
Packaging, Loading & Delivery

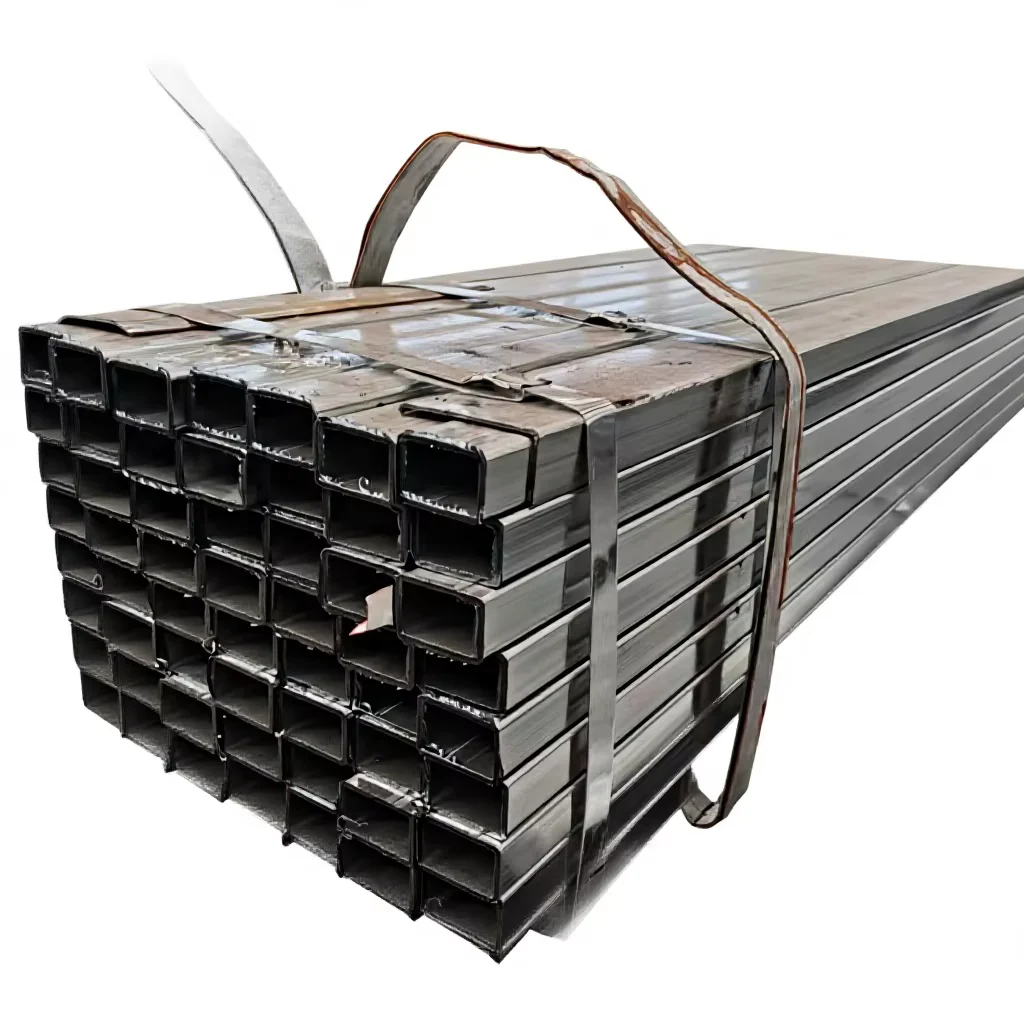

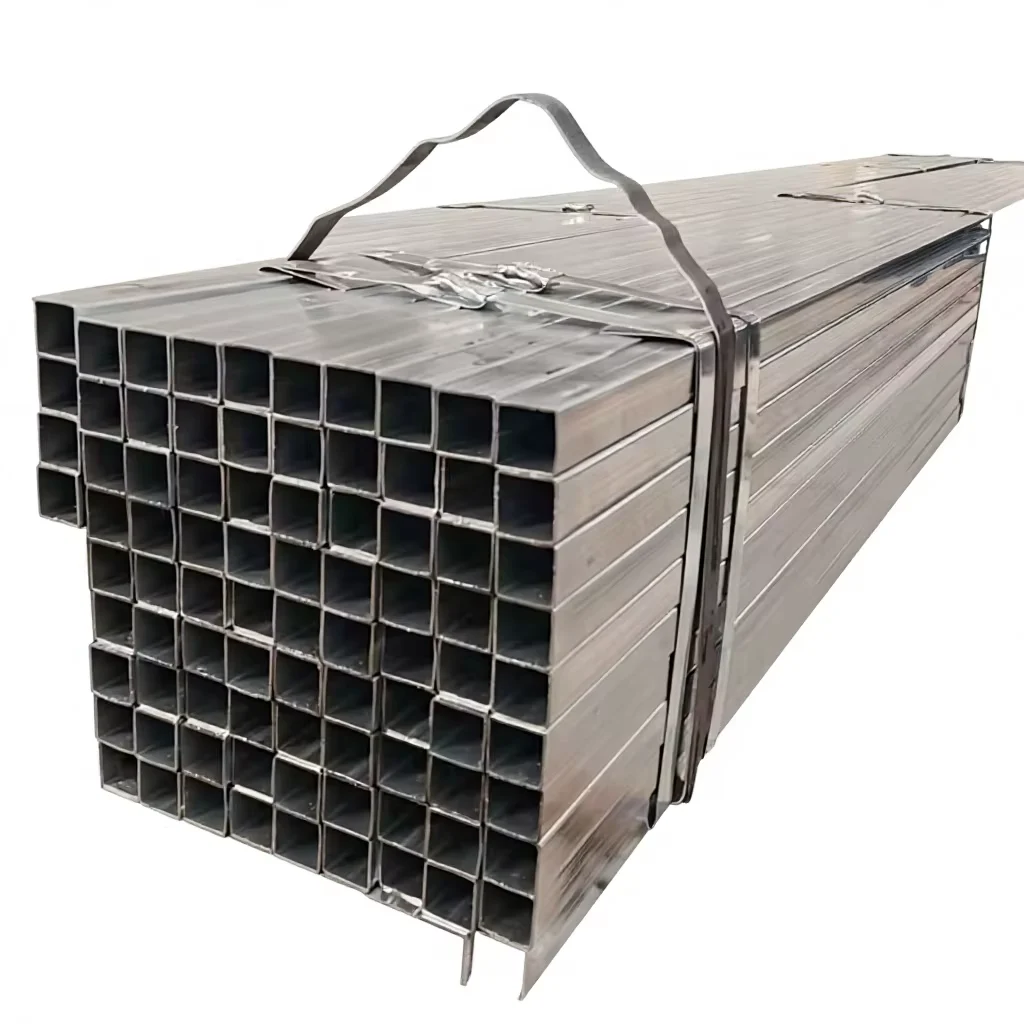

- Hot-dip galvanized square and rectangular tubes bundled with high-tensile steel strips and edge protectors to prevent zinc coating damage from friction during ocean transit
- Surface protection maintained through proper separation between tubes — no direct metal-to-metal contact that could scrape the Z235 or Z450 zinc layer
- Container loading optimized for 6 m and 12 m lengths with nested square and rectangular sections to maximize payload per 20ft or 40ft container, reducing per-ton freight cost
- Custom cut-to-length service available before galvanizing, with ends protected by plastic caps to preserve the zinc coating at tube extremities
- Heat number and steel grade (Q235B / Q345B) stenciled on each bundle tag, with color-coding by grade for rapid identification on the construction site
- FOB, CIF, and DDP delivery terms available from Qingdao or Tianjin ports, with professional lashing plans for oversized or heavy-wall shipments
Getting a Firm Quote with Full Material Transparency
Share your project drawings or a specification list covering steel grade (Q235B, Q345B, or other), section dimensions, wall thickness, length, zinc coating requirement (Z235 or Z450), and destination port. We respond within 24 hours with a detailed quotation including material, fabrication, galvanizing, packing, and freight costs — along with a shop drawing timeline and the mill test certificate format we will supply. For non-standard dimensions or custom fabrication including cutting, drilling, and welding, we provide a separate engineering review before confirming lead time.
Frequently Asked Questions
Q: What is the difference between Q235B and Q345B for galvanized square tubes?
A: Q235B is a general-purpose structural grade suitable for most building frames, greenhouse structures, and scaffolding. Q345B offers higher minimum yield strength, making it the preferred choice for load-bearing columns, heavy industrial frames, and applications where deflection limits are tight. Both grades weld well and accept hot-dip galvanizing equally.
Q: Can you supply galvanized tubes to ASTM or EN standards instead of Chinese GB standards?
A: Yes. Our Q235B grade is mechanically comparable to ASTM A36 and EN S235JR, while Q345B aligns with ASTM A572 Grade 50 and EN S355JR. We supply CE-marked products for European projects and can arrange third-party testing to confirm equivalence if your specification requires it.
Q: What zinc coating weight should I specify for my project?
A: Z235 (approximately 35 µm) is suitable for indoor or mild outdoor environments such as greenhouse frames and interior scaffolding. Z450 (approximately 50 µm) is recommended for industrial atmospheres, coastal areas, or any application where the steel will face sustained moisture or chemical exposure. We can advise based on your project’s specific environment.
Q: Do you provide third-party inspection before shipment?
A: Yes. We routinely arrange SGS, BV, or TÜV inspection covering dimensional checks, zinc coating thickness measurement, visual surface inspection, and witness of mechanical testing. The inspection report is issued before container loading and shared with the buyer for approval.
Q: What is the minimum order quantity for custom-size galvanized square tubes?
A: MOQ depends on the section size and wall thickness. Standard sizes in Q235B and Q345B are available from stock with no minimum. For custom dimensions or non-standard lengths, we will confirm the minimum rolling tonnage during the quotation stage.
Get Your Galvanized Tube Quotation with Mill Test Certificates
Send your specification list — steel grade, dimensions, coating weight, and quantity — to receive a detailed quotation and sample mill test certificate within 24 hours.
