Description

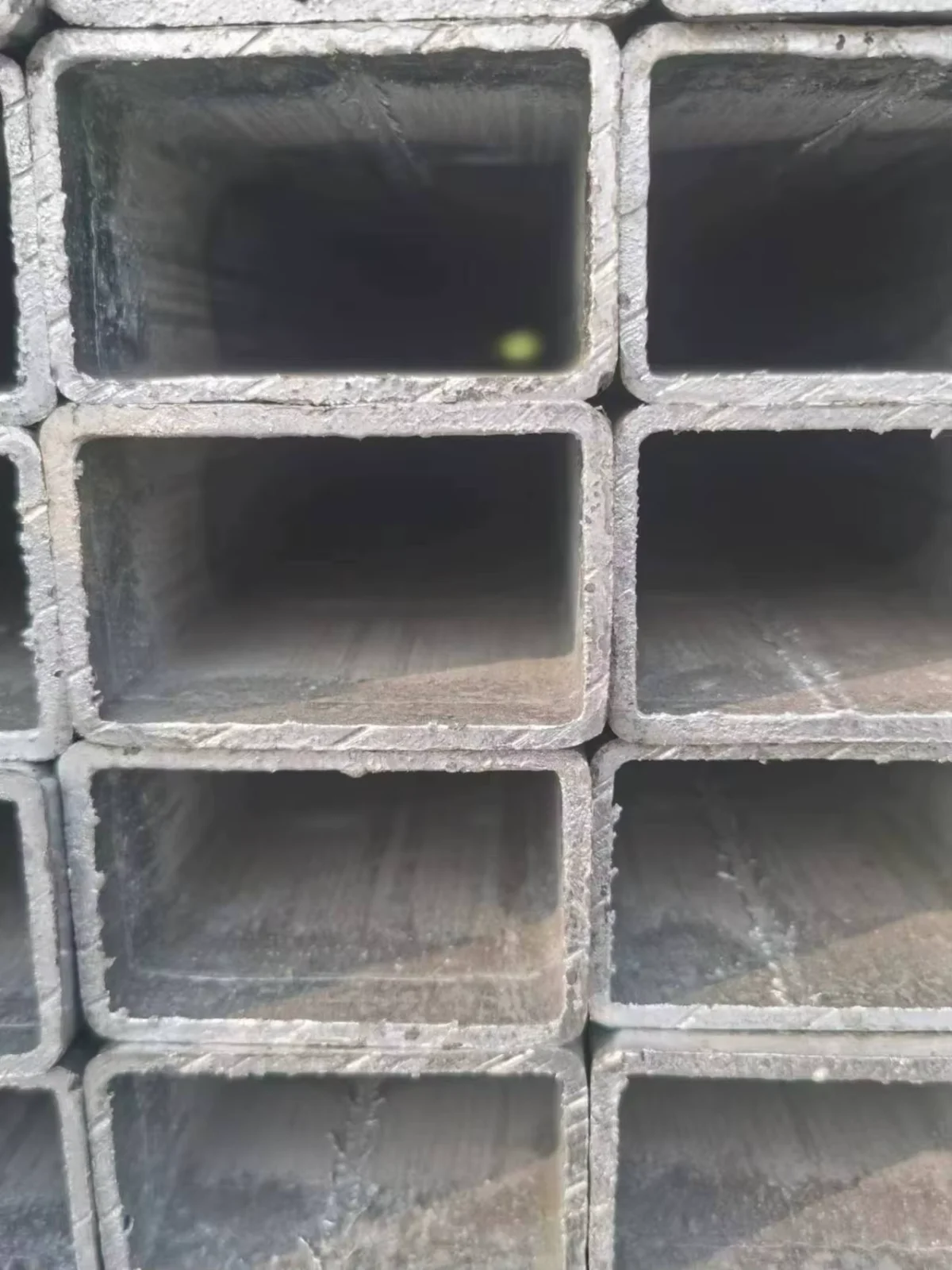

Factory-direct square welded steel tubes — Produced in our own steel mill with 3 production lines and 2,800+ raw material specifications, ensuring full material traceability from billet to finished Q235B/Q345B square welded steel tube.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B/Q345B Square Welded Steel Tube |
| Product Type | Square Welded Steel Tube |
| Steel Grade | Q235B, Q345B, Q195, A53, A106, A179, A333, A519, A500, A335, St37, St35, St52 |
| Standard | DIN, ASTM A53, A106, A179, A333, A519, A500, A335 |
| Section Shape | Square |
| Size Range | 6–900 mm outer diameter |
| Technique | Hot Rolled / Cold Rolled / Cold Drawn |
| Surface Treatment | Black / Bright / Galvanized / Painted / Oiled (Customizable) |
| Tolerance | ±1% |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Length | Standard seaworthy packing (customizable) |
| Application | Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, Oil Pipe, Chemical Fertilizer Pipe, Structure Pipe |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC & Industrial Infrastructure | Fluid transport pipelines, gas distribution lines, oil conveyance systems for refinery and chemical plant projects |
| Construction & Commercial Building | Steel frame columns, beam assemblies, truss supports for warehouses, factories, and logistics centers |
| Mechanical & Process Equipment | Hydraulic cylinder bodies, boiler tube circuits, drill string components for industrial machinery |
| Energy & Chemical Processing | Chemical fertilizer feed lines, high-temperature boiler tubes, pressure-rated gas piping systems |
What Negative Tolerance Overshoot Costs on a DIN Standard Square Welded Steel Tube Order
Tolerance is the single most audited parameter on overseas fabrication projects — and the most commonly faked.
When buyers source a DIN standard square welded steel tube from fragmented suppliers, the material often passes visual inspection at the port but fails third-party dimensional checks on site. Wall thickness running below minus tolerance means the theoretical weight on the mill test certificate no longer matches the actual delivered weight — and customs or the client’s QC team flags the discrepancy. I have seen entire container loads held at destination ports because the wall thickness deviation exceeded what EN 10219 permits, turning a routine delivery into a weeks-long dispute over re-inspection fees and replacement scheduling [NEED_CITE: EN 10219 cold-formed structural hollow sections dimensional tolerance requirements].
The root cause is almost always the same: the trading company quoting the order does not control the rolling mill, so tolerance becomes a negotiation point rather than a production standard. When the mill runs a batch slightly thin to maximize yield per ton, nobody in the supply chain catches it until the buyer’s engineer measures it with a calibrated ultrasonic gauge.
Matching DIN Standard Square Welded Steel Tube to Structural Frame and Pipeline Applications
A DIN standard square welded steel tube in Q235B or Q345B grade serves two fundamentally different engineering roles depending on the project. In structural frame applications — warehouse columns, mezzanine beams, platform supports — the square cross-section provides bidirectional bending resistance and flat-face connection geometry that simplifies bolted or welded joint detailing. In pipeline and process applications — fluid, gas, chemical fertilizer transport — the same tube family must meet pressure-rated requirements under ASTM A53 or A106, where wall thickness consistency and weld seam integrity become the governing criteria. Our vertically integrated production line rolls the raw coil, forms the square section, and completes the longitudinal weld in a single facility, which means the weld seam quality and dimensional tolerance are controlled under one quality system rather than passed between a tube mill and a separate slitter.
Engineering Compliance Requirements for Q235B/Q345B Square Sections
Structural applications in the European market require compliance with EN 10219 for cold-formed welded structural hollow sections, while North American EPC projects typically specify ASTM A500 Grade B or C for structural tubing and ASTM A53 for pressure-rated piping. The Q235B grade roughly corresponds to S235JR under EN 10025, and Q345B aligns with S355JR in yield strength class — but equivalence is not automatic acceptance. Project engineers and third-party inspectors require documented proof that the chemical composition and mechanical properties conform to the specified standard, not just a supplier’s claim [NEED_CITE: steel grade equivalence mapping between Chinese GB standards and EN/ASTM systems]. Surface treatment selection also carries compliance weight: galvanized coating must meet minimum thickness per ISO 1461 for outdoor or corrosive environments, while black or oiled finishes are acceptable for indoor structural use or where field painting is specified. For projects requiring CE marking under the European Construction Products Regulation, the fabrication facility must hold EN 1090 certification and provide Declaration of Performance documentation tied to each heat number.
Understanding Steel Grade Selection and Welding Process for Square Welded Tubes
The Q-series grading system used in Chinese steel production classifies carbon structural steel by minimum yield strength — Q235B delivers approximately 235 MPa yield, while Q345B steps up to approximately 345 MPa, making it the preferred choice for load-bearing structural members where weight optimization matters. When international projects specify ASTM equivalents, A500 Grade B covers structural applications with defined tensile and yield ranges, while A53 Type E (electric resistance welded) addresses standard pressure and mechanical piping. The welding process for square welded steel tube is typically high-frequency ERW, which produces a clean, narrow weld seam suitable for both structural and moderate-pressure service. For thicker-wall sections or demanding corrosive environments, the choice between hot-rolled and cold-rolled forming affects surface finish quality and corner radius consistency — hot-rolled products retain a mill scale surface that requires blasting before coating, while cold-rolled and cold-drawn tubes offer tighter dimensional tolerance and smoother surfaces ready for galvanizing or direct painting. The ±1% tolerance specification on our DIN standard square welded steel tube production means that across the full 6–900 mm outer diameter range, the actual dimensions remain within a narrow band that supports predictable structural calculations and accurate nesting in BIM-coordinated shop drawings.
Hidden Costs of Sourcing Square Welded Steel Tube Without Verified Certification
Ordering a DIN standard square welded steel tube based on price alone introduces risks that surface only after the material reaches the project site. Material traceability gaps — where the mill test certificate cannot be linked to a specific heat number — trigger rejection during third-party inspection, forcing either costly re-testing or complete replacement. Negative tolerance that exceeds the standard allowance means the structural engineer’s load calculations no longer apply, creating a safety liability that the general contractor must absorb. Certification mismatches between what was quoted and what arrives — a tube delivered to GB/T 6728 when the project specified EN 10219 — can delay customs clearance for weeks and stall the construction schedule [NEED_CITE: consequences of non-compliant structural steel documentation in international construction projects]. These are not theoretical risks; they are the most common claims we resolve when buyers switch from trading-company sourcing to direct mill procurement.
Why Procure DIN Standard Square Welded Steel Tube from Xin Jiyuan
Our production model eliminates the gap between raw material supplier and fabricator because we operate both the steel rolling mill and the tube fabrication workshop under a single quality management system. When you order Q235B or Q345B square welded steel tube from us, the chemical composition recorded on the mill test certificate originates from our own ladle analysis — not from a third-party coil supplier whose heat records we cannot verify. We maintain over 2,800 raw material specifications in inventory, which means standard sizes ship from stock while non-standard dimensions are rolled to order without the multi-week procurement delays typical of trading companies. Our welding procedures are qualified under AWS and EN standards, our welders hold current certifications, and every production batch receives in-process dimensional checks, NDT testing on weld seams, and surface coating thickness verification before release. For international shipments, we handle the complete export documentation package — commercial invoice, packing list, bill of lading, certificate of origin, and mill test certificates organized by heat number — and coordinate professional loading for oversized or heavy bundles to prevent transit damage.
Documentation & Compliance
- Mill test certificate documenting Q235B/Q345B chemical composition (C, Si, Mn, P, S) and mechanical properties per GB/T 700 and GB/T 1591, with heat number traceability to original ladle analysis
- CE certificate confirming EN 10219 compliance for cold-formed structural hollow sections, required for European Construction Products Regulation market access
- ISO 9001 quality management system certificate covering the full production scope from raw steel rolling through tube forming, welding, and surface treatment
- SGS or BV third-party inspection report available upon request, covering dimensional verification, weld seam NDT, and coating thickness measurement
- Material traceability documentation linking each bundle to its heat number, with test certificates organized by order line for project handover packages
- Complete customs documentation set including packing list, bill of lading, certificate of origin, and fumigation certificate for destination port clearance
Packaging, Loading & Delivery

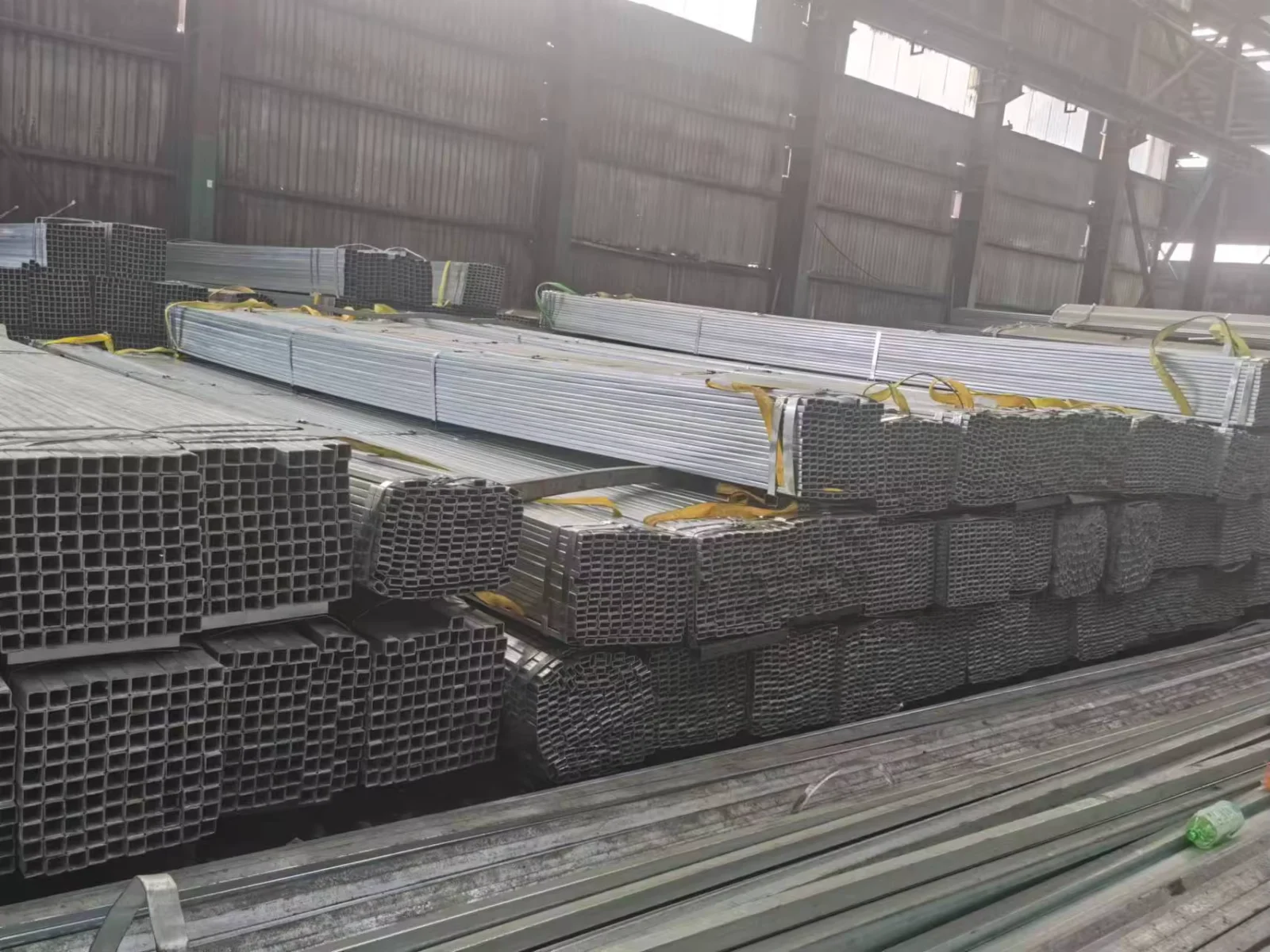

- Q235B/Q345B square welded steel tubes bundled with galvanized steel strips at regular intervals, with end caps on galvanized finishes to protect the zinc coating from edge damage during ocean transit
- Black or oiled surface finish tubes wrapped in waterproof cloth within each bundle to prevent surface oxidation during container shipping or open-deck transport
- Standard seaworthy packing configured for 20-foot and 40-foot container loading, with wooden cradle supports for tubes exceeding 6 meters in length to prevent bending during handling
- Custom cut-to-length service available per project drawing requirements, with each piece marked by heat number, steel grade, and size for on-site identification
- Bundle markings include steel grade (Q235B/Q345B), outer diameter, wall thickness, heat number, and production date in both English and Chinese for dual-language port inspection
- Delivery terms available as FOB, CIF, or DDP to major ports worldwide, with professional loading plans optimized for container weight distribution and oversized cargo securing
How to Request a Quotation for DIN Standard Square Welded Steel Tube
Submit your project specifications — including steel grade (Q235B, Q345B, or ASTM equivalent), outer diameter, wall thickness, surface treatment preference, total quantity, and destination port — and our engineering team responds within 24 hours with a detailed quotation covering material, fabrication, coating, packing, and shipping costs. For projects requiring non-standard dimensions or custom processing (cutting, punching, bending, welding), share your engineering drawings in PDF or DWG format and we provide a shop drawing review with fabrication feasibility feedback before contract signing. We confirm all certification and customs documentation requirements at the quotation stage so there are no surprises at destination port clearance.
Frequently Asked Questions
Q: How do Q235B and Q345B steel grades compare to ASTM A53 and A500 for international project compliance?
A: Q235B roughly corresponds to S235JR in the EN system and ASTM A252 Grade 1 in yield strength class, while Q345B aligns with S355JR and ASTM A500 Grade B. For pressure piping applications, ASTM A53 Type E is the standard specification. We provide grade equivalence documentation with each shipment to support project engineer review and third-party inspection approval.
Q: What material certification documents are provided with each order?
A: Every order ships with mill test certificates documenting chemical composition and mechanical properties, traceable to the original heat number from our own steel production facility. Additional documentation includes CE certificates for EN 10219 compliance, ISO 9001 quality certificates, and complete customs documents. Third-party inspection reports from SGS or BV are available upon request.
Q: Can non-standard dimensions be produced, and what is the minimum order quantity?
A: We produce square welded steel tubes across the full 6–900 mm outer diameter range with custom wall thickness and length per project requirements. The minimum order quantity is 1 Ton. For non-standard sizes, we provide a fabrication feasibility assessment and shop drawing review before contract signing.
Q: What surface treatment options are available for corrosion protection?
A: We offer black finish (mill scale or blasted), bright finish, hot-dip galvanized per ISO 1461, painted coating, and oiled surface. Surface treatment selection depends on the service environment — galvanized for outdoor or corrosive exposure, black or oiled for indoor structural use or field-painted projects.
Q: What is the typical production lead time and shipping arrangement?
A: Standard sizes ship from our inventory of over 2,800 specifications within typical production lead times. Custom dimensions and surface treatment require additional production scheduling. We coordinate professional container loading and offer FOB, CIF, or DDP delivery terms to major ports worldwide.
Get Your DIN Standard Square Welded Steel Tube Quotation
Share your project drawings, steel grade requirements, and destination port to receive a detailed quotation with mill test certificate confirmation within 24 hours.
