Description
Factory Direct U Channel Steel — vertically integrated from raw billet to hot rolled sections under one quality system.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B/Q345B U Channel Steel |
| Product Type | U/C Channel Steel |
| Steel Grade | Q195, Q235B, Q345B, SS400 |
| Standard | ASTM, AISI, JIS, EN, DIN, GB |
| Section Shape | U Channel / C Channel |
| Size Range (GB) | 100×48mm – 400×102mm (10#–40#) |
| Size Range (JIS) | 50×25mm – 250×90mm |
| Thickness | 3–24mm / customized |
| Length | 1–12m / customized (6m, 12m standard) |
| Technique | Hot Rolled |
| Surface Treatment | Galvanized / Black (as requested) |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Punching, Decoiling, Cutting |
| Application | Building structures / Vehicle manufacturing / Industrial structures |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Building & Construction | Steel frame structures, purlin supports, mezzanine floor beams |
| Industrial Infrastructure | Plant platforms, conveyor support frames, equipment bases |
| Vehicle Manufacturing | Truck chassis cross-members, trailer frame rails |
| Infrastructure Projects | Bridge walkway supports, utility pole brackets |
When Third-Party Sourcing Creates Material Traceability Gaps
Buying Q235B Q345B U Channel Steel from a trader who does not own the mill means your MTC chain starts one step removed from the heat number.
On a warehouse project in Southeast Asia, the general contractor received channel steel with mill test certificates referencing a steel mill that had no record of that heat number. The fabricator had purchased from a local stockist, who had purchased from another trader — two layers of intermediaries between the material and its origin. Replacing 40 tons of fabricated components cost the project three weeks and a penalty clause. [NEED_CITE: material traceability requirements in EN 1090 structural fabrication standard]
When you source Q235B Q345B U Channel Steel from a vertically integrated producer, the chemical composition report, mechanical test results, and dimensional inspection data all originate from a single quality management system — no gaps, no re-certification requests, no customs delays.
How Hot Rolled Channel Sections Match Structural Frame Requirements
Hot rolled Q235B Q345B U Channel Steel delivers consistent grain structure along the web and flange, which matters when these sections serve as load-bearing purlins or bracing members in portal frame buildings. The hot rolling process at temperatures above recrystallization point ensures uniform mechanical properties across the full 10#–40# size range. For projects combining channel steel with I-beams, the ±1% dimensional tolerance allows predictable connection detailing without on-site reaming. Our fabrication workshop can bend, punch, and weld these channels to project-specific shop drawings before shipment — eliminating secondary processing at the destination site.
Engineering Compliance Across GB, JIS, and International Standards
Structural engineers specifying Q235B Q345B U Channel Steel for buildings and industrial platforms need documentation that satisfies both local building codes and international fabrication standards. GB/T 706 defines the dimensional profile for Chinese-standard channels, while JIS G 3192 covers the metric equivalents used across Southeast Asian and Japanese-spec projects. When your project requires EN 1090 or AISC compliance, the steel grade equivalence between Q235B and S235JR, or Q345B and S355JR, must be clearly documented in the mill test certificate. [NEED_CITE: steel grade equivalence tables between GB Q-series and EN S-series structural steel] Third-party inspection by SGS or BV before shipment provides independent verification of chemical composition and dimensional accuracy — critical for projects in the EU, Middle East, and Africa where customs authorities increasingly require certified material documentation.
Steel Grade Selection and Hot Rolling Process Fundamentals
The Q-series grade system used in China follows a yield strength nomenclature: Q235B indicates a minimum yield strength class suitable for general structural applications, while Q345B provides higher strength for heavier load conditions. Both grades are fully killed steel with controlled manganese and silicon content, ensuring weldability without pre-heating in most fabrication scenarios. SS400, the Japanese equivalent commonly requested for Southeast Asian projects, falls within a similar strength range to Q235B with slightly different carbon upper limits.
Hot rolling these channel sections at temperatures between 900°C and 1200°C produces a microstructure with favorable toughness and ductility — essential for sections that will undergo bending, punching, or welding during fabrication. The as-rolled black finish is suitable for indoor applications or projects where the channel will receive site-applied coating. For outdoor exposure, corrosive industrial environments, or coastal installations, hot-dip galvanizing provides long-term corrosion protection with zinc coating thickness that can be verified against project specifications. [NEED_CITE: hot-dip galvanizing coating thickness standards for structural steel]
The 3–24mm thickness range across GB and JIS size profiles covers everything from light-duty purlin applications to heavy industrial platform supports, with custom lengths from 1m to 12m eliminating unnecessary field splices.
Hidden Costs of Unverified Channel Steel Procurement
Purchasing Q235B Q345B U Channel Steel without verified mill test certificates creates compounding risks: material that fails chemical composition checks during third-party inspection gets rejected at destination port, dimensional deviations outside tolerance force rework on connection details, and negative tolerance stacking reduces actual section modulus below design calculations. [NEED_CITE: consequences of negative tolerance exceedance in structural steel procurement] A single container of non-conforming channel steel does not just mean replacement cost — it means demolition of already-welded assemblies, air-freight of replacement material, and schedule penalties from the main contractor.
Why Vertically Integrated Production Eliminates Procurement Risk
XJY Structure operates its own steel production facility with dedicated hot rolling lines for channel sections, meaning every piece of Q235B Q345B U Channel Steel we supply comes with a mill test certificate traceable to our heat number — not a reseller’s re-issued document. Our fabrication workshop sits alongside the rolling mill, so when your project requires punched holes, welded brackets, or bent profiles, the processing happens under the same quality management system that produced the raw material. With over 2,800 specifications of structural steel profiles in our inventory system, we consolidate channel steel with beams, plates, and fabricated components into single-source shipments — reducing your procurement overhead and eliminating compatibility disputes between multiple suppliers. Certified welding procedures and qualified welders ensure that any fabrication work on the channel sections meets AWS and EN 1090 requirements before the material leaves our facility.
Documentation & Compliance
- Mill test certificate documenting Q235B/Q345B chemical composition and mechanical properties per GB/T 706, traceable by heat number
- Third-party inspection report from SGS or BV verifying dimensional accuracy and surface treatment compliance before shipment
- ISO 9001 certified quality management system covering the full production chain from raw material to finished channel sections
- Steel grade equivalence declaration mapping Q235B to S235JR and Q345B to S355JR for projects requiring EN standard compliance
- Complete export documentation package including packing list, bill of lading, and certificate of origin for customs clearance
- Dimensional inspection reports covering web height, flange width, thickness, and length tolerances per ±1% specification
Packaging, Loading & Delivery

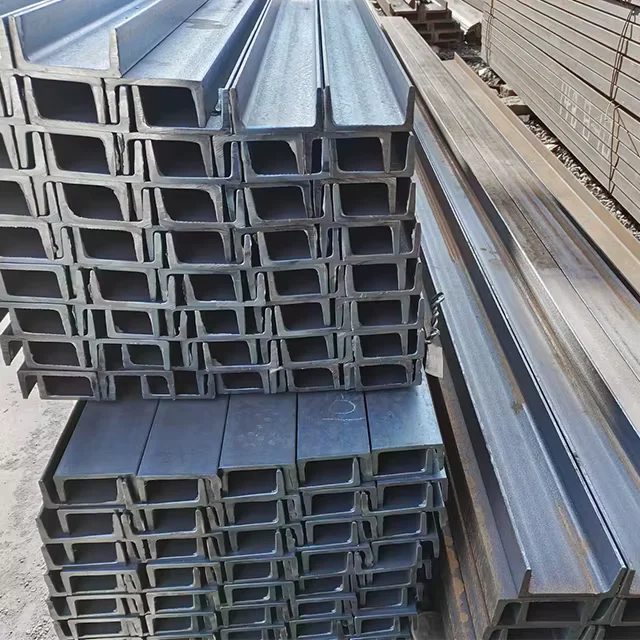

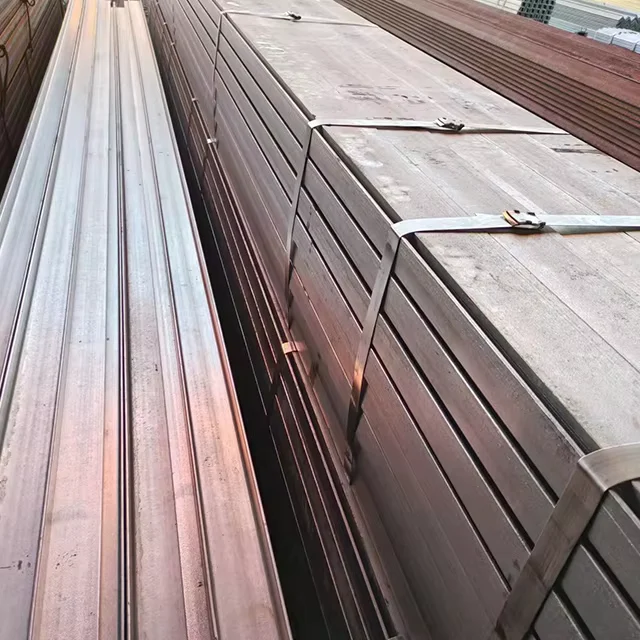

- Hot rolled black finish Q235B Q345B U Channel Steel bundled with steel strips and protected by edge guards to prevent surface damage during transit

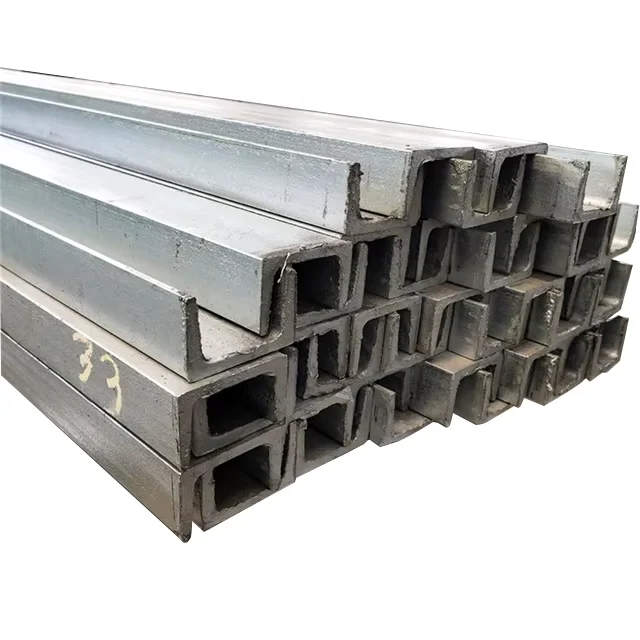

- Galvanized channel sections packed with separation layers to preserve zinc coating integrity across the full 10#–40# size range
- Container loading plans optimized for 6m and 12m standard lengths, maximizing payload while maintaining weight distribution for ocean freight
- Custom cut-to-length service available for 1–12m requirements, with each piece marked with heat number and steel grade for site traceability
- FOB, CIF, and DDP shipping terms available with professional lashing and securing for oversized channel steel shipments
-唛头 marking includes steel grade, size specification, heat number, and production date on each bundle for receiving inspection
How to Initiate Your Channel Steel Inquiry
Share your project drawings, required steel grades, size specifications, and target quantity — our engineering team responds within 24 hours with a detailed quotation covering material, processing, coating, and shipping costs. For projects requiring shop drawing coordination or custom fabrication, we provide fabrication sequencing and material optimization before production begins. Confirm your certification requirements and destination port to ensure complete documentation compliance for customs clearance.
Request Your Q235B Q345B U Channel Steel Quotation
Submit your specifications and project requirements to receive pricing, mill test certificates, and delivery timelines — our vertically integrated supply chain ensures single-source accountability from raw material to finished sections.
