Description

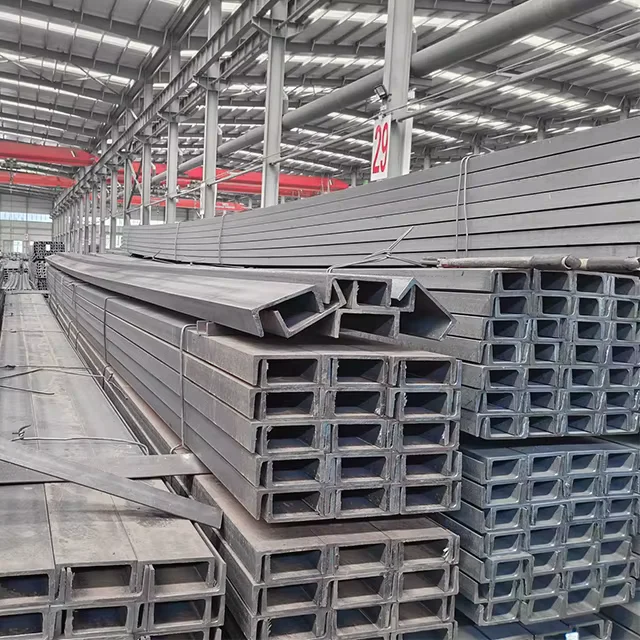

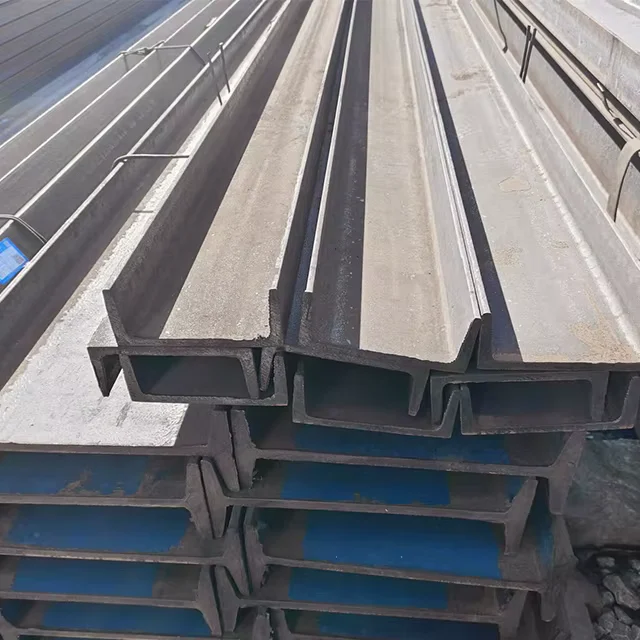

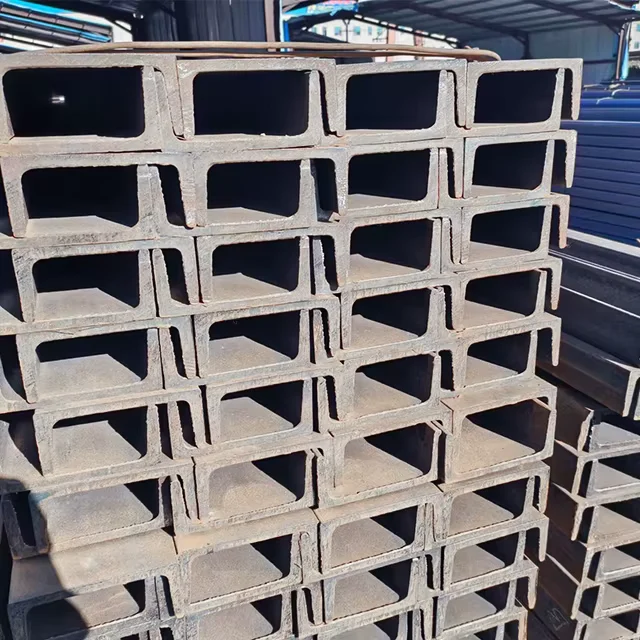

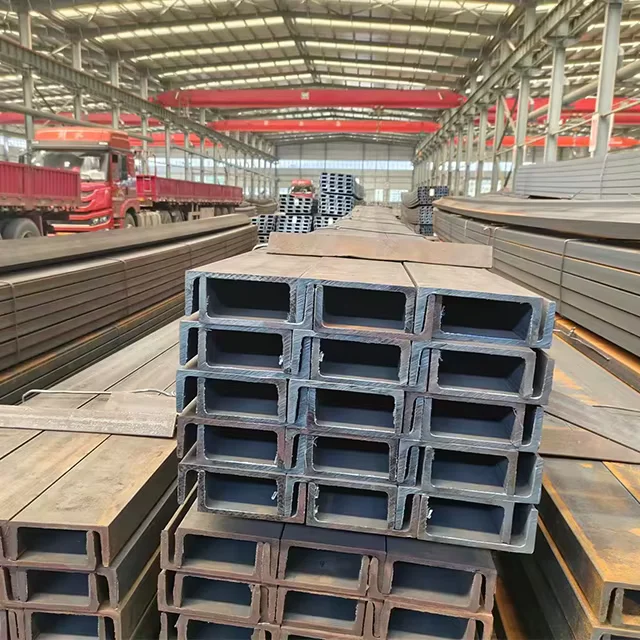

Factory-Direct Q235B U/C Channel Steel — Hot rolled sections produced from our own billet to finished profile, shipped with full mill test certificates and no trading markup.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B U/C Channel Steel |
| Product Type | U/C Channel |
| Steel Grade | Q235B, Q345B, SS400, A36 |
| Standard | ASTM, GB, JIS |
| Section Shape | U/C Channel |
| Size Range (GB) | 10#–40# (100×48 mm – 400×102 mm) |
| Size Range (JIS) | 50×25 mm – 250×90 mm |
| Length | 6–12 m (customizable for large quantities) |
| Technique | Hot Rolled |
| Surface Treatment | Per customer requirements |
| Tolerance | ±1% |
| Application | Building structures, vehicle manufacturing, industrial structures |
| MOQ | 25 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Commercial & Industrial Construction | Building frames, roof purlins, wall girts, bracing members |
| Infrastructure & Civil Engineering | Highway sign gantries, utility support frames, bridge walkway brackets |
| Vehicle & Machinery Manufacturing | Truck chassis cross-members, conveyor support rails, equipment skid frames |
| Warehousing & Logistics | Mezzanine floor beams, racking uprights, platform edge trim |
What Negative Tolerance Drift Costs on a Channel Steel Order
A ±1% tolerance window keeps bolt-hole alignment and splice-plate fit-up within spec — anything wider triggers field rework.
When overseas buyers receive hot rolled channel steel with wall thickness drifting past acceptable limits, the consequences cascade: splice plates no longer sit flush, bolt patterns shift, and welding gaps exceed WPS allowances. On a warehouse frame with hundreds of connections, even minor dimensional drift multiplies into days of on-site grinding and re-drilling. I have seen entire container loads held at port because SGS measurements flagged sections outside tolerance — the re-sorting cost alone exceeded the original freight bill. [NEED_CITE: dimensional tolerance requirements for hot rolled structural channels per GB and JIS standards]
Matching Channel Profiles to Structural Load Paths
Hot rolled Q235B and Q345B U/C channel sections carry lateral bracing loads and distribute point forces across building frames. The GB 10#–40# range covers everything from light purlin supports to heavy platform girders, while JIS 50×25 mm through 250×90 mm fills metric-spec projects across Southeast Asia and the Middle East. As a Q235B U channel steel supplier controlling both rolling and finishing, we match section modulus to your engineer’s load calculations without guessing at material origin.
Engineering Compliance Across Destination Markets
Structural channel steel ordered to GB standards ships into markets that also require ASTM A36 or JIS G-equivalent documentation. The Q235B grade maps closely to A36 in yield behavior, while Q345B aligns with higher-strength S-series specifications — but equivalence must be documented, not assumed. [NEED_CITE: steel grade equivalence tables between GB Q235B and ASTM A36] Hot rolled surfaces at ±1% tolerance accept shop welding directly; projects in corrosive environments specify galvanizing or painted finishes at the rolling stage to avoid field coating delays. Custom 12 m lengths reduce on-site splice counts, and every heat number traces back to our mill chemistry records for third-party inspection.
Reading the Steel Grade and Rolling Process
Q235B remains the workhorse grade for general structural framing — adequate yield for bracing, purlins, and non-primary members at competitive cost. Q345B steps up manganese content for higher yield, suited to heavier load paths where section weight matters. SS400 and A36 serve projects with Japanese or American spec sheets respectively, and all four grades roll from the same billet supply under controlled heating and finishing temperatures. Hot rolling produces a mill scale surface that bonds well to primer systems; the ±1% dimensional tolerance reflects finish-stand temperature control and roll-gap consistency across the 10#–40# GB and JIS size ranges. Surface treatment — bare, galvanized, or painted — is selected at order stage based on destination climate and project coating specifications.
Hidden Costs When Material Traceability Breaks Down
Ordering channel steel without verified mill certificates creates risk at every checkpoint: customs authorities in the EU and Middle East increasingly demand heat-level traceability, and missing MTCs delay clearance by weeks. [NEED_CITE: import documentation requirements for structural steel in GCC and EU markets] Undocumented grade substitutions — Q235B shipped as Q345B or vice versa — surface only during on-site welding or load testing, triggering structural engineer re-review and potential member replacement. Negative tolerance abuse inflates theoretical weight invoicing while delivering under-spec sections that fail dimensional inspection. The cost is never the steel price difference — it is the crane time, the schedule slip, and the re-inspection fees.
Why Project Teams Source as a Q235B U Channel Steel Supplier With Us
Our own steel mill produces the billet, rolls the sections, and runs the finishing line — one facility, one quality system, one set of test certificates. Every Q235B, Q345B, SS400, and A36 channel carries a heat number linked to our in-house chemistry and mechanical test records, so SGS or BV inspectors verify against original data rather than trader-supplied paperwork. The GB 10#–40# and JIS 50×25 mm–250×90 mm ranges ship from a single warehouse, consolidating mixed-size orders into full containers without cross-sourcing delays. Custom lengths up to 12 m cut to your erection sequence, and our loading crews specialize in oversized channel bundles — proper dunnage, edge protection, and weight distribution prevent transit damage and port re-handling.
Documentation & Compliance
- Mill Test Certificate documenting Q235B/Q345B chemical composition and mechanical properties per GB standards, with heat number traceability to original billet
- SGS or BV third-party inspection report covering dimensional checks, surface quality, and tolerance verification for hot rolled U/C channels
- Certificate of Origin and customs documentation (packing list, bill of lading) formatted for GCC, EU, and Southeast Asian import clearance
- Welding procedure support documents (WPS/PQR) when channel sections require fabrication add-ons at destination
- Dimensional inspection reports covering web thickness, flange width, and length tolerance per ±1% specification
- Material test records available per heat for Q235B, Q345B, SS400, and A36 grades across all GB and JIS size ranges
Packaging, Loading & Delivery
- Hot rolled Q235B/Q345B U/C channels bundled with steel strip ties and edge protectors to preserve mill scale and prevent flange deformation during ocean transit
- Custom 6–12 m lengths loaded with dunnage spacing calculated for section weight, optimizing 20ft and 40ft container payload for 25-ton MOQ shipments
- Surface treatment (bare, galvanized, or painted) protected with interleaving materials and moisture barriers based on finish type and destination humidity
- Heat number and grade stenciled on each bundle end for site identification and traceability verification upon arrival
- FOB, CIF, and DDP shipping terms available with specialized lashing plans for oversized GB 40# and JIS 250×90 mm sections
- Mixed-size orders consolidated from GB 10#–40# and JIS ranges into single containers, reducing partial-shipment freight costs
Start Your Channel Steel Inquiry
Share your project drawings, required steel grade (Q235B, Q345B, SS400, or A36), GB or JIS size range, total tonnage, and destination port. We return a detailed quotation covering material, hot rolling, surface treatment, packing, and shipping — with shop drawing support and mill test certificate samples included — within one business day.
Request Your Q235B U/C Channel Steel Quote Today
Send your specifications and receive pricing with full material documentation within 24 hours.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between Q235B, Q345B, SS400, and A36 for channel steel applications?
A: Q235B is the standard Chinese structural grade suitable for general framing and bracing. Q345B offers higher yield strength for heavier load paths. SS400 and A36 serve projects specifying Japanese and American standards respectively. All four grades are available in our hot rolled U/C channel range from GB 10#–40# and JIS 50×25 mm–250×90 mm.
Q: Can you provide third-party inspection and material certification for customs clearance?
A: Yes. Every shipment includes mill test certificates with heat number traceability. We coordinate SGS, BV, or other third-party inspections at our facility before loading, and provide complete customs documentation including certificate of origin, packing list, and bill of lading formatted for your destination market.
Q: What are the MOQ requirements for custom lengths outside the standard 6–12 m range?
A: Standard lengths of 6–12 m ship at the base 25-ton MOQ. Custom cut-to-length orders outside this range may require higher minimum quantities depending on the size and grade. Share your specific length requirements and we confirm feasibility and MOQ during quotation.
Q: What surface treatment options are available for hot rolled U/C channel steel?
A: We supply channels as hot rolled (mill scale surface), galvanized for corrosion protection, painted to your color and coating specification, or with custom surface treatment per project requirements. The finish is selected at order stage and documented in the quotation.
Q: How do you handle loading and shipping for oversized channel sections?
A: Larger GB sections (30#–40#) and JIS 250×90 mm channels require specialized dunnage, edge protection, and weight distribution plans for container loading. Our loading crews prepare oversized cargo lashing plans and provide photos before container sealing to prevent transit damage and port re-handling.
