Description

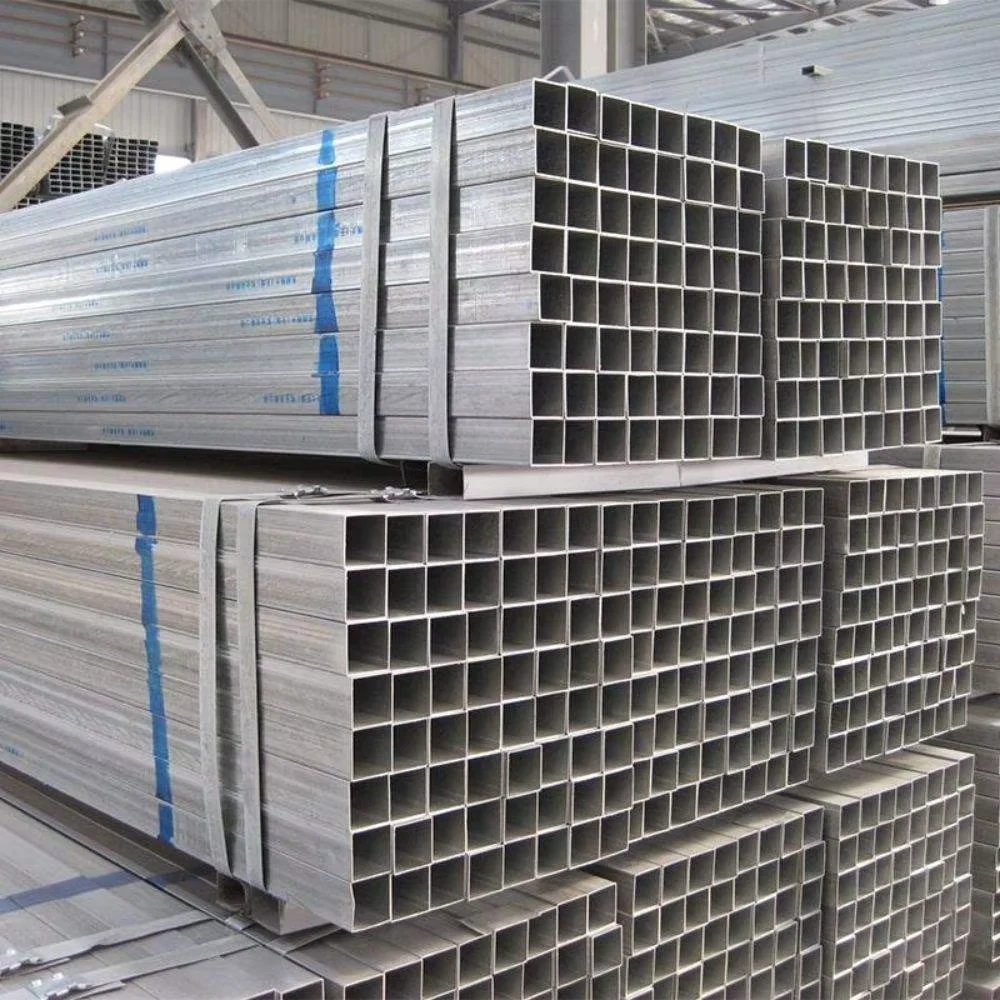

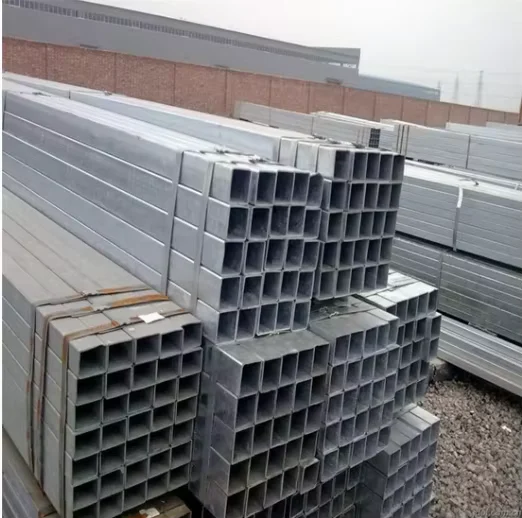

Factory-Direct Galvanized SHS — Hot dip galvanized square steel tubes produced from our own steel mill with 2,800+ specifications in stock, eliminating third-party material sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S235/S275 Galvanized Square Steel Tube |
| Product Type | Square Hollow Section (SHS) |
| Steel Grade | S235, S275, 20# |
| Standard | JIS G3466, ASTM A500, ASTM A53, BS1387, EN10255, ISO65, DIN2440, GB/T3091, GB/T13793 |
| Section Shape | Square |
| Outer Diameter / Side Length | Customized Size |
| Length | 5.8M / 6M / 11M or customized |
| Technique | Hot-dip galvanizing |
| Surface Treatment | Hot-dip Galvanized |
| Tolerance | ±1% |
| Ends | Plain ends, welding, punching, cutting, bending available |
| Application | Scaffolding, Greenhouse, Construction, Fluid Pipe, Hydraulic Pipe, Machine Parts, Structural Steel Frames |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Scaffolding | Scaffold tube systems, temporary access structures, shoring frames |
| Agricultural & Greenhouse | Greenhouse structural frames, growing support columns, ventilation ducts |
| Industrial Infrastructure | Machine base frames, conveyor support structures, platform handrails |
| Fluid & Hydraulic Systems | Low-pressure fluid conveyance, hydraulic line casings, irrigation piping |
Where Zinc Coating Thickness Decides Project Acceptance on Site
Hot dip galvanized square steel tubes must meet minimum coating weight requirements before leaving the mill — not after arrival at the job site.
I once watched a shipment of over fifty tonnes get rejected at a greenhouse project in the Middle East because the galvanizing layer measured only 45 microns against an 80-micron contract requirement. Re-galvanizing on-site was impossible, air-freighting replacement stock would have destroyed the margin, and the only fix was brushing zinc-rich primer by hand — two weeks of schedule lost. That is the kind of cost that does not show up on a quotation sheet. When sourcing a Hot Dip Galvanized Square Steel Tube Supplier overseas, buyers face a fundamental distance problem: welding quality, dimensional accuracy, and coating thickness cannot be verified by email. [NEED_CITE: hot dip galvanizing coating thickness standards for structural steel] Material traceability becomes another gap — if the fabricator sources raw steel from third-party mills, the certification chain breaks before the tube even reaches the galvanizing bath.
Matching S235 and S275 Grades to Structural and Corrosive Environments
Hot dip galvanized square steel tubes in S235 and S275 grades serve distinct load-bearing roles within the same project. S235 covers general framing where yield demands are moderate — greenhouse purlins, scaffold ledger braces, and non-primary support members. S275 steps into columns, main beams, and load-bearing frames where higher stress concentration exists. The hot dip galvanizing process bonds a metallurgical zinc-iron alloy layer to the steel substrate, providing corrosion protection that outperforms pre-galvanized or electroplated alternatives in humid, coastal, or chemically exposed environments. Our vertically integrated facility produces the raw steel, forms the square hollow section, and galvanizes in a single quality loop — meaning the heat number on the mill test certificate traces directly to the coated product you receive.
Engineering Compliance and Certification Pathways
Structural applications demand compliance with recognized frameworks. S235 and S275 grades conform to EN 10219 for cold-formed welded structural hollow sections, while ASTM A500 and A53 govern North American structural and fluid conveyance applications. JIS G3466 covers general structural square tubes for Asian-market projects. Each standard imposes different requirements on chemical composition, dimensional tolerance, and testing frequency. For EU-bound shipments, EN 1090 CE marking requires factory production control documentation and declared performance values. [NEED_CITE: EN 1090 structural steel fabrication compliance requirements] Our engineering team reviews shop drawings before fabrication begins, confirms material optimization, and prepares complete documentation packages including weld procedure specifications, dimensional inspection reports, and coating thickness certificates — reducing the risk of RFI delays and customs holds.
Understanding Hot Dip Galvanizing and Steel Grade Selection
Hot dip galvanizing immerses the formed square tube in a molten zinc bath at approximately 450°C, creating a metallurgical bond that produces a coating significantly thicker and more adhesive than pre-galvanizing methods. The resulting zinc-iron alloy layers provide sacrificial anode protection — even if the coating is scratched, zinc corrodes preferentially to the steel substrate. This makes hot dip galvanized square steel tubes the default choice for scaffolding systems exposed to repeated weather cycles and greenhouse structures operating in high-humidity conditions. S235 offers adequate strength for secondary structures at lower cost, while S275 delivers higher yield capacity for primary frames without the premium of S355. The 20# grade serves fluid conveyance applications where formability matters more than structural load. Tolerance of ±1% on dimensions ensures fit-up accuracy for bolted and welded connections, while custom lengths of 5.8M, 6M, and 11M reduce on-site cutting waste.
Hidden Costs of Unverified Material Sources
Purchasing galvanized square tubes from traders who source from unverified mills creates compounding risks. Chemical composition may not match the declared grade — a tube stamped S275 could carry S235 chemistry, passing visual inspection but failing under structural load calculations. Coating thickness may fall below specification, triggering rejection at site acceptance testing. Missing or fabricated mill test certificates create customs clearance failures in markets requiring EN 1090 or ASTM compliance. [NEED_CITE: material traceability requirements for structural steel imports] The cost of replacing rejected material after ocean freight arrival far exceeds the price difference between verified factory-direct supply and the cheapest quotation. Negative tolerance stacking — where wall thickness consistently falls at the lower limit — reduces theoretical weight per meter, creating a hidden cost that only surfaces during structural engineering review.
Why Procurement Teams Source from XJY Structure
Our facility operates three production lines with direct access to over 2,800 raw material specifications, meaning your galvanized square tubes originate from our own steel mill rather than third-party stock. Every heat carries a traceable mill test certificate documenting chemical composition and mechanical properties. Third-party inspection through SGS or BV is available before shipment for buyers requiring independent verification. Our welding procedures and welders hold AWS and EN certifications, with complete documentation including WPS, PQR, and weld maps available for any fabrication services. For projects requiring custom dimensions, our processing capabilities include CNC cutting, plasma cutting, drilling, bending, and welding — reducing secondary fabrication costs at your site. Professional loading plans address the specific challenges of oversized galvanized components, with edge protectors preserving the zinc coating during transit.
Documentation & Compliance
- Mill test certificate documenting S235/S275 chemical composition and mechanical properties per EN 10219 or ASTM A500, traceable by heat number
- CE certificate confirming EN 10210/EN 10219 compliance for EU structural applications with declared performance values
- ISO 9001 quality management certificate covering the integrated steel production and galvanizing process
- SGS or BV third-party inspection report verifying coating thickness, dimensional accuracy, and surface quality before shipment
- Material traceability documentation linking each tube bundle to its original heat number and galvanizing batch
- Complete customs documentation including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery
- Hot dip galvanized square tubes bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit and handling
- Surface protection maintained through proper stacking separation and moisture barriers, critical for S235 and S275 grades destined for humid environments
- Container loading optimized for 5.8M, 6M, and 11M lengths with weight distribution calculations maximizing payload within shipping constraints
- Custom cut-to-length services available, reducing on-site cutting waste for greenhouse and scaffolding applications requiring specific dimensions
- Each bundle marked with heat number, steel grade, size specification, and production date for site identification and traceability
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading plans for structural steel frame components
Starting Your Procurement Process
Share your project drawings, steel grade requirements, quantity, and destination port to receive a detailed quotation including material, galvanizing, processing, and shipping costs. Our engineering team will review specifications and confirm shop drawing requirements before production begins. Request mill test certificates and third-party inspection reports as part of your initial inquiry to verify compliance with your project standards.
Request Quotation and Material Certification
Submit your specifications, steel grade, and quantity to receive pricing with full mill test documentation.
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Frequently Asked Questions
Q: What is the difference between hot dip galvanized and pre-galvanized square tubes for outdoor applications?
A: Hot dip galvanizing produces a metallurgical zinc-iron alloy coating significantly thicker than pre-galvanized alternatives, providing superior corrosion resistance for scaffolding, greenhouse, and coastal construction applications where long-term exposure to moisture and weather cycles is expected.
Q: How do you ensure material traceability from the steel mill to the finished galvanized product?
A: Our vertically integrated facility produces raw steel, forms the square hollow section, and performs hot dip galvanizing in-house. Each tube carries a heat number traceable to the original mill test certificate documenting chemical composition and mechanical properties.
Q: Can you produce non-standard dimensions and lengths for specific project requirements?
A: Yes, we offer customized side lengths and produce tubes to your specified dimensions with ±1% tolerance. Processing services including CNC cutting, drilling, bending, and welding are available to reduce secondary fabrication at your site.
Q: What quality documentation is provided with each shipment?
A: Every shipment includes mill test certificates, dimensional inspection reports, coating thickness measurements, and complete customs documentation. Third-party inspection through SGS or BV is available before shipment for independent verification.
Q: How are galvanized tubes packed and protected for international ocean freight?
A: Tubes are bundled with steel strips and edge protectors to preserve the zinc coating. Loading plans account for weight distribution and oversized component handling, with surface protection measures preventing moisture damage during transit.
