Description

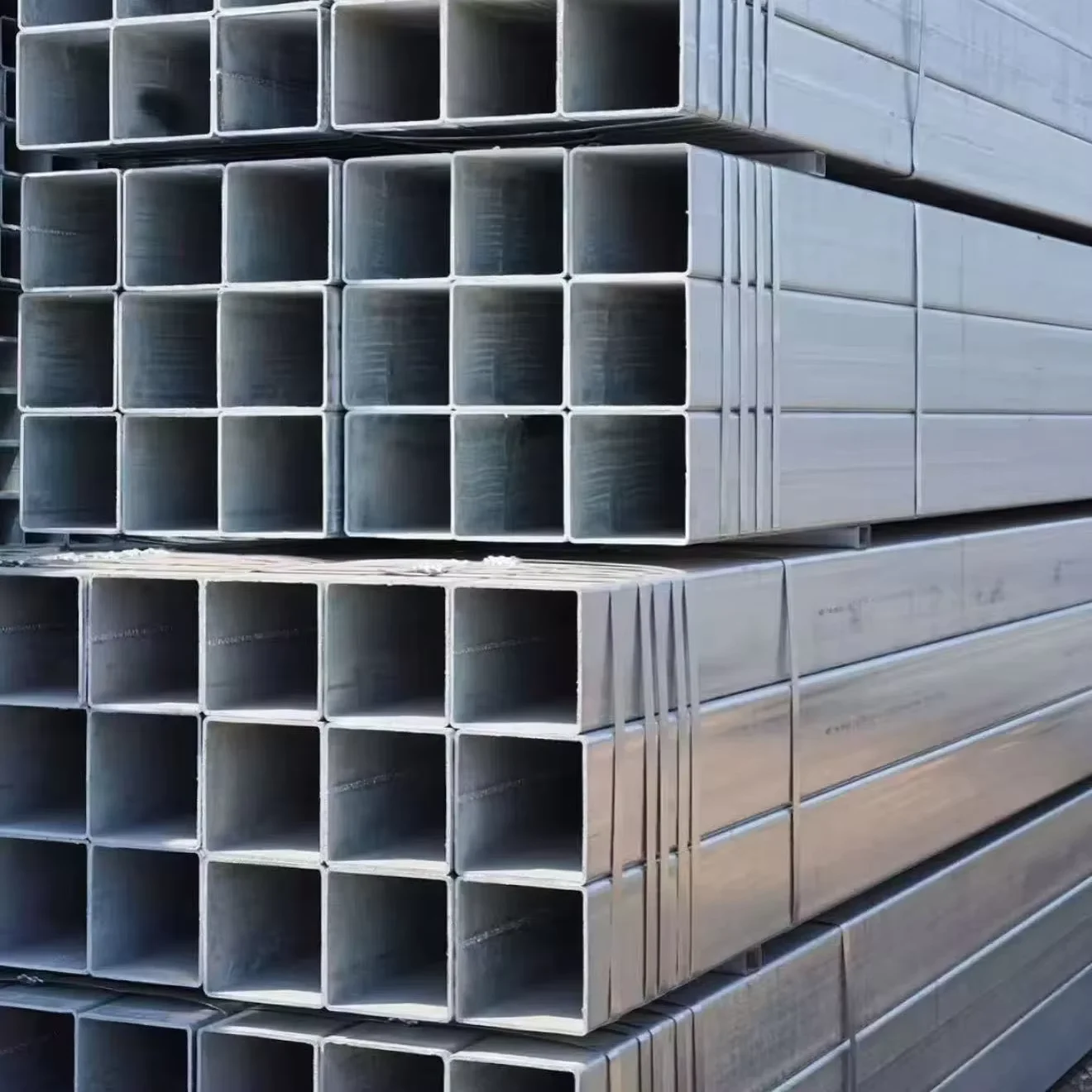

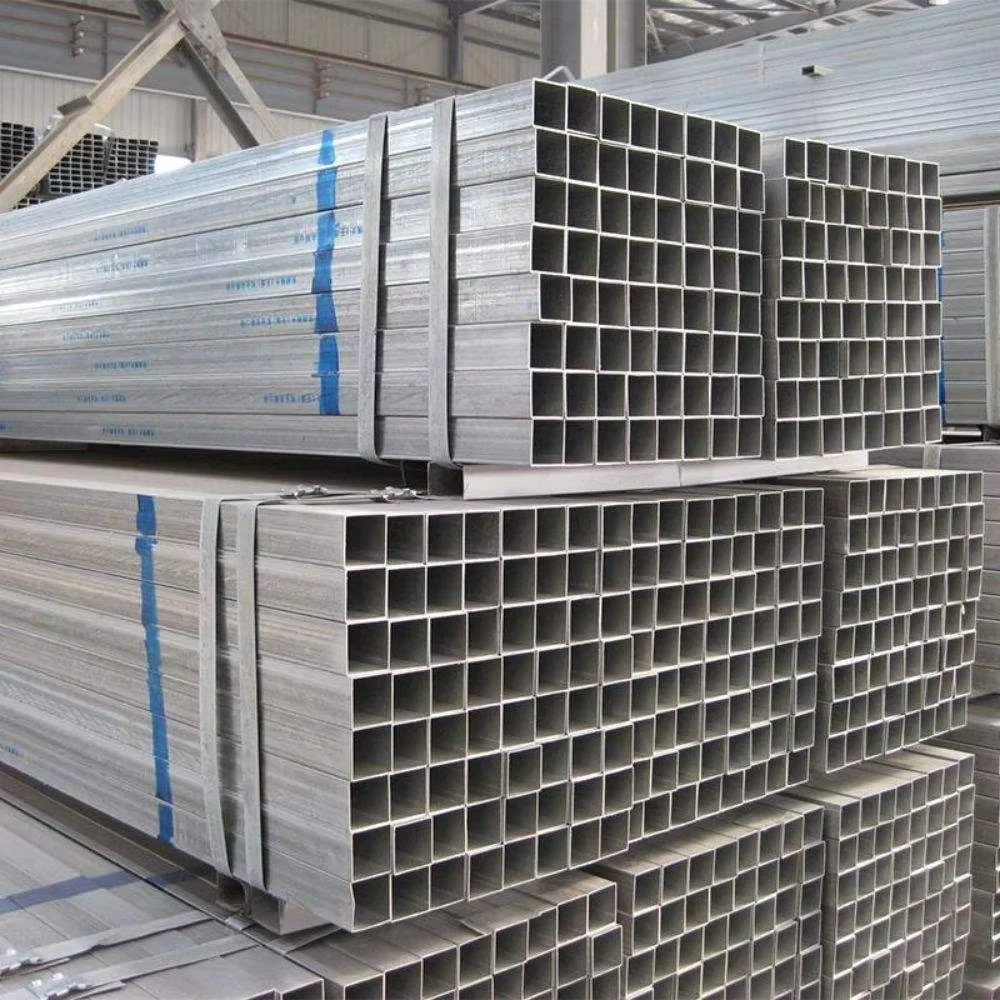

Factory-Direct Galvanized SHS/RHS Supply — Hot-dip galvanized square and rectangular steel tubes in S235, S275, SS400 grades produced and coated under one roof, eliminating third-party material gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square and Rectangular Steel Tube |
| Product Type | Square / Rectangular Steel Tube (SHS / RHS) |
| Steel Grade | S235, S275, SS400, Q235 |
| Standard | JIS G3466, GB/T 6728, ASTM A500 |
| Section Shape | Square / Rectangular |
| Size Range | 250 × 150 mm (customizable) |
| Wall Thickness | 5 mm (customizable) |
| Length | 6 m / 12 m (customizable) |
| Technique | Hot-dip Galvanized |
| Surface Treatment | Galvanized (Hot-dip) |
| Tolerance | ±1% |
| Ends | Plain / Beveled / Threaded |
| Application | Steel structures, construction frames, machinery parts, scaffolding, industrial frameworks |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Commercial & Industrial Construction | Building frames, warehouse columns, portal frame structures |
| Infrastructure & Civil Engineering | Scaffolding systems, bridge support members, signage gantries |
| Machinery & Equipment Manufacturing | Machine bases, conveyor structures, equipment platforms |
| Agricultural & Storage Facilities | Grain silo frames, cold storage structural supports, livestock housing |
What Negative Wall Tolerance Costs on a Galvanized Structural Frame Order
Actual wall thickness below specification triggers inspection rejection, customs holds, and structural recalculations.
When sourcing a galvanized square and rectangular steel tube from fragmented suppliers, the mill may push wall thickness to aggressive negative tolerance — a 5 mm nominal tube arriving at 4.2 mm actual. The client’s third-party inspector flags it at destination port. The entire batch faces sorting, partial rejection, or full return. Project schedules slip by weeks. [NEED_CITE: EN 10219 dimensional tolerance requirements for cold-formed hollow sections]
Beyond the immediate logistics cost, the engineer must recalculate load-bearing capacity based on as-delivered thickness. What was specified as S275 structural framing may no longer meet the design assumptions. Rework, replacement orders, and air-freight supplements erase any initial price saving from the original supplier.
How 250×150×5 RHS Fits Structural Frame and Scaffold Applications
The 250 × 150 mm rectangular profile delivers high moment of inertia along the strong axis, making it suitable for beam and column applications in warehouse portals and mezzanine floors. Hot-dip galvanizing provides corrosion resistance for exposed structural members in agricultural buildings and outdoor infrastructure. The galvanized square and rectangular steel tube in S235 or S275 grade meets typical European and Asian structural framing specifications, while SS400 serves projects following JIS standards. Connection detailing — whether welded flange plates or bolted end-plates — benefits from the consistent external dimensions that ±1% tolerance maintains across the full 6 m or 12 m length.
Engineering Compliance and Certification Requirements for Galvanized Hollow Sections
Structural design to EN 1993-1-1 or AISC 360 requires verified material properties and dimensional conformity. For European projects, CE marking under EN 10219 confirms that the galvanized square and rectangular steel tube meets essential mechanical and geometric criteria. [NEED_CITE: CE marking requirements for structural hollow sections under EN 10219] North American specifications referencing ASTM A500 demand mill test certificates with heat-level traceability. Hot-dip galvanizing coating thickness must comply with ISO 1461 or ASTM A123 depending on the project specification — this is verified by independent coating thickness measurement, not visual inspection. Custom cut-to-length and pre-drilling services reduce on-site secondary operations, but any thermal cutting through the zinc layer requires touch-up per SSPC-PA 18 guidelines.
Steel Grade Selection and Hot-Dip Galvanizing Process Fundamentals
S235, S275, and SS400 represent structural carbon steel grades from European and Japanese standard systems. S235 and S275 follow EN 10025 designation, where the number indicates minimum yield strength in MPa — S275 offers higher load capacity than S235 for the same cross-section. SS400 under JIS G3101 serves similar general structural purposes with comparable mechanical properties. Q235, the Chinese GB/T 700 equivalent, is widely accepted in Southeast Asian and African markets where project specifications permit substitution. [NEED_CITE: steel grade equivalence between EN 10025, JIS G3101, and GB/T 700 standards]
Hot-dip galvanizing immerses fabricated steel in molten zinc at approximately 450°C, forming metallurgical zinc-iron alloy layers bonded to the substrate. This process delivers coating thickness typically exceeding 70 μm for sections above 6 mm — far superior to pre-galvanized (sendzimir) tubes for outdoor or corrosive environments. The zinc layer sacrifices itself to protect the base steel, providing decades of maintenance-free service in atmospheric exposure conditions.
Wall thickness tolerance directly affects both theoretical weight calculations and actual structural performance. A ±1% tolerance on 5 mm wall means the delivered thickness ranges from 4.95 mm to 5.05 mm — acceptable for most structural applications. However, some producers exploit “negative tolerance” practices, consistently delivering at the lower limit or below, which compromises load capacity while maintaining theoretical weight billing.
Hidden Costs of Sourcing Galvanized Tubes Without Verified Compliance
Material substitution, missing certifications, and excessive negative tolerance create project risks that surface only at destination.
When a galvanized square and rectangular steel tube arrives without proper mill test certificates, the engineer cannot verify chemical composition or yield strength. Customs authorities in the EU, Middle East, and Australia increasingly demand EN 10219 or ASTM A500 documentation for structural steel imports — missing paperwork triggers inspection holds or outright rejection. [NEED_CITE: customs documentation requirements for structural steel imports]
Excessive negative tolerance — where actual wall thickness falls below the specified tolerance band — forces the receiving party to either accept reduced structural capacity or reject the shipment. Either outcome generates cost: structural redesign and re-approval, or return logistics and replacement orders. The initial unit price saving from an unverified supplier disappears within the first inspection failure.
Why Project Teams Source Galvanized SHS/RHS From Our Integrated Facility
Our own steel production facility operates three rolling lines with over 2,800 specifications in raw material inventory, enabling us to control the entire chain from billet to finished galvanized tube. This vertical integration means the mill test certificate traces directly from our melt shop to your shipment — no third-party material sourcing creates gaps in certification. We hold CE certification under EN 10219 for the European market, ISO 9001 for quality management, and accept SGS or BV third-party inspection at any production stage.
Our fabrication division provides cutting, drilling, welding, and bending services per project drawings, reducing your on-site labor requirements. For the 250 × 150 × 5 galvanized rectangular tube specifically, we maintain standard production runs while accommodating custom lengths and end preparations. Professional loading plans maximize container utilization for 6 m and 12 m lengths, and our export documentation team handles certificates of origin, packing lists, and bills of lading for smooth customs clearance in over 50 destination countries.
Documentation & Compliance
- Mill test certificate documenting S235, S275, SS400, or Q235 chemical composition and mechanical properties per EN 10025 / JIS G3101 / GB/T 700, with heat number traceability
- CE certificate confirming EN 10219 compliance for structural hollow sections supplied to European Economic Area projects
- ISO 9001 quality management system certificate covering the full production process from raw material reception to finished galvanized tube dispatch
- SGS or BV third-party inspection report verifying dimensional accuracy, coating thickness per ISO 1461, and visual quality before shipment
- Material traceability documentation linking each bundle to specific heat numbers, enabling project-level quality record compilation
- Export customs documents including packing list, bill of lading, and certificate of origin formatted per destination country requirements
Packaging, Loading & Delivery
- Hot-dip galvanized S235/S275/SS400 rectangular tubes bundled with high-tensile steel strips and edge protectors to preserve zinc coating integrity during ocean transit
- Surface protection maintained through careful handling protocols — galvanized tubes separated by rubberized spacers to prevent transport abrasion
- Container loading optimized for 6 m and 12 m standard lengths of 250 × 150 mm RHS, with professional lashing plans maximizing payload per 20ft and 40ft containers
- Custom cut-to-length service available per project drawings, with bundled and labeled bundles indicating exact piece count and dimensions
- Heat number and steel grade stenciled on each tube end, with bundle tags matching mill test certificate references for site identification
- FOB, CIF, and DDP delivery terms available, with door-to-door logistics coordination to project sites across the Middle East, Southeast Asia, Africa, and Europe
How to Request a Quotation for Galvanized SHS/RHS
Submit your project specifications including section dimensions, wall thickness, steel grade preference, total tonnage, and destination port. We respond within one working day with pricing, production lead time, and available mill test certificate formats. For custom lengths, end preparations, or fabrication services beyond standard supply, share your shop drawings for detailed assessment.
