Description
Direct Mill Supply with Full Coating Documentation — Every hot-dip galvanized square and rectangular steel tube ships with zinc thickness test reports and heat-number traceability from our own steel production line.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S235 S275 SS400 Galvanized Square and Rectangular Steel Tube |
| Product Type | Galvanized Square and Rectangular Steel Tube |
| Steel Grade | 20#, S235, S275, SS400 |
| Standard | JIS, ASTM A53 |
| Section Shape | Square / Rectangular |
| Size Range | 20mm × 30mm (customized sizes available) |
| Length | 6m, 12m (5.8m, 11m available) |
| Technique | Hot-dip Galvanizing |
| Surface Treatment | Galvanized (Hot-dip) |
| Tolerance | ±1% |
| Ends | Plain, Beveled, Threaded, Grooved |
| Application | Steel structures / Construction frames / Machinery parts / Fluid transport / Scaffolding / Furniture |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, scaffolding systems, support structures for warehouses and platforms |
| Industrial Facilities | Machinery frames, conveyor structures, equipment support bases |
| Steel Structure Fabrication | Column and beam assemblies, truss components, connection brackets |
| Furniture & Interior | Display racks, shelving systems, decorative structural elements |
Where Zinc Coating Thickness Decides Site Acceptance for a Galvanized Square and Rectangular Steel Tube Supplier
Underspecified galvanizing fails third-party inspection and triggers expensive air-freight replacements.
Procurement teams sourcing galvanized square and rectangular steel tube from overseas fabricators frequently encounter coating thickness discrepancies that only surface at destination port inspection. A batch specified at 60μm minimum zinc coating arriving at 35μm means the entire container gets flagged — not just individual pieces. The cost of air-freighting replacement sections to keep an EPC project on schedule typically triples the original material cost. This is not a rare occurrence; fragmented supply chains where the fabricator sources raw tubes from third parties create gaps in coating process control and material certification chains. [NEED_CITE: hot-dip galvanizing coating thickness standards for structural steel]
Matching 20mm × 30mm GI Tubes to Structural Frame and Scaffolding Applications
The 20mm × 30mm rectangular profile serves as a primary member in light-duty scaffolding systems and secondary framing for warehouse mezzanines where space constraints demand compact section geometry. Hot-dip galvanizing provides continuous zinc coverage including interior corners and weld zones, essential for outdoor exposure in tropical and coastal project sites across Southeast Asia and West Africa. As a galvanized square and rectangular steel tube supplier operating integrated steel production and fabrication, we control the galvanizing bath parameters directly rather than subcontracting to external coating facilities, ensuring coating uniformity across every length.
Engineering Compliance and Certification Requirements for Galvanized Structural Tubes
Structural frames designed under EN 1993 or AISC specifications require documented proof that hollow sections meet dimensional tolerance and material property requirements before erection begins. Hot-dip galvanized tubes for load-bearing applications must carry mill test certificates traceable to heat numbers, with coating thickness verified per ISO 1461 or ASTM A123 depending on the project specification regime. For European market delivery, CE marking under EN 10219 demonstrates compliance with cold-formed structural hollow section requirements, while North American projects typically reference ASTM A500 or A53 with corresponding testing protocols. Third-party inspection by SGS or BV before shipment provides independent verification that both base metal properties and zinc coating thickness meet contractual requirements. [NEED_CITE: EN 10219 cold-formed structural hollow section certification requirements]
Steel Grade Selection and Hot-Dip Galvanizing Process Fundamentals
S235 and S275 represent European standard structural grades where the numerical designation indicates minimum yield strength in MPa, with S275 providing higher load-bearing capacity for applications requiring reduced section sizes. SS400 from JIS standards offers comparable general structural performance, while 20# carbon steel serves lighter-duty applications where forming and welding take priority over ultimate strength. Hot-dip galvanizing immerses fabricated steel in molten zinc at approximately 450°C, creating metallurgical zinc-iron alloy layers bonded to the substrate that provide both barrier protection and galvanic sacrificial corrosion resistance. The process covers all exposed surfaces including interior tube cavities when proper venting and drainage holes are incorporated into the design, ensuring complete protection against atmospheric corrosion for outdoor structural applications.
Hidden Costs of Procuring Galvanized Tubes Without Verified Coating Documentation
Material substitution where S235 grade is supplied as lower-grade steel without documentation creates structural safety risks that only manifest under load testing or during extreme weather events. Missing mill test certificates delay customs clearance in markets requiring mandatory import inspection, holding containers at port and generating demurrage charges that exceed the original material value. Coating thickness below specification accelerates corrosion onset, forcing premature maintenance or complete structural replacement years before design life expectations. [NEED_CITE: consequences of non-compliant steel material certification in construction projects]
Why Project Procurement Teams Source from an Integrated Mill and Fabricator
Our own steel production facility with three rolling lines and over 2,800 specification options eliminates the material sourcing gap between raw steel supplier and galvanizing contractor, providing single-point accountability for both base metal properties and coating quality. Every heat of steel carries full chemical composition and mechanical property documentation traceable through the galvanizing process to finished bundle identification. Certified welding procedures under AWS and EN standards with qualified welders ensure that any fabrication work — cutting, drilling, welding — maintains coating integrity through proper touch-up procedures. Complete quality documentation packages including WPS, PQR, dimensional inspection reports, and coating thickness measurements travel with each shipment for immediate site verification. Professional loading planning for oversized and heavy fabricated components prevents coating damage during ocean transit through proper blocking, bracing, and edge protection.
Documentation & Compliance
- Mill test certificate documenting S235 and S275 chemical composition and mechanical properties per JIS and ASTM A53 standards with heat number traceability
- Third-party inspection reports from SGS or BV verifying zinc coating thickness per ISO 1461 and dimensional accuracy per contractual tolerance
- Material traceability documentation linking each bundle to specific production heat numbers and galvanizing batch records
- Customs clearance documentation including commercial invoice, packing list, bill of lading, and certificate of origin formatted for destination port requirements
- Welding procedure specifications and welder qualification records for any fabricated components requiring certified joining procedures
Packaging, Loading & Delivery

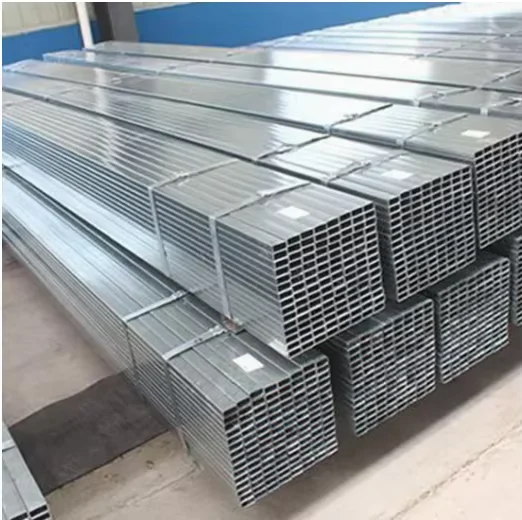

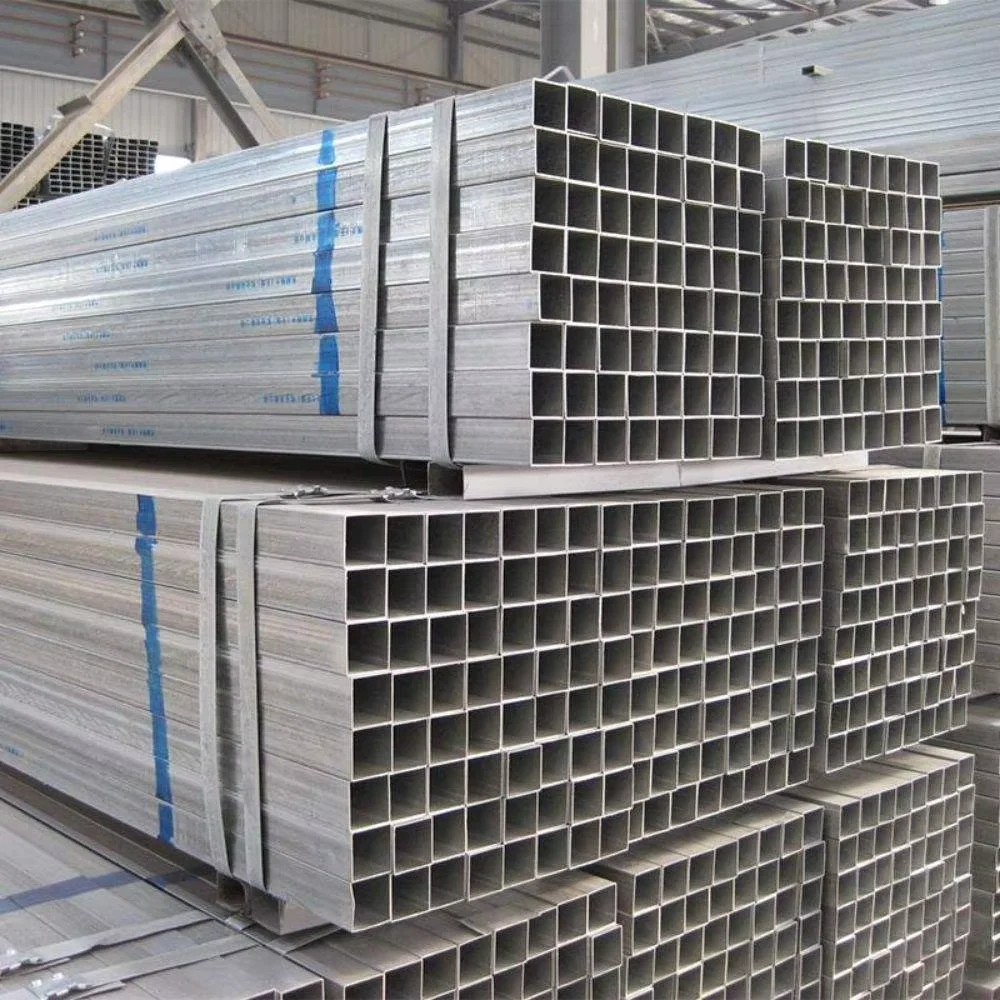

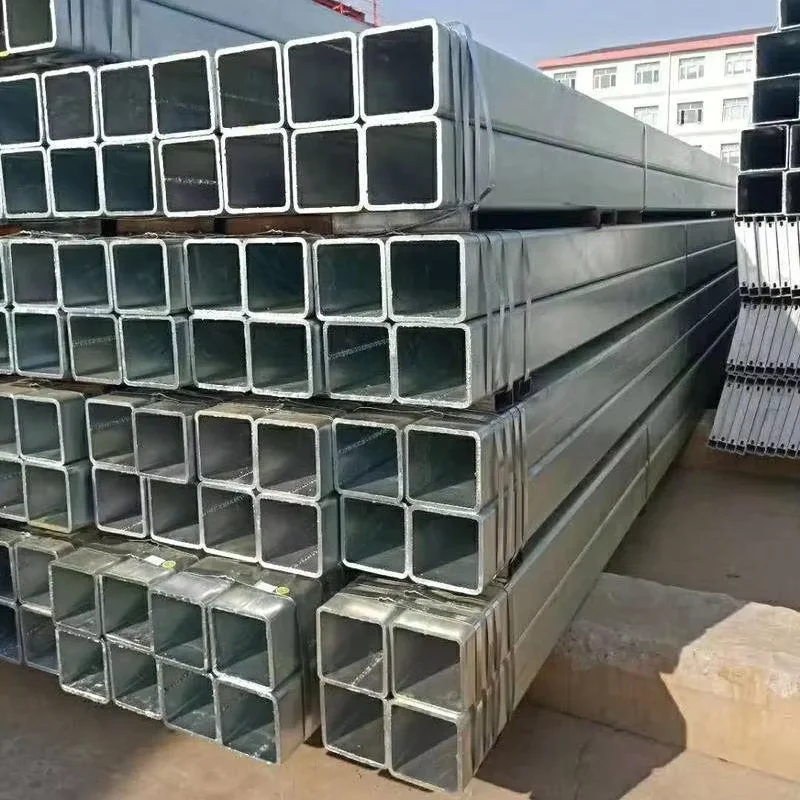

- Hot-dip galvanized 20mm × 30mm rectangular tubes bundled with steel strips and edge protectors to preserve zinc coating integrity during handling and ocean transit
- Seaworthy packaging with waterproof wrapping for 6m and 12m lengths, preventing moisture contact that could cause white rust formation on fresh galvanized surfaces
- Container loading optimization for 5.8m and 11m cut lengths maximizing 20-foot and 40-foot container capacity while maintaining bundle stability during transport
- Heat number and steel grade markings stenciled on each bundle end for immediate site identification and traceability verification upon arrival
- FOB, CIF, and DDP shipping terms available with professional export documentation and real-time tracking until project site delivery
Initiating Your Procurement Inquiry for Galvanized Square and Rectangular Steel Tube
Submit project drawings with specified steel grades, dimensions, quantities, and destination port to receive detailed pricing including material, galvanizing, packaging, and freight costs within 24 hours. Our engineering team reviews shop drawings for material optimization and fabrication sequencing before production begins, ensuring dimensional accuracy and coating coverage for your specific application requirements. Confirm third-party inspection requirements and certification documentation needs during the quotation stage to avoid delays during customs clearance or site acceptance.
Frequently Asked Questions
Q: What is the minimum order quantity for 20mm × 30mm galvanized rectangular tubes?
A: The minimum order quantity is 1 Ton, accommodating both small project requirements and larger procurement packages for warehouse and infrastructure construction.
Q: Can you provide galvanized tubes in custom lengths shorter than 6 meters?
A: Yes, we offer cutting services to produce 5.8m and 11m lengths as well as custom cut-to-size requirements, with the cut ends receiving zinc-rich paint touch-up to maintain coating protection.
Q: How do you ensure zinc coating thickness meets project specifications?
A: Each production batch undergoes coating thickness testing per ISO 1461 standards, with results documented in the quality package accompanying every shipment. Third-party inspection by SGS or BV is available for independent verification.
Q: What steel grade equivalents do you supply between European and Japanese standards?
A: We stock S235 and S275 per European standards alongside SS400 per JIS standards, with 20# carbon steel available for lighter-duty applications. Material equivalence documentation is provided upon request to support design specification compliance. [NEED_CITE: steel grade equivalence between EN and JIS standards for structural applications]
Q: Do you handle export documentation and customs clearance requirements?
A: Yes, we provide complete export documentation including commercial invoice, packing list, bill of lading, certificate of origin, and mill test certificates formatted for destination port requirements across EU, Middle East, Southeast Asia, and African markets.
Request Your Galvanized Square and Rectangular Steel Tube Quotation
Send your project specifications including steel grades, dimensions, quantities, and destination port to receive detailed pricing with mill test certificates within 24 hours.
