Description
Direct Mill Supply — Raw steel to finished galvanized square tubes under one quality system.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S235 S275 SS400 Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube (SHS) |
| Steel Grade | 20#, S235, S275, SS400 |
| Standard | JIS, ISO 9001, API |
| Section Shape | Square |
| Size Range | 40×40mm to 100×100mm, customized sizes available |
| Wall Thickness | 3mm (12 Gauge) |
| Length | 6m, 12m, customized (5.8m / 6m / 11m available) |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot-dip Galvanized |
| Tolerance | ±1% |
| Ends | Plain, Beveled, Threaded, Grooved |
| Application | Steel structures / Construction frames / Machinery parts / Hydraulic systems / Fluid transport |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, scaffolding systems, column supports |
| Industrial Facilities | Machinery frames, conveyor structures, platform supports |
| EPC & Steel Structure Contractors | Prefabricated structural assemblies, connection nodes |
| Hydraulic & Mechanical Systems | Hydraulic cylinder housings, equipment frames |
Coating Thickness Variance Is Where Galvanized Tube Orders Fail Site Inspection
Hot-dip galvanizing must deliver uniform zinc coverage across all four faces and corner zones — anything less invites premature corrosion claims.
Overseas buyers sourcing galvanized square steel tube supplier products from fragmented supply chains face a recurring problem: coating thickness readings that pass at the flat face but drop below specification at the corners and weld seams. When a third-party inspector pulls out an elcometer on site, inconsistent zinc coverage becomes an immediate rejection trigger. Material certificates that cannot trace back to a single heat number compound the problem, turning a coating dispute into a full lot rejection. [NEED_CITE: hot-dip galvanizing coating thickness requirements for structural steel]
Matching Structural Load Paths and Corrosive Environments
A galvanized square steel tube in S275 grade serves load-bearing frames where higher yield strength reduces section weight without sacrificing structural capacity. The hot-dip zinc coating protects against atmospheric corrosion in outdoor construction and industrial environments, extending service life without ongoing maintenance. ERW welding with ±1% dimensional tolerance ensures that connection plates and bolt-hole patterns align during assembly — critical when EPC contractors need components that fit first-time on site. Our own steel mill produces the raw material, so every tube’s chemistry and mechanical properties trace back to a single heat, eliminating the material gap that third-party sourcing creates.
Engineering Compliance and Certification Requirements
Structural projects in the EU and Middle East require documented compliance with fabrication standards, and galvanized square steel tube supplier documentation must include weld procedure records, dimensional inspection reports, and coating thickness measurements. [NEED_CITE: EN 1090 structural steel fabrication execution requirements] Steel grade selection directly affects load calculations — S235 serves general construction frames, while S275 and SS400 handle higher stress applications in machinery and industrial structures. Custom lengths of 5.8m, 6m, and 11m reduce on-site cutting waste, and end preparations such as beveled or grooved ends support direct welding or mechanical connections without secondary processing. Third-party inspection through SGS or BV validates compliance before shipment, giving project owners independent verification.
Understanding Steel Grades and Hot-Dip Galvanizing Process
The S-series grades (S235, S275) follow European EN standards where the number indicates minimum yield strength in MPa — S275 delivers higher load capacity than S235, allowing engineers to specify thinner walls for the same structural performance. SS400, a Japanese JIS grade, offers comparable tensile properties and is widely specified across Southeast Asian and Middle Eastern projects. The 20# grade, a Chinese carbon structural steel, serves general-purpose applications where specific international grade equivalence is not required. Hot-dip galvanizing immerses the ERW-welded tube in molten zinc, creating a metallurgical bond that covers all surfaces including the internal bore — this differs fundamentally from pre-galvanized (sendzimir) tubes where only the outer surface receives zinc protection. The ±1% tolerance on the 3mm wall thickness ensures that theoretical weight calculations match actual delivered weight, preventing disputes over short-weight claims. [NEED_CITE: steel grade equivalence between JIS SS400 and EN S275]
Hidden Costs of Sourcing from Unverified Suppliers
Purchasing galvanized square steel tube from traders who source from multiple uncontrolled mills creates three categories of hidden cost. First, material certificates that cannot be traced to a specific heat number fail customs inspection in countries requiring full traceability documentation. Second, wall thickness that exceeds negative tolerance limits reduces structural load capacity — a 3mm tube delivered at 2.7mm may pass visual inspection but fails engineering calculations under load. Third, inconsistent zinc coating thickness accelerates corrosion at unprotected zones, leading to warranty claims and premature replacement costs that far exceed the initial purchase price difference. [NEED_CITE: structural steel material traceability requirements for international projects]
Why Project Teams Source Through Our Integrated Mill
Our facility operates three steel production lines with over 2,800 specification combinations, meaning the raw material for your galvanized square steel tube order is produced, welded, galvanized, and inspected within a single controlled environment. We maintain our own理化实验室 where every heat undergoes chemical composition analysis and mechanical testing before release — the mill test certificate you receive documents actual test results, not generic specifications. Our welding procedures and welders hold AWS and EN certifications, and our quality documentation package includes WPS, PQR, weld maps, and coating thickness reports as standard deliverables. For projects requiring third-party validation, we coordinate SGS or BV inspection at our facility before shipment. Custom lengths and end preparations are processed in-house, eliminating the secondary handling that introduces dimensional errors. Professional loading teams handle oversized and heavy bundles with specialized lashing plans that protect the galvanized coating during ocean transit.
Documentation & Compliance
- Mill test certificate documenting S235/S275/SS400 chemical composition and mechanical properties per heat number
- ISO 9001 quality management system certificate covering full production from raw steel to galvanized finish
- SGS or BV third-party inspection report verifying dimensional accuracy and coating thickness
- Material traceability report linking each tube to its original heat number and production date
- Coating thickness measurement report with readings at multiple points per tube
- Complete export documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

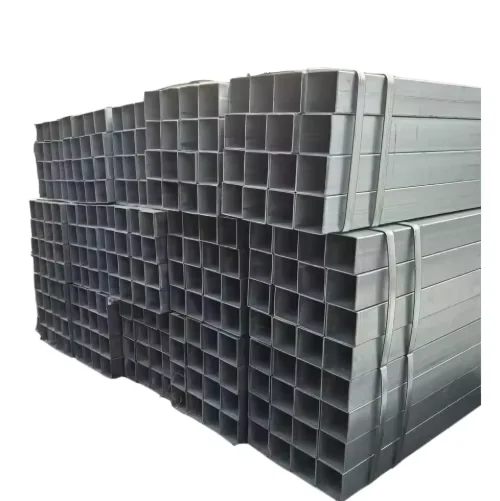

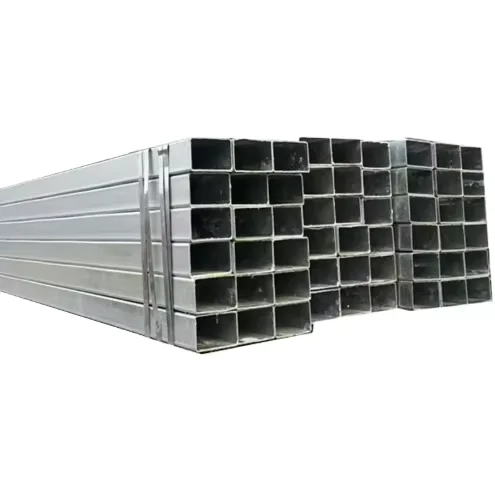

- Hot-dip galvanized S235/S275/SS400 square tubes bundled with steel strips and edge protectors to preserve zinc coating integrity
- Seaworthy packaging with waterproof wrapping for 6m and 12m lengths during ocean freight
- Container loading optimization for 40×40mm to 100×100mm sections maximizes payload per 20ft or 40ft container
- Custom cut lengths of 5.8m, 6m, and 11m marked with heat number and steel grade for site identification
- FOB, CIF, and DDP delivery terms available with full export documentation and tracking
Starting Your Procurement Process
Share your project specifications including steel grade (S235/S275/SS400), dimensions, wall thickness, length requirements, and destination port — we respond within 24 hours with pricing, production schedule, and mill test certificate samples. For non-standard sizes or custom end preparations, our engineering team reviews your drawings and provides fabrication feasibility confirmation before contract signing. Confirm your certification requirements and third-party inspection needs so we include all documentation in the initial quotation.
Request Quotation with Mill Test Certificate
Submit your galvanized square steel tube specifications and receive detailed pricing with full material traceability documentation.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What steel grades are available for galvanized square tubes and how do they compare?
A: We produce galvanized square tubes in S235, S275, SS400, and 20# grades. S235 and S275 follow European EN standards with S275 offering higher yield strength for heavier load applications. SS400 is a Japanese JIS grade widely used in Southeast Asian and Middle Eastern projects. 20# is a Chinese carbon structural steel for general-purpose use. All grades are hot-dip galvanized for corrosion protection.
Q: What is the difference between hot-dip galvanized and pre-galvanized square tubes?
A: Hot-dip galvanizing immerses the finished tube in molten zinc, creating a metallurgical bond that covers all surfaces including the internal bore, typically delivering 60-80 microns of zinc coating. Pre-galvanized (sendzimir) tubes are made from already-coated steel coil, so only the outer surface and cut edges receive zinc protection. Hot-dip provides superior corrosion resistance for outdoor and industrial environments.
Q: Can you provide custom sizes and what is the MOQ for non-standard dimensions?
A: Yes, we produce custom sizes beyond our standard 40×40mm to 100×100mm range. Custom lengths of 5.8m, 6m, and 11m are available alongside standard 6m and 12m. End preparations including beveled, threaded, and grooved ends are processed in-house. The MOQ is 1 Ton for standard specifications; custom dimensions may require higher minimum quantities depending on production scheduling.
Q: What quality certifications and documentation do you provide for international projects?
A: We provide ISO 9001 certified quality management, mill test certificates with full heat number traceability, and complete export documentation. For projects requiring independent verification, we coordinate SGS or BV third-party inspection. Our documentation package includes chemical composition reports, mechanical test results, dimensional inspection reports, and coating thickness measurements.
Q: How do you ensure coating thickness consistency and corrosion resistance?
A: Our hot-dip galvanizing process follows controlled parameters for zinc bath temperature, immersion time, and withdrawal speed to ensure uniform coating across all surfaces. We conduct coating thickness measurements at multiple points on each tube using calibrated elcometers. As an integrated mill with our own steel production, we control the entire process from raw material to finished galvanized product, eliminating quality gaps from third-party sourcing.
