Description

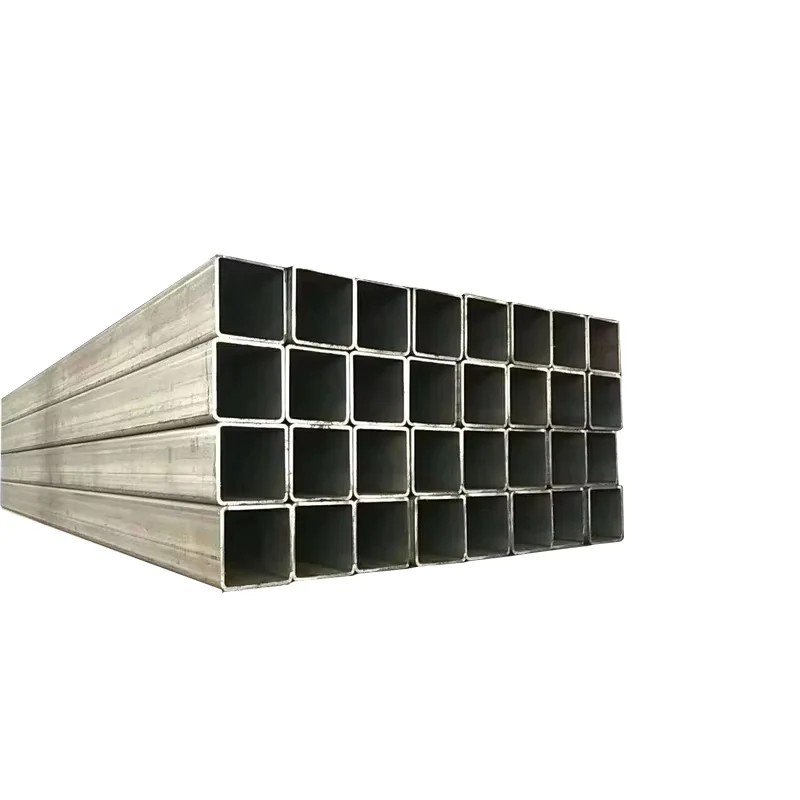

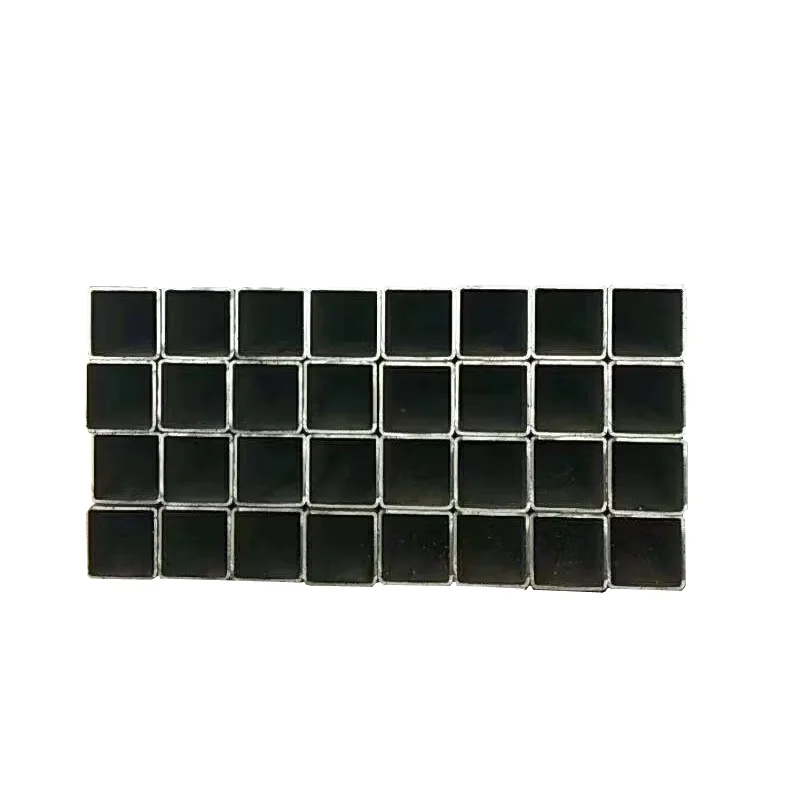

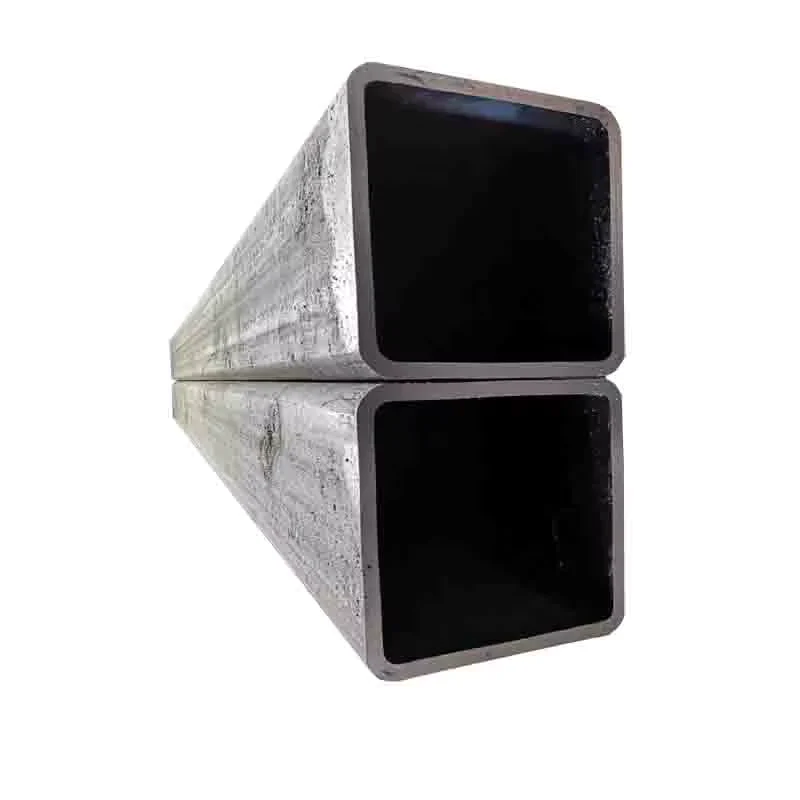

Direct Mill Supply for S355J0H Hollow Sections — Every S355J0H square hollow section tube rolls from our own steel production lines with full heat-number traceability from slab to finished section.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S355J0H Square Hollow Section Tube |
| Product Type | Square Hollow Section (SHS) |
| Steel Grade | S355J0H, S235, S275, S355, GrB, STK400 |
| Standard | EN 10219, ASTM A500, ASTM A53, GB/T 3091 |
| Section Shape | Square |
| Size Range | 19mm×19mm – 800mm×800mm |
| Wall Thickness | 1 – 50 mm |
| Length | 5.8m / 6m / 11.8m / 12m / Random Length |
| Technique | Welded (ERW) / Seamless |
| Surface Treatment | Black Painting / Hot-Dip Galvanized / Varnish / Bare / Oiled |
| Tolerance | ±5% |
| Ends | Plain End with Plastic Caps |
| Application | Steel structures, construction frames, building structures, curtain walls, support structures, industrial platforms |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Commercial Construction | Building frames, column systems, roof trusses for warehouses and logistics centers |
| Industrial Facilities | Machinery platforms, conveyor support structures, equipment frames in processing plants |
| Infrastructure Projects | Bridge support members, sound barrier frames, highway gantry structures |
| Curtain Wall Systems | Vertical and horizontal mullion members for facade engineering |
| EPC Projects | Modular steel assemblies, pipe rack structures, platform grating supports |
What Material Traceability Gaps Cost on an Overseas Fabrication Order
When the mill certificate cannot be traced back to the original heat number, the entire shipment becomes a liability rather than an asset.
Outsourcing structural steel fabrication to overseas suppliers introduces a distance that buyers cannot always bridge with a site visit. The S355J0H square hollow section tube is no exception — when material sourcing is fragmented across multiple traders, the certification chain breaks at the weakest link. Buyers in Middle East and African markets have reported customs holds triggered by incomplete EN 10219 documentation, while Southeast Asian EPC contractors have faced re-inspection costs when third-party surveyors could not verify heat-to-certificate correspondence [NEED_CITE: EN 10219 cold-formed hollow section documentation requirements]. The consequence is not just delayed clearance — it is structural doubt that propagates through every weld inspection and dimensional check downstream.
How S355J0H Square Hollow Section Tube Matches Structural Frame Demands
The S355J0H square hollow section tube delivers the geometric rigidity that moment-resisting frames demand. Its square profile provides equal radius of gyration on both axes, making it suitable for columns subjected to multi-directional loading — a common condition in warehouse frames and industrial platforms across Belt & Road markets. When hot-dip galvanized, the same S355J0H square hollow section tube resists corrosion in coastal infrastructure projects throughout the Middle East and West Africa, where chloride exposure would strip painted surfaces within months. Our vertically integrated production means the S355J0H square hollow section tube you receive carries the same heat number from our own rolling lines through to the final bundled shipment — no third-party material mixing, no certification gaps.
Engineering Compliance and Certification Pathways for Hollow Sections
Structural engineers specifying S355J0H grade expect compliance with EN 10219 for cold-formed welded structural hollow sections, which governs dimensional tolerance, corner radius, and mechanical property verification [NEED_CITE: EN 10219 dimensional and mechanical tolerance requirements]. For projects entering the European market, CE marking per EN 10219 is mandatory — without it, customs authorities in EU member states will reject the shipment regardless of physical quality. In North American projects, ASTM A500 Grade C or Grade B equivalence must be demonstrated through chemical and mechanical comparison, as direct S355J0H acceptance is not automatic [NEED_CITE: steel grade equivalence between EN 10219 and ASTM A500 standards]. Wall thickness tolerance directly affects theoretical weight calculations used in structural analysis — a ±5% tolerance means the actual section modulus may differ from design assumptions, and this must be accounted for in connection design. For projects in seismic zones, the J0 impact designation confirms Charpy testing at 0°C, providing verified toughness data that structural calculators require for dynamic load combinations.
Understanding S355J0H Grade and ERW Welding Process
The S-series designation follows the European EN 10025 framework where the number indicates minimum yield strength in MPa — S355J0H therefore belongs to the higher-strength tier suitable for primary structural members, while S235 serves secondary or lightly loaded applications. The “J0” suffix specifies impact testing at 0°C, distinguishing it from JR (tested at 20°C) and J2 (tested at -20°C), making S355J0H appropriate for structures in temperate to cold climates where brittle fracture risk exists. The “H” denotes hollow section product standard compliance. ERW welded production creates a longitudinal weld seam through electric resistance welding — this process is cost-effective for the 19×19mm to 800×800mm size range and produces consistent wall thickness, though the weld zone requires proper heat treatment to match base metal properties. For applications demanding higher pressure integrity or where weld seam presence is unacceptable, seamless production is available as an alternative. Surface treatment selection follows environmental logic: hot-dip galvanizing provides 50-80μm zinc coating for outdoor and marine exposure, black painting suits indoor or temporary protection, and oiled bare surfaces serve as feedstock for further fabrication where coating will be applied on-site.
Hidden Costs When Hollow Section Procurement Goes Wrong
Specifying S355J0H but receiving material that tests as S235 does not merely create a paperwork discrepancy — it forces either complete material replacement at the project site or structural redesign by the engineer of record, both of which compress already tight construction schedules [NEED_CITE: consequences of steel grade substitution in structural engineering]. Missing or inconsistent mill test certificates trigger third-party inspection requirements that the buyer must fund, often at rates exceeding the original material cost differential. Negative tolerance abuse — where wall thickness consistently falls at the lower limit — reduces section modulus below design capacity, creating latent structural safety concerns that only surface during load testing or, worse, during service life. Customs clearance failures due to non-compliant CE documentation or missing EN 10219 test reports result in port storage charges that accumulate daily, sometimes exceeding the value of the goods themselves [NEED_CITE: customs documentation requirements for structural steel imports into EU markets].
Why Procurement Teams Source S355J0H Hollow Sections From Our Mill
Our own steel production facility operates three rolling lines covering over 2,800 raw material specifications, meaning the S355J0H square hollow section tube you order is produced from slab to finished section under one quality management system — there is no point where material leaves our control and re-enters from an external supplier. Every heat carries its own chemical composition and mechanical test report generated by our in-house metallurgical laboratory, providing the traceability that overseas buyers need to satisfy both their engineers and their customs brokers. We hold CE certification for EN 10219 hollow sections, enabling direct shipment to European project sites without documentation barriers. For buyers requiring independent verification, we accommodate SGS and BV third-party inspections at our facility before container loading. Our fabrication division can process the S355J0H square hollow section tube through CNC cutting, drilling, and welding per approved WPS procedures, delivering ready-to-assemble components rather than raw lengths — this integration eliminates the coordination gap between material supplier and fabricator that causes RFI delays on international projects. Professional loading plans account for the 6m and 12m lengths typical in structural orders, maximizing container utilization while preventing surface damage to galvanized coatings during ocean transit.
Documentation & Compliance
- Mill Test Certificate documenting S355J0H chemical composition (C, Mn, Si, P, S, Al) and mechanical properties per EN 10219, with heat number traceability to original slab
- CE Certificate of Conformity per EN 10219 for cold-formed welded structural hollow sections, required for EU market customs clearance
- ISO 9001 Quality Management System certificate covering the full production process from raw material incoming inspection to final dimensional verification
- SGS or BV third-party inspection report available upon request, covering visual examination, dimensional checks, and witness testing
- Material traceability sheet linking each bundle to its heat number, production date, and test certificate reference
- Export documentation package including commercial invoice, packing list, bill of lading, and certificate of origin for destination customs
Packaging, Loading & Delivery
- S355J0H square hollow sections bundled with galvanized steel strips at intervals matching the 6m and 12m standard lengths, preventing bundle separation during crane handling
- Hot-dip galvanized tubes wrapped with waterproof cloth and edge protectors to preserve zinc coating integrity during ocean freight to Middle East and African ports
- Container loading plans optimized for 20ft and 40ft open-top containers, accommodating the 800×800mm maximum section size while maintaining weight distribution within shipping limits
- Plain ends fitted with plastic caps to prevent moisture ingress and internal corrosion during storage and transit, particularly relevant for oiled or bare surface conditions
- Each bundle tagged with heat number, steel grade S355J0H, size designation, and length for site identification and traceability verification
- FOB, CIF, and DDP delivery terms available with door-to-door logistics coordination for project sites across Southeast Asia, Middle East, and Africa
Initiating Your S355J0H Hollow Section Inquiry
Submit your project drawings in PDF or DWG format along with the required steel grade, section sizes, wall thickness, surface treatment preference, and destination port — our engineering team responds within 24 hours with a preliminary assessment covering material availability, fabrication feasibility, and preliminary pricing. For non-standard sizes outside the 19×19mm to 800×800mm range or lengths beyond 12m, we provide custom rolling schedules with confirmed lead times. We confirm all certification and customs documentation requirements before contract signing, ensuring your S355J0H square hollow section tube clears destination customs without delay.
Request Your S355J0H Square Hollow Section Quotation
Share your project specifications, required quantities, and destination port to receive pricing with full mill test certificate documentation.
