Description
Factory-Direct SSAW Pipe Mill — Raw steel strip to finished S355J2H SSAW spiral welded steel pipe under one quality system, eliminating third-party material gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S355J2H SSAW Spiral Welded Steel Pipe |
| Product Type | SSAW Spiral Welded Steel Pipe / Casing and Tubing |
| Steel Grade | Grade B, X42, X46, X52, X56, X60, X65, X70 (API 5L); S355J2H |
| Standard | API 5L |
| Section Shape | Round |
| Size Range (OD) | 406.4–1524 mm (16–60 in) |
| Length | 5.8–12 m |
| Technique | SSAW (Spiral Submerged Arc Welding) |
| Surface Treatment | Bare / Oiled / Black Painting / Epoxy Painting / 3LPE / FBE |
| Tolerance | ±5% / ±10% |
| Ends | Bevel end with iron protector |
| Application | Oil & gas transport, sewage transport, piling, bridge piling, port construction, wellbore casing, fluid transmission, structural support |
| Processing Service | Welding, Cutting, Bending |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Infrastructure & Civil Engineering | Bridge piling, port quay wall construction, highway sound barrier foundations |
| Oil & Gas | Wellbore casing, flow lines, gathering pipelines, gas transmission mains |
| Water & Wastewater | Raw water intake pipelines, sewage outfall lines, slurry transport |
| Industrial Construction | Factory column supports, heavy equipment foundations, pipe rack structures |
Where Negative Tolerance on Wall Thickness Becomes a Port Detention Risk
A pipe that passes mill gauge but fails third-party ultrasonic recheck can sit in Jebel Ali for weeks before anyone pays the demurrage.
When overseas buyers order large-diameter S355J2H SSAW spiral welded steel pipe for piling or casing, the wall thickness tolerance clause in the purchase order often reads “±10% per API 5L.” In practice, some producers push every heat to the lower boundary — and on a 1524 mm OD pipe with a nominal 12.7 mm wall, the actual measured minimum at the weld seam can drift further under spiral forming stress. Independent inspection at the discharge port then flags readings outside the contract band, triggering hold orders, re-testing fees, and schedule knock-ons that dwarf the per-tonne savings the buyer thought they secured. [NEED_CITE: API 5L dimensional tolerance requirements for spiral welded pipe]
Matching Large-Diameter SSAW Pipe to Piling and Casing Loads
Spiral submerged arc welding produces a continuous helical seam that distributes hoop stress more evenly than a straight seam on the same OD, which matters when a 406–1524 mm S355J2H SSAW spiral welded steel pipe is driven into marine clay or loaded as a bearing column on a bridge foundation. The spiral geometry also allows manufacturers to produce a wide OD range from a single strip width, reducing lead times on non-standard diameters that straight-weld mills cannot cover without dedicated tooling. Our vertically integrated mill controls the strip chemistry from slab to coil, so the S355J2H grade delivered for wellbore casing carries the same heat traceability as the raw material — no substitution from open-market coils mid-production.
Engineering Compliance Across Piling, Casing, and Fluid Service
Structural piling applications typically require conformity with EN 10219 or equivalent national standards for hollow sections, while casing and pipeline service falls under API 5L with supplementary requirements for hydrostatic testing and seam weld integrity. [NEED_CITE: EN 10219 cold-formed welded structural hollow sections] Selecting S355J2H over a lower grade such as S235JR shifts the minimum yield point upward, directly affecting the buckling resistance of long unsupported pile lengths — but only if the delivered wall thickness actually matches the design assumption. Surface coating selection (3LPE for buried pipelines, FBE for high-temperature service, epoxy for immersed conditions) must be specified before fabrication, because recoating after bevel-end damage on site adds cost that the original mill quote never included. Third-party inspection by SGS, BV, or TUV at the loading port is standard practice for EU and Middle East projects and should be written into the contract, not requested as an afterthought.
Steel Grade Selection and SSAW Process Fundamentals

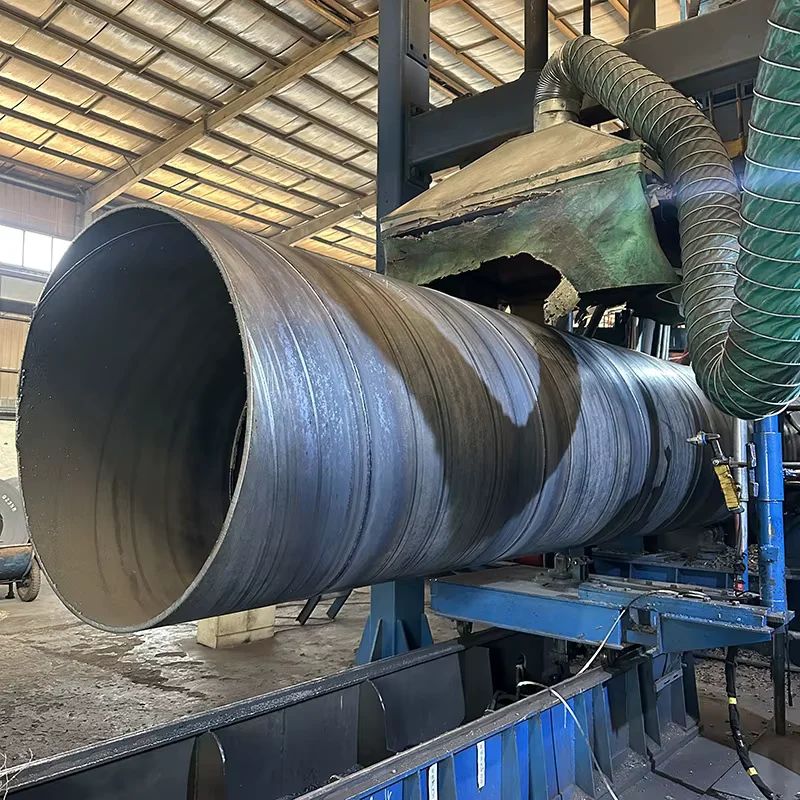

The API 5L grade ladder — from Grade B through X42, X52, X60, up to X70 — reflects increasing minimum yield strength achieved through controlled rolling and micro-alloying, with each step allowing thinner walls at the same design pressure or higher pressures at the same wall. S355J2H sits in the EN 10210 structural hollow section family and is specified by European engineers for its combination of elevated yield strength and Charpy impact toughness at sub-zero temperatures, making it suitable for exposed piling in northern ports and Arctic casing programs. The SSAW process itself forms the pipe by continuously bending strip into a helix and welding both inner and outer seams via submerged arc, which produces a weld zone with mechanical properties closely matching the parent metal when procedure qualification records are properly maintained. [NEED_CITE: SSAW versus LSAW weld integrity in large-diameter pipe] Wall thickness tolerance of ±5% or ±10% directly governs whether invoicing runs on theoretical or actual weight — a distinction that can swing a 40-tonne container load by over a tonne of billable steel.
The Hidden Cost of Unverified Material Certificates
Accepting a mill test certificate from an unknown fabricator without third-party validation means the chemical composition and mechanical properties listed on paper may not reflect the heat actually shipped. When a container of API 5L X52 SSAW pipe arrives at a West African port and the site engineer requests independent spectrometer analysis, a failed result triggers customs holds, return-freight negotiations, and emergency re-procurement at spot-market premiums — costs that routinely exceed the original order value. [NEED_CITE: material traceability requirements under EN 10204 3.1 and 3.2] Specifying S355J2H SSAW spiral welded steel pipe from a vertically integrated producer with in-house理化 testing eliminates the gap between certificate and cargo.
Why Buyers Specify Our Mill for SSAW Pipe Programs

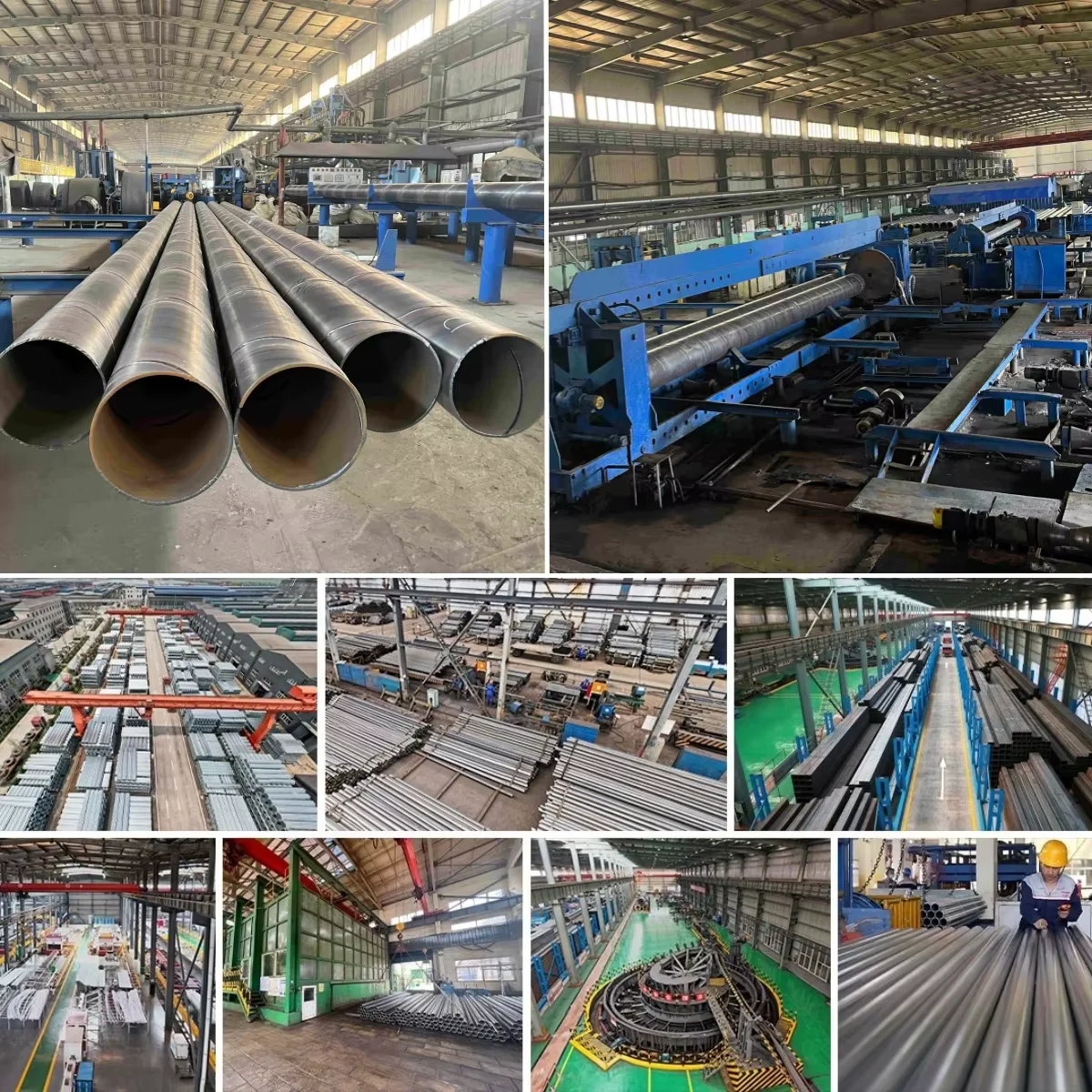

Our facility operates its own steel production lines feeding directly into the SSAW pipe mill, meaning the strip coil that enters the forming station was rolled under our process control — not purchased from a trader who blended three heats to fill the order. Every S355J2H SSAW spiral welded steel pipe leaving Jinan carries a mill test certificate traceable to the original slab heat number, with welding procedure specifications and qualified welder records available for audit. We maintain over 2,800 raw material specifications in stock, allowing us to consolidate casing, piling, and structural pipe into a single shipment rather than splitting orders across multiple suppliers. Professional loading crews handle the 5.8–12 m lengths with spreader bars and edge protectors, preventing coating damage on 3LPE and FBE finishes during container and break-bulk loading.
Documentation & Compliance
- Mill test certificate documenting S355J2H chemical composition and mechanical properties per EN 10210, with heat number traceability from slab to finished pipe
- API 5L compliance certificate confirming hydrostatic test results and seam weld integrity for Grade B through X70 SSAW pipe
- ISO 9001 quality management system certificate covering the full fabrication and inspection workflow
- Third-party inspection report from SGS, BV, or TUV covering dimensional checks, ultrasonic weld examination, and coating thickness measurement
- Welding procedure specification (WPS) and procedure qualification record (PQR) for the submerged arc welding process used on each OD and wall combination
- Export documentation package including packing list, bill of lading, and certificate of origin for customs clearance at destination port
Packaging, Loading & Delivery
- S355J2H SSAW spiral welded steel pipe bundled with galvanized steel strips at intervals matched to the 5.8–12 m length, with rubber edge protectors preserving bevel-end iron caps during transit
- Bare or oiled surfaces wrapped in waterproof cloth for ocean shipment; 3LPE and FBE coated pipes receive additional foam layer separation to prevent abrasion between adjacent lengths

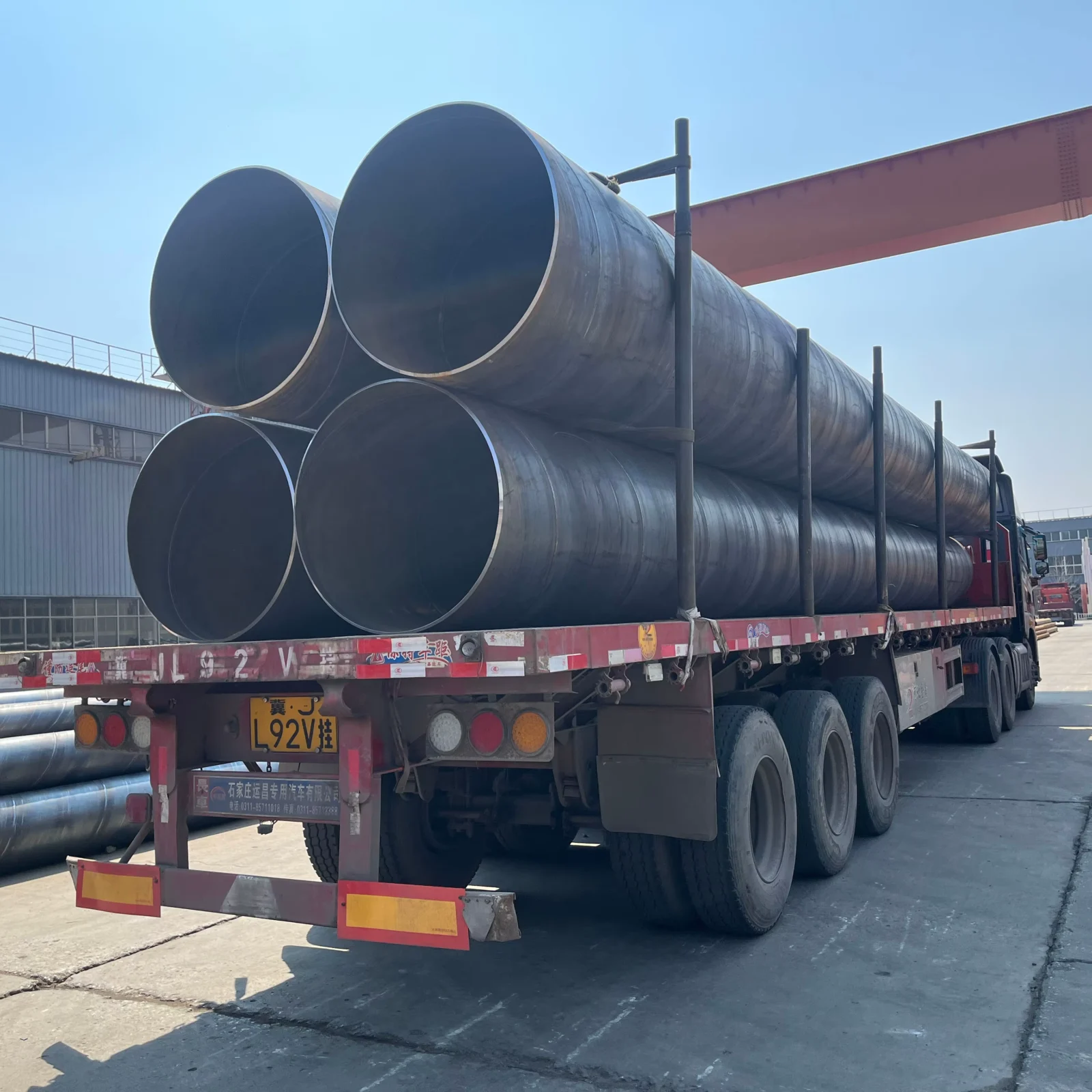

- Container loading optimized for 406–610 mm OD pipes in 40ft open-top or flat-rack units; 813–1524 mm OD pipes shipped as break-bulk with custom steel cradles to prevent rolling

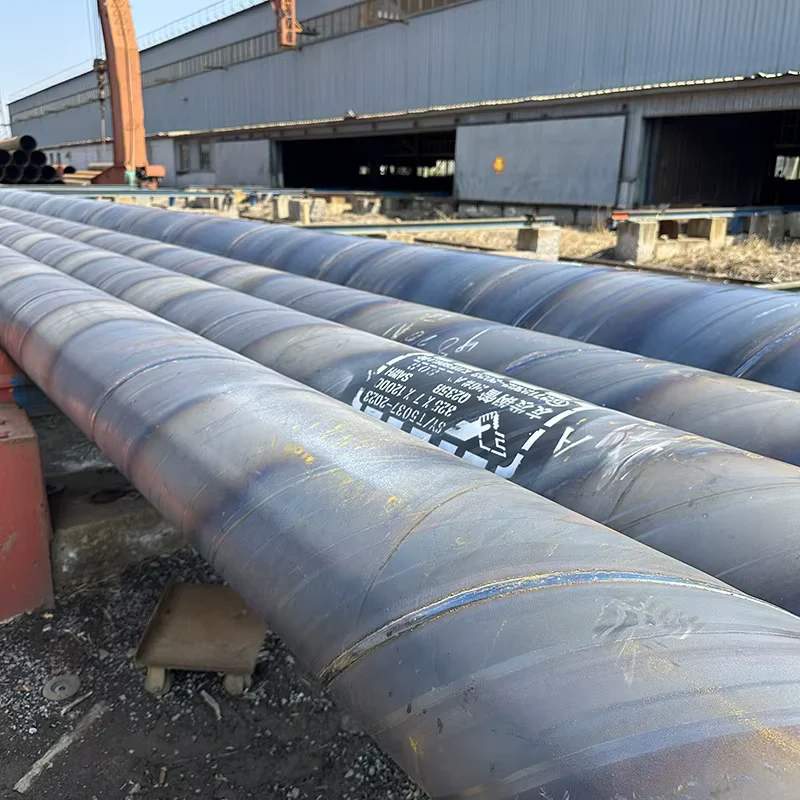

- Heat number, steel grade, OD, wall thickness, and length stenciled on each pipe end in weather-resistant paint for site identification upon arrival
- FOB Jinan/Qingdao, CIF destination port, or DDP project site terms available; oversized cargo loading plans provided before vessel booking to confirm stowage feasibility
Starting Your SSAW Pipe Inquiry
Share your project drawings, required steel grade (S355J2H, API 5L X42–X70), OD and wall thickness, coating specification, and destination port — our engineering team returns a detailed quotation with shop drawing timeline and production schedule within 24 hours. Confirm third-party inspection requirements and certification documents needed for your import customs regime before contract signing, so the mill test package ships with the cargo.
Frequently Asked Questions
Q: What is the difference between S355J2H and API 5L X52 for SSAW pipe applications?
A: S355J2H is a structural hollow section grade specified under EN 10210 for piling and construction, with Charpy impact testing at -20°C. API 5L X52 is a pipeline transportation grade with supplementary requirements for hydrostatic testing and seam weld integrity. The two are not directly interchangeable without engineering review of the design code governing your project.
Q: Can you arrange third-party inspection before loading?
A: Yes. We routinely coordinate SGS, BV, or TUV inspection at our mill for dimensional verification, ultrasonic weld examination, coating thickness measurement, and visual surface check. The inspection scope and acceptance criteria should be specified in the purchase order so the report format matches your project requirements.
Q: How does negative tolerance affect invoicing on large-diameter SSAW pipe?
A: API 5L permits ±10% or ±5% wall thickness tolerance depending on the specification level. Invoicing may be based on theoretical weight (calculated from nominal dimensions) or actual weighed weight. Buyers should confirm the invoicing basis before contract signing, as the difference on a 1524 mm OD pipe can be significant per container.
Q: What surface coating options are available for buried SSAW pipe?
A: For buried service, we offer 3LPE (three-layer polyethylene) for standard soil conditions, FBE (fusion-bonded epoxy) for higher temperature or chemical exposure, and epoxy painting for immersed or splash-zone applications. Black bituminous painting is available for temporary protection or non-critical above-ground service.
Q: What is the typical production lead time for a custom SSAW pipe order?
A: Standard production cycles run from material procurement through forming, welding, testing, coating, and loading. Lead time depends on OD, wall thickness, coating type, and order quantity. Confirm your delivery window during the quotation stage so we can align raw material scheduling.
Get Your S355J2H SSAW Pipe Quotation with Full Mill Documentation
Submit your project specifications, steel grade, dimensions, coating requirement, and destination port to receive a detailed quotation and mill test certificate sample within 24 hours.
