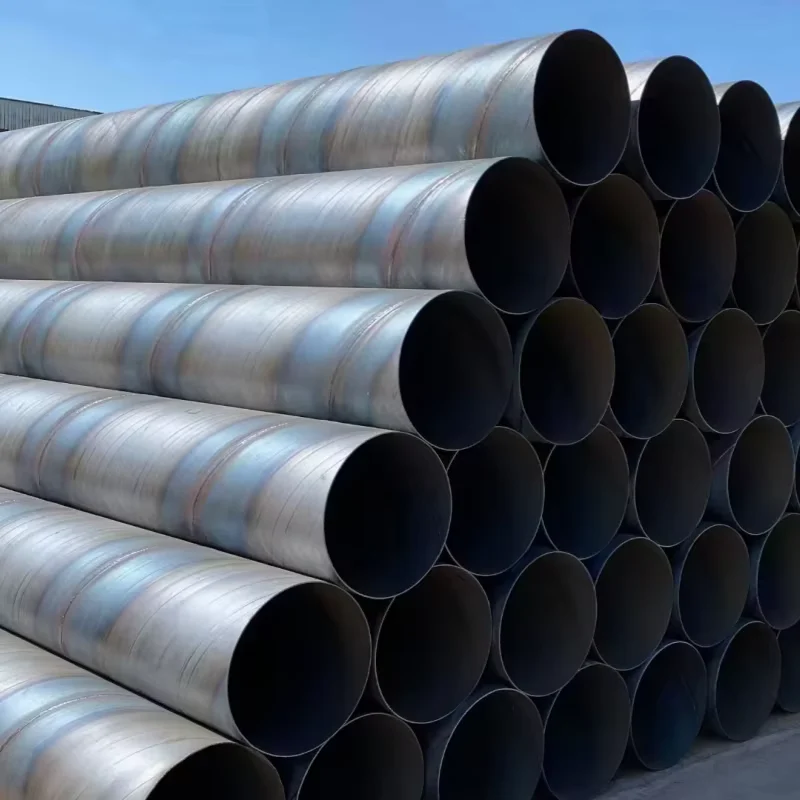

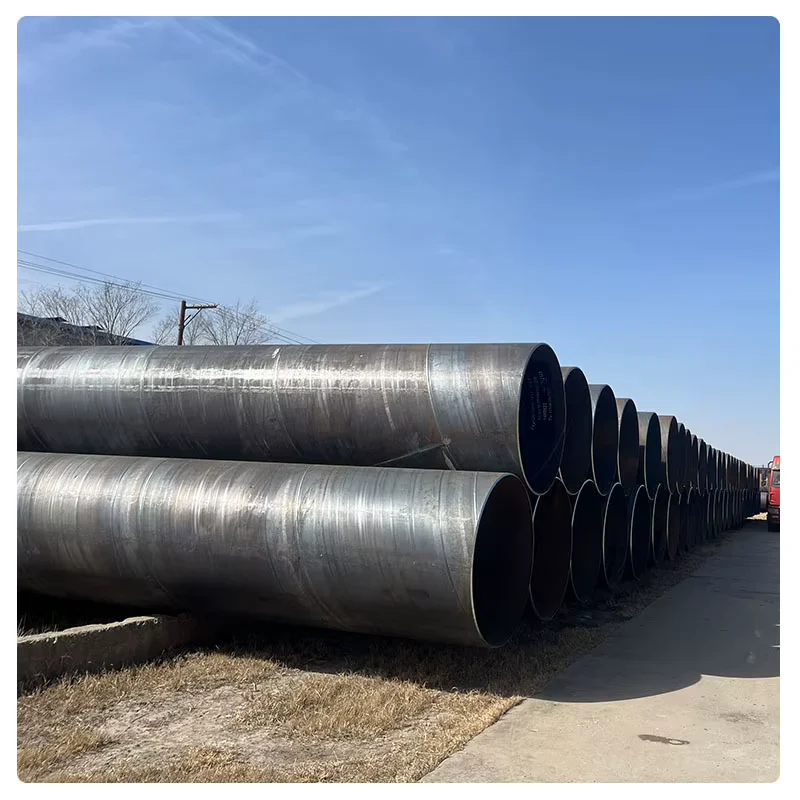

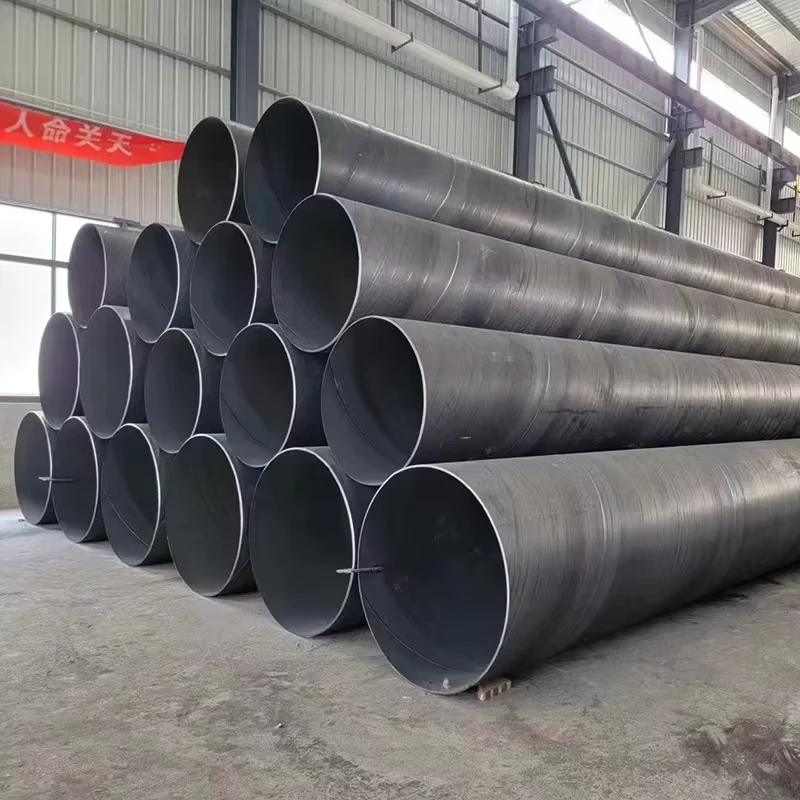

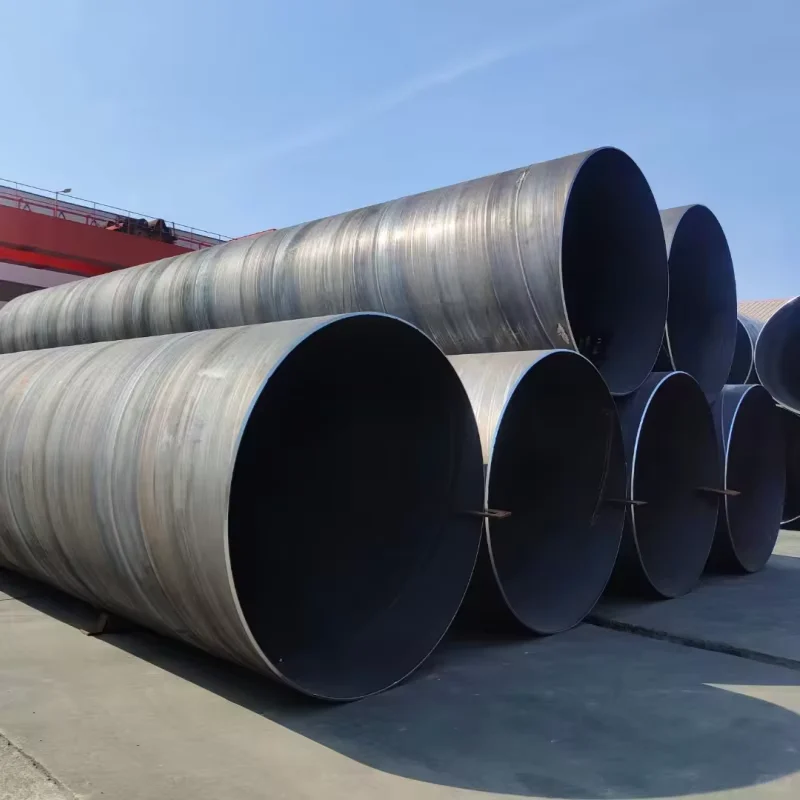

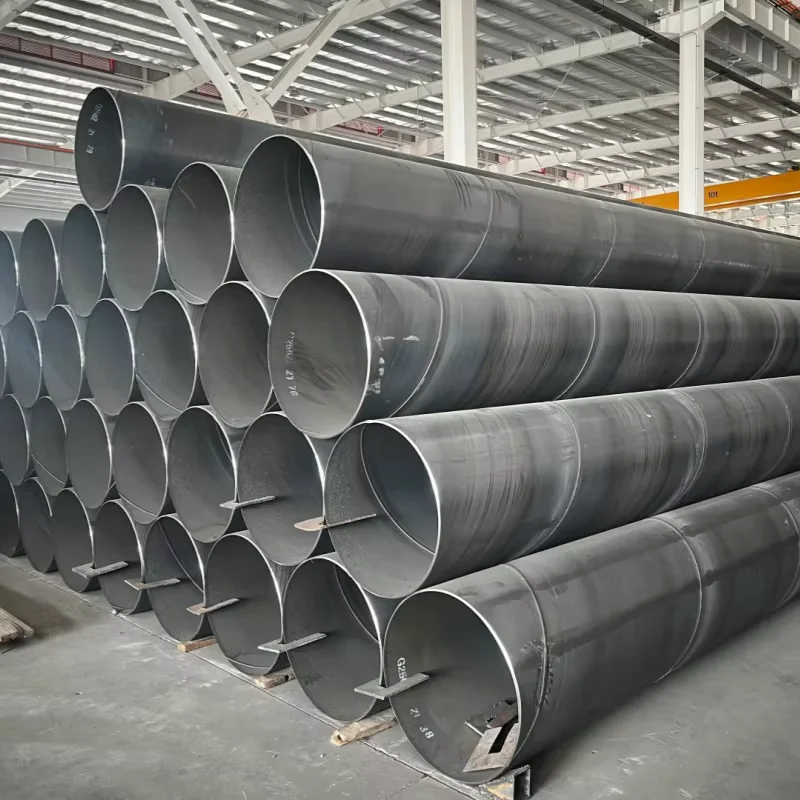

X42 X60 API 5L SSAW Spiral Welded Steel Pipe OD 159-3420mm Supplier

Description

Mill-Direct SSAW Pipe Production — X42 to X60 API 5L spiral welded pipes manufactured and coated under one roof, eliminating third-party material gaps.

Technical Specifications

Application Suitability

Where Wall-Thickness Tolerance Decides Whether a Pipeline Order Clears Inspection

Tolerance drift on large-diameter SSAW pipe is the single most common reason for third-party rejection at destination ports.

When buyers source API 5L SSAW spiral welded steel pipe from fragmented supply chains, the mill that rolls the plate, the shop that forms and welds the pipe, and the coater that applies 3PE or FBE are often three separate entities. Each handoff creates a gap where wall thickness data gets lost or reinterpreted. I have seen entire shipments held at port because the ultrasonic thickness readings came in below the minimum specified under API 5L, even though the mill’s paperwork looked clean on paper. The real cost is not the re-inspection fee — it is the weeks of delay while the project crew stands idle waiting for replacement sections. [NEED_CITE: API 5L dimensional tolerance requirements for submerged arc welded pipe]

Matching Pipe Grade and Coating to Corrosive Service Environments

Selecting the correct combination of steel grade and external coating determines whether an API 5L SSAW spiral welded steel pipe survives its design life in aggressive soil or submerged conditions. X42 and X60 grades meet the tensile and yield requirements for high-pressure oil and gas transmission, while 3PE coating provides mechanical damage resistance during backfilling. For municipal water mains operating at lower pressures, Q235 or Q345 grades with cement mortar lining or TPEP coating offer adequate corrosion protection at lower material cost. Our fabrication facility produces pipe from Ø159 mm to Ø3420 mm and applies the full coating range — 3PE, FBE, TPEP, and epoxy — in a single production flow, so the pipe never leaves our yard between welding and coating.

Structural Compliance and Certification for Cross-Border Delivery

Engineering specifications for piling and structural applications typically reference EN 10219, ASTM A252, or A500, and customs authorities in the EU require CE marking backed by EN 10219 test certificates. API 5L SSAW spiral welded steel pipe destined for Middle East or Southeast Asian infrastructure projects must carry complete documentation: Mill Test Certificates per EN 10204 3.1 or 3.2, welding procedure specifications, NDT reports, and coating thickness measurements. We maintain certified welding procedures (WPS/PQR) and qualified welders under AWS and EN standards, and every heat number is traceable from raw plate to finished pipe end. [NEED_CITE: EN 10219 cold-formed and SSAW hollow section compliance for structural use]

Understanding Steel Grade Selection and SSAW Welding Mechanics

The API 5L grade system — X42, X46, X52, X60 — designates minimum yield strength in ksi, where higher numbers indicate greater load-bearing capacity for high-pressure pipelines. In the Chinese GB system, Q235 and Q345 serve general structural and piling applications where extreme pressure resistance is not required. SSAW (Spiral Submerged Arc Welded) pipe is formed by helically winding steel plate and welding both inner and outer seams using submerged arc welding, which allows production of large diameters up to 3420 mm from relatively narrow plate — a cost advantage over seamless for diameters above 508 mm. The spiral weld seam distributes stress more evenly along the pipe axis compared to longitudinal welds, making SSAW pipe suitable for piling and low-to-medium pressure fluid transport. Wall thickness tolerance directly affects both theoretical weight invoicing and actual structural capacity; tighter tolerance control means the pipe you receive matches the engineering calculation, not just the purchase order.

The Hidden Cost of Accepting Unverified Material Certificates

Purchasing API 5L SSAW spiral welded steel pipe without verified Mill Test Certificates or third-party inspection may save a few percent on unit price, but the downstream consequences are severe. Material that fails to meet the declared grade — say, a pipe stamped X60 that actually tests as X42 — will not pass hydrostatic testing at the design pressure, forcing full-line replacement at many times the original savings. Missing or falsified certificates trigger customs holds in the EU and Middle East, where import regulations require EN 10204 3.2 certification for pressure-containing components. [NEED_CITE: consequences of non-compliant steel material certificates in international procurement]

Why Project Procurement Teams Source Directly From Our Facility

We operate our own steel production line with three SSAW mills and stock over 2,800 specifications of raw material, which means every pipe we deliver starts from plate we rolled ourselves — no broker, no trading company, no gap in the material chain. Our in-house coating line handles 3PE, FBE, TPEP, and epoxy applications, so coating adhesion and thickness are controlled under the same quality system as the weld. Engineering support includes shop drawing review and material optimization before production begins, reducing the RFI cycles that delay project schedules. We have delivered API 5L SSAW spiral welded steel pipe to EPC projects across the Middle East, Southeast Asia, and Africa, with complete documentation packages accepted by SGS, BV, and client-side inspectors without rework.

Documentation & Compliance

• Mill Test Certificate per EN 10204 3.1 documenting X42/X60 chemical composition, yield strength, and tensile properties per API 5L
• API 5L certification and ISO 9001 quality management system certificate covering SSAW pipe production and coating operations
• Third-party inspection reports from SGS, BV, or TÜV covering dimensional checks, NDT, and coating thickness verification
• Full material traceability by heat number from raw steel plate through welding, coating, and final inspection
• Welding procedure specifications (WPS) and procedure qualification records (PQR) per AWS D1.1 and EN 1090
• Export documentation package including packing list, bill of lading, and certificate of origin for customs clearance

Packaging, Loading & Delivery

• API 5L X42/X60 SSAW pipes bundled with steel strips and fitted with plastic end caps to protect beveled ends during ocean transit
• 3PE/FBE/TPEP coated pipes wrapped with protective film and separated by rubber padding to prevent coating abrasion in the container
• Large-diameter pipe (above 1000 mm OD) loaded as breakbulk or flat-rack cargo with custom cradle supports to prevent ovalization
• Custom cut lengths from 5.8 m to 12 m optimized for 40ft open-top or flat-rack container loading to minimize freight cost per meter
• Each pipe end marked with heat number, steel grade, OD, wall thickness, and production date for site traceability
• FOB, CIF, and DDP shipping terms available with full export documentation and container tracking until site delivery

Getting Your SSAW Pipe Quote and Technical Review

Send your project drawings, pipe schedule, steel grade, coating requirement, and destination port — we return a detailed quotation with material cost, fabrication scope, coating specification, and production timeline within 24 hours. Our engineering team will review your shop drawings and flag any tolerance or coating specification issues before the contract is signed, so there are no surprises during third-party inspection.

Request Your API 5L SSAW Pipe Quotation

Submit your specifications, steel grade, coating type, and quantity to receive a detailed offer with Mill Test Certificate commitment and production schedule.
