Description
Mill-Direct Galvanized SHS — Vertically integrated steel production and hot-dip galvanizing under one roof eliminates traceability gaps from slab to finished pipe.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square Steel Pipe |
| Product Type | Square Steel Tube |
| Steel Grade | A53 Grade B, A500 Grade A, A500 Grade B, A500 Grade C, STK400, SS400, ST42.2, S355JR |
| Standard | ASTM A53, ASTM A500, ASTM A36, ASTM A795, BS1387, EN10255, ISO65, ANSI C80, DIN2440, JIS G3444, GB/T3091, GB/T13793, API 5L, API 5CT, UL, FM, JIS, ISO |
| Section Shape | Square |
| Size Range | 21.3mm–660mm (1/2″–26″) |
| Wall Thickness | 6mm |
| Length | 5.8m / 6m / 11m or customized |
| Technique | Hot-dip Galvanizing |
| Surface Treatment | Galvanized |
| Tolerance | ±1% on dimension |
| Ends | Plain ends / Beveled ends / Threaded ends / Grooved ends |
| Processing Service | Punching, Cutting, Bending |
| Application | Oil/gas/water fluid transportation, construction, hydraulic precision machinery parts, power, boiler, petrochemical, building industry, machine parts, municipal water & gas transmission |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Municipal Infrastructure | Water transmission mains, gas distribution networks, drainage support columns |
| Industrial Construction | Petrochemical plant pipe racks, boiler support frames, power station structural bracing |
| Building & Architecture | Column sections for warehouse frames, mezzanine supports, stairway handrail posts |
| Machinery & Equipment | Hydraulic cylinder housings, conveyor framework, machine base structures |
Why Dimensional Tolerance Decides Site Assembly for Galvanized Square Steel Pipe

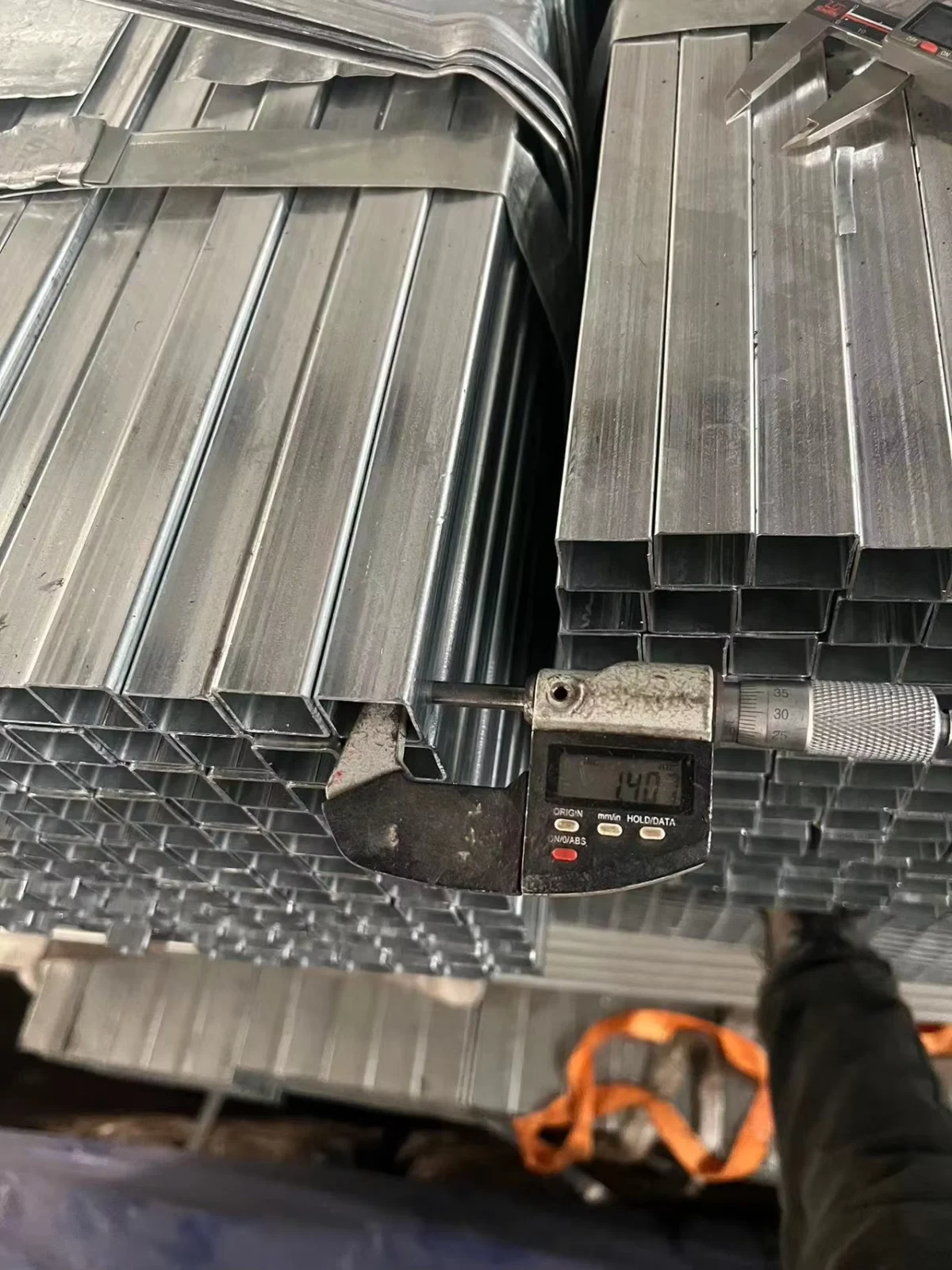

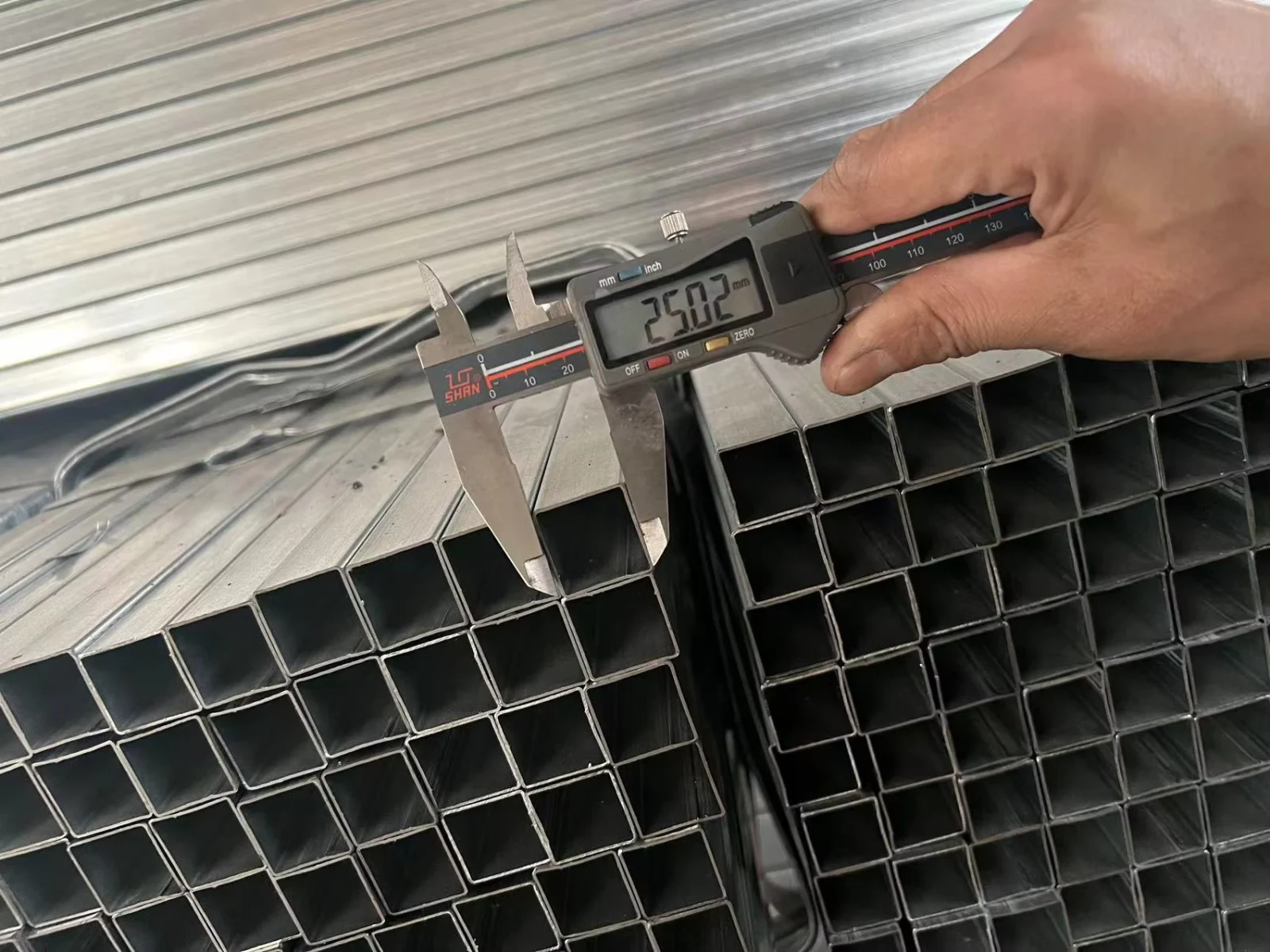

A 0.3mm wall-thickness deviation can reject an entire container at third-party inspection.
When procurement teams source galvanized square pipe from overseas, the coating thickness often gets all the attention — while dimensional drift quietly undermines fit-up on site. Beveled ends that don’t align, bolt holes that miss by millimeters, and sections that won’t seat into pre-fabricated connections all trace back to tolerance control during forming and galvanizing. [NEED_CITE: EN 10219 dimensional tolerance requirements for cold-formed hollow sections] I’ve seen shipments held at port because the outer dimension drifted just enough to fail caliper checks against ASTM A500, turning a straightforward delivery into weeks of re-inspection paperwork and potential re-rolling.
Matching Structural Load Paths and Corrosion Environments
Galvanized square steel pipe in A500 Grade B and S355JR grades covers the yield range needed for primary structural framing in warehouses, industrial plants, and municipal support structures. The hot-dip zinc coating provides barrier and sacrificial protection for outdoor exposure, coastal installations, and high-humidity environments where painted carbon steel would demand maintenance cycles. Multiple end configurations — plain, beveled, threaded, grooved — allow direct integration into bolted or welded connections without secondary machining at destination.
Engineering Compliance and Certification Requirements
Structural applications referencing EN 1993 or AISC 360 require documented material properties and traceable heat numbers. For Galvanized Square Steel Pipe supplied under ASTM A500 Grade C or S355JR, the mill test certificate must confirm chemical composition and mechanical behavior per the governing standard. European projects demand CE marking under EN 10210 or EN 10219, while North American specs call for ASTM compliance with supplementary testing as needed. [NEED_CITE: ASTM A500 structural tubing certification and testing requirements] Custom cut-to-length and pre-punched sections reduce field welding and accelerate erection schedules, provided the processing maintains coating integrity at cut edges.
Steel Grade Selection and Hot-dip Galvanizing Process Logic
The grade range from A53 Grade B through A500 Grade C and S355JR reflects a progression in minimum yield strength, guiding selection based on whether the pipe serves fluid conveyance or load-bearing structural roles. A53 Grade B suits low-pressure water and gas lines where formability matters more than peak strength. A500 Grade C and S355JR target structural frames where higher yield reduces section weight while maintaining load capacity. Hot-dip galvanizing immerses formed sections in molten zinc, producing a metallurgically bonded coating thicker and more durable than electro-galvanized alternatives — critical for buried or exposed municipal infrastructure. [NEED_CITE: hot-dip galvanizing coating thickness versus electro-galvanized comparison] The 6mm wall thickness at the listed size range balances structural rigidity with weight efficiency for medium-duty framing and support applications.
Hidden Costs of Incorrect Grade or Missing Documentation
Specifying A500 Grade A when the structural engineer calculated for Grade C means the frame deflects beyond serviceability limits — discovered only after erection begins. Missing or incomplete mill test certificates trigger customs holds in markets requiring EN 10204 3.1 or 3.2 verification. Coating thickness below project spec leads to accelerated corrosion and warranty disputes years after handover. [NEED_CITE: material certification requirements for structural steel import customs clearance] Each of these failures traces back to procurement choices made before the first bundle leaves the mill.
Procurement Confidence from Integrated Production
As a Galvanized Square Steel Pipe supplier operating our own steel mill and fabrication workshop, we control material chemistry from slab melting through final galvanizing — no third-party sourcing gaps in the certification chain. Our in-house laboratory issues mill test certificates with full heat-number traceability for every bundle shipped. With over 2,800 stock specifications, we consolidate mixed-size orders into single shipments, reducing your supplier count and freight complexity. Third-party inspection by SGS, BV, or TÜV is welcome before loading. Professional container loading plans maximize payload for 5.8m and 6m lengths while protecting the zinc coating from transit damage.
Documentation & Compliance
- Mill test certificate documenting A500 Grade B chemical composition and yield strength per ASTM A500, with heat number traceability
- CE certificate confirming EN 10219 compliance for S355JR structural hollow sections destined for European markets
- ISO 9001 quality management certificate covering the integrated steel production and galvanizing process
- SGS or BV third-party inspection report verifying galvanized coating thickness and dimensional tolerance before shipment
- Material traceability report linking each bundle to its heat number, chemical analysis, and mechanical test results
- Customs documentation package including packing list, bill of lading, and certificate of origin for import clearance
Packaging, Loading & Delivery

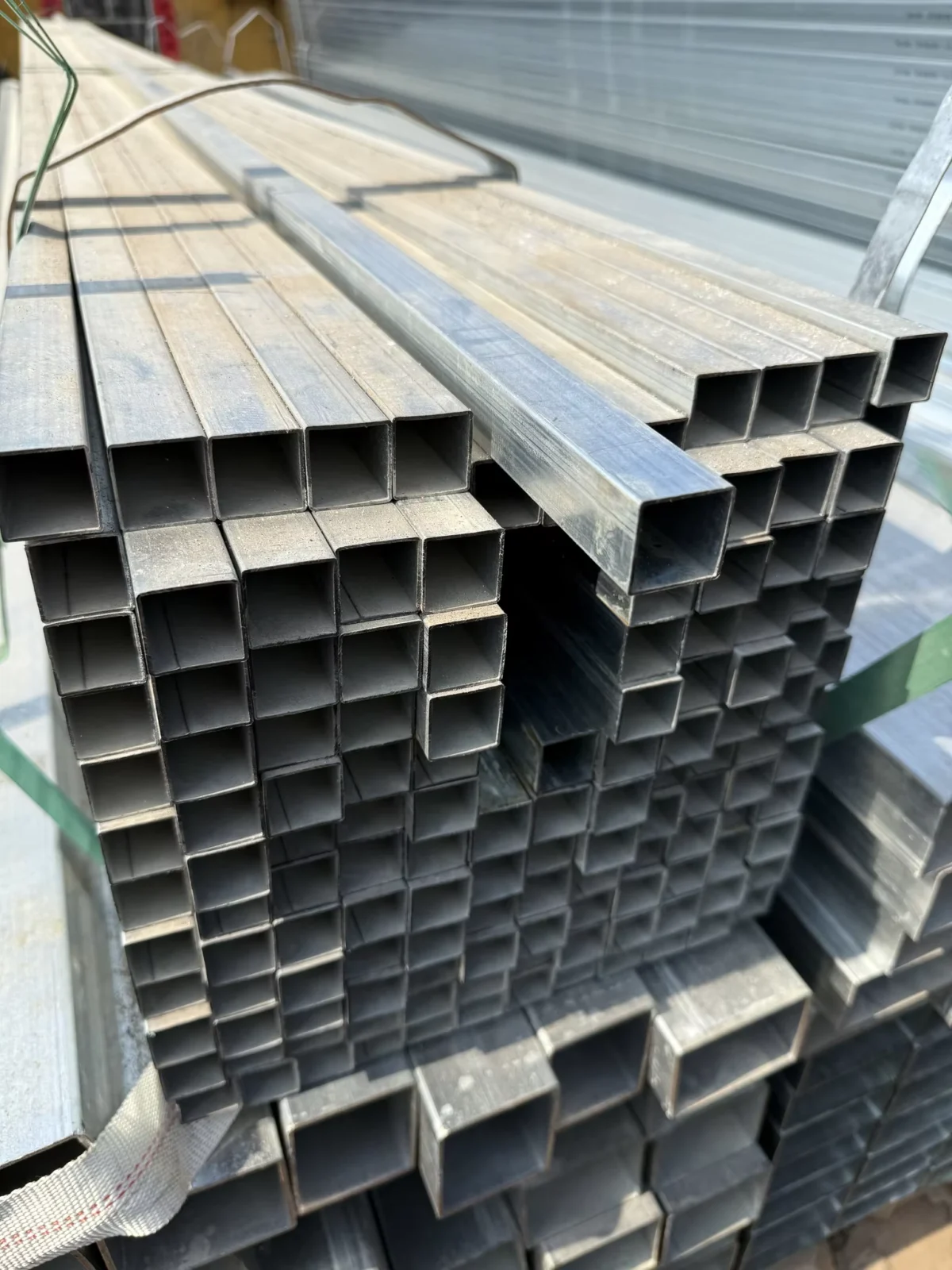

- Galvanized square steel tubes bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit
- Plastic end caps fitted on plain and beveled ends to prevent moisture ingress and coating damage at the pipe extremities
- Container loading optimized for 5.8m and 6m lengths in 20ft units, with 11m sections loaded in 40ft open-top or flat-rack containers as needed
- Heat number and steel grade stenciled on each bundle for site identification and inspection traceability
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination for project sites
Start Your Galvanized Square Steel Pipe Inquiry
Share your project drawings, required steel grades, dimensions, and destination port to receive a detailed quotation including material cost, galvanizing specification, production schedule, and shipping plan. Our engineering team reviews shop drawings and confirms end treatments, processing services, and certification requirements before production begins.
Request a Quote with Full Material Certification
Submit your Galvanized Square Steel Pipe specifications — including steel grade, size, wall thickness, length, quantity, and end treatment — to receive pricing, mill test certificate samples, and production lead time within 24 hours.
