Description
Integrated Mill-Direct Supply — From raw steel coil to hot-dip galvanized square tube under one roof, eliminating third-party galvanizing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square Steel Pipe |
| Product Type | Square Steel Tube (Galvanized) |
| Steel Grade | A53 Grade B, A500 Grade A, A500 Grade B, A500 Grade C, STK400, SS400, ST42.2, S355JR |
| Standard | ASTM A53, ASTM A500, ASTM A36, ASTM A795, BS 1387, EN 10255, ISO 65, ANSI C80, DIN 2440, JIS G3444, GB/T 3091, GB/T 13793 |
| Section Shape | Square |
| Size Range | 21.3 mm – 660 mm (1/2″ – 26″) |
| Wall Thickness | 6 mm |
| Length | 5.8 m / 6 m / 11 m or customized |
| Technique | Hot-dip Galvanizing |
| Surface Treatment | Galvanized (Hot-dipped) |
| Tolerance | ±1%, ±5% |
| Pipe Ends | Plain ends, Beveled ends, Threaded ends, Grooved ends |
| Processing Service | Punching, Cutting, Bending |
| Application | Municipal water & gas transmission, fluid transportation, construction, hydraulic precision machinery, power, boiler, petrochemical, building industry |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Municipal Infrastructure | Water supply mains, gas distribution networks, street lighting poles, drainage culvert frames |
| Industrial Construction | Plant structural frames, conveyor support structures, equipment platforms, pipe rack systems |
| Building & Architecture | Scaffolding uprights, building column frames, roof truss bracing, mezzanine floor supports |
Zinc Coating Consistency Decides Whether Your Galvanized Square Steel Pipe Passes Site Inspection
A thin zinc layer means accelerated corrosion and rejected delivery — not a negotiation point.
When buyers source galvanized square pipes for municipal water mains or structural frames, the galvanizing step often happens at a separate facility from the tube mill. That gap between forming and coating creates a chain where zinc thickness, surface adhesion, and inner-corner coverage become variables rather than guarantees. I have seen entire shipments held at port because the inner corners of square tubes received insufficient zinc immersion time — the outer faces looked acceptable, but cross-section testing revealed coating below specification at the weld seam and corners. With our vertically integrated production line, the black square tube moves directly from forming into the galvanizing bath without intermediate storage or third-party handling, so coating uniformity stays under one quality system from coil to finished bundle. [NEED_CITE: hot-dip galvanizing coating thickness requirements for structural hollow sections]
Matching Municipal and Structural Load Requirements with the Right Grade and End Treatment
Selecting the correct steel grade and end configuration for your Galvanized Square Steel Pipe determines whether the pipe performs under sustained structural load or simply passes visual inspection. For municipal gas transmission and water mains, ASTM A53 Grade B and A500 Grade C provide the yield strength baseline that engineers specify for pressurized and load-bearing service. When the same pipe goes into industrial plant frames or scaffolding uprights, S355JR or A500 Grade C delivers higher section modulus capacity without increasing wall thickness. Our in-house cutting, punching, and bending services mean you receive tubes pre-sized to your connection details — threaded ends for mechanical couplings, grooved ends for Victaulic-style fittings, or beveled ends ready for field welding — reducing on-site labor and cutting waste.
Engineering Compliance Across ASTM, EN, and JIS Frameworks
Project specifications for Galvanized Square Steel Pipe frequently cross standard systems: an EPC contractor in the Middle East may call for ASTM A500 Grade B while the consulting engineer’s reference drawings cite EN 10219 or JIS G3444 equivalents. Material traceability becomes the bottleneck — each heat number must link back to a certified mill test report showing chemical composition and mechanical test results. For EU-bound shipments, EN 10219 compliance requires factory production control certification and CE marking; for North American projects, ASTM A500 demands documented tensile and Charpy test data per heat. We maintain certified welding procedures and qualified documentation packages covering all three standard systems, so your Galvanized Square Steel Pipe clears customs with the correct compliance paperwork attached to each bundle. [NEED_CITE: steel grade equivalence between ASTM A500 and EN 10219 standards]
Steel Grade Selection, Hot-Dip Process, and Wall Thickness — What the Specification Sheet Does Not Tell You
The ASTM A500 grading system (Grade A through C) increases minimum yield strength progressively, meaning Grade C sections carry higher structural loads than Grade A at identical dimensions. The S355JR designation under EN standards similarly signals a 355 MPa minimum yield class suited for welded structural frames where impact toughness at ambient temperature matters. Hot-dip galvanizing immerses the formed square tube in molten zinc at approximately 450°C, creating a metallurgical zinc-iron alloy layer bonded to the steel substrate — this differs fundamentally from pre-galvanized (electro-galvanized) pipe where the coating is applied to flat coil before forming, leaving cut edges and weld seams exposed. Wall thickness tolerance directly affects theoretical weight calculations: a ±5% tolerance on a 6 mm wall means actual thickness can range from 5.7 mm to 6.3 mm, which influences both load capacity and per-ton pricing on large-volume orders.
Hidden Costs When Coating Thickness and Grade Certification Fall Short
Ordering Galvanized Square Steel Pipe without verified coating thickness documentation risks on-site rejection during third-party inspection — the cost of re-galvanizing or replacing rejected bundles at the project site far exceeds the original purchase price differential. Material grade substitution without proper equivalence documentation creates customs clearance delays: a shipment declared as ASTM A500 but lacking supporting mill test certificates conforming to that standard may be held at the destination port for re-testing. Negative tolerance exploitation — where wall thickness consistently falls at the lower boundary — reduces structural load capacity below design assumptions, creating latent safety concerns that surface only during structural audits or after service loading. [NEED_CITE: consequences of sub-standard zinc coating thickness on corrosion protection lifespan]
Why Project Buyers Source Their Galvanized Square Steel Pipe Through Our Integrated Line
Our production facility operates three steel tube forming lines backed by our own steel mill, giving us direct control over raw material grade, dimensional tolerance, and surface treatment quality — there is no intermediate trader adding margin or breaking the material traceability chain. We stock over 2,800 specifications of raw steel and finished tubes, so your order for S355JR or A500 Grade C in non-standard lengths does not require waiting for a third-party mill to schedule production. Every bundle ships with a mill test certificate tied to the specific heat number, and we coordinate third-party inspection through SGS, BV, or TÜV before container loading — not as an afterthought, but as a standard step in our dispatch process. Our engineering team reviews shop drawings for material optimization and fabrication sequencing, catching dimension conflicts before production begins rather than after the Galvanized Square Steel Pipe arrives at your site.
Documentation & Compliance
- Mill Test Certificate documenting S355JR or A500 Grade B chemical composition and mechanical properties per heat number, conforming to EN 10204 3.1 format
- CE Certificate confirming EN 10219 compliance for hot-dip galvanized square hollow sections destined for European Union markets
- ISO 9001 quality management system certificate covering the full production scope from tube forming through hot-dip galvanizing
- SGS or BV third-party inspection report verifying zinc coating thickness, dimensional tolerance, and surface quality before shipment
- Material traceability documentation linking each bundle to its heat number, steel grade certification, and galvanizing bath record
- Complete export documentation package including packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery

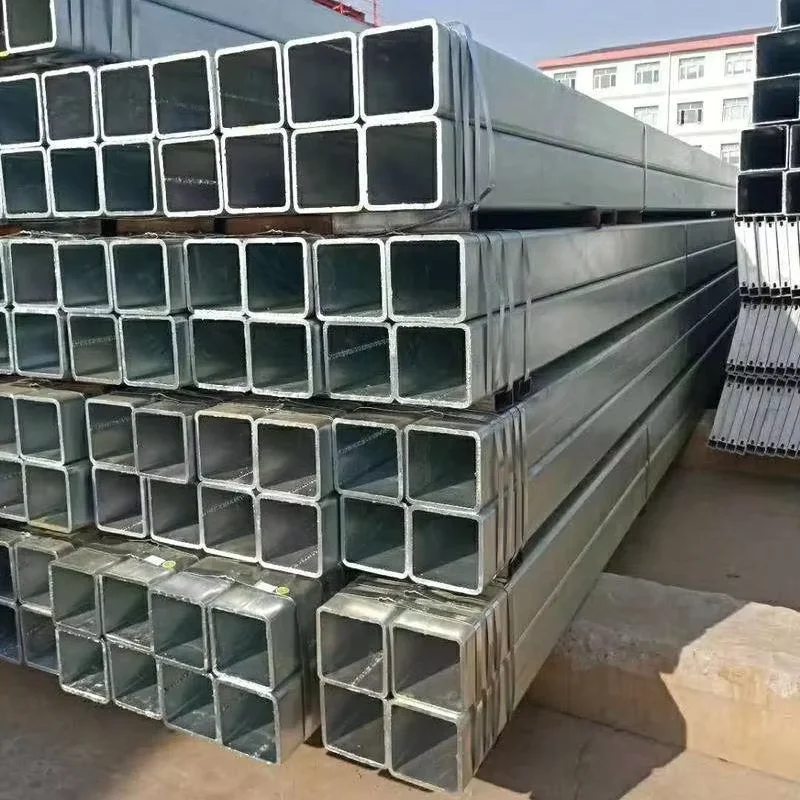

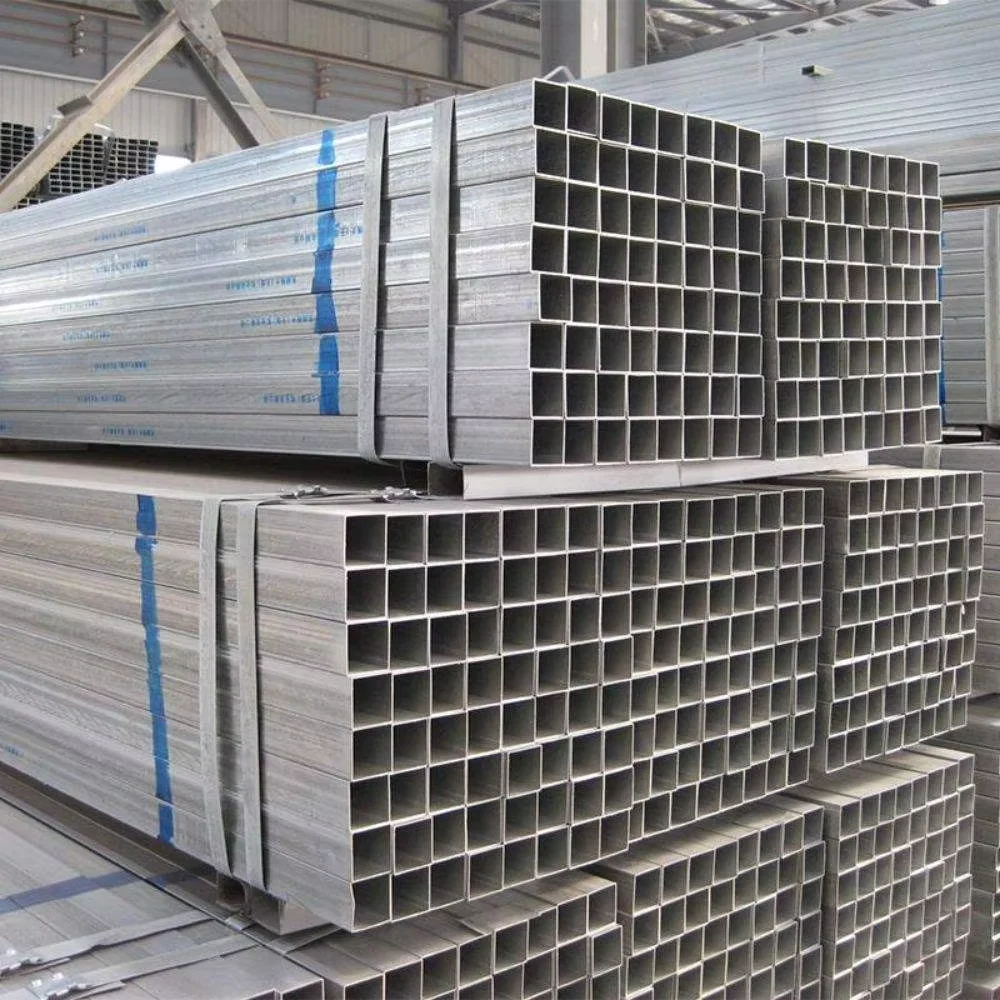

- Hot-dip galvanized square tubes bundled with steel strips and edge protectors to prevent zinc coating damage during handling and ocean transit
- Plastic end caps fitted on all pipe ends to preserve threaded, grooved, or beveled finishes and prevent moisture ingress during storage
- Container loading optimized for 5.8 m and 6 m lengths in 20ft containers, with 11 m lengths loaded in 40ft open-top or flat-rack units for oversized shipments
- Custom cutting to project-specific lengths available before galvanizing, reducing on-site cutting waste and preserving zinc coating integrity at cut points
- Each bundle marked with heat number, steel grade, size specification, and production batch for full traceability at the receiving site
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading plans and complete tracking through to site delivery
Start Your Galvanized Square Steel Pipe Inquiry With Drawings and Specifications
Submit your project drawings in PDF or DWG format along with required steel grade, size specification, coating standard, and destination port — we respond within 24 hours with a detailed quotation covering material, fabrication, coating, packing, and shipping costs, plus a shop drawing timeline and production schedule for your review.
Request Your Quotation and Mill Test Certificate Today
Share your project specifications, steel grade requirements, and target delivery schedule to receive a detailed quotation with full material certification documentation.
Contact: admin@xjystructure.com
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Website: www.xjystructure.com
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and pre-galvanized square pipes?
A: Hot-dip galvanized square pipes are immersed in molten zinc after the forming process is complete, creating a metallurgical zinc-iron alloy coating that covers all surfaces including weld seams and corners. Pre-galvanized pipes are made from galvanized coil that is formed after coating, leaving cut edges and weld seams with reduced or no zinc protection.
Q: Can you provide steel grade conversion between ASTM A53, EN 10219, and GB/T 3091?
A: Yes, our engineering team provides documented grade equivalence analysis across ASTM, EN, JIS, and GB standard systems. We supply mill test certificates showing actual chemical composition and mechanical test results so your project engineer can verify compliance with the specified standard.
Q: What is the minimum order quantity for custom-cut galvanized square tubes?
A: The minimum order quantity is 1 Ton. We offer in-house cutting, punching, and bending services to produce project-specific lengths and configurations before the galvanizing process, ensuring coating integrity on all processed surfaces.
Q: How do you ensure zinc coating thickness meets project specifications?
A: Our vertically integrated production line moves formed square tubes directly from the welding station into the galvanizing bath under controlled immersion time and withdrawal speed. Coating thickness is verified through magnetic gauge testing on each production batch, with results documented in the shipment quality report.
Q: What are the loading and shipping arrangements for oversized galvanized pipe bundles?
A: Standard lengths of 5.8 m and 6 m load efficiently in 20ft containers, while 11 m lengths require 40ft open-top or flat-rack containers. We provide professional loading plans with lashing and securing details for oversized cargo, and coordinate complete export documentation including certificate of origin for destination customs clearance.
