Description
Direct Mill Supply — Vertically integrated SSAW production from raw plate to finished large diameter pipe
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SSAW Steel Pipe |
| Product Type | Spiral Submerged Arc Welded Steel Pipe |
| Steel Grade | Q235, Q345, L175, L210, L245, L320, API 5L GR A, GR B, X42, X46, X52, X56, X60, X65, X70 |
| Standard | API 5L, ASTM A36, GB |
| Section Shape | Round |
| Outer Diameter | 219–3048 mm |
| Wall Thickness | 5–25.4 mm |
| Length | Customer’s Request |
| Technique | SSAW (Spiral Submerged Arc Welding) |
| Surface Treatment | Hot Rolled |
| Tolerance | ±1% |
| Ends | As per customer requirement |
| Application | Fluid transportation, Gas supply, Bridge construction, Building construction, Structure pipe, Drill pipe, Chemical fertilizer pipe |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Long-distance transmission pipelines, gas distribution networks, gathering lines |
| Municipal Infrastructure | Water supply mains, drainage systems, sewage outfall pipes |
| Bridge & Civil Engineering | Structural support columns, pile foundations, bridge piers |
| Industrial Construction | Plant framework columns, conveyor support structures, equipment foundations |
| Chemical & Fertilizer | Process piping, slurry transport lines, chemical fertilizer distribution |
What Wall-Thickness Tolerance Costs on a Large Diameter SSAW Steel Pipe Order
A ±1% tolerance on a 3048mm OD pipe means the difference between passing ultrasonic inspection and getting an entire shipment rejected at the port.
When buyers source large diameter SSAW steel pipe from overseas fabricators, the most common failure point is not the steel grade — it is the wall thickness. A 12% negative deviation on a DN1400 spiral welded pipe can trigger outright rejection during on-site UT testing, leaving containers stranded at Jebel Ali or Lagos with demurrage costs mounting daily. Material traceability gaps between the mill and the fabrication shop compound the problem: when the pipe maker sources plates from third parties, heat number chains break, and MTCs become unreliable. [NEED_CITE: API 5L dimensional tolerance requirements for large diameter line pipe]
Matching Large Diameter SSAW Steel Pipe to Pressure and Structural Demands
The 219–3048mm outer diameter range covers everything from municipal water distribution to major transmission trunk lines. For oil and gas applications, API 5L grades from GR B through X70 provide the yield strength progression needed across varying pressure classes, while Q235 and Q345 serve structural and low-pressure fluid roles. The spiral submerged arc welding process produces a helical seam that distributes stress more evenly than straight-seam alternatives at larger diameters, making it the preferred choice for pipes above 508mm OD where ERW becomes impractical. Our vertically integrated mill-to-pipe model means every Large Diameter SSAW Steel Pipe ships with heat-level traceability from our own steel production facility — no third-party plate sourcing, no broken certification chains.
Engineering Compliance and Certification Requirements
Large diameter spiral welded pipes for international projects must satisfy multiple compliance layers simultaneously. API 5L PSL1/PSL2 governs chemical composition and mechanical testing for pipeline applications, while ASTM A36 covers structural uses in North American markets. For European destinations, EN 10219 and EN 10210 standards apply to structural hollow sections, requiring CE marking and factory production control certification. [NEED_CITE: EN 10219 cold-formed and SSAW hollow section compliance for structural use] Wall thickness tolerance directly affects load-bearing calculations — engineers designing bridge piers or building columns need verified dimensional data, not nominal values. Surface treatment selection depends on the service environment: hot rolled finish suits buried or indoor applications, while external coating systems like 3PE or epoxy become necessary for corrosive soil conditions or marine exposure.
Steel Grade Selection and SSAW Process Fundamentals

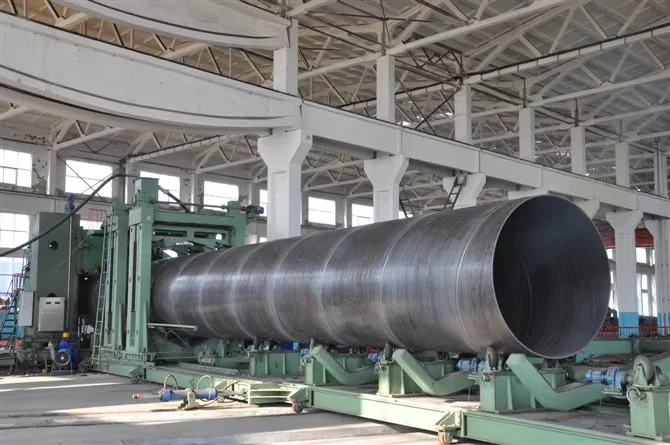

The API 5L grade system designates minimum yield strength in psi units — GR B at 42,000 psi, X42 at 42,000 psi, scaling up to X70 at 70,000 psi. The Chinese GB system uses Q235 (235 MPa yield) and Q345 (345 MPa yield), where the Q prefix indicates yield point and the number represents MPa value. For large diameter SSAW Steel Pipe, the spiral welding process feeds a coiled plate through forming rolls at an angle, creating a continuous helical seam. This allows production of diameters up to 3048mm from narrower plate widths — a cost advantage over UOE processes at sizes above 1016mm. The submerged arc method buries the arc under granular flux, producing deep penetration welds with minimal spatter and consistent bead geometry. Hot rolled surface treatment preserves the mill scale formed during plate rolling, providing a baseline corrosion resistance suitable for many buried and indoor applications without additional coating.
The Hidden Cost of Unverified Wall Thickness and Broken Material Chains
Purchasing large diameter pipes without verified dimensional inspection and complete material documentation creates downstream liabilities that far exceed the initial price difference. A pipe with undocumented negative tolerance may pass visual inspection but fail ultrasonic wall thickness measurement at the project site, triggering rejection of the entire lot. [NEED_CITE: API 5L dimensional inspection and tolerance verification procedures] Missing heat number traceability means the MTC cannot be correlated to physical material, voiding insurance coverage and creating structural liability exposure. Customs authorities in strict markets like the EU and Middle East increasingly require complete documentation packages — incomplete paperwork results in cargo holds, demurrage charges, and in some cases, forced re-export.
Why Source Large Diameter SSAW Steel Pipe from Our Integrated Facility
Our own steel production facility operates three production lines with over 2,800 raw material specifications in stock, eliminating the gap between plate supplier and pipe fabricator. Every Large Diameter SSAW Steel Pipe we produce carries full heat-level traceability from our own mill — we control the chemistry, the rolling process, and the welding parameters under one quality management system. Our welding procedures are qualified to AWS and EN standards, with certified welders performing all production welds. Shop drawing review and material optimization support catch dimensional conflicts before fabrication begins, preventing the RFI delays that plague projects sourcing from fragmented supply chains. Professional loading planning handles the logistics complexity of oversized pipes — a 3048mm OD pipe requires specialized lashing and transport documentation that general cargo forwarders often mishandle.
Documentation & Compliance
- Mill Test Certificate documenting Q235/Q345 chemical composition and mechanical properties per GB standard, or API 5L GR B through X70 test results per PSL1/PSL2 requirements
- Third-party inspection reports from SGS or BV covering dimensional verification, weld quality assessment, and coating thickness measurement for Large Diameter SSAW Steel Pipe
- Welding Procedure Specification (WPS) and Procedure Qualification Record (PQR) demonstrating qualified procedures for spiral submerged arc welding
- Material traceability report linking each pipe to specific heat numbers from our own steel production facility
- Complete customs documentation package including packing list, bill of lading, and certificate of origin formatted for destination country requirements
- Dimensional inspection reports recording actual OD, wall thickness, and length measurements for every pipe in the shipment
Packaging, Loading & Delivery
- Large diameter SSAW pipes bundled with steel strip bands and edge protectors, with hot rolled surface preserved by anti-rust oil coating for ocean transit
- Custom-length pipes cut to project specifications within the 5–25.4mm wall thickness range, with beveled or plain ends as required for field welding

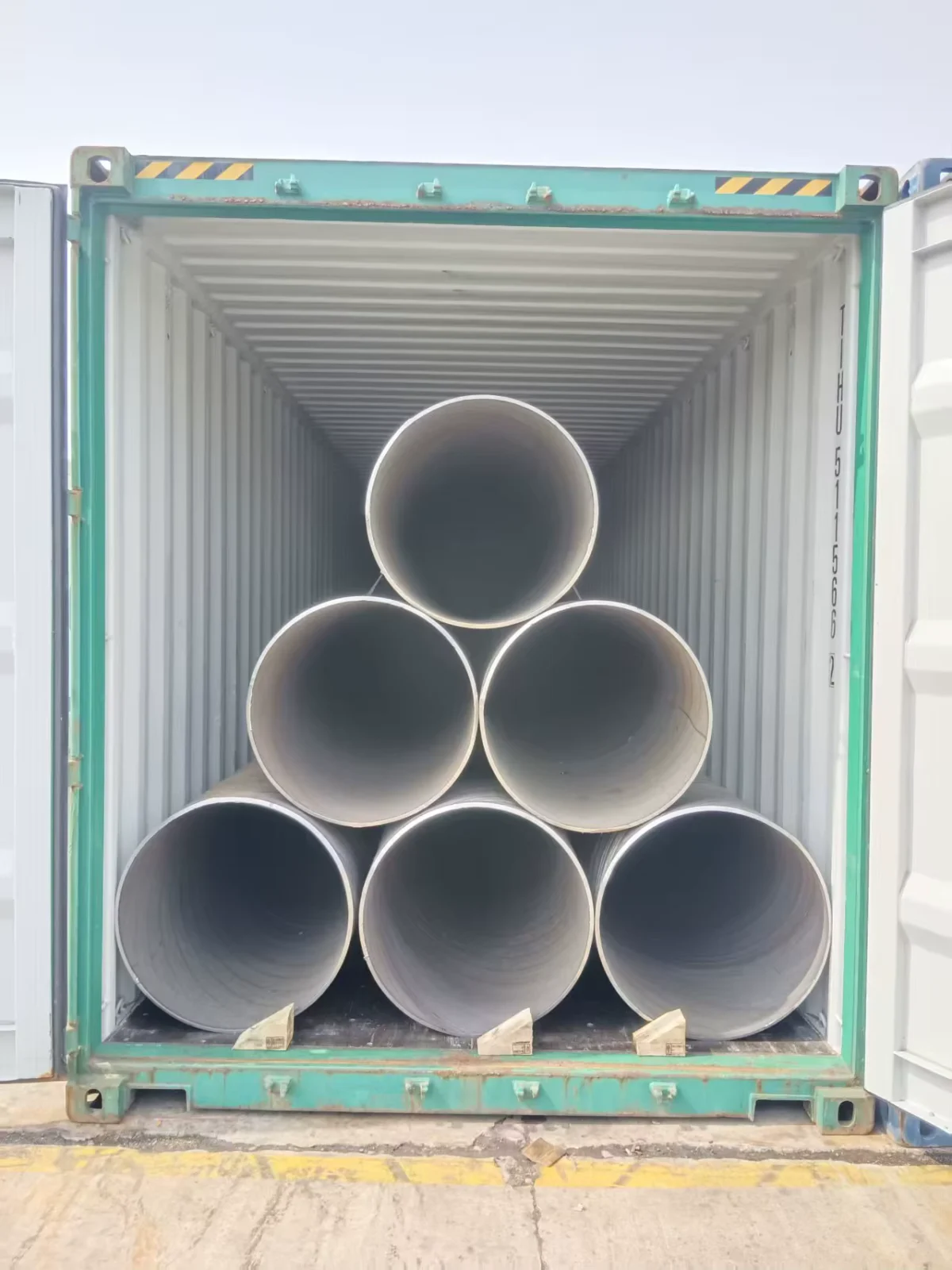

- Oversized diameter pipes above 1219mm loaded on open-top containers or flat racks with specialized lashing to prevent rolling damage during shipment
- Heat number and steel grade stenciled on each pipe end for on-site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional oversized cargo documentation and port-to-site tracking
- Professional loading plans optimized for API 5L and ASTM A36 grade pipes in Q235 and Q345 specifications, maximizing container utilization for mixed-diameter orders
Ready to Verify Material Traceability Before You Commit
Submit your project drawings with required steel grades, outer diameter, wall thickness, and applicable standards — we respond within 24 hours with a preliminary assessment including mill test certificate samples and production timeline. Confirm your certification requirements and destination port so we can prepare the complete documentation package before contract signing.
Get Your Large Diameter SSAW Steel Pipe Quote with Full Mill Documentation
Send your specifications to admin@xjystructure.com or reach us via WhatsApp at +86 188 5315 7756 for pricing, material traceability confirmation, and delivery scheduling.
