Description

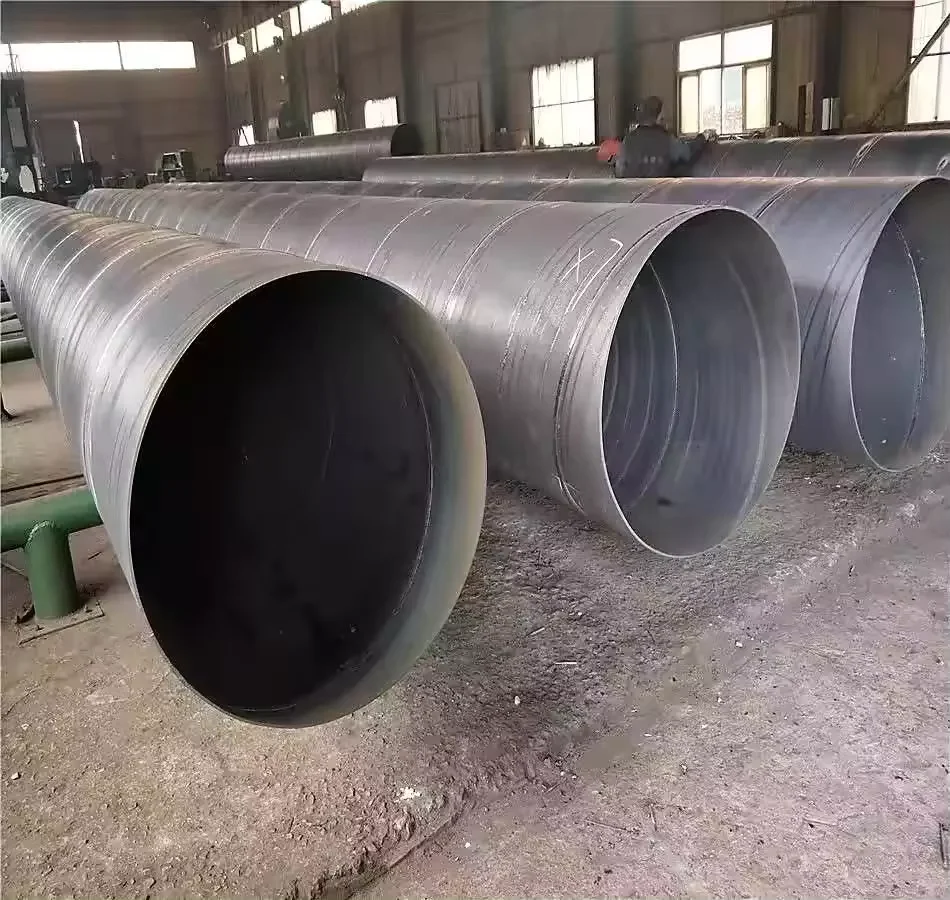

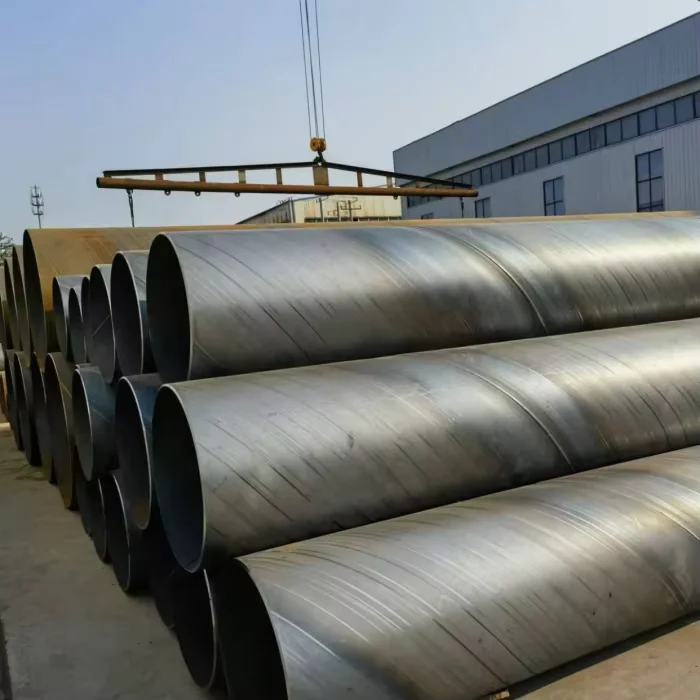

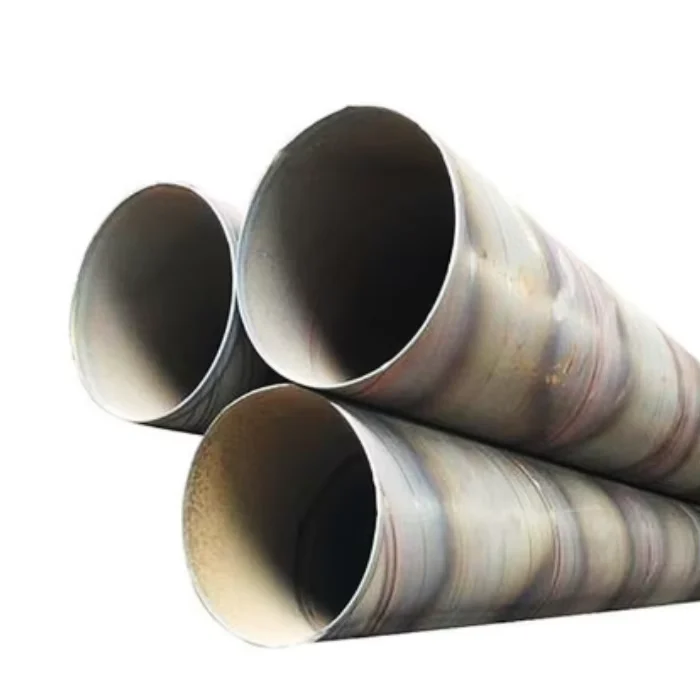

Direct Mill Supply for Large-Diameter SSAW Pipe — Vertically integrated production from raw coil to finished API 5L X65 X52 SSAW steel pipe eliminates material traceability gaps and ensures dimensional consistency across every heat.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L X65 X52 SSAW Steel Pipe |
| Product Type | Spirally Submerged Arc Welded Steel Pipe (SSAW) |
| Steel Grade | API 5L X42, X52, X65, X80; Q235B, Q345B; A106, A53, A36; S235JR, S355JR, St37 |
| Standard | API 5L (PSL1/PSL2), ASTM A53, ASTM A106, ASTM A36, EN, GB, JIS, ISO 9001, CE |
| Section Shape | Round |
| Size Range | Outer Diameter 100–2000 mm |
| Wall Thickness | 0.8–60 mm |
| Length | 0.5–12 m (customizable; standard 6 m / 6.4 m / 12 m) |
| Technique | SSAW (Spirally Submerged Arc Welding) |
| Surface Treatment | Hot Rolled / Slightly Oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled / Screwed / Threaded (customizable) |
| Application | Oil pipeline / Gas pipeline / Hydraulic pipeline / Fluid transport / Drill pipe / Chemical fertilizer pipeline / Infrastructure piling |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Transmission pipelines for crude oil and natural gas distribution networks |
| Infrastructure | Foundation piling for bridges, port terminals, and high-rise building substructures |
| Industrial | Hydraulic systems and chemical fertilizer plant fluid transport lines |
| Water Management | Long-distance water conveyance and irrigation trunk lines |
| Energy | Support structures for renewable energy installations and power plant piping |
When Wall Thickness Tolerance Decides Port Clearance
Negative tolerance exceeding specification limits triggers SGS rejection and weeks of detention at destination port.
Overseas buyers sourcing API 5L X65 X52 SSAW steel pipe from China face a recurring nightmare: material arrives with wall thickness readings below the minimum specified in the purchase order. The pipe passes mill inspection but fails third-party verification at discharge port. I witnessed an entire shipment of X65 SSAW pipe held for three weeks because measured wall thickness fell 1.2 mm below nominal — a discrepancy that triggered full batch rejection under API 5L PSL2 requirements. The root cause? A fabricator sourcing coils from multiple mills without heat-by-heat traceability, then claiming “industry standard tolerance” when confronted with test reports. [NEED_CITE: API 5L PSL2 dimensional tolerance requirements for SSAW pipe]
Fragmented procurement between coil supplier and pipe fabricator creates exactly this gap. When material certification chains break down, buyers absorb rework costs, demurrage charges, and project delays — while the supplier points to “acceptable mill practice.”
Matching Large-Diameter SSAW to Pipeline and Piling Applications
API 5L X65 X52 SSAW steel pipe in the 100–2000 mm diameter range serves two distinct engineering demands: high-pressure fluid transmission and structural foundation support. For oil and gas pipelines, X52 and X65 grades deliver the yield strength required for long-distance transmission while maintaining weldability for field jointing. The spiral welding geometry distributes hoop stress more evenly than longitudinal seam alternatives at larger diameters. Infrastructure piling applications leverage the same diameter range for driven piles and caissons where soil bearing capacity demands substantial cross-sections. Our in-house coil-to-pipe production chain ensures chemical composition consistency from heat number through finished end — critical when project specifications require full material traceability per API 5L PSL2.
Engineering Compliance Across International Standards
API 5L X65 X52 SSAW steel pipe production must satisfy multiple compliance frameworks depending on destination market and application type. Oil and gas transmission pipelines require API 5L PSL1 or PSL2 certification with documented chemical composition, mechanical properties, and hydrostatic test results. European infrastructure projects specifying EN standards demand CE marking under the Construction Products Regulation with declared performance values. [NEED_CITE: EN 10219 cold-formed hollow section requirements versus SSAW pipe applications] Piling applications for port and bridge foundations often require third-party inspection by SGS, BV, or TUV before shipment — with dimensional reports, weld maps, and coating certificates included in the documentation package. Wall thickness tolerance of ±1% ensures compliance with both API dimensional requirements and structural design assumptions. End finish selection — plain, beveled, or threaded — must match downstream field welding procedures or mechanical coupling systems specified in project drawings.
Understanding SSAW Process and Grade Selection
Spirally Submerged Arc Welding produces pipe by forming steel coil into a helical configuration and welding the seam through submerged arc deposition. This manufacturing method enables production of large diameters (up to 2000 mm) from relatively narrow coil widths — a cost advantage over plate-based alternatives for diameters above 500 mm. The spiral seam geometry provides continuous weld length distribution around the pipe circumference, which influences stress distribution characteristics under internal pressure and external loading.
API 5L grade selection directly impacts both pressure rating and fabrication cost. X42 serves lower-pressure gathering lines and water transmission where extreme strength is unnecessary. X52 and X65 dominate long-distance transmission pipelines requiring higher operating pressures and improved resistance to crack propagation. X80 addresses premium applications demanding maximum strength-to-weight ratios for challenging terrain or deep-water crossings. Each grade increment requires tighter chemistry control during steelmaking and more rigorous welding procedure qualification. [NEED_CITE: API 5L grade equivalence and mechanical property requirements]
Surface condition matters for downstream operations. Hot-rolled, slightly oiled pipe arrives ready for external coating application (3PE, FBE, or epoxy) without additional surface preparation beyond standard blast cleaning. The oil film provides temporary corrosion protection during storage and transit but must be removed before coating — a step that adds cost if not planned into the project schedule.
The Hidden Cost of Tolerance Non-Compliance
Purchasing API 5L X65 X52 SSAW steel pipe based on theoretical weight calculations while accepting unrestricted negative tolerance creates a cascade of downstream failures. Wall thickness below minimum specification reduces pressure containment capacity — a safety concern for hydrocarbon transmission. Dimensional non-compliance triggers third-party inspection rejection at destination port, generating demurrage charges that often exceed the “savings” achieved through aggressive tolerance negotiation. [NEED_CITE: consequences of dimensional non-compliance in pipeline construction] Material traceability gaps prevent verification of chemistry and mechanical properties against heat-specific test certificates — leaving engineers unable to confirm that delivered pipe matches design assumptions. Project owners facing regulatory audits or insurance claims cannot demonstrate compliance with specified standards when documentation chains are incomplete.
Why Source API 5L SSAW Pipe From Our Mill
Vertically integrated production eliminates the material traceability gaps that plague fragmented supply chains. Our own steel mill produces coil to exact chemistry specifications, then our fabrication division forms and welds that same coil into finished pipe — one heat number, one quality system, one point of accountability. Every API 5L X65 X52 SSAW steel pipe leaving our facility carries full documentation traceable from raw material test reports through welding procedure records to final dimensional inspection.
Certified welding procedures (WPS/PQR) and qualified welders ensure every spiral seam meets API 5L and EN 1090 requirements. Our in-house testing laboratory performs chemical analysis, mechanical testing, and non-destructive examination (ultrasonic, hydrostatic) before shipment — eliminating surprises at third-party inspection. The ±1% wall thickness tolerance we maintain reflects process control capability, not marketing claims. Large-diameter orders up to 2000 mm OD benefit from our specialized loading equipment and transport planning experience — oversized pipe requires careful lashing and weight distribution to prevent damage during ocean transit.
Documentation & Compliance
- Mill Test Certificate documenting API 5L X52/X65 chemical composition (carbon, manganese, sulfur, phosphorus limits) and mechanical properties (yield strength, tensile strength, elongation) per heat number
- API 5L PSL1 or PSL2 certification with hydrostatic test results and non-destructive examination reports for spiral weld seams
- CE certificate and Declaration of Performance for European market compliance under Construction Products Regulation
- ISO 9001 quality management system certificate covering design, production, and testing of SSAW pipe
- Third-party inspection reports from SGS, BV, or TUV including dimensional verification, visual examination, and coating thickness measurements
- Complete customs documentation package: commercial invoice, packing list, bill of lading, certificate of origin, and material test reports
Packaging, Loading & Delivery
- API 5L X65 X52 SSAW steel pipe bundled with steel straps and protected by edge guards to prevent coating damage during handling and ocean transit
- Slightly oiled surface condition provides temporary corrosion protection; oil removal required before external coating application
- Large-diameter pipe (above 1000 mm OD) loaded in dedicated containers or on flat racks with specialized lashing to prevent movement during sea freight
- Custom length cutting available from 0.5–12 m to match project requirements and optimize container utilization for standard 6 m and 12 m lengths
- Heat number and steel grade stenciled on each pipe end for traceability verification at site; bundle tags include purchase order reference and dimensional summary
- FOB, CIF, and DDP shipping terms available; professional export packing and complete documentation support for customs clearance at destination port
Initiating Your SSAW Pipe Procurement
Submit project specifications including required API 5L grade (X42/X52/X65/X80), outer diameter, wall thickness, length, quantity, and destination port to receive a detailed quotation with production timeline. Our engineering team reviews drawings and specifications within 24 hours, confirming material availability and fabrication capacity. Third-party inspection arrangements and certification requirements are confirmed before contract execution — ensuring documentation compliance with project specifications and import regulations.
Frequently Asked Questions
Q: What is the difference between API 5L PSL1 and PSL2 for SSAW pipe?
A: PSL2 requires more stringent chemical composition limits, additional mechanical testing (including Charpy impact testing at specified temperatures), and mandatory non-destructive examination of the weld seam. PSL1 permits broader chemistry ranges and does not require impact testing unless specified. Your project specification determines which level applies based on operating pressure, temperature, and service environment.
Q: How do you ensure material traceability from coil to finished pipe?
A: Each heat of steel produced in our mill receives a unique heat number documented in the chemical composition and mechanical property test report. That same heat number follows the coil through forming, welding, and testing — appearing on the Mill Test Certificate for every finished pipe. This single-source production chain eliminates the traceability gaps that occur when fabricators purchase coils from multiple third-party mills.
Q: Can you produce non-standard diameters and wall thicknesses?
A: Our SSAW production line covers outer diameters from 100–2000 mm and wall thicknesses from 0.8–60 mm. Custom lengths from 0.5–12 m are available. Non-standard sizes within these ranges do not require special tooling — the spiral forming process adjusts continuously. MOQ remains 1 Ton for custom specifications, though larger quantities optimize production scheduling and pricing.
Q: What end finishes are available and how do they affect field welding?
A: Plain ends suit applications where field welding uses external backing or where mechanical couplings are specified. Beveled ends (typically 30° with 1.6 mm root face) prepare the pipe for butt-weld field joints per API 1104 or AWS D1.1 procedures. Screwed and threaded ends enable mechanical connection without field welding — useful for maintenance access points or temporary installations. End finish selection should match your project’s welding procedure specification.
Q: How are large-diameter SSAW pipes packed for ocean freight?
A: Pipe below 1000 mm OD bundles efficiently in standard 20ft or 40ft containers with steel strap bundling and wooden chocks to prevent rolling. Large-diameter pipe above 1000 mm OD requires flat rack containers or break-bulk stowage with specialized lashing to distribute weight and prevent contact damage. Our loading team prepares stowage plans based on pipe dimensions and destination port handling equipment.
