API 5L X70 SSAW Steel Pipe 219-4064mm OD Manufacturer

Description

Full-Range SSAW Steel Pipe Direct from Mill — API 5L X70 and EN10219 grades produced and fabricated under one roof, with mill test certificates traceable to raw steel heat numbers.

Technical Specifications

Application Suitability

What Wall-Thickness Tolerance Actually Costs on a Pipeline Order

A few millimeters of negative tolerance deviation can trigger third-party rejection at the job site.

When SSAW steel pipe arrives at a remote pipeline spread and the inspector pulls out the ultrasonic gauge, every measurement below the specified minimum wall thickness becomes a line item on a non-conformance report. I once handled a spiral welded order for a West African water network where the wall thickness sat at the very edge of the allowable negative tolerance. The client’s third-party inspector flagged several joints as sub-standard, and the entire batch was held pending supplementary pieces flown in at air freight cost. [NEED_CITE: API 5L dimensional tolerance requirements for wall thickness]

The root cause is not always the fabricator’s intent — it is often the gap between the steel mill’s rolling practice and the pipe maker’s forming parameters. When raw material sourcing and pipe fabrication happen under separate roofs, nobody owns the full tolerance chain. A vertically integrated SSAW steel pipe supplier controls both the coil chemistry and the spiral forming process, closing that gap before the first weld arc strikes.

Matching Spiral Weld Geometry to Piling and Transmission Duties

The helical weld seam of SSAW steel pipe distributes residual stress along the spiral path rather than concentrating it at a single longitudinal line. For foundation piling driven through dense soil or rock, this geometry provides more uniform load transfer around the circumference. For oil and gas transmission at diameters above 600 mm, the spiral configuration allows production of large-bore pipe from narrower coil stock — reducing material cost compared to LSAW at equivalent wall thickness. Our fabrication lines handle API 5L X70 and EN10219 S420 grades across the full 219.1 mm to 4064 mm range, with welding procedures qualified to both AWS and EN standards.

Engineering Compliance Across International Standards

Pipeline projects in the Middle East and Africa typically specify API 5L PSL2 with supplementary requirements for Charpy impact testing and hydrogen-induced cracking resistance. European structural applications demand EN10219 compliance with CE marking and factory production control certification. North American piling work references ASTM A252 with specific chemistry limits on carbon and manganese for weldability. [NEED_CITE: EN 10219 cold-formed and hot-formed hollow section compliance requirements] The SSAW steel pipe we supply carries the full documentation chain — WPS, PQR, weld maps, dimensional reports, and coating thickness records — prepared for the standard your project engineer has written into the specification.

Steel Grade Selection and Spiral Welding Process

API 5L grades from Grade B through X70 represent increasing minimum yield strength, selected based on design pressure and hoop stress calculations. Higher grades like X65 and X70 require tighter control of carbon equivalent to maintain weldability — the spiral submerged arc process with its dual-pass welding sequence provides the heat input management needed for these grades. EN10219 S355JR and S355J2 differ primarily in impact toughness requirements, with J2 specified for sub-zero service environments. Surface treatment selection follows the corrosion environment: FBE for buried pipelines with moderate soil resistivity, 3LPE for aggressive coastal or offshore conditions, and bitumen coating for economical protection in low-corrosivity water networks. Wall thickness tolerance of ±10% applies across the 4 mm to 25.4 mm range, with theoretical weight invoicing based on nominal dimensions. [NEED_CITE: steel grade equivalence mapping between API 5L and EN10219 standards]

The Hidden Price of Unverified Material Certificates

Accepting SSAW steel pipe without verified mill test certificates creates downstream risk that rarely appears in the initial purchase price comparison. Material traceability gaps surface during pre-commissioning audits when the client’s quality team requests heat number correlation between the coil and the finished pipe. Missing or inconsistent chemistry data can delay customs clearance in markets requiring EN 10204 3.2 third-party certification. [NEED_CITE: EN 10204 inspection document types for steel products] Negative tolerance stacking across multiple joints compounds into cumulative length shortfall, forcing field cuts and weld repairs that erase the per-ton savings from an unverified source.

Why Project Procurement Teams Source SSAW Steel Pipe from Our Facility

Our integration of raw steel production and pipe fabrication eliminates the material handoff that creates traceability gaps. The same facility that rolls the coil forms and welds the pipe, so every heat number on the mill test certificate links directly to our production records. We maintain 2,800+ specifications in inventory, reducing lead time for standard grades and sizes while custom orders for API 5L X70 or EN10219 S420 in non-standard lengths run through dedicated production scheduling. Our in-house laboratory performs chemical analysis and mechanical testing per ISO 9001 protocols, with SGS and BV third-party inspection available at any production stage. Professional loading teams handle oversized pipe up to 96 m with specialized lashing for ocean transit, and complete export documentation packages travel with every shipment.

Documentation & Compliance

• Mill Test Certificate per EN 10204 3.1 documenting API 5L X70 chemical composition and mechanical properties, with heat number traceability to raw coil production
• CE Certificate for EN10219 compliance covering structural hollow sections supplied for European building and bridge projects
• ISO 9001 Quality Management System certificate covering the full production chain from steelmaking through pipe fabrication and coating
• SGS or BV Third-Party Inspection Report available for pre-shipment verification of dimensions, weld quality, and coating thickness
• Material Traceability Register linking each pipe joint to its coil heat number, welding parameters, and NDT test records
• Customs Documentation Package including packing list, bill of lading, certificate of origin, and insurance certificate for CIF and DDP shipments

Packaging, Loading & Delivery

• SSAW steel pipe bundled with galvanized steel strips at intervals calculated for the specific OD and wall thickness, preventing bundle distortion during crane handling
• Beveled ends protected with plastic caps to preserve weld preparation geometry during ocean transit and site storage

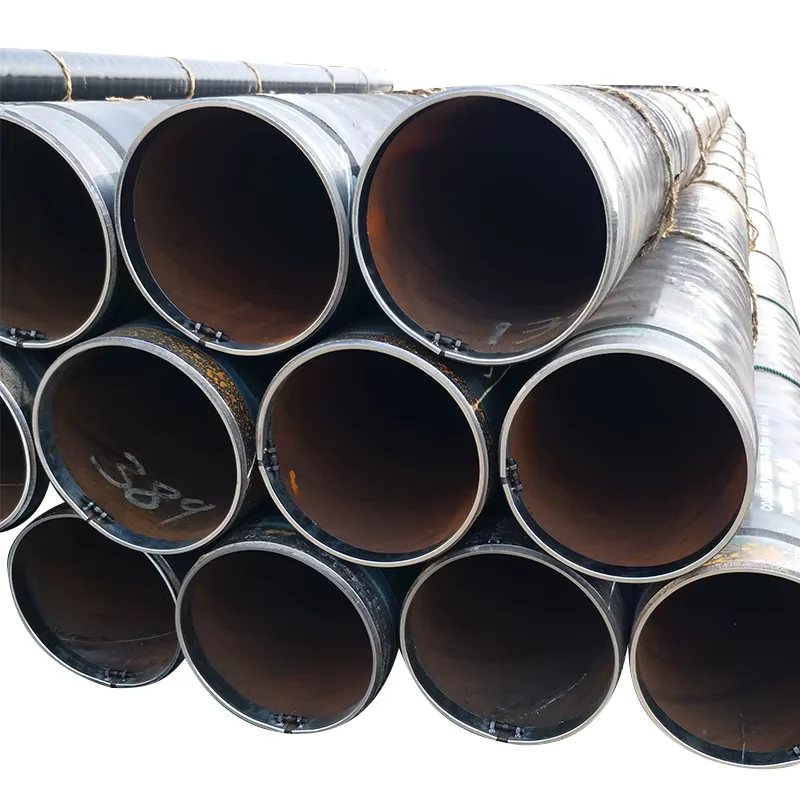

• Anti-rust coated or FBE/3LPE coated pipe wrapped with UV-stable polyethylene sheeting to prevent coating damage from sunlight exposure during outdoor staging
• Large diameter pipe above 1200 mm OD loaded as individual pieces with timber cradle supports in container or on flat rack, optimized for 40ft OT equipment
• Heat number and steel grade stenciled on each pipe end in weather-resistant paint for site identification and traceability verification
• FOB, CIF, and DDP shipping terms available with professional stowage planning for oversized cargo up to 96 m length

Ready to Start Your SSAW Steel Pipe Inquiry

Submit your project specifications including OD, wall thickness, length, steel grade, surface treatment, and quantity to receive a detailed quotation with production schedule and mill test certificate sample. For non-standard dimensions or special coating requirements, our engineering team reviews your drawings and provides fabrication feasibility confirmation within 24 hours. Confirm your required certification standard and third-party inspection scope so we include the complete documentation package in your offer.

Request Your SSAW Steel Pipe Quotation Today

Share your project drawings and specifications — we respond within 24 hours with pricing, mill test certificate samples, and production timeline.
