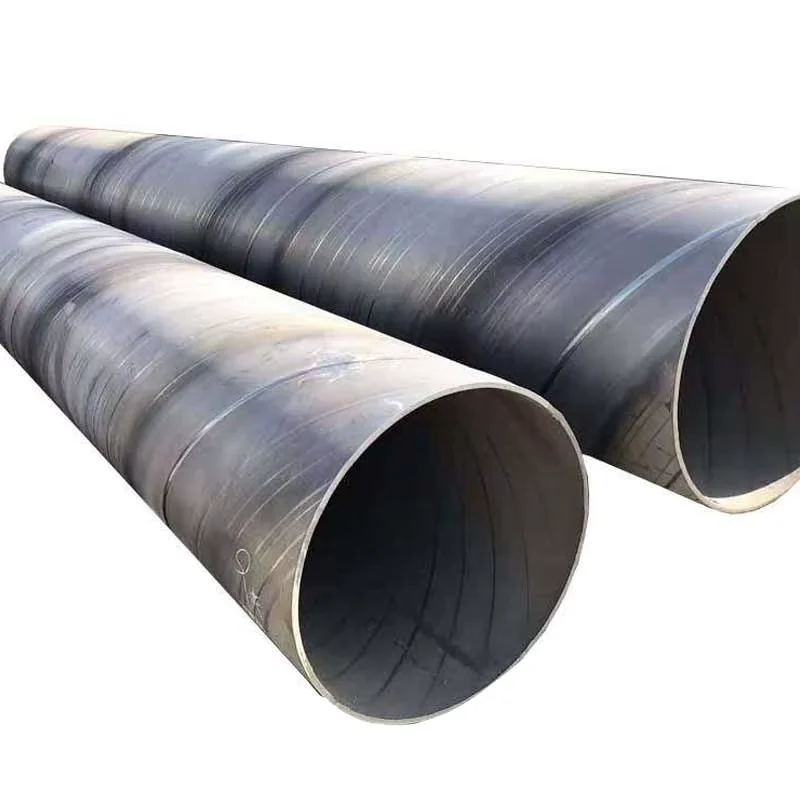

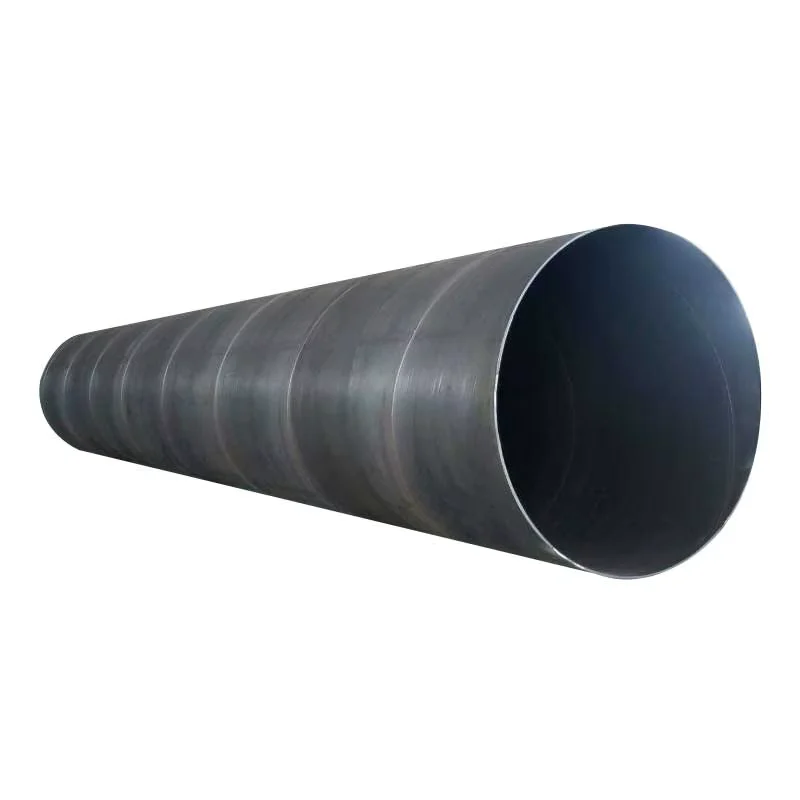

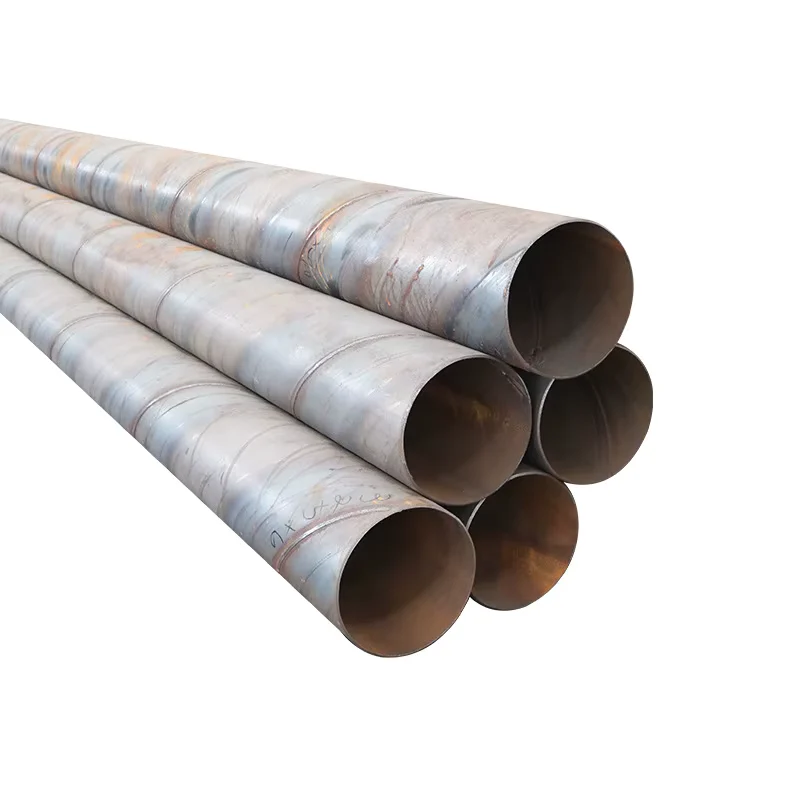

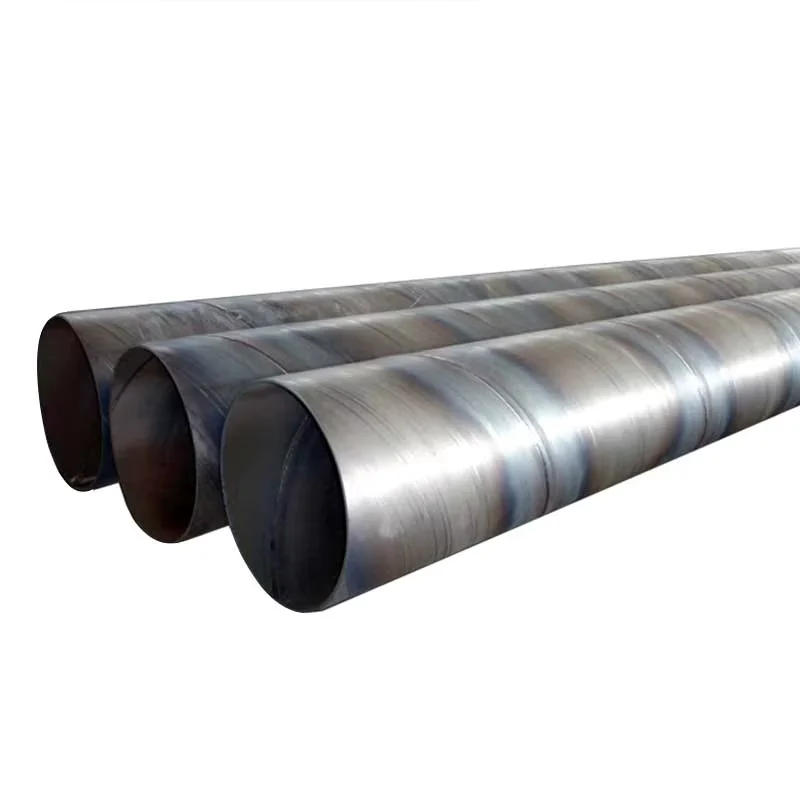

ASTM A20 SSAW Steel Pipe 159-3200mm OD for Oil Gas Pipeline Manufacturer

Description

Factory-Direct SSAW Pipe Mill — Raw material traceability from in-house steel slab to finished spiral welded pipe under one quality system.

Technical Specifications

Application Suitability

Where Third-Party Mill Sourcing Creates Certification Gaps for SSAW Steel Pipe Supplier Oil Gas Pipeline Projects

Material traceability breaks when the fabricator does not own the steel mill.

When a pipe fabricator buys coils from an outside mill, the heat number chain has a gap. The buyer receives a mill test certificate — but it traces back to a supplier the fabricator has never audited. On oil and gas transmission jobs, this gap surfaces during third-party inspection: SGS or BV asks for the original slab chemistry, and the fabricator can only provide what the coil supplier handed over. I watched a 24-inch SSAW shipment get held at port for two weeks because the third-party inspector could not verify the heat-to-pipe traceability chain. The滞港费 cost the buyer over four thousand dollars — and the root cause was a broken material chain, not bad welding. [NEED_CITE: material traceability requirements for pressure piping per ASME B31.3]

Matching Large-Diameter SSAW Pipe to Transmission and Piling Engineering Requirements

A SSAW steel pipe supplier oil gas pipeline projects depend on must deliver pipes that meet both the pressure rating and the dimensional tolerance the engineering specification demands. With OD ranging from 159 mm to 3200 mm and wall thickness up to 100 mm, our spiral welded process covers the full spectrum from mid-size gathering lines to large-diameter cross-country transmission and foundation piling. The spiral weld seam geometry distributes stress along the helical path, which suits applications where internal pressure and external soil loading coexist — typical of buried oil and gas mains and port piling in Middle East and Southeast Asian infrastructure programs.

Engineering Compliance Across Pressure, Corrosion, and Certification Dimensions

Oil and gas pipeline projects require compliance with recognized pressure piping codes. ASTM A20/A20M governs the general delivery requirements for steel plates and coils used in pressure vessel and pipeline fabrication, while JIS G3115 and DIN 17100 cover supplementary technical delivery conditions. For projects entering the European market, CE marking and EN standard conformity become mandatory at customs — a missing CE declaration can hold an entire shipment at the port of discharge. [NEED_CITE: CE marking requirements for steel pressure equipment under PED 2014/68/EU] Corrosion environment determines end finishing and coating selection: beveled ends for field girth welding, threaded or socket ends for mechanical coupling, and plastic cap protection to preserve the mill surface during ocean transit. For aggressive soil or marine environments, downstream 3PE or FBE coating is applied after fabrication — the pipe must arrive with correct end preparation to accept these coatings without rework.

Understanding the SSAW Process, Steel Grade Selection, and Tolerance Implications

Spiral Submerged Arc Welding forms the pipe by helically winding steel coil and welding both inner and outer seams under submerged arc flux. This process allows a single coil width to produce multiple diameters — a cost advantage over LSAW for large OD pipes above 508 mm. The ASTM A20/A20M grade system specifies chemical composition and mechanical testing requirements for the base material; the fabricator’s role is to execute certified welding procedures (WPS/PQR) that match or exceed the base metal properties. Wall thickness tolerance directly affects both theoretical weight and structural capacity: a ±5% tolerance means a specified 10 mm wall could measure 9.5 mm at the lower bound — for pressure piping, this must be verified against the minimum wall requirement in the design code. [NEED_CITE: wall thickness tolerance and minimum wall requirements per ASME B31.4 and B31.8] Our in-house steel production eliminates the coil-to-pipe traceability gap: every heat number on the mill test certificate traces directly to our own slab casting, and every weld seam is executed by AWS/EN-certified welders under approved procedures.

The Hidden Cost of Wrong Steel Grade and Missing Traceability

Specifying the wrong grade or accepting a pipe with incomplete heat number documentation creates costs that appear long after the invoice is paid. A pipe that fails third-party NDT at the construction site means cutting out weld joints, replacing spools, and delaying the commissioning schedule. A shipment held at customs because the CE declaration does not match the steel grade on the mill certificate incurs demurrage, re-inspection fees, and potentially return freight. For oil and gas operators, the regulatory consequence is more severe: a pipeline that cannot demonstrate full material traceability from slab to installed pipe may fail the operator’s integrity management audit. [NEED_CITE: pipeline material traceability requirements under API 5L and PHMSA regulations]

Why Procuring from an Integrated Mill-Fabricator Eliminates These Risks

Our facility operates both the steel production line and the SSAW pipe fabrication workshop under one roof — meaning the coil that becomes your pipe was cast, rolled, and tested in our own mill. Every heat number on your mill test certificate traces to our slab chemistry records, and every weld seam is executed under our certified WPS by our qualified welders. We maintain over 2,800 raw material specifications in inventory, so your order does not depend on procuring coils from an outside supplier whose quality system we have not audited. Our engineering team reviews shop drawings before fabrication begins, resolving dimensional conflicts and weld access issues before steel is cut. The complete quality documentation package — WPS, PQR, weld maps, dimensional inspection reports, NDT reports, and coating reports — ships with every order, ready for the client’s QA/QC files and regulatory submissions. Third-party inspection by SGS, BV, or TüV is available at our facility before shipment, so your inspector witnesses the final dimensional and NDT checks on our floor, not at a distant warehouse.

Documentation & Compliance

• Mill Test Certificate per EN 10204 3.1 documenting ASTM A20/A20M chemical composition and mechanical test results, with full heat number traceability to in-house slab casting
• CE certificate confirming conformity with applicable EN standards for pressure equipment and structural steel, required for EU customs clearance
• ISO 9001 quality management system certificate covering the integrated steel production and SSAW pipe fabrication process
• SGS or BV third-party inspection report available upon request, witnessing dimensional checks, NDT testing, and coating thickness measurement before shipment
• Complete weld documentation package including WPS, PQR, weld maps, and welder qualification records per AWS and EN ISO 15614 standards
• Export documentation set: commercial invoice, packing list, bill of lading, certificate of origin, and fumigation certificate as required by destination country

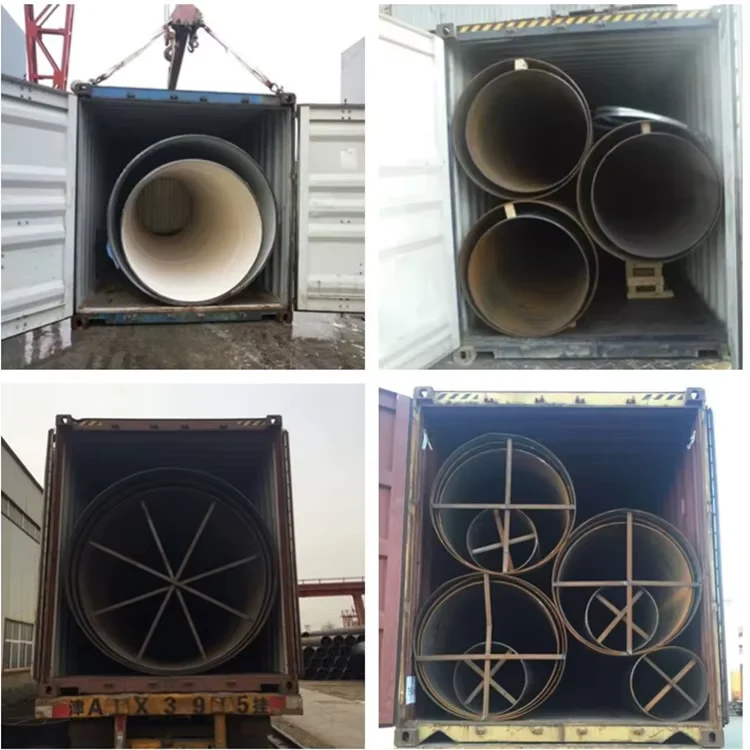

Packaging, Loading & Delivery

• SSAW pipes bundled with steel strips and separated by rubber pads to prevent surface damage to the hot-rolled finish during ocean transit
• Plastic cap protection on all pipe ends to preserve beveled or threaded end preparation and prevent moisture ingress during storage and shipping
• Large-diameter pipes (above 1200 mm OD) loaded as breakbulk or on flat racks with custom cradles and lashing to prevent rolling during vessel transit
• Standard lengths of 6 m and 12 m optimized for 40ft open-top and flat-rack container loading; custom cut lengths available per project specification
• Heat number, steel grade, and size marked on each pipe end with stenciled paint for field identification and traceability verification at the construction site
• Delivery terms available: FOB, CIF, and DDP to major ports in the Middle East, Southeast Asia, Africa, and South America with full export documentation

Getting Your SSAW Pipe Inquiry Quoted with Full Material Certification

Send your project specifications — OD, wall thickness, length, steel grade, quantity, end finish, and destination port — and our team returns a detailed quotation within 24 hours, including material cost, fabrication, coating, packing, and shipping. We confirm the mill test certificate format, third-party inspection availability, and production timeline before you sign the contract. For non-standard dimensions or special coating requirements, our engineering team prepares a technical clarification before fabrication begins.

Request Your SSAW Steel Pipe Quotation with Mill Test Certificate

Submit your project drawings and specifications to receive a detailed quotation with full material traceability documentation.
