Description
Direct Mill Supply with Full Traceability — Coil-to-pipe production ensures every ASTM A252 Grade 1 SSAW spiral welded steel pipe carries verified heat numbers from our own steel mill.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A252 Grade 1 SSAW Spiral Welded Steel Pipe |
| Product Type | SSAW Spiral Welded Steel Pipe |
| Steel Grade | Q235 (equiv. A53 Grade B / A500 Grade A), Q345 (equiv. A500 Grade B / Grade C) |
| Standard | API 5L, ASTM A53, ASTM A252, GB/T9711-2011, GB/T3091, GB/T13793 |
| Section Shape | Round |
| Size Range | OD 219–4200 mm |
| Length | 6–12 m |
| Technique | Spiral Weld (SSAW) |
| Surface Treatment | Bare or Painted |
| Tolerance | ±1% / ±5% |
| Ends | Plain or Beveled |
| Application | Piling, Gas Pipeline, Oil Pipeline, Fluid Transport, Structural Pipe, Drill Pipe |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Infrastructure & Civil Engineering | Bridge foundation piling, retaining wall structures, port and quay construction |
| Oil & Gas Transmission | Onshore gas gathering lines, crude oil transmission pipelines, flowline connections |
| Industrial Construction | Factory column supports, equipment platform legs, pipe rack structures |
| Water & Wastewater | Raw water intake pipelines, outfall discharge lines, pumping station penstocks |
What Wall-Thickness Tolerance Costs on a Piling Foundation Order
Negative tolerance beyond specification triggers third-party rejection and demurrage charges at destination port.
Overseas buyers sourcing large-diameter SSAW pipe for piling projects frequently encounter material traceability gaps when fabricators source coils from multiple third-party mills. Welding quality inconsistencies across spiral seams compound the risk — a single non-conforming joint can halt pile driving operations and delay critical path schedules. [NEED_CITE: material traceability requirements for structural piling applications]
Matching Large-Diameter SSAW Pipe to Piling and Pipeline Engineering
The OD 219–4200 mm range covers virtually all large-diameter piling and transmission pipeline requirements in a single procurement source. Spiral welding technology enables continuous production of oversized diameters that LSAW facilities cannot achieve without expensive retooling. Our vertically integrated mill-to-pipe supply chain delivers ASTM A252 Grade 1 SSAW spiral welded steel pipe with certified API 5L compliance and full WPS/PQR documentation packages.
Engineering Compliance and Certification Requirements
Piling foundations for bridge and infrastructure projects must conform to ASTM A252 Grade 1 specifications for chemical composition and dimensional tolerances. Gas and oil transmission pipelines require API 5L compliance with documented welding procedures and non-destructive testing reports. Surface treatment selection — bare for driven piles, painted for exposed structural applications — depends on corrosion environment and design service life. Third-party inspection by SGS or BV validates material certification before shipment, preventing customs clearance delays at destination ports. [NEED_CITE: ASTM A252 piling steel requirements and API 5L pipeline specifications]
Steel Grade Equivalence and Spiral Welding Process

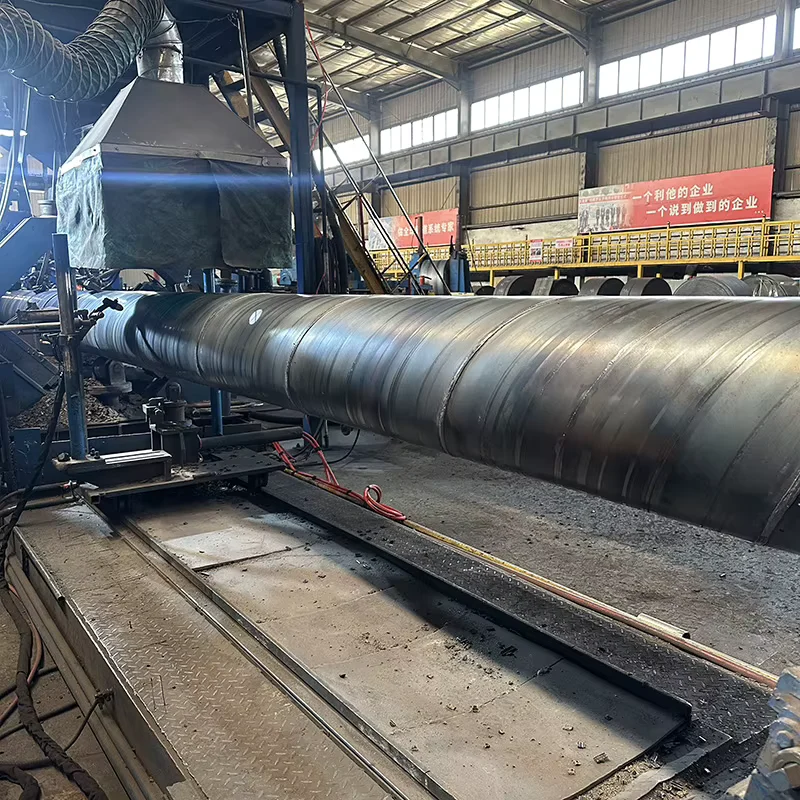

Q235 steel grade maps directly to ASTM A53 Grade B and A500 Grade A, providing equivalent yield strength for structural piling and low-pressure fluid transport applications. Q345 grade corresponds to A500 Grade B and Grade C, offering higher strength for demanding structural and pipeline service conditions. The SSAW spiral welding process forms steel coil into cylindrical shape through continuous helical seam welding, enabling production of large diameters up to 4200 mm from standard-width coil stock. This manufacturing method delivers cost advantages over seamless pipe for non-critical pressure applications while maintaining structural integrity for piling and gravity-flow pipeline service.
Hidden Costs of Non-Compliant Material Procurement
Material certification gaps between coil source and finished pipe create documentation failures during third-party inspection. Negative wall thickness tolerance beyond specification limits reduces theoretical weight versus actual measured weight, triggering quantity disputes and payment holdbacks. Missing mill test certificates or incomplete heat number traceability blocks customs clearance in markets requiring EN 10204 3.1 or 3.2 certification. Structural engineers rejecting non-conforming material after pile driving commencement generates demurrage charges, rework costs, and schedule delays that far exceed initial procurement savings. [NEED_CITE: consequences of material certification failures in international steel procurement]
Why Source SSAW Pipe from an Integrated Mill-Fabricator
Our own steel production facility operates three production lines with 2,800+ specifications of raw material inventory, eliminating third-party sourcing gaps that create material certification chain breaks. The fabrication workshop provides CNC cutting, drilling, welding, and surface treatment services, enabling delivery of finished components ready for installation rather than raw pipe requiring secondary processing. Certified welding procedures per AWS and EN standards with qualified welders ensure spiral seam quality meets international code requirements. Complete quality documentation packages include WPS, PQR, weld maps, dimensional inspection reports, and coating thickness measurements — all traceable to original heat numbers from our mill. Professional loading and lashing planning for oversized diameter pipe prevents transit damage and simplifies site receiving operations.
Documentation & Compliance
- Mill test certificate documenting Q235 and Q345 chemical composition and mechanical properties per ASTM A252 Grade 1 and API 5L requirements
- Third-party inspection report from SGS, BV, or Lloyd’s verifying dimensional accuracy and welding quality before shipment
- Material traceability documentation linking each pipe to original coil heat number and production batch records
- Welding procedure specification (WPS) and procedure qualification record (PQR) for spiral seam welding per AWS D1.1 standards
- Export customs documentation including packing list, bill of lading, and certificate of origin for destination port clearance

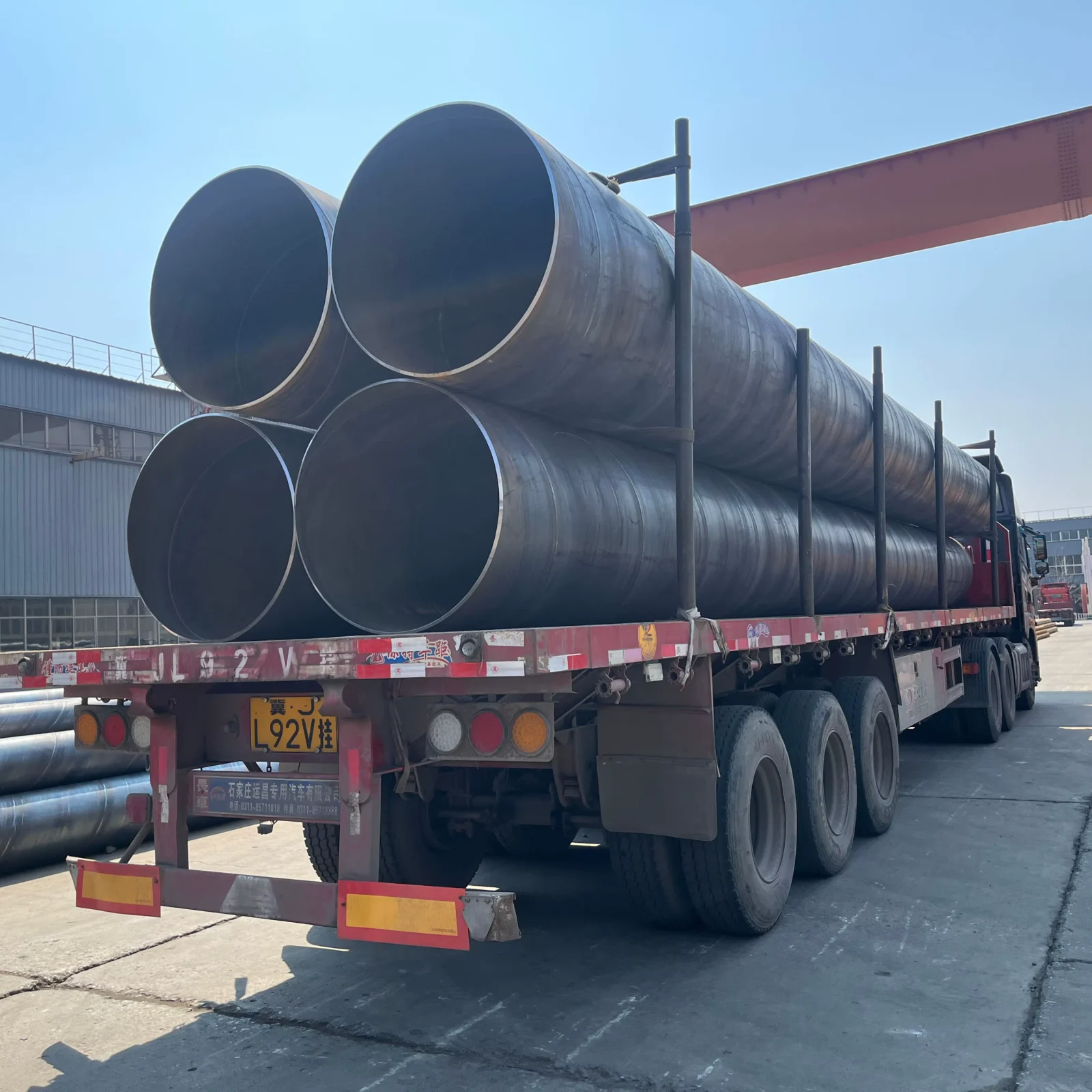

Packaging, Loading & Delivery
- Bare SSAW pipes bundled with steel strips and edge protectors to prevent surface damage during ocean transit
- Painted surface pipes wrapped with protective film and separated by timber dunnage to preserve coating integrity
- Large-diameter pipes (OD 2000+ mm) loaded on flat rack containers or shipped via bulk vessel with specialized lashing systems
- 6–12 m standard lengths optimized for 40ft container loading with beveled ends protected by plastic caps

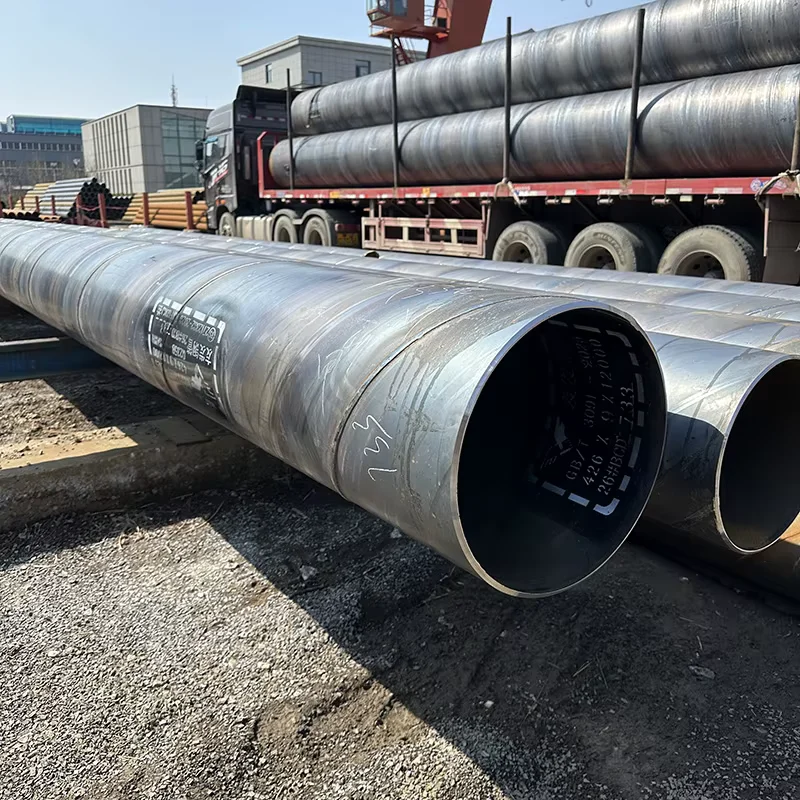

- Heat number and steel grade markings stenciled on pipe exterior for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination for project sites
Request Quotation with Mill Test Certificate
Submit project specifications including OD, wall thickness, length, steel grade, quantity, and destination port to receive detailed quotation with production schedule and mill test certificate sample. Our engineering team reviews shop drawings and provides material optimization recommendations within 24 hours.
Start Your Procurement Process
Share your ASTM A252 Grade 1 SSAW spiral welded steel pipe requirements via email at admin@xjystructure.com or WhatsApp at +86 188 5315 7756 for quotation and certification documentation.
Frequently Asked Questions
Q: How does Q235 steel grade compare to ASTM A53 Grade B for piling applications?
A: Q235 provides equivalent chemical composition and mechanical properties to ASTM A53 Grade B, meeting ASTM A252 Grade 1 requirements for structural piling. Both grades deliver adequate yield strength for driven pile foundations in normal soil conditions.
Q: What documentation validates material traceability for international buyers?
A: Each ASTM A252 Grade 1 SSAW spiral welded steel pipe carries mill test certificates with heat number traceability from coil to finished product. Third-party inspection reports from SGS or BV verify dimensional accuracy and welding quality before shipment.
Q: How does SSAW spiral welding compare to LSAW for large-diameter piling pipe?
A: SSAW technology enables continuous production of diameters up to 4200 mm from standard-width coil, while LSAW requires expensive plate forming for oversized diameters. SSAW delivers cost advantages for non-critical pressure piling applications while maintaining structural integrity.
Q: What surface treatment options suit different corrosion environments?
A: Bare pipes work for driven piles where soil provides corrosion protection. Painted coatings protect exposed structural applications in moderate environments. Custom 3PE coating available for aggressive corrosive conditions in marine or industrial settings.
Q: How do you handle loading and shipping for oversized diameter pipes?
A: Pipes with OD 2000+ mm ship via flat rack containers or bulk vessel with specialized lashing systems. Professional packing and loading planning prevents transit damage and simplifies site receiving operations for large-diameter ASTM A252 Grade 1 SSAW spiral welded steel pipe.
