Description

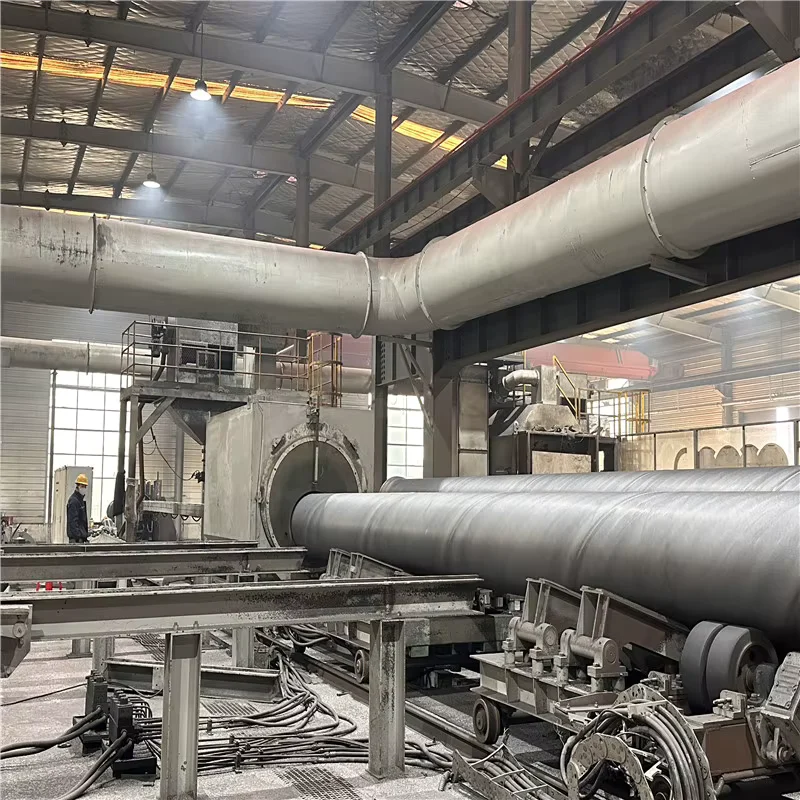

Factory-direct SSAW pipe mill — Raw steel coil to finished ASTM A252 spiral welded pipe under one roof, eliminating third-party material gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A252 Grade 2/3 SSAW Steel Pipe |
| Product Type | Spiral Welded Steel Pipe (SSAW) |
| Steel Grade | ASTM A252 Grade 2, ASTM A252 Grade 3 |
| Standard | ASTM A252, GB |
| Section Shape | Round |
| Outer Diameter | 219.1 mm – 3600 mm |
| Technique | SSAW (Spiral Submerged Arc Welding) |
| Surface Treatment | Rust removal; optional 3PE coating |
| Tolerance | ±1% |
| Ends | Plain / Beveled (as per project requirement) |
| Length | Customized |
| Application | Piling and foundation columns / Fluid transport / Structural columns / Long-distance pipeline conveyance |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Infrastructure & Civil Engineering | Bridge foundation piling, retaining wall columns, port and quay pile driving |
| Oil & Gas / Petrochemical | Long-distance water, oil, and gas transmission pipelines, plant pipe racks |
| Commercial & Industrial Construction | Building foundation columns, warehouse structural supports, equipment support frames |
| Water & Wastewater | Intake and outfall pipelines, water treatment plant conveyance lines, drainage culverts |
What Wall-Thickness Tolerance Costs on a Piling Order
Tight dimensional control on large-diameter SSAW pipe directly determines whether piles pass load-bearing acceptance tests on site.
When overseas buyers source large-diameter spiral welded pipe for piling or pipeline work, the most common failure point is not the steel grade itself — it is the wall thickness arriving below the specified minimum. A pipe that reads within tolerance on the mill’s paperwork but fails ultrasonic measurement at the job site triggers entire lot rejections, crane demobilization costs, and schedule delays that dwarf the original material savings. I have seen project teams discover negative tolerance exceeding acceptable limits only after driving the first test pile, at which point the entire foundation design needs recalculation. [NEED_CITE: ASTM A252 dimensional tolerance requirements for steel piling]
Matching Large-Diameter SSAW Pipe to Piling and Pipeline Demands
An ASTM A252 Grade 2/3 SSAW steel pipe supplier covering 219.1 mm to 3600 mm outer diameter addresses the full spectrum from small-bore utility pipelines to major bridge foundation piles. The spiral submerged arc welding process distributes stress evenly around the circumference, which matters when piles encounter variable soil conditions during driving. For corrosive environments — coastal piling, marine outfalls, or buried pipelines in aggressive soil — the optional 3PE anti-corrosion coating extends service life without adding field-applied wrapping costs. Our own steel production facility with over 2,800 raw material specifications means the coil chemistry matches the finished pipe certification, closing the traceability gap that third-party fabricators leave open.
Engineering Compliance and Certification Requirements
Piling projects governed by ASTM A252 require documented proof that each heat of steel meets the specified grade chemistry and that weld procedures conform to qualified WPS/PQR records. [NEED_CITE: ASTM A252 steel piling specification requirements] For projects in European markets, buyers must confirm whether the supplied material can be cross-referenced to EN 10219 or EN 10210 equivalents, as customs authorities and local inspectors increasingly request CE marking documentation. Surface treatment selection — bare with rust removal for temporary structures, 3PE coating for buried or submerged service, or custom painting for exposed architectural columns — must be specified before fabrication begins, as post-production coating changes require stripping and re-blasting. Dimensional tolerance of ±1% on outer diameter ensures that pile driving shoes and connection collars fit without on-site reaming or grinding.
Understanding SSAW Process and Grade Selection
The spiral submerged arc welding technique used for ASTM A252 SSAW steel pipe forms the seam at a helical angle, which distributes longitudinal stress more evenly than straight-seam alternatives — a critical advantage when piles are driven into dense or rocky substrates. ASTM A252 Grade 2 and Grade 3 represent increasing yield strength levels within the piling steel family; Grade 3 is specified where higher load-bearing capacity is required, such as deep foundations for high-rise structures or heavy industrial platforms. The choice between grades should follow the structural engineer’s foundation calculations rather than cost preference, as under-specifying grade saves marginal material cost but risks pile failure during driving or under service loads. Wall thickness tolerance directly affects theoretical weight: a pipe delivered at the lower edge of acceptable tolerance carries less steel per meter than the design assumption, which can compromise safety factors in load-critical applications. [NEED_CITE: SSAW vs LSAW welding process comparison for large diameter pipe]
The Hidden Cost of Wrong-Grade or Untraceable Pipe
Specifying ASTM A252 Grade 3 but receiving Grade 2 material — or receiving pipe with no heat-number traceability back to the original coil — creates liability exposure that no amount of documentation paperwork can resolve after a structural inspection flags the discrepancy. Projects subject to third-party inspection by SGS, BV, or TUV will reject entire lots if material certificates cannot be matched to physical markings on each pipe length. Negative tolerance beyond the standard allowance means the pile section modulus falls below the engineer’s design value, potentially requiring supplementary piling or foundation redesign at costs that exceed the original material price difference. [NEED_CITE: material traceability requirements for structural steel piling]
Why Project Teams Source ASTM A252 SSAW Pipe From Us
Our vertically integrated operation — own steel mill producing raw coil plus dedicated SSAW fabrication workshop — means every pipe length carries a mill test certificate traceable from coil heat number to finished product, with no third-party material sourcing gaps. The in-house engineering team reviews shop drawings and confirms fabrication sequencing before production starts, reducing RFI delays that commonly plague overseas procurement. Certified welding procedures and qualified welders per AWS and EN standards ensure that every spiral seam passes NDT testing, with full documentation including weld maps, dimensional inspection reports, and coating thickness records included in the shipment package. Professional loading planning for oversized and heavy pipe lengths prevents transit damage and ensures that container or break-bulk configurations match the destination port’s handling equipment.
Documentation & Compliance
- Mill Test Certificate documenting ASTM A252 Grade 2 or Grade 3 chemical composition and mechanical properties per heat number, traceable from raw coil to finished SSAW pipe
- Welding Procedure Specification (WPS) and Procedure Qualification Record (PQR) records for spiral submerged arc weld seams per AWS D1.1 requirements
- NDT inspection reports covering ultrasonic testing of weld seams and dimensional verification of outer diameter, wall thickness, and length
- Surface treatment certification for 3PE coating thickness and adhesion test results, where applicable
- Third-party inspection reports from SGS, BV, or TUV available upon request for pre-shipment dimensional and coating verification
- Complete export documentation package including packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery
- Large-diameter ASTM A252 SSAW pipes bundled with steel strip bands and edge protectors to prevent coating damage during ocean transit, with rust removal surfaces treated with anti-corrosion oil before bundling
- 3PE-coated pipe lengths wrapped with protective film at the coating layer and separated by rubber spacers within bundles to preserve the anti-corrosion finish
- Custom-length pipes cut to project-specified dimensions with beveled or plain ends protected by plastic caps to prevent edge damage during handling and driving
- Oversized diameter pipes (above 1200 mm OD) loaded on flat racks or break-bulk vessels with professional lashing and chocking plans matching destination port crane capacity
- Each pipe length marked with heat number, steel grade (Grade 2 or Grade 3), outer diameter, wall thickness, and length for on-site identification and inspection matching
- Shipping terms available as FOB, CIF, or DDP with full export documentation and tracking through to site delivery
Starting Your ASTM A252 SSAW Pipe Inquiry
Submit your project drawings or specification sheet indicating required steel grade (Grade 2 or Grade 3), outer diameter, wall thickness, length, surface treatment preference, and destination port. Our engineering team responds within 24 hours with a preliminary assessment, detailed quotation covering material, fabrication, coating, and logistics costs, plus a shop drawing timeline for your approval before production begins.
Request Your ASTM A252 SSAW Pipe Quotation
Share your project specifications and steel grade requirements to receive a detailed quotation with mill test certificate documentation and production schedule.
