Description

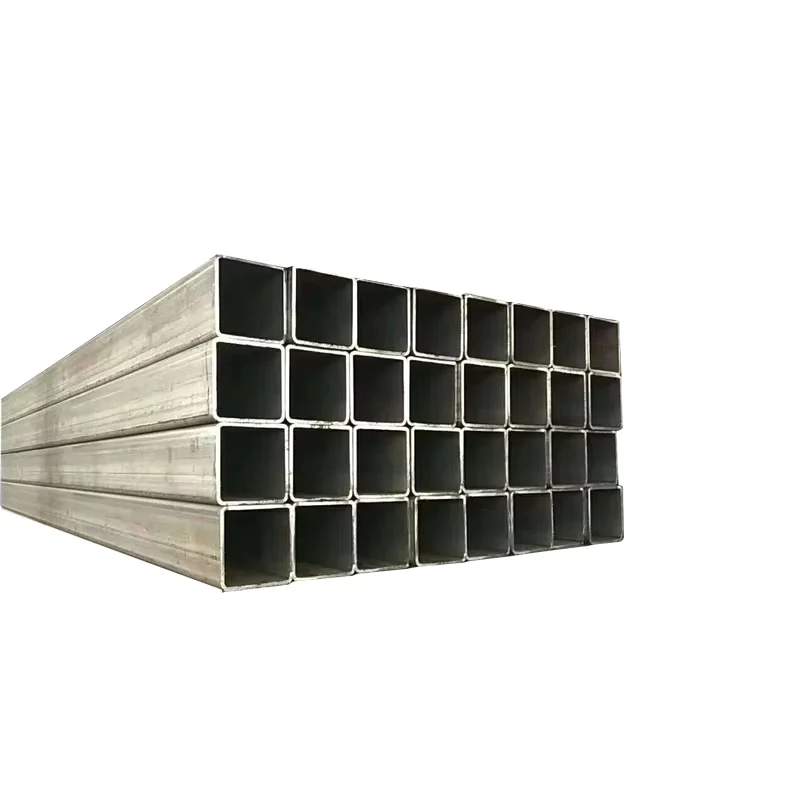

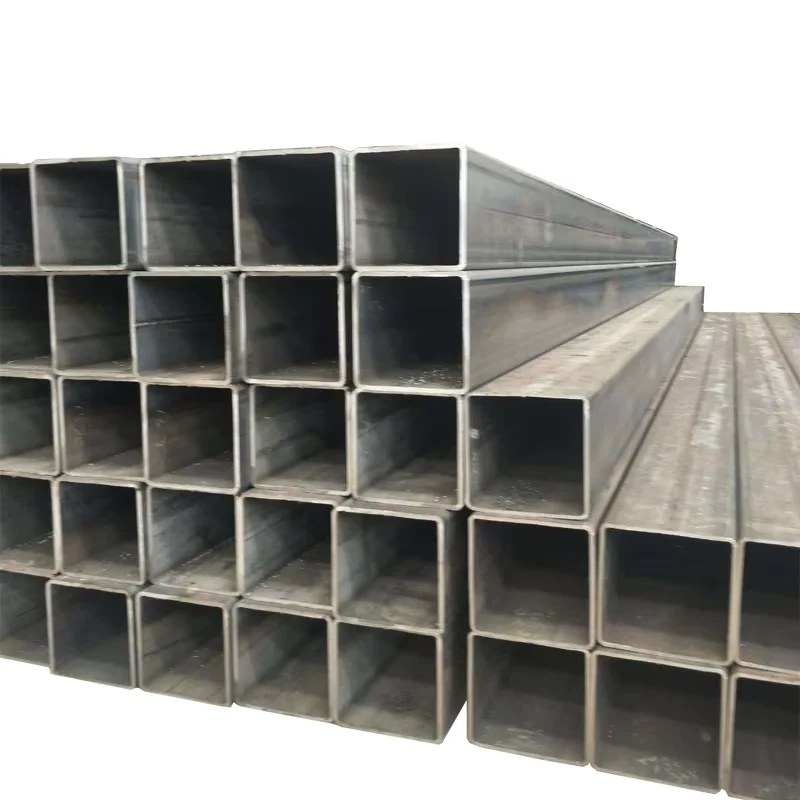

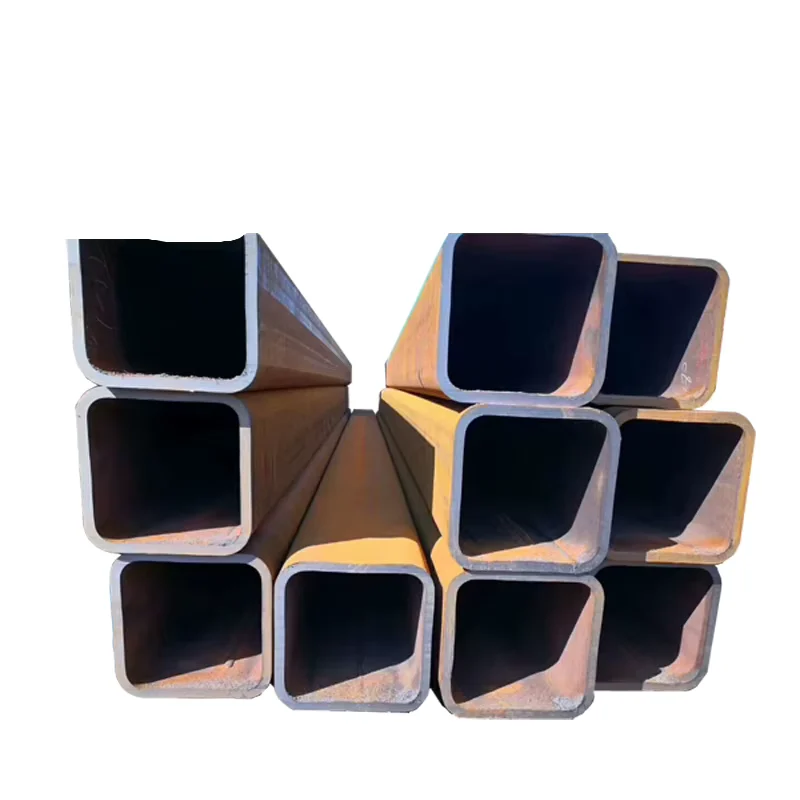

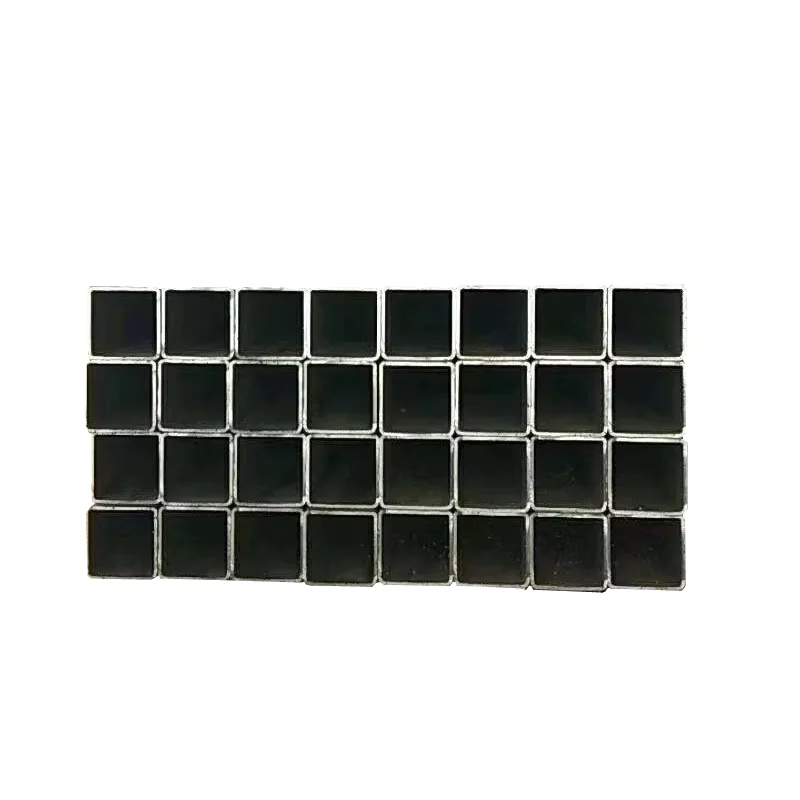

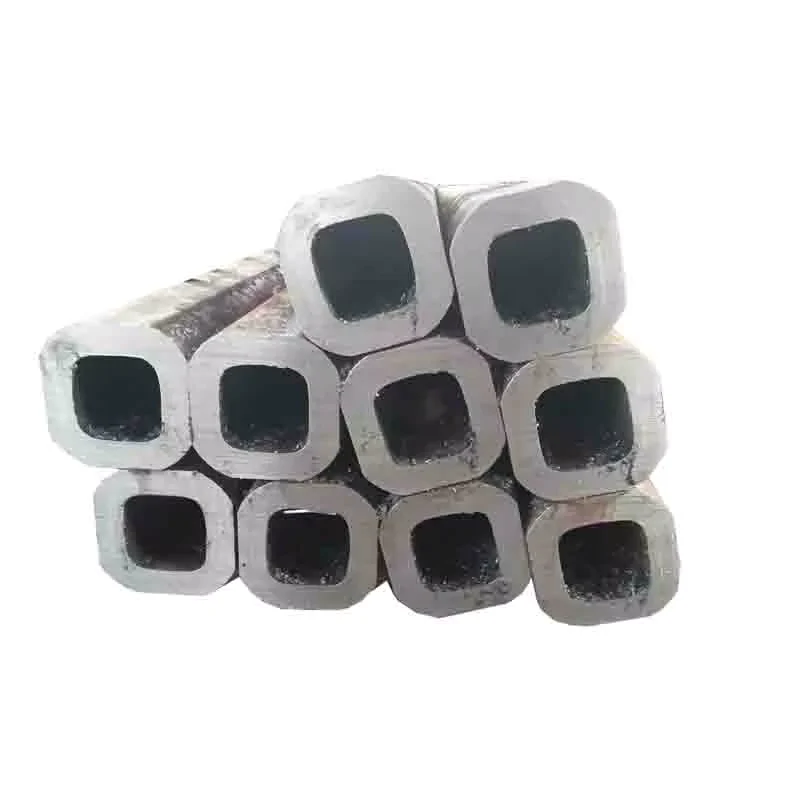

Vertically Integrated Square Tube Supply — Own steel mill producing Gr.B and S355 grades feeds directly into our fabrication workshop, eliminating material traceability gaps for ASTM A500 welded square steel tube orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A500 Welded Square Steel Tube |
| Product Type | Welded Square Steel Tube (Square Hollow Structural Section) |
| Steel Grade | Gr.B, S235, S275, S355, STK400 |
| Standard | ASTM A500, ASTM A53, GB/T 3091 |
| Section Shape | Square |
| Size Range | 19mm × 19mm – 800mm × 800mm |
| Wall Thickness | 1 – 30 mm |
| Length | 5.8m / 6m / 11.8m / 12m / Random Length |
| Technique | ERW (Welded) |
| Surface Treatment | Black Painting / Galvanized / Varnish / Bare |
| Tolerance | ±1% |
| Ends | Plain |
| Application | Steel structures / Construction frames / Building structures / Curtain walls / Support tubes / Machinery |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Commercial Construction | Building frames, column-beam assemblies, mezzanine platforms |
| Industrial Facilities | Warehouse roof trusses, crane support structures, equipment platforms |
| Infrastructure | Bridge handrails, sound barrier supports, utility pole bases |
| Curtain Wall Systems | Mullion tubes, perimeter framing, anchor supports |
| Machinery Manufacturing | Conveyor frames, machine bases, structural assemblies |
Material Traceability Gaps Cost More Than Price Differences
Fragmented sourcing creates certification black holes that surface at customs or site inspection.
When overseas buyers procure ASTM A500 welded square steel tube from trading companies rather than integrated producers, mill test certificates often trace back to unknown mills with no heat number linkage. I’ve seen entire shipments held at Jebel Ali because the chemical composition report couldn’t match the physical stamping on the tubes. The ASTM A500 welded square steel tube you receive should carry documentation showing exactly which heat of steel produced it — not a reissued certificate from a broker’s filing cabinet. [NEED_CITE: material traceability requirements for structural hollow sections]
Matching Square Hollow Sections to Structural Load Paths
The 19×19mm through 800×800mm size range of ASTM A500 welded square steel tube covers everything from light-gauge curtain wall mullions to heavy column sections in warehouse frames. For EPC projects across Middle East and Southeast Asia, the ±1% wall thickness tolerance ensures predictable load calculations without field surprises. Our ERW welding process maintains consistent seam quality across the full 1–30mm thickness range, while the flat internal surfaces simplify connection detailing for moment frames and bracing assemblies.
Engineering Compliance Across Certification Regimes
Structural projects targeting EU markets require EN 10219 compliance for cold-formed hollow sections, while North American specifications typically call out ASTM A500 Gr.B or Gr.C. [NEED_CITE: EN 10219 cold-formed hollow section requirements] The S235 through S355 grade progression in European standards maps to different yield strength classes that affect member sizing — specifying S355 over S235 can reduce section weight by 15-20% for the same load capacity. For projects requiring CE marking, our ASTM A500 welded square steel tube production follows certified welding procedures with full WPS/PQR documentation packages. Custom length cutting to 5.8m or 11.8m optimizes container loading while reducing on-site waste and secondary cutting operations.
ERW Welding Process and Grade Selection Logic
The ERW (Electric Resistance Welding) process used for ASTM A500 welded square steel tube forms the square profile from coil, then welds the longitudinal seam under pressure without filler metal. This produces a clean, consistent weld line suitable for structural applications where the seam undergoes full NDT inspection. Grade selection follows project requirements: Gr.B serves general construction with moderate strength demands, while S355 provides higher yield strength for heavily loaded columns or long-span trusses. The STK400 grade from JIS standards appears frequently in Southeast Asian machinery frames where Japanese engineering specifications dominate. Surface treatment choice — hot-dip galvanized for coastal or industrial environments, black painted for interior applications, or bare for field-coated projects — directly impacts long-term maintenance costs and corrosion resistance. [NEED_CITE: steel grade equivalence between EN and ASTM standards]
Hidden Costs of Specification Mismatches
Ordering ASTM A500 welded square steel tube with incorrect grade documentation triggers cascading failures: customs holds due to missing CE certificates, third-party inspection rejections for wall thickness deviations beyond ±1% tolerance, or structural engineer sign-off delays when mill test certificates lack heat number traceability. The cost of re-inspection, air freight for replacement material, or project schedule penalties far exceeds any initial price savings from uncertified sources. Negative tolerance abuse — where actual wall thickness falls below the specified minimum — compromises structural capacity and voids engineering calculations, creating liability exposure for general contractors. [NEED_CITE: structural steel quality control requirements for international projects]
Why Integrated Production Eliminates Procurement Risk
Our vertically integrated operation combines raw steel production with fabrication capability, meaning the ASTM A500 welded square steel tube you order comes from a single accountable source. The own steel mill with 3 production lines and 2,800+ specifications ensures material consistency from heat to finished product — no third-party coil sourcing creates certification gaps. Certified welding procedures per AWS and EN standards, combined with qualified welders and complete quality documentation packages (WPS, PQR, weld maps, dimensional inspection reports), satisfy the most stringent EPC requirements. Professional packing and loading expertise — developed through years of handling oversized structural components — prevents transit damage that plagues less experienced suppliers. The integrated model means one point of contact for technical queries, one quality system from mill to shipment, and one accountable entity for project delivery.
Documentation & Compliance
- Mill test certificate documenting Gr.B chemical composition and mechanical properties per ASTM A500, with heat number traceability from our own steel production
- CE certificate confirming EN 10219 compliance for cold-formed structural hollow sections targeting European Union markets
- ISO 9001 quality management system certification covering the complete production process from raw material inspection through final dimensional checks
- SGS or BV third-party inspection reports available for pre-shipment verification of wall thickness, coating thickness, and dimensional accuracy
- Material traceability documentation linking each ASTM A500 welded square steel tube to specific heat numbers and production dates
- Complete customs documentation package including packing list, bill of lading, and certificate of origin for smooth clearance at destination ports
Packaging, Loading & Delivery
- ASTM A500 welded square steel tube bundled with steel strips and edge protectors to preserve galvanized coating during ocean transit and prevent zinc damage at contact points
- Surface protection matched to treatment type: galvanized tubes receive additional wrapping for zinc layer preservation, while black painted or varnished surfaces get interleaf separators to prevent adhesion
- Container loading optimization for 5.8m and 11.8m lengths maximizes payload per 20ft or 40ft container, reducing freight cost per ton for large-volume project orders
- Custom length cutting to exact project specifications eliminates on-site waste and reduces secondary cutting operations at destination
- Heat number and grade identification marked on each tube bundle for easy site identification and traceability verification during installation
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading and complete export documentation tracking
Initiating Your Structural Steel Procurement
Submit your project drawings with specified ASTM A500 welded square steel tube grades, dimensions, quantities, and destination port to receive a detailed quotation including material, fabrication, coating, packing, and shipping costs. Our engineering team reviews shop drawings and provides material optimization recommendations within 24 hours, followed by a complete production schedule once drawing approval and deposit are confirmed.
Start Your ASTM A500 Square Tube Order
Send specifications to admin@xjystructure.com or contact via WhatsApp at +86 188 5315 7756 for preliminary assessment and mill test certificate samples.
