Description
Factory-Direct Laser Cut Fabrication — Vertically integrated steel production and fabrication under one roof, eliminating material traceability gaps for custom carbon steel channel structural parts laser cut welded sheet metal fabrication orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Channel Structural Parts Laser Cut Welded Sheet Metal Fabrication |
| Product Type | Machined Steel Product / Sheet Metal Fabrication Parts |
| Steel Grade | Carbon Steel, Stainless Steel, Aluminum, Copper, Alloy Steel |
| Thickness Range | 3 mm–10 mm (customizable) |
| Size | Customized per engineering drawings |
| Technique | Laser cutting, CNC punching & bending, Stamping, Welding |
| Surface Treatment | Powder coating, Oxidization, Electrophoresis, Galvanization |
| Package | Carton, wood pallet, case or wooden boxes |
| Application | ATM machine, Mail box, Metal accessories, Structural parts, Custom industrial components |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Factory frames, warehouse purlin supports, plant platform brackets |
| EPC Projects | Conveyor structures, pipe rack supports, equipment skid bases |
| Commercial Infrastructure | Mailbox housings, ATM enclosure frames, access control brackets |
| Architecture & Engineering | Custom connection assemblies, facade mounting brackets, stair stringer plates |
Where Laser Cutting Tolerance Decides Field Assembly Fit-Up
A 0.5 mm deviation on a channel flange can cascade into unfixable bolt-hole misalignment on site.
When general contractors outsource carbon steel channel structural parts laser cut welded sheet metal fabrication overseas, the distance between shop and site amplifies every cutting error. Sloppy kerf compensation leads to warped brackets; uncontrolled heat input distorts weld joints; missing dimensional reports force rework that no amount of expedited air freight can recover. Buyers who have received containers of components that simply do not bolt together know this pain intimately. [NEED_CITE: laser cutting tolerance standards for structural steel fabrication]
Matching Custom Channels to Structural Connection Demands
The 3 mm to 10 mm thickness range covers everything from light-duty mailbox frames to heavy-load equipment skid bases. Laser cutting delivers kerf widths tight enough that pre-drilled bolt holes land within positional tolerance, while CNC bending produces consistent channel profiles that mate flush against mating flanges. Whether the end use is a powder-coated ATM enclosure or a galvanized conveyor bracket exposed to coastal humidity, the fabrication process holds dimensional integrity through downstream surface treatment.
Engineering Compliance for International Project Delivery
Structural steel components destined for EU markets must satisfy EN 10219 cold-formed hollow section requirements and associated welding quality clauses, while North American EPCs typically reference AISC and AWS D1.1. Material traceability from heat number through final weld map becomes non-negotiable when customs authorities or third-party inspectors demand proof of compliance. Certified welding procedures and qualified welders ensure that every fillet and groove weld on these custom carbon steel channel structural parts laser cut welded sheet metal fabrication orders meets the specified code. [NEED_CITE: EN 10219 cold-formed hollow section requirements]
Steel Grade Selection and Surface Treatment Logic
Carbon steel grades dominate structural channel applications for their balance of formability and cost, while stainless steel variants serve corrosive environments where galvanization alone proves insufficient. Aluminum and copper options address specialized architectural or electrical enclosure requirements. Surface treatment selection follows service environment: powder coating delivers aesthetic finish for indoor commercial installations; galvanization provides sacrificial protection for outdoor structural brackets; electrophoresis offers uniform coverage on complex geometries with recessed features. Each process adds cost, so specifying the right treatment for the actual exposure condition avoids over-engineering.
The Hidden Cost of Unverified Fabrication Sources
Procuring from traders who subcontract to unknown workshops creates a chain of accountability gaps. Material certificates may not match delivered chemistry; weld procedures may lack proper qualification records; dimensional reports may be fabricated rather than measured. When these discrepancies surface during site inspection or customs audit, the consequences extend far beyond material replacement—project schedules slip, penalty clauses activate, and structural safety margins become questionable. [NEED_CITE: material traceability requirements for structural steel certification]
Integrated Mill-to-Fabrication Accountability
Our own steel production facility supplies raw material directly to the fabrication workshop, closing the loop between chemistry and final component. The理化实验室 verifies every heat before release; welding engineers review shop drawings and optimize nesting before laser cutting begins; quality technicians generate weld maps and dimensional reports that travel with each shipment. With over 2,800 raw material specifications in stock, custom carbon steel channel structural parts laser cut welded sheet metal fabrication orders avoid procurement delays that fragment supply chains create. Certified welding procedures and complete documentation packages satisfy EN 1090, AWS, and AISC requirements without additional audit overhead.
Documentation & Compliance
- Mill Test Certificate documenting carbon steel chemical composition and mechanical properties per applicable grade standards
- CE marking certificate confirming EN 10219 compliance for structural hollow sections exported to EU markets
- ISO 9001 quality management system certificate covering fabrication processes and inspection protocols
- SGS or BV third-party inspection report available for critical structural components requiring independent verification
- Full material traceability linking each fabricated component back to original heat number and mill test record
- Complete customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

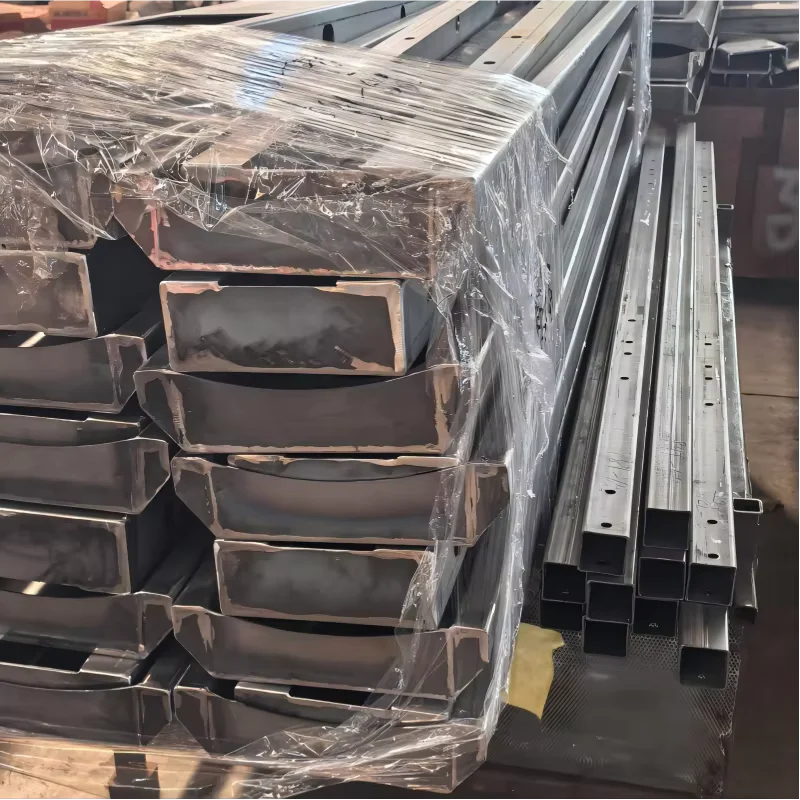

- Laser cut components nested and bundled with edge protectors to preserve surface treatment finish during transit
- Galvanized structural parts wrapped in waterproof paper and secured on fumigated wood pallets for ocean shipment
- Custom carton packaging for smaller metal accessories and mailbox components to prevent surface scratching
- Welded assemblies crated in wooden boxes with internal bracing to maintain dimensional stability under container stacking loads
- Heat number and steel grade markings stenciled on each bundle for site identification and traceability verification
- FOB, CIF, and DDP terms available with professional oversized cargo loading plans for large structural frames
Start Your Fabrication Inquiry with Drawings and Specifications
Submit your project drawings in PDF or DWG format along with steel grade requirements, surface treatment preferences, and target quantity to receive a detailed quotation within 24 hours. Our engineering team will review shop drawings, confirm welding procedure qualifications, and provide a production schedule before contract signing.
Request a Quote with Material Certification
Share your fabrication drawings and specifications to receive pricing, mill test certificate samples, and production lead times tailored to your carbon steel channel structural parts laser cut welded sheet metal fabrication project.
