Description
Factory-direct sheet metal fabrication — 2,800+ raw material specs in-house eliminate third-party sourcing gaps for every custom order.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Custom Sheet Metal Fabricated Parts (Laser Cutting / Bending / Welding) |
| Product Type | Custom Fabricated Metal Components |
| Steel Grade | Carbon Steel, Stainless Steel, Aluminium |
| Process | Laser Cutting, Bending, Welding (MIG/MAG/SAW) |
| Precision Tolerance | ±0.01–0.1 mm |
| Material Range | Carbon steel, stainless steel, aluminium sheet and plate |
| Surface Treatment | Shot blasting, primer painting, powder coating, hot-dip galvanizing |
| Size Range | Customized per engineering drawing |
| MOQ | 50 pcs |
| Delivery Time | 7–15 Days |
| Application | Mechanical components, industrial equipment, structural accessories, OEM parts |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Factory frame brackets, warehouse purlin cleats, mezzanine connection plates |
| EPC Projects | Pipe support saddles, equipment skid bases, cable tray brackets |
| Infrastructure | Highway sound barrier mounting frames, bridge inspection platform components |
| Mechanical Equipment | Conveyor guide rails, machine guard panels, motor mounting brackets |
| Energy & Utilities | Solar panel mounting clamps, transformer enclosure panels, ventilation duct flanges |
What Tolerance Drift Costs on a Precision Fabrication Order
A 2-degree bend error turned hundreds of stainless brackets into scrap on a Riyadh commercial project.
Buyers outsourcing sheet metal fabrication overseas often discover dimensional drift only when components reach the job site. Laser-cut holes misaligned by fractions of a millimetre mean field rework — or worse, full re-fabrication that delays entire project schedules. The root cause is rarely the cutting machine itself; it is the gap between material procurement and fabrication when handled by separate vendors. Material hardness variations from unverified suppliers shift bending springback behaviour, and no amount of CNC precision can compensate for inconsistent feedstock. [NEED_CITE: sheet metal bending tolerance factors per ASTM A36 and EN 10025 material standards]
How Vertically Integrated Production Eliminates Material-Fabrication Mismatch
When raw steel and fabrication live under one roof, the material certificate matches the actual plate on the brake press. Our own steel mill produces 2,800+ specifications of carbon steel, stainless steel, and aluminium — meaning every sheet metal fabrication services supplier order begins with verified chemistry and known mechanical behaviour. On a recent warehouse project for an EPC contractor in Southeast Asia, we matched S275JR coil directly to our bending line, eliminating the springback guesswork that typically wastes the first five pieces on every new batch. The result: all 1,200 connection brackets passed dimensional inspection on first submission.
Engineering Compliance Across International Standards
Structural sheet metal components for international projects must satisfy multiple compliance layers simultaneously. Laser-cut profiles for EU-bound construction need EN 1090-2 execution class traceability; Middle East infrastructure specifiers often require AWS D1.1 welding procedure qualification; and EPC firms in Africa may demand both SGS pre-shipment inspection and full material traceability by heat number. Our fabrication workshop holds certified welding procedures (WPS/PQR) with AWS and EN qualified welders, and every custom sheet metal fabrication services supplier order ships with a complete documentation package — weld maps, dimensional inspection reports, and coating thickness records. [NEED_CITE: EN 1090-2 structural steel fabrication execution requirements]
Material Selection and Process Logic for Custom Fabricated Parts

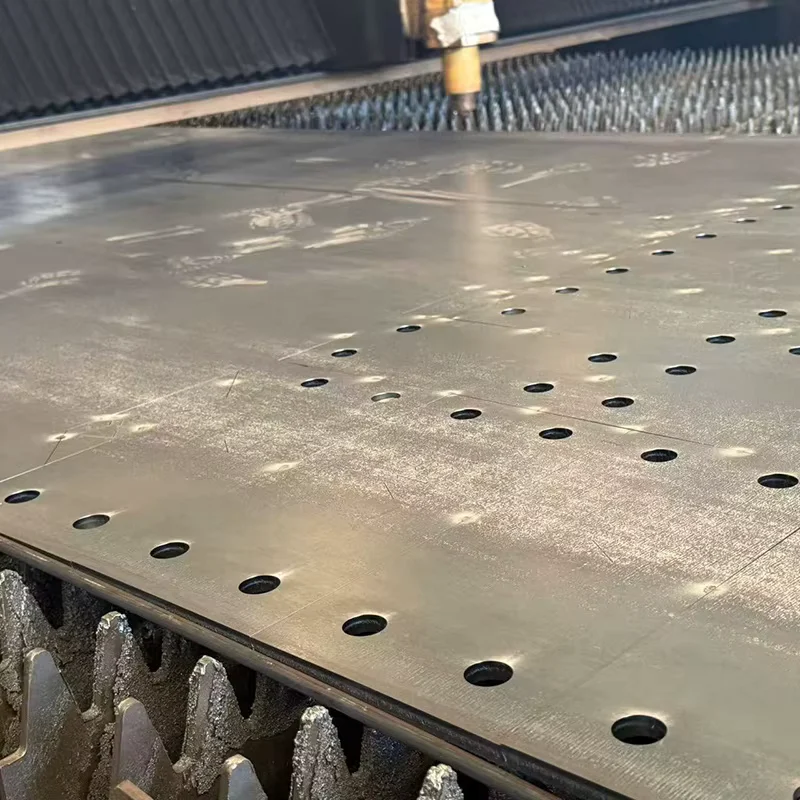

Carbon steel remains the default choice for structural brackets and industrial frames where strength-to-cost ratio matters most. Laser cutting handles complex geometries in plates up to 25 mm thick with ±0.01 mm edge accuracy, while CNC bending forms brackets and channels with repeatable angular precision across production runs. Stainless steel fabrication serves corrosive environments — food processing plants, chemical facilities, coastal infrastructure — where surface finish and oxidation resistance are non-negotiable. Aluminium components address weight-sensitive applications in transportation and equipment enclosures. The welding process selection — MIG/MAG for general fabrication, SAW for thick-plate structural joints — follows the material grade and joint design specified in the project drawings.
Hidden Costs of Sourcing Fabrication Without Material Traceability
Purchasing custom fabricated parts from a workshop that sources steel from third-party merchants creates a documentation black hole. When customs authorities in the EU request EN 10204 3.1 certificates tied to specific heat numbers, fabricators without mill-level traceability cannot produce them — resulting in cargo held at port, demurrage charges, and project delays. [NEED_CITE: EN 10204 inspection certificate types for steel products] Beyond customs, unverified material may fail NDT testing on-site, forcing component replacement after installation has begun. The true cost of choosing the lowest fabrication quote is measured in schedule overruns and structural safety compromises, not in unit price.
Why XJY Structure Delivers Fabrication with Full Accountability
Our fabrication division operates directly from our own steel production facility — no trading company margin, no material sourcing gap between supplier and fabricator. Every sheet metal fabrication services supplier order benefits from in-house quality control: dimensional checks at each process stage, NDT testing on critical welds, and complete QC documentation prepared before shipment. Our engineering team reviews shop drawings before production begins, catching interference issues and tolerance conflicts that would otherwise surface during installation. With certified welding procedures, qualified welders, and experience delivering to EU, Middle East, Southeast Asian, and African project sites, we provide one source, one quality system, and one point of accountability for your entire fabrication package.
Documentation & Compliance
- Mill test certificate documenting carbon steel, stainless steel, or aluminium chemical composition and mechanical properties per applicable material standard
- EN 1090-2 factory production control certificate for structural steel fabrication components destined for EU construction sites
- ISO 9001 quality management system certificate covering the full fabrication process from cutting through final inspection
- SGS or BV third-party inspection report available for pre-shipment verification of dimensional accuracy and coating thickness
- Full material traceability by heat number linking each fabricated component back to the original mill test certificate
- Complete export documentation package including packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery
- Custom fabricated parts packed in steel-framed crates with edge protectors to preserve laser-cut edges and surface finish during ocean transit
- Surface-treated components (painted, galvanized, or powder-coated) wrapped in protective film with anti-scratch interleaving between stacked pieces
- Container loading optimized for mixed-size bracket and plate orders, with steel strapping and timber dunnage preventing shift during transit
- Each bundle labelled with heat number, material grade, and project reference for immediate site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional oversized cargo handling for large fabricated assemblies
- Typical production lead times of 7–15 days from drawing approval, with full tracking provided until site delivery
Start Your Fabrication Order with a Drawing Review
Send your project drawings (PDF or DWG format) along with material specifications, steel grades, required standards, and target quantity — our engineering team responds within 24 hours with a preliminary assessment and detailed quotation covering material, fabrication, coating, packing, and shipping costs.
Request a Fabrication Quote with Material Certification
Submit your drawings and specifications to receive a detailed quotation, shop drawing timeline, and mill test certificate preview within 24 hours.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Frequently Asked Questions
Q: What materials and steel grades can you fabricate?
A: We fabricate custom sheet metal components in carbon steel, stainless steel, and aluminium. Specific grades are selected per your project drawings and applicable standards — we confirm material suitability during the shop drawing review stage before production begins.
Q: Do you provide material test certificates and third-party inspection?
A: Yes. Every order includes mill test certificates with chemical composition and mechanical properties. Third-party inspection through SGS or BV is available for pre-shipment verification of dimensions, welding quality, and coating thickness.
Q: What is the tolerance for laser-cut sheet metal parts?
A: Laser cutting precision ranges from ±0.01 mm to ±0.1 mm depending on material thickness and part geometry. We confirm achievable tolerances during the quotation stage based on your specific drawing requirements.
Q: Can you handle custom non-standard drawings with low MOQ?
A: Yes. Our MOQ starts from 50 pieces, and our engineering team provides shop drawing review and fabrication sequencing support for custom non-standard components regardless of order size.
Q: How do you ensure welding quality for international projects?
A: All welding follows certified procedures (WPS/PQR) performed by AWS and EN qualified welders. Each order ships with complete documentation including weld maps, dimensional inspection reports, and NDT test records where applicable.
