Description
Factory-Direct Carbon Steel Plate Cutting — Own steel mill with 2,800+ specifications eliminates third-party material gaps for S235 S355 A36 carbon steel plate CNC laser cutting service supplier orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S235 S355 Carbon Steel Plate (1mm–50mm) with CNC Laser Cutting Service |
| Product Type | Steel Plate (Laser Cutting Service) |
| Steel Grade | A36, S235, S355, Q235, Q345B, 20#, 45# |
| Standard | GB (Q235/Q345B), EN (S235/S355), ASTM (A36) |
| Thickness Range | 1mm–50mm |
| Processing Technology | CNC Laser Cutting / Flame Cutting / Water-jet Cutting / Bending / Welding / Stamping |
| Surface Treatment | Hot Rolled / Powder Coating / Zinc Plated / Painting / Polishing / Sand Blasted |
| Material Types | Carbon Steel, Stainless Steel (SS201–SS316), Aluminium (AL6061–AL7075), Brass, Copper, Iron |
| Drawing Format Accepted | 3D / CAD / DWG / STEP / PDF |
| Delivery Capability | 3 days for 25 tons; 7 days for 50 tons; 15 days for 150 tons (laser cutting plate) |
| Application | Structural steel fabrication / Industrial platforms / Construction frames / Machinery components / Custom project-specific parts |
| MOQ | 1 piece |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC & General Contractors | Custom-cut structural steel plates for building frames, industrial platforms, and infrastructure connection assemblies |
| Steel Structure Companies | Project-specific base plates, gussets, and bracket components requiring EN 1090 / AWS / AISC compliance |
| Industrial Project Developers | Precision-cut steel plates for equipment supports, warehouse mezzanines, and plant structural assemblies |
| Machinery Fabricators | Machine base frames, conveyor supports, and custom mounting plates for heavy equipment |
When Hole-Pattern Tolerance Decides Whether a Shipment Gets Used or Scrapped
A 3mm deviation on CNC-cut bolt holes turns a full container into scrap metal at the job site.
Outsourced steel plate fabrication often means material traceability gaps, dimensional inaccuracies, and fragmented accountability between the mill and the cutting shop. When your S235 S355 A36 carbon steel plate CNC laser cutting service supplier sources blanks from a third party, heat number traceability breaks down — and the MTC you receive may not match the plate on your floor. [NEED_CITE: material traceability requirements in EN 1090 structural fabrication] On a Lagos warehouse EPC project I supervised, 1.5mm carbon steel connection plates arrived with hole positions offset by 3mm across an entire container. Every piece was scrapped. Six weeks of delay followed. That kind of failure doesn’t come from bad intentions — it comes from a supply chain where the cutter doesn’t own the steel, and nobody owns the tolerance chain.
How CNC Laser Cutting Matches Structural Fabrication Tolerances
For structural steel plates used in building frames and industrial platforms, bolt-hole alignment and edge straightness directly affect assembly speed on site. Our CNC laser cutting holds tolerance within ±0.5mm on hole positions — verified by first-piece inspection before batch production continues. When EPC firms order S235 S355 A36 carbon steel plate CNC laser cutting service supplier components, the shop drawing gets reviewed against the DWG or STEP file before any plate is loaded. Material optimization runs alongside fabrication sequencing so that nesting efficiency doesn’t compromise edge quality on critical connection plates.
Engineering Compliance Across EN, ASTM, and GB Standards
Structural projects in the EU require EN 1090 execution class documentation; North American infrastructure calls for AISC-compatible material certifications; Middle East and African EPC contracts often accept GB grades when cross-referenced properly. The S235 S355 A36 carbon steel plate CNC laser cutting service supplier must provide mill test certificates with heat numbers traceable to the original steel production batch. [NEED_CITE: steel grade equivalence between EN and ASTM standards] Third-party inspection by SGS, BV, or TÜV is accepted at any production stage. For plates destined for welded assemblies, certified welding procedures (WPS/PQR) and qualified welders per AWS or EN standards ensure downstream fabrication meets the same compliance bar.
Steel Grade Selection and Cutting Process Logic
S235 and S355 follow the EN standard system where the number indicates minimum yield strength in MPa — S355 carries higher load capacity than S235 for the same cross-section. A36 is the ASTM equivalent commonly specified for North American projects, while Q235 and Q345B serve the same functional roles under GB standards. [NEED_CITE: steel grade equivalence EN ASTM cross-reference] For plates between 1mm and 12mm, CNC laser cutting delivers the cleanest edge with the tightest hole-position tolerance. Beyond 12mm up to 50mm, flame cutting or water-jet cutting becomes the practical choice — flame for straight-line profiling on thicker carbon steel, water-jet when heat-affected zone must be minimized. Surface treatment selection follows the service environment: hot rolled for indoor structural use, sand blasted plus painting for outdoor exposure, zinc plating or powder coating where corrosion resistance is the primary requirement.
Hidden Costs of Buying Cut Plates Without Verified Traceability
When a fabricator sources blanks from an unknown mill and cuts without first-piece validation, the buyer absorbs every downstream failure: rejected material at customs due to missing or mismatched MTC, bolt holes that don’t align during erection, coating adhesion failure on contaminated surfaces, and structural rework that no schedule can absorb. [NEED_CITE: EN 1090 fabrication quality documentation requirements] A plate stamped S355 without heat-number traceability to a certified mill is not S355 — it is a liability. The cost of verifying material origin and cutting accuracy before shipment is always lower than the cost of replacing a container of rejected components on a foreign job site.
Why XJY Structure Controls the Full Chain from Mill to Cut Plate
XJY Structure operates as the fabrication division of Shandong Xin Jiyuan Special Steel Tube Co., Ltd, backed by an own steel production facility with three production lines and over 2,800 raw material specifications in stock. This vertical integration means the S235 S355 A36 carbon steel plate CNC laser cutting service supplier you deal with is the same entity that produced the steel — one quality system, one point of accountability, no gap between material certificate and finished component. Our engineering team reviews shop drawings and runs material optimization before cutting begins. Certified welding procedures and qualified welders cover any subsequent assembly work. Complete quality documentation packages — including WPS, PQR, weld maps, dimensional inspection reports, and coating reports — ship with every order. International project experience spans the EU, Middle East, Southeast Asia, and Africa.
Documentation & Compliance
- Mill test certificate documenting S235, S355, or A36 chemical composition and mechanical properties per EN or ASTM standards, with heat number traceable to own steel production
- CE certificate covering EN 1090 execution class for structural steel components destined for EU markets
- ISO 9001 quality management certificate covering the full fabrication process from plate procurement to finished cut parts
- SGS or BV third-party inspection report available at any production stage for projects requiring independent verification
- Material traceability report linking each cut plate to its heat number, original MTC, and cutting batch record
- Complete customs documentation including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

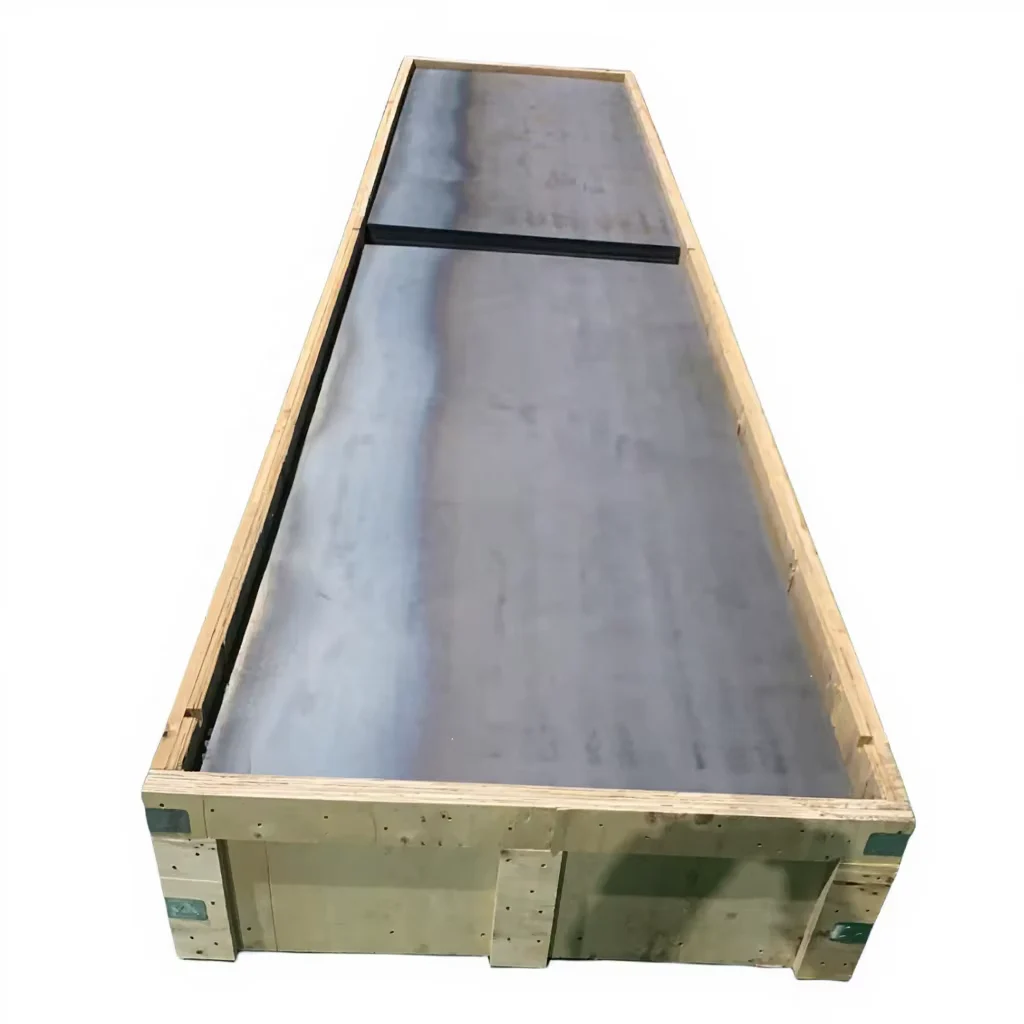

- Cut plates stacked and secured with steel strip bundling, separated by protective interleaving to prevent surface damage during transit — critical for sand blasted or painted finishes
- Edge protectors applied to all plate perimeters to preserve surface treatment integrity through ocean freight handling
- Container loading optimized by plate thickness and dimensions: 1mm–6mm plates nested flat for full 25-ton container utilization; 12mm–50mm plates loaded vertically with A-frame supports to maximize weight per shipment
- Custom cut-to-length service available per DWG or STEP file, with dimensional inspection report included for each batch
- Heat number and steel grade marked on every plate with low-stress stencil to maintain traceability without damaging coated surfaces
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading and complete export documentation tracking
Getting Your Cut Plate Quote Started
Send your project drawings in DWG, STEP, or PDF format along with steel grade, thickness, quantity, and destination port. Our engineering team responds within 24 hours with a preliminary assessment covering material selection, cutting method recommendation, production schedule, and full cost breakdown including fabrication, surface treatment, packing, and shipping. For projects requiring EN 1090 or AISC compliance, confirm your execution class and certification requirements upfront so the quote includes all documentation costs.
Frequently Asked Questions
Q: How do S235 and S355 (EN) map to A36 (ASTM) and Q235/Q345B (GB)?
A: S235 corresponds functionally to A36 and Q235 as general structural grades; S355 aligns with Q345B for higher-strength structural applications. Exact chemical composition and mechanical property ranges differ slightly between standards, so project specifications should confirm which standard governs. XJY Structure provides cross-reference documentation with every quote to ensure the correct grade is supplied.
Q: Can you provide mill test certificates and accept third-party re-inspection before shipment?
A: Yes. Every plate is traceable to its heat number from our own steel production facility, and full MTC documentation is provided. Third-party inspection by SGS, BV, or TÜV is accepted at any production stage — raw material, in-process cutting, or pre-shipment final inspection.
Q: What is the minimum order for custom laser-cut plates, and can you work from our DWG or STEP files?
A: The minimum order is 1 piece. We accept 3D, CAD, DWG, STEP, and PDF drawing formats. Our engineering team reviews your files for manufacturability, runs nesting optimization, and confirms tolerance requirements before production begins.
Q: When should I specify hot rolled vs. powder coated vs. zinc plated surface treatment?
A: Hot rolled is suitable for indoor structural applications where appearance is secondary. Sand blasted plus painting serves general outdoor exposure. Zinc plating provides sacrificial corrosion protection for moderate environments, while powder coating offers durable finish for architectural or visible structural elements. Our team recommends the appropriate treatment based on your project’s service environment.
Q: How do you handle packing and loading for heavy or oversized plate shipments?
A: Plates are bundled with steel strips and separated by protective interleaving. Thicker plates (12mm–50mm) are loaded vertically with A-frame supports to maximize container weight capacity. Oversized plates exceeding standard container dimensions are loaded on open-top or flat-rack containers with professional lashing and export documentation.
Deliver Your Drawings, Receive a Verified Quote
Submit your project specifications, steel grade, and destination port to receive a detailed quotation with mill test certificate documentation and production timeline within 24 hours.
Contact: admin@xjystructure.com | Mobile/WhatsApp/WeChat: +86 188 5315 7756
