Description
Direct Mill Supply for Carbon Steel Plates — XJY Structure operates its own steel production facility with 3 production lines, delivering SPHC, SPHD, SPHE, and SPHF plates directly from mill to fabrication without third-party sourcing.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Plate (SPHC/SPHD/SPHE/SPHF) |
| Product Type | Steel Plate |
| Steel Grade | SPHC, SPHD, SPHE, SPHF |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Thickness | 0.3mm–80mm |
| Width | 1000mm / 1200mm / 1500mm |
| Length | 3–6m (customizable up to 12m) |
| Technique | Hot Rolled / Cold Rolled |
| Surface Treatment | Coated |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Application | Container manufacturing, Shipbuilding, Structural fabrication, General engineering |
| MOQ | 1 Ton |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Container Manufacturing | Floor panels, wall sheets, corner castings base plates |
| Shipbuilding | Deck plating, bulkhead stiffeners, hull patch plates |
| Structural Fabrication | Column base plates, gusset plates, connection brackets |
| General Engineering | Machine base frames, industrial platform decking, conveyor supports |
What Thickness Tolerance Costs on a Carbon Steel Plate 4140 Laser Cutting Service Supplier Order
Tight tolerance control eliminates costly on-site rework when plates arrive at the yard.
Early in my procurement career, I ordered a batch of carbon steel plates for a warehouse project in Riyadh. The connection plates arrived with hole position deviations exceeding 15mm — bolts simply would not pass through on site. The entire container had to be re-drilled at the construction yard, delaying steel erection by two weeks. Since then, I verify tolerance specifications against fabrication drawings before every cut. When sourcing from a Carbon Steel Plate 4140 Laser Cutting Service Supplier, dimensional accuracy directly determines whether components fit during assembly or require expensive field modifications. [NEED_CITE: dimensional tolerance requirements for structural steel fabrication per EN 1090-2]
Precision Fabrication Match for Structural and Industrial Applications
Carbon steel plates in the SPHC to SPHF range cover forming requirements from light-gauge container panels to heavy structural base plates. The 0.3mm to 80mm thickness range accommodates both cold-formed profiles and load-bearing connection assemblies. Our CNC laser cutting maintains ±1% tolerance across the full thickness spectrum, ensuring hole patterns and edge profiles match shop drawings without secondary machining. For shipbuilding and container manufacturing, the coated surface treatment provides baseline corrosion resistance during fabrication and transit.
Engineering Compliance and Certification for Global Projects
Structural steel plates used in load-bearing applications must comply with project-specific standards — JIS G 3131 for SPHC/SPHD grades in Asian markets, ASTM A36 or A572 for North American structural work, and EN 10025 equivalents for European construction. The Carbon Steel Plate 4140 Laser Cutting Service Supplier must provide full material traceability from heat number through processing. For projects requiring EN 1090 execution class 2 or 3, weld procedure specifications (WPS) and qualified welder certifications become mandatory documentation. Surface treatment selection — whether coated, shot-blasted, or painted — depends on the service environment and project coating specifications. [NEED_CITE: EN 1090 structural steel fabrication execution requirements]
Steel Grade Selection and Processing Fundamentals
The SPHC/SPHD/SPHE/SPHF designation system originates from JIS G 3131, where the suffix letters indicate forming complexity — C for commercial quality, D for drawing quality, E for deep drawing, and F for extra deep drawing. Higher suffix grades offer improved formability for complex bent profiles without cracking. Hot rolled plates suit structural applications where surface finish is secondary, while cold rolled options provide tighter thickness control and smoother surfaces for visible components. The ±1% tolerance specification ensures predictable weight calculations and fit-up accuracy during assembly. Processing services including CNC laser cutting, bending, and punching transform raw plates into ready-to-install components, eliminating secondary operations at the project site.
Hidden Costs of Unverified Material Sourcing
Purchasing carbon steel plates without proper certification creates multiple failure points. Material arriving without mill test certificates cannot be verified against project specifications, risking rejection during inspection. Plates sourced through traders rather than integrated mills lack heat number traceability, complicating quality claims when defects appear. Negative tolerance abuse — where actual thickness falls below nominal specifications — reduces load capacity and violates structural design assumptions. For the Carbon Steel Plate 4140 Laser Cutting Service Supplier, these issues translate into customs delays, failed third-party inspections, and costly material replacement. [NEED_CITE: material traceability requirements for structural steel per AISC certification]
Why Source from an Integrated Mill and Fabricator
XJY Structure operates as a dedicated structural steel fabrication division backed by our own steel production facility with 3 production lines and over 2,800 raw material specifications. This vertical integration eliminates the gap between material supplier and fabricator — one source controls quality from slab to finished component. Our engineering team reviews shop drawings before production begins, identifying tolerance conflicts and optimizing material usage. Certified welding procedures per AWS and EN standards, combined with qualified welders, ensure fabrication meets international project requirements. Complete quality documentation packages include WPS, PQR, weld maps, dimensional inspection reports, and coating certificates. We serve general contractors, EPC firms, and steel structure companies across the EU, Middle East, Southeast Asia, and Africa with consistent material quality and fabrication standards.
Documentation & Compliance
- Mill test certificate documenting SPHC/SPHD/SPHE/SPHF chemical composition and mechanical properties per JIS G 3131
- Material traceability by heat number from our own steel production facility through all processing stages
- Third-party inspection reports from SGS or BV verifying dimensional accuracy and coating thickness
- Certified welding procedure specifications (WPS) and welder qualifications per AWS D1.1 and EN ISO 15614
- Complete export documentation including packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery

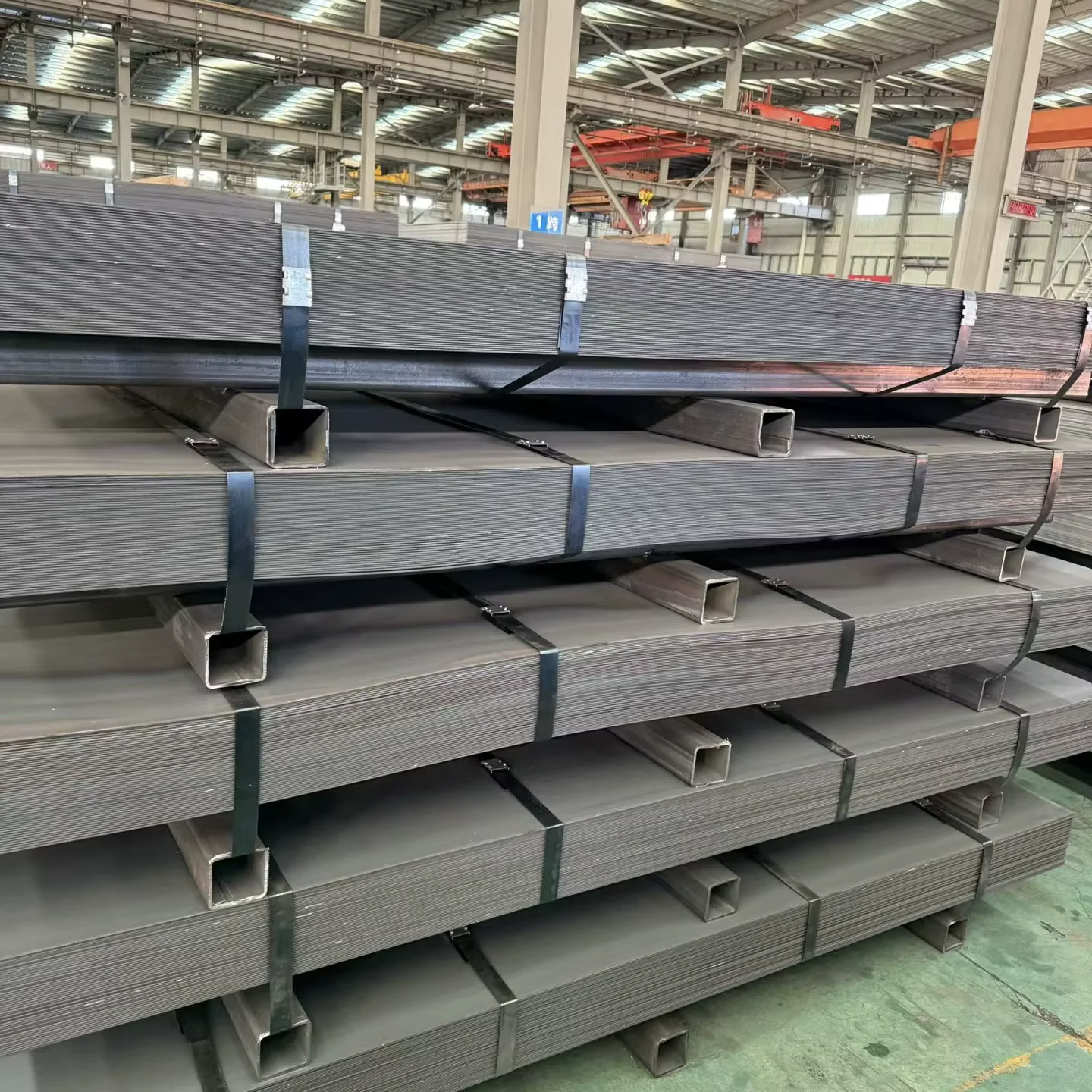

- Steel plates bundled with galvanized steel strips and edge protectors to prevent coating damage during ocean transit
- Custom length plates up to 12m loaded with specialized bracing to prevent shifting in container or breakbulk shipment
- Heat number and grade identification marked on each plate for site traceability and inspection verification
- Coated surface plates wrapped with waterproof paper and plastic film to prevent moisture damage during storage and shipping
- FOB, CIF, and DDP delivery options with professional oversized cargo loading plans for heavy plate shipments
Initiating Your Carbon Steel Plate Procurement
Submit your project drawings in PDF or DWG format along with steel grade requirements, thickness specifications, and target standards. Our team responds within 24 hours with a detailed quotation covering material, fabrication, coating, and logistics costs. For projects requiring EN 1090 or AISC compliance, confirm certification requirements upfront so we include appropriate documentation in the proposal.
Request Quotation with Material Certification
Send your specifications to receive pricing and mill test certificate samples. Contact XJY Structure at +86 531 8573 6315 or admin@xjystructure.com for technical consultation on your carbon steel plate requirements.
