Description
Factory-direct laser cutting — raw steel from our own mill feeds every cut plate
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Customized Sheet Metal Laser Cutting Parts |
| Product Type | Machined Steel Product |
| Steel Grade | Customized (material per customer specification) |
| Section Shape | Sheet / Plate |
| Size | Customized Size |
| Technique | Laser Cutting |
| Design | 100% Custom Made |
| Color/Finish | Customized Color |
| Application | Sheet metal processing / Industrial components / Custom metal parts fabrication |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC & Industrial Construction | Base plates, gusset plates, bracket assemblies for plant structures |
| Warehouse & Logistics Facilities | Column base connectors, racking support brackets, mezzanine floor plates |
| Infrastructure & Civil Works | Embedded plates, anchor plates, bridge connection gussets |
| Machinery & Equipment Manufacturing | Machine guards, equipment frames, custom mounting plates |
Why Dimensional Tolerance on Laser-Cut Plates Decides Your Site Assembly Schedule
A 1 mm hole deviation on a base plate can cost a full day of rework on a steel erection crew.
When general contractors outsource sheet metal processing overseas, the most frequent complaint is not the steel grade — it is the hole position, the edge squareness, and the corner radius that does not match the shop drawing. Laser cutting is a high-precision process, but precision depends on machine calibration, nesting logic, and thermal distortion control. On a recent warehouse project in the Middle East, a batch of base plates arrived with bolt holes offset by 2 mm across a 3-meter plate. The erector could not bolt the columns, and the entire batch had to be re-drilled on site — a cost that exceeded the original fabrication price. As a custom sheet metal laser cutting service supplier, we run every drawing through a two-stage review: engineering checks the tolerance chain before cutting, and a dimensional inspection report is issued against the approved shop drawing before packing. [NEED_CITE: CNC laser cutting tolerance standards for structural steel plates]
How Laser-Cut Plates Match Structural Connection Requirements
Structural connections — whether bolted base plates, welded gussets, or bracket assemblies — demand that every hole, every edge, and every bevel lands within the tolerance window specified by the engineer. Our CNC laser cutting process delivers clean, slag-free edges that are ready for welding without secondary grinding. Because we operate our own steel mill alongside the fabrication workshop, every plate we cut carries a heat number traceable back to the original slab. This means the custom sheet metal laser cutting service supplier you are working with controls the material from the rolling stage to the final cut — no third-party plate sourcing, no certificate gaps.
Engineering Compliance and Certification for Cut Steel Components
Laser-cut structural plates used in load-bearing applications must comply with the project’s governing code — EN 1090 for European markets, AWS D1.1 for North American specifications, or AISC standards for heavy industrial builds. Compliance starts with material certification: the steel grade must be verified by a mill test certificate, and the cutting process must follow an approved procedure qualified under the relevant welding standard. Surface preparation after cutting — shot blasting and primer application — must also meet the coating specification before shipment. We prepare shop drawings, issue WPS for any subsequent welding, and supply complete dimensional inspection reports with every delivery. [NEED_CITE: EN 1090 execution class requirements for fabricated steel components]
Understanding Laser Cutting Process and Material Behavior

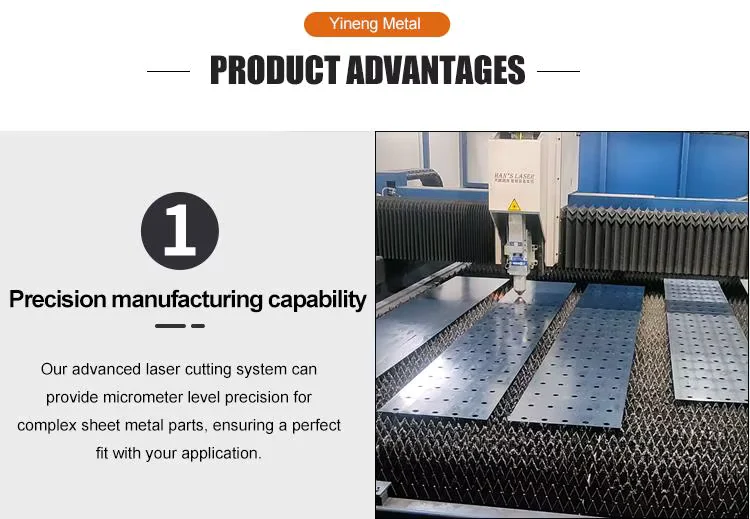

Laser cutting uses a focused high-power beam to melt and vaporize steel along a programmed path, producing narrow kerf widths and minimal heat-affected zones compared to plasma or flame cutting. This makes it the preferred method for plates requiring tight hole tolerances, complex geometries, and clean edges suitable for direct welding. The process works across a wide range of steel grades — from mild steel to high-strength low-alloy grades — and plate thicknesses commonly used in structural fabrication. Material behavior during cutting varies by grade: higher carbon equivalents require adjusted cutting speeds and assist gas pressures to prevent edge hardening. Our in-house processing chain moves from laser cutting to bending, welding, shot blasting, and painting — all under one roof, eliminating the coordination gaps that occur when multiple subcontractors handle each step.
Hidden Costs of Sourcing Cut Plates Without Material Traceability
When a fabricator sources plates from third-party traders rather than producing or procuring directly from a mill, the material certification chain breaks. The mill test certificate may be missing, forged, or mismatched to the actual heat number. On a project governed by EN 1090 EXC2 or EXC3, this gap means the component cannot be legally installed — the engineer will reject it, customs may hold it, and the contractor faces schedule delays. Choosing a custom sheet metal laser cutting service supplier that controls its own raw material supply eliminates this risk entirely: every plate is traceable from slab to finished cut part, with full chemical and mechanical data documented. [NEED_CITE: material traceability requirements for structural steel fabrication under EN 1090]
What Makes Our Fabrication Different for Project Buyers
We are not a trading company reselling cut parts from unknown sources. Our own steel mill produces the raw plates that feed our laser cutting machines — this is the foundation of our material control. Every order is backed by a mill test certificate issued from our in-house laboratory, with heat number traceability stamped on each plate. Our engineering team reviews your shop drawings before production begins, flagging tolerance issues and suggesting nesting optimizations that reduce material waste. For projects requiring subsequent welding, our certified welders work under qualified WPS procedures compliant with AWS and EN standards. We handle the full documentation package — dimensional reports, coating reports, weld maps — so your quality team receives everything needed for project handover. And because we manage our own loading and export documentation, oversized or heavy plate shipments are planned and secured by our own logistics team.
Documentation & Compliance
- Mill test certificate documenting chemical composition and mechanical properties per the specified steel grade, with heat number traceability from our own steel mill
- Dimensional inspection report verifying hole positions, edge tolerances, and overall plate dimensions against approved shop drawings
- Welding procedure specification (WPS) and welder qualification records for any subsequent assembly welding per AWS D1.1 or EN ISO 15614
- Surface treatment and coating inspection report documenting blast profile, primer thickness, and finish color per project specification
- Export documentation package including packing list, bill of lading, and certificate of origin for customs clearance at destination port
- Third-party inspection report from SGS or BV available upon request for projects requiring independent quality verification
Packaging, Loading & Delivery
- Custom-cut plates stacked in seaworthy bundles with interleaved separators to prevent surface scratching during ocean transit
- Edge protection applied to all laser-cut edges to preserve cut quality and prevent coating damage during handling and transport
- Loading plans prepared per plate dimensions and weight distribution to optimize container utilization for mixed-size orders
- Each plate marked with heat number, steel grade, and piece mark for on-site identification and traceability verification
- Full export documentation prepared and verified before container sealing, including customs-cleared commercial invoice and packing list
- FOB, CIF, and DDP shipping terms available with professional oversized cargo handling for heavy plate shipments
How to Start Your Laser Cutting Inquiry
Send us your project drawings in PDF or DWG format along with the steel grade, plate thickness, quantity, and required surface treatment. Our engineering team will respond within 24 hours with a technical assessment and detailed quotation covering material, cutting, finishing, and shipping costs. We will also provide a shop drawing timeline and production schedule so you can plan your procurement accordingly.
Get Your Custom Laser Cutting Quote with Material Certification
Submit your drawings and specifications to receive a detailed quotation and mill test certificate documentation within 24 hours.
