Description

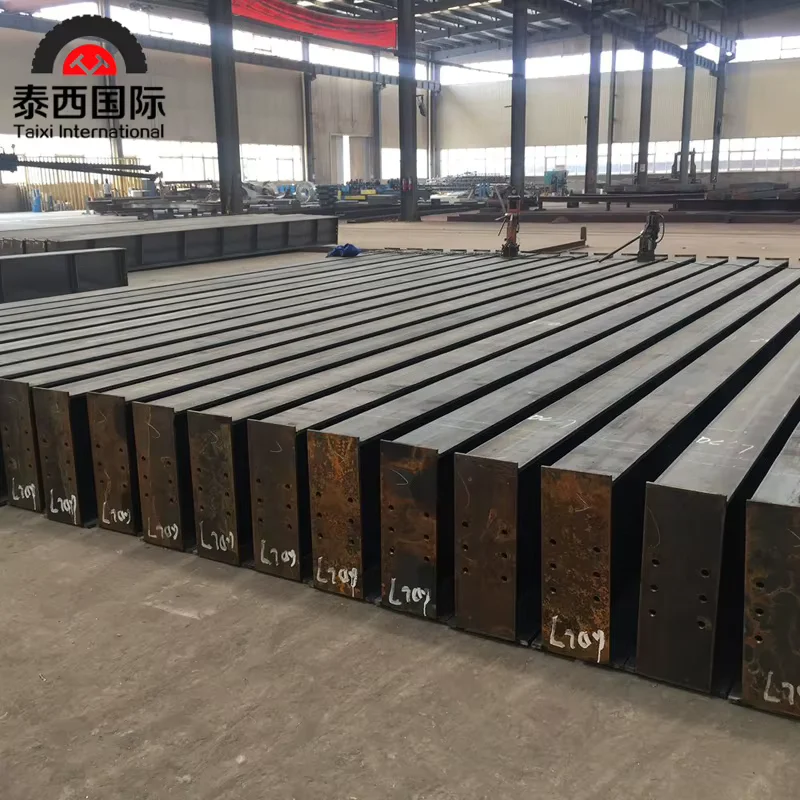

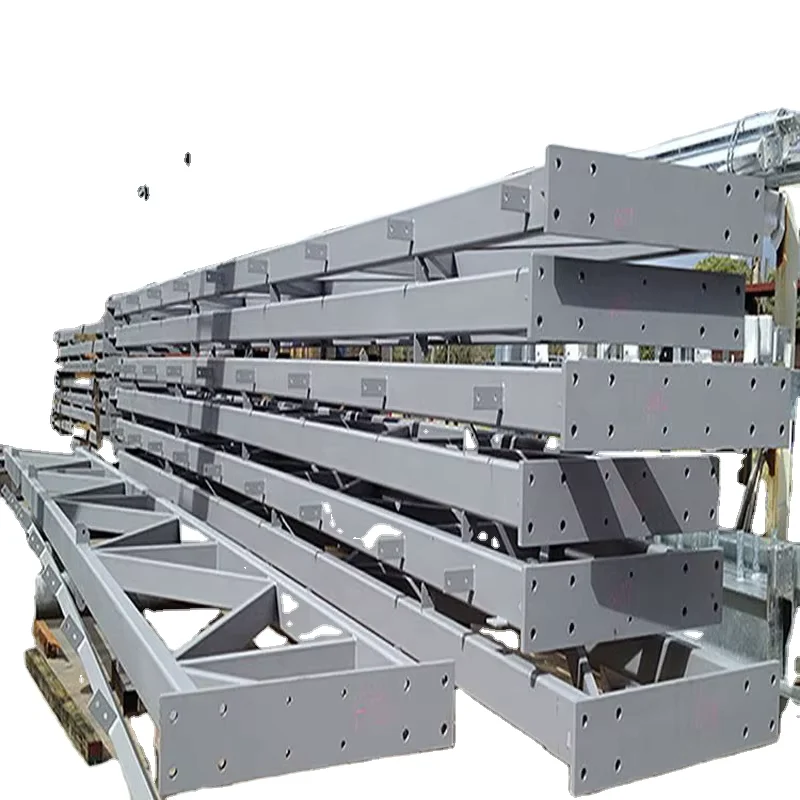

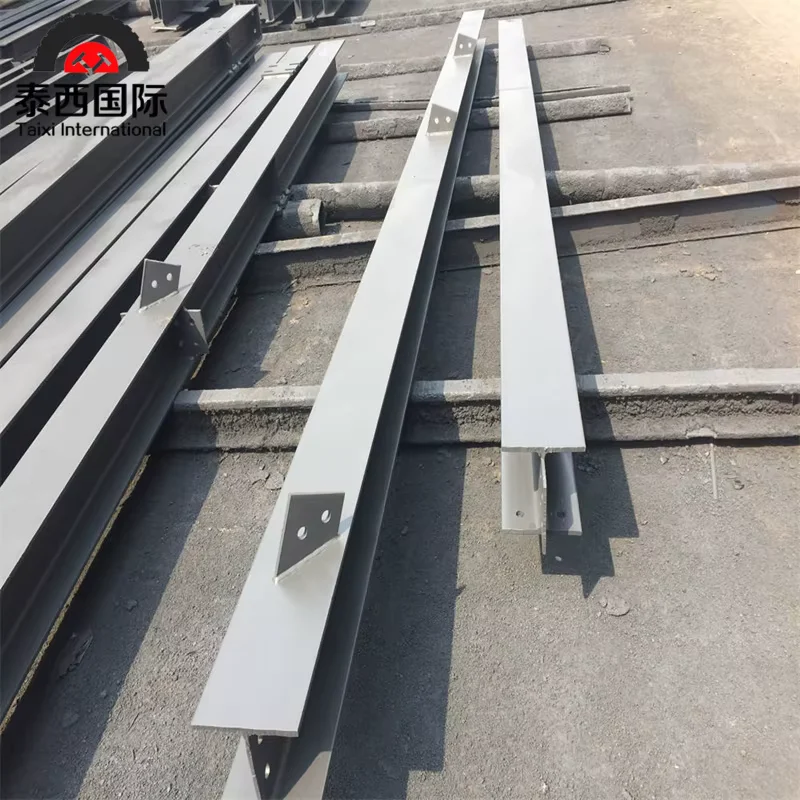

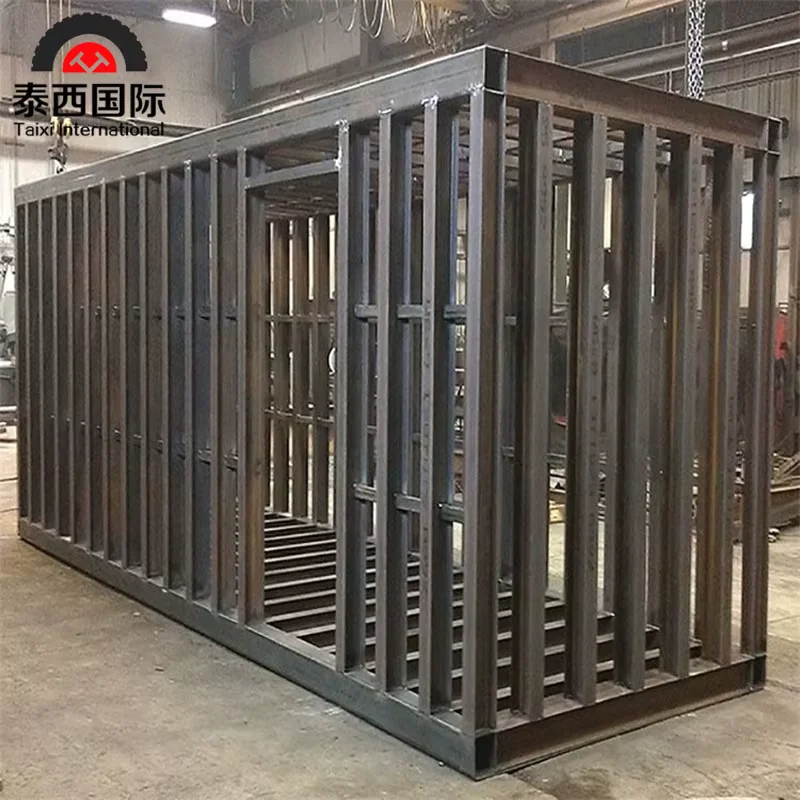

Factory-Direct Fabrication, Zero Middlemen — XJY Structure operates its own steel mill alongside the fabrication workshop, meaning every Carbon Steel Fabricated Frame for Workshop Warehouse Custom Sizes is produced, welded, and inspected under one roof with full material traceability.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Fabricated Frame for Workshop & Warehouse |
| Product Type | Fabricated Steel Structure |
| Steel Grade | Carbon Steel, Alloy Steel, Stainless Steel, Aluminum Alloy |
| Standard | ISO, DIN, AISI, ASTM, BS, JIS |
| Technique | Laser Cutting, Bending, Stamping, Fusion Welding |
| Surface Treatment | Powder Coating, Zinc Plating, Chrome-Plating, Polishing, Spraying, Painting |
| Machining Precision | ±0.01–1.0 mm |
| Drawing Formats | DXF, DWG, STEP, IGS, PDF |
| Transport Package | Pallet or Customized |
| Application | Workshop Frame, Factory Warehouse, Structural Steel Construction, Industrial Parts, Machinery Parts |
| MOQ | Small order accepted |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Workshop main frames, factory column-beam assemblies, mezzanine platforms |
| Logistics & Warehousing | Large-span warehouse roof trusses, racking support structures, loading bay frames |
| Infrastructure | Conveyor support structures, equipment platforms, pipe rack frames |
| Machinery & Equipment | Heavy machinery base frames, structural enclosures, crane runway beams |
Where Dimensional Tolerance Decides Whether a Warehouse Frame Stands Up
A ±1 mm shift in a bolt-hole pattern can cost a week of on-site rework.
When general contractors outsource Custom Steel Structure Fabrication for Workshop & Warehouse overseas, the most expensive failures are not the ones found in the shop — they are the ones discovered at the job site. Bolt holes that do not align. Columns that plumb out of tolerance after welding distortion. Coating thickness that fails inspection under EN 1090 scrutiny. Each of these traces back to a fabrication process that was never audited against the project’s actual standard. [NEED_CITE: EN 1090 execution class requirements for structural steel fabrication] Material traceability gaps compound the problem: when a fabricator sources steel from third-party mills without heat-number documentation, the entire quality chain becomes unverifiable at customs or during client inspection.
Matching Fabrication Precision to Structural Frame Demands
A workshop or warehouse frame carries dynamic loads from cranes, racking systems, and environmental forces — meaning every connection plate, every beam-to-column joint, and every base plate must hold its geometry under stress. Custom Steel Structure Fabrication for Workshop & Warehouse at XJY Structure begins with CNC laser cutting at ±0.01–1.0 mm tolerance, ensuring that connection plates drilled in Jinan will accept high-strength bolts on a warehouse floor in Southeast Asia. Fusion welding follows certified WPS procedures, with in-process dimensional checks at every stage — because a warehouse truss that fits on the fabrication floor must also fit after shot blasting and painting.
Engineering Compliance Across International Standards
Workshop and warehouse projects span multiple regulatory environments. European buyers require EN 1090 CE marking and execution class documentation. North American projects reference AISC and ASTM material specifications. Middle East and African infrastructure programs often accept both, provided full mill test certificates accompany each shipment. [NEED_CITE: steel grade equivalence mapping between EN 10025 and ASTM A36/A572] XJY Structure fabricates to ISO, DIN, AISI, ASTM, BS, and JIS standards from a single production facility, with shop drawing review and material optimization completed before any steel is cut. Custom sizes and non-standard connections are accommodated through DXF, DWG, STEP, IGS, or PDF drawing submissions — eliminating the RFI delays that typically push warehouse project schedules.
Carbon Steel, Alloy Steel, and Surface Treatment Selection for Industrial Environments
The choice of steel grade and surface treatment directly determines the service life of a workshop frame. Carbon Steel offers the best balance of weldability, strength, and cost for enclosed warehouse structures. Alloy Steel grades serve environments requiring higher yield strength or wear resistance — such as crane runway beams or heavy equipment platforms. Stainless Steel and Aluminum Alloy fabrication is available for corrosive environments including food processing plants, chemical storage warehouses, and coastal logistics centers. Surface treatment selection follows the same logic: powder coating and painting suit indoor workshop frames; zinc plating and chrome-plating protect components exposed to moisture; hot-dip galvanizing equivalents through zinc-rich spraying extend field service life where re-coating is impractical. [NEED_CITE: corrosion protection selection for structural steel in industrial atmospheres]
The Hidden Cost of Unverified Fabrication
Ordering a warehouse frame from a fabricator who cannot provide heat-number traceability creates three categories of hidden cost. First, customs authorities in the EU and Middle East increasingly reject structural steel shipments lacking EN 1090 or equivalent certification — leaving containers stranded at port. Second, material substitution — where a fabricator replaces specified grades with lower-cost equivalents — passes initial visual inspection but fails ultrasonic or chemical analysis at the project site, triggering full rejection. Third, welding performed without qualified WPS and certified welders produces joints that appear sound but lack documented penetration and fusion quality, creating structural liability that surfaces only during loading or seismic events. [NEED_CITE: consequences of non-compliant structural steel fabrication in international projects]
Why Project Teams Source Custom Steel Structure Fabrication for Workshop & Warehouse Through XJY Structure
XJY Structure operates its own steel production facility with three production lines and over 2,800 raw material specifications — meaning every beam, column, and connection plate begins as verified mill product, not purchased commodity steel. This vertical integration eliminates the material traceability gap that plagues fragmented supply chains. Fabrication capacity handles medium-to-large workshop and warehouse projects with certified welding procedures (AWS and EN qualified welders), complete quality documentation packages including WPS, PQR, weld maps, dimensional inspection reports, and coating thickness records. Engineering support covers shop drawing review, material optimization, and fabrication sequencing — reducing RFI cycles before production begins. International project experience spans the EU, Middle East, Southeast Asia, and Africa, with professional packing and oversized cargo loading planned around the specific dimensions of warehouse frames and workshop structures.
Documentation & Compliance
- Mill Test Certificate documenting Carbon Steel chemical composition and mechanical properties per ASTM / EN standards, with full heat-number traceability for every beam and column in the workshop frame order
- CE Certificate per EN 1090 for structural steel fabrication, covering execution class documentation required for European warehouse and industrial construction projects
- ISO 9001 quality management certificate covering the integrated steel production and fabrication process from raw material procurement through final shipment
- SGS or BV third-party inspection report available for Custom Steel Structure Fabrication for Workshop & Warehouse orders, verifying dimensional accuracy, weld quality, and coating thickness before dispatch
- Material traceability package linking every fabricated component to its original heat number, supporting customs clearance and project handover documentation
- Complete export documentation set including packing list, bill of lading, and certificate of origin formatted for destination-country import requirements
Packaging, Loading & Delivery
- Fabricated Carbon Steel workshop frames bundled with steel strip ties and edge protectors, preserving powder-coated and painted surfaces during ocean transit
- Oversized warehouse columns and truss assemblies loaded with custom bracing and lashing plans, preventing shift and bending that would misalign bolt holes at the job site
- Zinc-plated and chrome-plated components wrapped in moisture-barrier film to prevent white rust and surface degradation during container shipping
- Custom pallet packaging for smaller connection plates and bracing members, optimized for container weight distribution and destination-site handling equipment
- Heat number and steel grade markings stenciled on every major component, supporting site identification and quality verification during warehouse frame assembly
- FOB, CIF, and DDP shipping terms available, with professional loading plans for both standard containers and open-top / flat-rack arrangements for oversized warehouse structures
How to Request a Fabrication Quote for Your Workshop or Warehouse Project
Submit your project drawings in DXF, DWG, STEP, IGS, or PDF format along with steel grade specifications, required standards, surface treatment preferences, and destination port. XJY Structure responds within 24 hours with a preliminary assessment covering material costs, fabrication scope, coating options, packing, and shipping — including shop drawing timeline and production schedule. Non-standard sizes, small orders, and custom connection details are all accommodated through the integrated fabrication process.
Frequently Asked Questions
Q: What information do you need to provide a quotation for Custom Steel Structure Fabrication for Workshop & Warehouse?
A: We require project drawings in DXF, DWG, STEP, IGS, or PDF format, along with steel grade specifications (Carbon Steel, Alloy Steel, Stainless Steel, or Aluminum Alloy), applicable standards (ISO, DIN, AISI, ASTM, BS, or JIS), surface treatment preferences, quantities, and destination port.
Q: How do you guarantee welding quality and dimensional accuracy on fabricated warehouse frames?
A: All welding follows certified WPS procedures performed by AWS and EN qualified welders. In-process dimensional checks are conducted at every stage, with full QC documentation including weld maps, dimensional inspection reports, and coating reports provided before shipment.
Q: Can you handle custom non-standard sizes and small orders for workshop structures?
A: Yes. Small orders are accepted, and custom non-standard sizes are fabricated to engineering drawings. Our own steel mill with over 2,800 raw material specifications supports flexible material sourcing without minimum order constraints.
Q: What surface treatment options are available and how should I choose?
A: Options include powder coating, zinc plating, chrome-plating, polishing, spraying, and painting. Selection depends on the service environment: powder coating and painting suit indoor workshop frames; zinc plating and chrome-plating protect against moisture exposure; spraying provides field-serviceable corrosion protection for large warehouse structures.
Q: What is the production lead time and how do you handle international shipping?
A: Typical production lead times depend on order complexity and tonnage. Professional packing, oversized cargo loading plans, and complete export documentation are prepared in-house. Shipping terms include FOB, CIF, and DDP with tracking through site delivery.
[Start Your Workshop or Warehouse Fabrication Project]
Submit your drawings and specifications to receive a detailed quotation with material traceability documentation and production schedule.
