Description
Factory-Direct ASTM Galvanized Tubes — Vertically integrated from raw steel production to finished Hot Dip Galvanized Square Rectangular Steel Tube ASTM, eliminating third-party sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM Hot Dip Galvanized Square/Rectangular Steel Tube |
| Product Type | Square / Rectangular Steel Tube |
| Steel Grade | Carbon Steel |
| Standard | ASTM |
| Section Shape | Square / Rectangular |
| Size Range | 20x40mm |
| Wall Thickness | 0.12 ~ 0.2 mm |
| Length | Customized |
| Technique | Hot Rolled Based |
| Surface Treatment | Hot-Dip Galvanized (Z10 ~ Z29 coating) |
| Tolerance | ±1% / ±5% |
| Ends | Plain |
| Application | Construction / Petrochemicals / Machinery / Making Pipes / Making Corrugated Sheets / Making Container |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction | Building frames, structural support columns, purlin systems |
| Petrochemicals | Pipe rack supports, platform grating frames, equipment skids |
| Machinery | Conveyor structures, machine base frames, equipment housings |
| Container Manufacturing | Container corner posts, floor support members, wall framing |
| Corrugated Sheet Production | Roll-forming line frames, sheet stacking racks |
What Thin-Wall Tolerance Means When Galvanizing 20x40mm Tubes
Wall thickness at 0.12–0.2 mm leaves almost no room for negative tolerance drift before structural capacity drops below design intent.
When you order Hot Dip Galvanized Square Rectangular Steel Tube ASTM at these thin gauges, every micron of zinc coating and every fraction of a millimeter in wall deviation matter. Buyers sourcing from fragmented suppliers often discover that the galvanized coating thickness varies significantly at corners and edges — the zinc pool drains away from sharp arrises during immersion, leaving localized spots well below the specified Z10–Z29 range. On a 0.12 mm wall, that uneven coating becomes the first point of corrosion failure, sometimes within months of installation in humid or coastal environments. [NEED_CITE: hot-dip galvanized coating thickness distribution on thin-walled hollow sections]
How 20x40mm Hot Dip Galvanized Square Rectangular Steel Tube ASTM Fits Light Structural Frames
The 20x40mm profile with 0.12–0.2 mm wall thickness targets light-load applications where corrosion resistance outweighs heavy structural demand. Hot Dip Galvanized Square Rectangular Steel Tube ASTM in this size range works well for purlin supports, equipment skid frames, and container wall studs — environments where moisture and chemical exposure threaten bare carbon steel. The hot-rolled base material provides a consistent substrate for zinc adhesion, while the customized length capability means fewer on-site welds and less field cutting that would expose raw steel edges. Our integrated mill-to-fabrication model ensures the same heat number tracks from the steel production line through the galvanizing bath, so your MTC reflects the actual material in your shipment.
Engineering Compliance and Surface Protection for ASTM Galvanized Tubes
Structural frames built with Hot Dip Galvanized Square Rectangular Steel Tube ASTM must meet dimensional tolerance requirements that affect connection fit-up and load transfer at bolted or welded joints. The ±1% and ±5% tolerance bands specified here govern overall geometry — critical when thin-wall sections at 0.12–0.2 mm are clamped into pre-drilled connection plates. For projects targeting North American markets, ASTM compliance documentation must accompany each shipment to clear customs without delay. [NEED_CITE: ASTM hollow section dimensional tolerance requirements for structural applications] The hot-dip galvanizing process at Z10–Z29 coating levels provides corrosion protection suitable for C3–C4 atmospheric environments per ISO 12944 classification, covering most indoor industrial and moderate outdoor exposure conditions.
Understanding Carbon Steel Grades and Hot-Dip Galvanizing for Thin-Wall Tubes
Carbon Steel as the base grade for Hot Dip Galvanized Square Rectangular Steel Tube ASTM offers predictable weldability and formability across the 0.12–0.2 mm wall range. The hot-rolled production route delivers a uniform grain structure that responds consistently to the galvanizing bath temperature — essential when coating thin walls where excessive heat input during immersion can distort cross-section geometry. The Z10–Z29 coating designation indicates zinc coating mass per unit area, with higher Z-numbers providing thicker protection for more aggressive environments. At 20x40mm, the rectangular profile presents two different corner radii to the zinc bath, meaning coating distribution requires controlled withdrawal speed and bath chemistry management to avoid thin spots at the sharper corner. [NEED_CITE: hot-dip galvanizing coating adhesion on cold-formed vs hot-rolled steel substrates]
The Hidden Cost of Sourcing Thin-Wall Galvanized Tubes Without Verified Coating
Ordering Hot Dip Galvanized Square Rectangular Steel Tube ASTM from suppliers who only report average coating thickness — rather than minimum local readings — creates a failure point that surfaces only after installation. Corners, edges, and weld zones consistently receive thinner zinc deposits during immersion, and without逐根 minimum-point inspection, those thin spots become corrosion initiation sites. When a project engineer discovers coating failure during site inspection, the entire batch faces rejection, replacement shipping costs multiply, and the project schedule absorbs delays that no amount of paperwork can recover. [NEED_CITE: galvanizing coating thickness measurement standards for quality acceptance]
Why XJY Structure Delivers Verified Quality on Every ASTM Galvanized Tube
Our own steel production facility with three rolling lines means the Carbon Steel base material for every Hot Dip Galvanized Square Rectangular Steel Tube ASTM originates under one quality system — no third-party coil sourcing, no broken material traceability chains. The in-house理化 laboratory tests coating thickness at minimum local points on every tube, not just batch averages, catching the corner and edge thinning that causes field failures. With over 2,800 specifications in our raw material inventory, we consolidate multiple size and thickness requirements into single shipments, reducing your procurement complexity. Certified welding procedures and qualified welders handle any post-galvanizing fabrication your project requires, while complete documentation packages — including WPS, PQR, dimensional inspection reports, and coating thickness maps — travel with every container.
Documentation & Compliance
- Mill Test Certificate documenting Carbon Steel chemical composition and mechanical properties per ASTM standards, with heat number traceability from our own steel production
- Hot-dip galvanized coating thickness report showing minimum local readings across all tube surfaces, corners, and edges for Z10–Z29 compliance verification
- Third-party inspection report from SGS or BV confirming dimensional accuracy, coating adhesion, and surface quality before shipment
- Dimensional inspection report verifying ±1% / ±5% tolerance compliance on 20x40mm cross-section geometry and customized lengths
- Complete export documentation package including packing list, bill of lading, and certificate of origin for ASTM-standard customs clearance
Packaging, Loading & Delivery

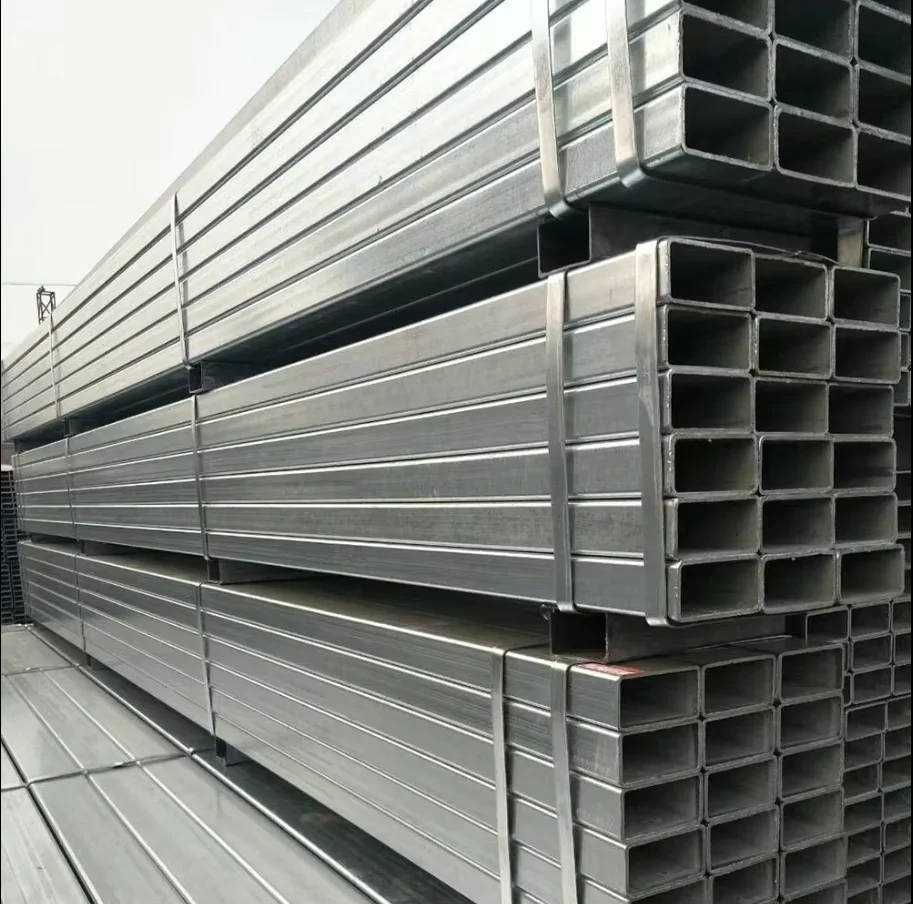

- Hot Dip Galvanized Square Rectangular Steel Tube ASTM bundled with steel strips and edge protectors to preserve zinc coating integrity during ocean transit and handling
- Customized length tubes loaded with optimized container stowage plans maximizing 20ft and 40ft container capacity for 20x40mm profiles
- Zinc coating surface protected with anti-friction separators between tubes to prevent coating damage from transport vibration
- Heat number and steel grade markings stenciled on each bundle for site identification and material traceability verification
- Professional oversized cargo loading and lashing for mixed-size shipments, with complete export documentation and tracking until site delivery
Start Your ASTM Galvanized Tube Procurement
Submit your project drawings, required specifications, steel grade, coating class, and destination port to receive a detailed quotation including material, fabrication, coating, packing, and shipping costs — with shop drawing timelines and production schedules built in. Our engineering team reviews your requirements within 24 hours and prepares shop drawings for approval before fabrication begins, ensuring dimensional accuracy and coating compliance from the first production run.
Request Your Quote and Mill Test Certificate
Send your specifications to admin@xjystructure.com or reach us via WhatsApp at +86 188 5315 7756 to begin your Hot Dip Galvanized Square Rectangular Steel Tube ASTM procurement with full material traceability and verified coating quality.
