Description
Direct Mill Fabrication — Carbon steel plates cut and machined in-house from our own raw material inventory, eliminating third-party sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Fabricated Plate Laser Cutting Service |
| Product Type | Fabricated Steel Plate / Laser Cut Steel Component |
| Steel Grade | Carbon Steel |
| Section Shape | Custom / As per drawing |
| Outer Diameter or Side Length | As Clients’ Request |
| Technique | Laser Cutting / CNC Machining / Stamping / Welding / Bending / Forming / Milling |
| Surface Treatment | Black / Galvanized / Powder Coating / Painting / Electroplating / Anodising / Chrome Plating / Brushing / Polishing / Silk-screen |
| Standard | ISO / GB / JIS / ASTM / ANSI / AISI / DIN / BS / NF / BA |
| Service Type | OEM / ODM |
| Application | Steel Construction / Automatic Machine / Medical Device / Industrial Machine / Automobile / Electric Appliance / Public Equipment / Complex Assemblies / Fixtures / Fuel Tanks |
| MOQ | 100 PCS |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|

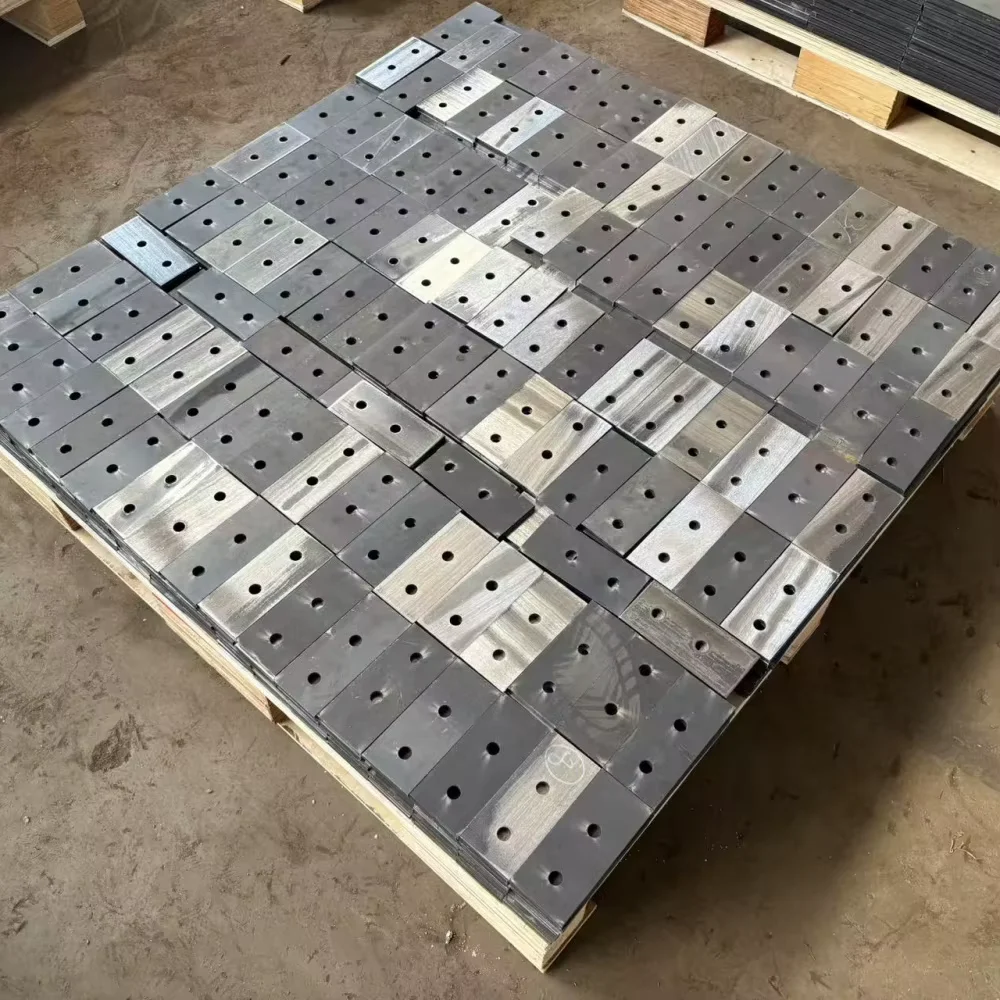

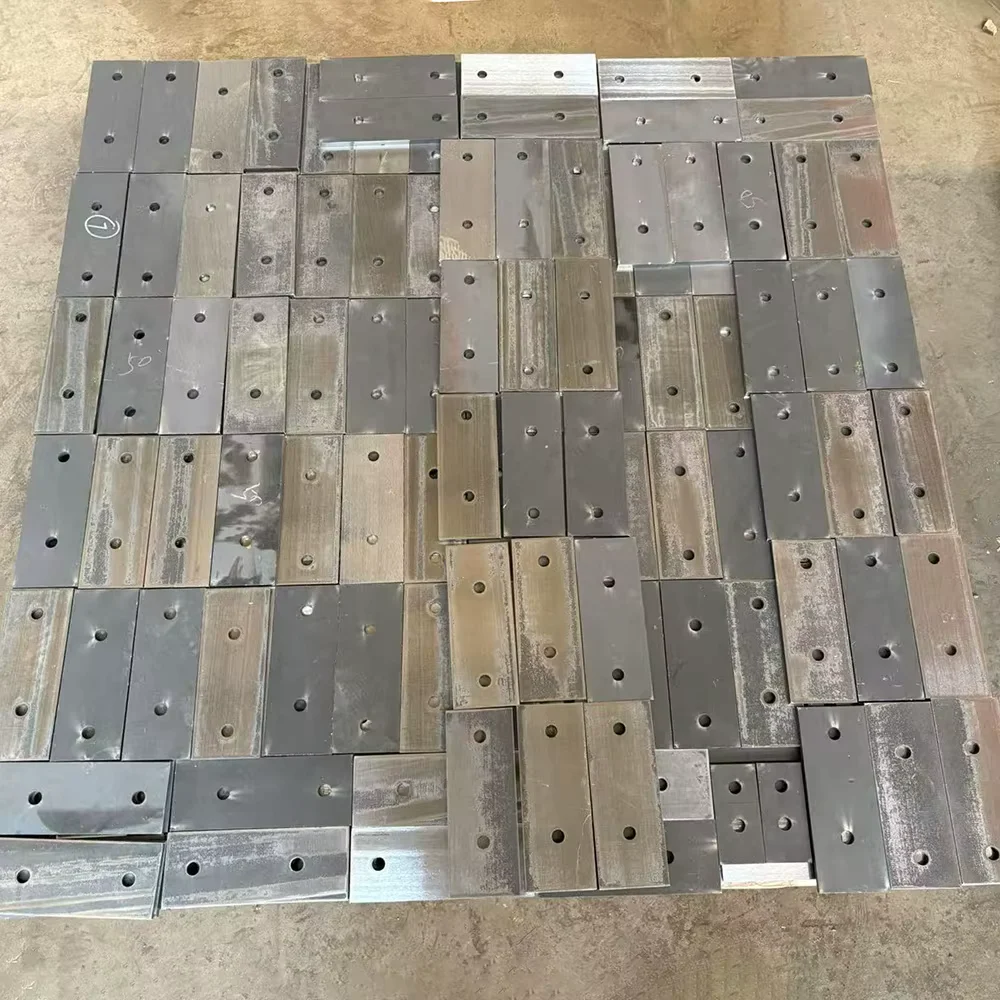

| Steel Construction | Column base plates, gusset plates, beam splice connections, platform grating supports |
| Industrial Machine | Machine base frames, conveyor brackets, hopper liners, equipment mounting plates |
| Automobile | Chassis reinforcement plates, bracket assemblies, structural mounting components |
| Electric Appliance | Equipment enclosures, control panel backplates, terminal box housings |
| Public Equipment | Signage mounting frames, barrier post base plates, street furniture structural parts |
| Complex Assemblies | Welded sub-assemblies, multi-piece fabricated nodes, modular connection units |
What Laser Cutting Tolerance Costs When Bolted Connections Fail on Site
A 2mm deviation on a bolt-hole pattern turns a straightforward erection into a three-day rework.
Outsourced laser cutting sounds straightforward until the first batch arrives and half the plates need reaming before bolts will pass through. On a warehouse project in Southeast Asia, I watched a crew spend days chasing misaligned connection plates because the fabricator ran nesting software without accounting for kerf compensation on thicker carbon steel. The plates looked right on the drawing, but thermal distortion during cutting shifted every hole pattern by a few millimeters — enough to make high-strength bolt assembly impossible without field modification [NEED_CITE: laser cutting thermal distortion in thick carbon steel plate]. When fabrication is split between a cutting house and a separate welding shop, nobody owns the tolerance chain, and the buyer absorbs every delay.
Matching Laser-Cut Carbon Plates to Structural and Industrial Applications
Carbon steel plate laser cutting fabrication service components must align with the structural demands of each application — load-bearing connections require tight hole positioning, while enclosure panels prioritize edge quality and flatness. On a recent logistics center build, we supplied over 400 base plates and gusset plates in a single production run, with all bolt holes laser-cut to ±0.5mm positioning tolerance. Because our own steel mill produces the raw plate stock, we control material chemistry from melt to finished cut part — no guessing whether the plate matches the MTC.
Engineering Compliance and Surface Treatment Selection for Fabricated Plates
Structural connection plates fabricated for EPC projects must comply with dimensional tolerances defined in EN 1090-2 or AISC 360, depending on the destination market. For outdoor or corrosive environments, surface treatment selection — hot-dip galvanizing, powder coating, or industrial painting — directly affects long-term maintenance cost and inspection intervals [NEED_CITE: surface preparation standards for structural steel coating adhesion]. Carbon steel grades supplied under ASTM, DIN, JIS, or GB standards each carry different welding preheat requirements; our engineering team reviews shop drawings before production to flag any material-process conflicts that could trigger weld cracking or coating failure.
Understanding Carbon Steel Grade Selection and Multi-Process Capability
Carbon steel plate fabrication spans a wide range of grades — from mild steel with good formability to higher-strength grades used in load-bearing structural connections. The choice between S-series (EN), ASTM (US), or Q-series (GB) depends on the project specification and local code requirements. Laser cutting handles plates from 3mm to 40mm thickness with clean edges suitable for direct welding, while CNC machining adds drilled, countersunk, or tapped features for precision assembly. Our facility combines laser cutting, bending, welding, and surface treatment under one roof — meaning a base plate can be cut, drilled, welded to a stiffener, shot-blasted, and painted without leaving the factory. This eliminates the tolerance stacking that occurs when parts move between multiple subcontractors [NEED_CITE: multi-process steel fabrication tolerance chain management].
Hidden Costs of Unverified Material and Poor Nesting Practices
Ordering carbon steel plates without verified mill test certificates creates a cascade of problems: failed weld procedure qualifications, rejected third-party inspections, and in the worst case, structural components that cannot be certified for load-bearing use. Cheap nesting software that ignores grain direction or thermal distortion can produce plates that warp after cutting, making fit-up impossible on site. When certification documents are missing or inconsistent with the delivered material, customs authorities in the EU and Middle East routinely hold shipments for extended inspection — turning a standard lead time into weeks of demurrage charges [NEED_CITE: steel material certification requirements for EU customs clearance].
Why Sourcing Carbon Steel Fabrication from an Integrated Mill-Fabricator Reduces Risk
Our raw carbon steel plate comes from our own production lines — over 2,800 specifications held in stock, so material lead time does not gate fabrication start dates. Every heat of steel carries full chemical and mechanical test records, traceable by heat number from mill to finished component. Our fabrication workshop holds certified welding procedures (WPS/PQR) and qualified welders under AWS and EN standards, with dimensional inspection reports and coating thickness measurements included in every shipment. For OEM and ODM projects, we provide shop drawing review and material optimization before cutting begins — reducing waste and catching interference issues before steel hits the table. Third-party inspection through SGS or BV is arranged as standard for clients requiring independent verification.
Documentation & Compliance
- Mill test certificate documenting carbon steel chemical composition and mechanical properties per applicable standard (ASTM / EN / GB / JIS)
- Dimensional inspection report covering laser-cut hole positions, plate flatness, and edge quality
- Welding procedure specification (WPS) and procedure qualification record (PQR) for any welded assemblies
- Coating thickness measurement report for galvanized, powder-coated, or painted surfaces
- Material traceability sheet linking each plate to its original heat number and mill certificate
- Export documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

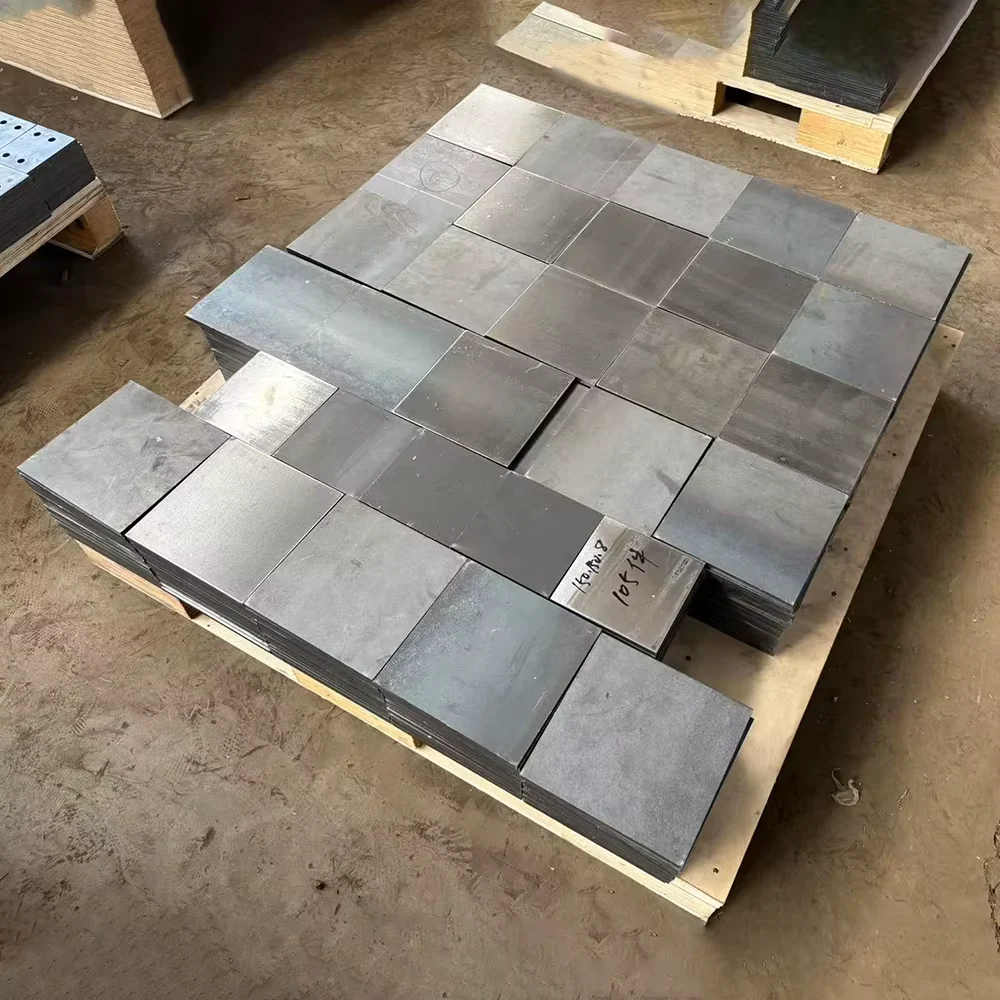

- Laser-cut carbon steel plates stacked with interleaving separators to prevent surface scratching during transit
- Edge protectors applied to all plate bundles to preserve cut edge quality and surface treatment finish
- Custom wooden crate packaging available for precision-machined components requiring protection from moisture and impact
- Container loading optimized by plate dimensions — nested stacking for mixed-thickness orders maximizes 20ft and 40ft container capacity
- Heat number and steel grade stenciled on each plate bundle for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with full export documentation and container tracking
Ready to Start Your Carbon Steel Fabrication Project
Submit your engineering drawings (PDF or DWG format) along with steel grade, quantity, surface treatment requirement, and destination port. Our engineering team responds within 24 hours with a preliminary assessment, shop drawing timeline, and detailed quotation covering material, fabrication, coating, and logistics costs.
Get Your Carbon Steel Plate Laser Cutting Quote
Send your project specifications to admin@xjystructure.com or contact us via WhatsApp at +86 188 5315 7756 for a detailed fabrication proposal with material certification.
Frequently Asked Questions
Q: What international standards do you follow for carbon steel plate fabrication?
A: We fabricate carbon steel components to ISO, GB, JIS, ASTM, ANSI, AISI, DIN, and BS standards. Our engineering team reviews your project specifications to confirm the correct material grade and processing requirements before production begins.
Q: Can you provide material certificates and arrange third-party inspection before shipment?
A: Yes. Every order includes a mill test certificate with full material traceability by heat number. Third-party inspection through SGS or BV can be arranged for dimensional verification, coating thickness measurement, and visual quality checks before shipment.
Q: What is the MOQ for custom laser-cut carbon steel plate components?
A: The minimum order quantity is 100 pieces for custom laser-cut and fabricated carbon steel plate components.
Q: What surface treatment options are available for carbon steel fabricated plates?
A: We offer black finish, hot-dip galvanizing, powder coating, industrial painting, electroplating, anodizing, chrome plating, brushing, polishing, and silk-screen printing. Our team recommends the appropriate treatment based on your project environment and specification requirements.
Q: How do you handle shop drawing coordination and engineering questions during fabrication?
A: Our engineering team provides shop drawing review and material optimization support before production begins. During fabrication, we respond to RFIs and coordinate directly with your project team to resolve any technical questions without delaying the production schedule.
