Description

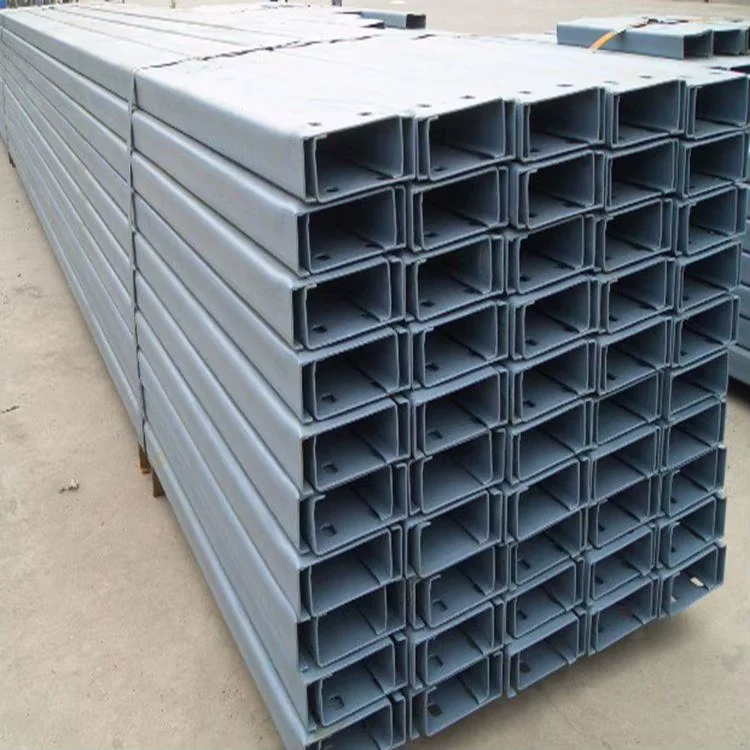

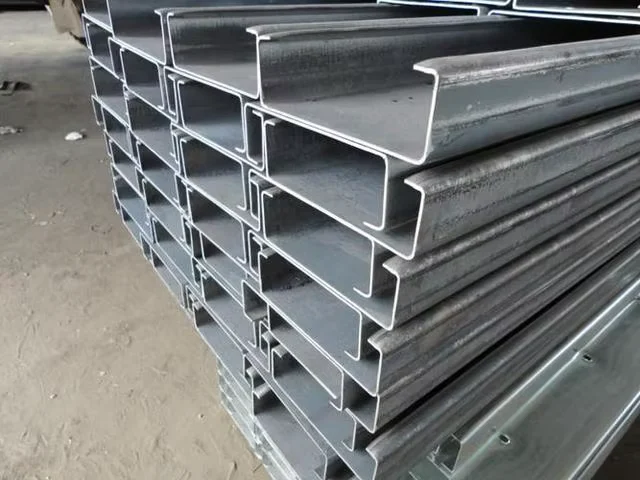

Factory-Direct Galvanized Profiles — Vertically integrated steel mill and fabrication facility producing DX51D and S235JR galvanized C channels with full material traceability from raw coil to finished section.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | DX51D / S235JR Galvanized C Channel |
| Product Type | C Channel / U Channel (GI Carbon Steel Profile) |
| Steel Grade | DX51D, S235JR, ASTM A36, Q235, Q235B, Q345, Q195, SPHC, SPCC, ASTM A53 |
| Standard | ASTM, AISI, JIS, GB, DIN, GB/T2101-89, GB9787-88, GB9788-88, JIS G3192-94, DIN17100-80 |
| Section Shape | C Channel / U Channel |
| Size Range | 20×20–200×200mm (equal); 25×16–200×125mm (unequal) |
| Thickness | 3–24mm |
| Length | 1–12 meters or as customer’s request |
| Technique | Bending, Welding, Punching, Decoiling, Cutting |
| Surface Treatment | Galvanized, Painting |
| Tolerance | ±1% |
| Perforated | Not Perforated |
| Alloy | Non-Alloy |
| Invoicing | By Actual Weight |
| Application | Construction, Building Structures, Engineering Structures, Beams, Bridges, Transmission Towers, Lifting & Transportation Machinery, Industrial Furnaces, Container Frames, Cable Trench Stents, Warehouse Shelves |
| MOQ | 3 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Building | Warehouse frames, portal steel structures, mezzanine supports, purlin systems |
| Industrial Infrastructure | Transmission tower bracing, cable trench stents, industrial platform beams |
| Logistics & Storage | Warehouse shelving uprights, racking systems, container frame components |
| EPC & Engineering Projects | Bridge walkway supports, lifting machinery frames, furnace structural members |
Material Traceability Gaps That Trigger Site Rejection
When the mill test certificate does not match the steel stamped on the flange, the entire batch becomes scrap at customs or on-site.
Outsourcing galvanized profiles to China without a vertically integrated supply chain creates blind spots. Buyers receive MTCs from a trading company that sourced coils from three different mills — none of which can be audited after shipment. Coating thickness varies between pieces in the same bundle because the galvanizing line was not calibrated for the profile geometry. Dimensional tolerance drifts beyond ±1% when the fabricator skips in-process checks to meet a tight delivery window. These gaps compound into rework costs, customs holds, and project delays that dwarf the original purchase price difference. [NEED_CITE: material traceability requirements for structural steel in international procurement]
Matching Profile Geometry to Structural Load Paths
Galvanized C channels in DX51D and S235JR serve distinct roles on the same project. DX51D — a cold-forming grade with zinc coating — handles secondary framing where corrosion resistance matters more than load-bearing capacity: purlin systems, cable trench stents, and warehouse shelving uprights. S235JR carries higher structural loads in portal frames, bridge walkway supports, and transmission tower bracing members. The Galvanized C Channel Steel Supplier must hold both grades in stock and cut to length without mixing certificates. Our fabrication workshop processes C channels up to 12 meters with CNC punching and bending, delivering pre-fabricated assemblies that bolt directly on-site — eliminating field cutting errors that compromise zinc coating integrity.
Engineering Compliance Across Destination Markets
Structural C channels exported to the EU require EN 1090 execution class documentation and CE marking per EN 10219 for cold-formed sections. North American EPC projects specify ASTM A36 or A53 with AISC-compliant fabrication records. Middle East infrastructure tenders often demand third-party inspection by SGS or BV before container sealing. A Galvanized C Channel Steel Supplier serving these markets simultaneously must maintain certified welding procedures (WPS/PQR), qualified welder records, and heat-number traceability from coil to finished bundle. Missing any single document delays customs clearance by weeks — or triggers full-batch rejection at the destination port. [NEED_CITE: EN 1090 structural steel fabrication compliance for non-EU manufacturers]
Steel Grade Selection: Forming Versus Structural Capacity
DX51D is a commercial-quality galvanized steel grade designed for cold roll-forming into C and U profiles. Its zinc coating (typically Z80–Z275 per ASTM A653) provides sacrificial corrosion protection without additional painting — suitable for indoor warehouse environments and moderate outdoor exposure. S235JR, by contrast, is a non-alloy structural steel per EN 10025-2 with defined yield strength for load-bearing applications. When a project specifies S235JR C channels, substituting DX51D to reduce cost creates a structural liability: the forming grade lacks the certified mechanical properties engineers calculated into the frame design. Q235B serves as the Chinese national standard equivalent to S235JR for domestic projects, while ASTM A36 covers the same structural role in North American specifications. Q345 steps up to higher yield strength for heavy industrial frames and bridge components. The Galvanized C Channel Steel Supplier must document grade equivalence clearly on the MTC to prevent substitution disputes during inspection.
Hidden Costs of Unverified Coating and Tolerance
A galvanized C channel with zinc coating below the specified threshold fails salt-spray testing within months of installation — and the replacement cost includes not just the steel, but demolition, remobilization, and schedule penalties. Similarly, profiles that exceed negative tolerance limits carry less cross-sectional area than the engineer assumed, reducing load capacity without visible warning. A Galvanized C Channel Steel Supplier that sources raw material from third-party mills and outsources galvanizing to subcontractors cannot guarantee consistent coating thickness or dimensional accuracy across a multi-ton order. The cost of verifying these parameters after arrival — through third-party inspection or on-site ultrasonic testing — often exceeds the price premium of buying from an integrated producer. [NEED_CITE: galvanized coating thickness standards and salt spray test requirements for structural profiles]
Integrated Production From Coil to Container

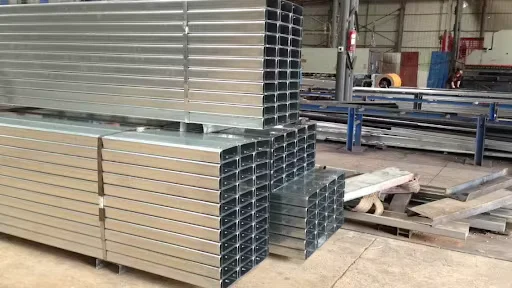

XJY Structure operates its own steel mill with three production lines and over 2,800 raw material specifications — meaning every galvanized C channel traces back to a single heat number and a single quality system. Our fabrication workshop performs CNC cutting, bending, punching, and welding on the same premises where the profiles are formed and galvanized. Shop drawings are reviewed by our engineering team before production begins, and dimensional checks occur at each processing stage — not just at final inspection. Welding procedures are certified per AWS and EN standards, with qualified welders on staff for any connection assembly work. Complete documentation packages — including WPS, PQR, weld maps, dimensional inspection reports, and coating thickness records — ship with every order. This vertical integration eliminates the material-traceability gaps that cause customs holds and site rejections on international projects across the EU, Middle East, Southeast Asia, and Africa.
Documentation & Compliance
- Mill Test Certificate documenting DX51D zinc coating weight and S235JR chemical composition with mechanical properties per EN 10025-2
- CE certificate for cold-formed hollow sections per EN 10219, covering C channel profiles exported to EU member states
- ISO 9001 quality management certificate covering the full production chain from steelmaking through galvanizing and fabrication
- SGS or BV third-party inspection report verifying coating thickness, dimensional tolerance, and surface quality before shipment
- Full material traceability by heat number from raw coil to finished galvanized C channel bundle
- Export customs documentation including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

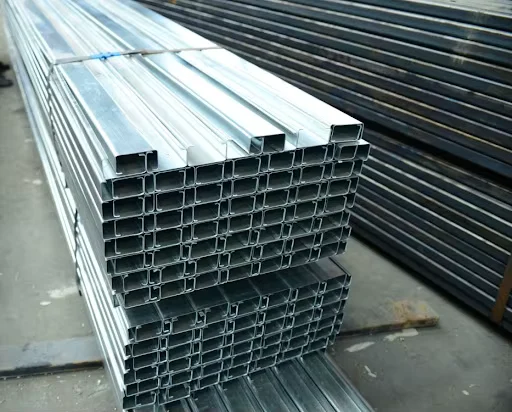

- Galvanized C channels bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit and prevent edge damage from friction
- Surface protection maintained through separated stacking with rubberized spacers, preventing zinc-to-zinc contact that causes wet storage stain
- Container loading optimized for 6-meter and 12-meter lengths with wooden cradles and lashing belts to prevent shifting during breakbulk or container shipment
- Custom cut-to-length service available within the 1–12 meter range, with each piece labeled by heat number, steel grade, and length for on-site identification
- Heat number and steel grade stenciled on each bundle, matching the Mill Test Certificate for immediate verification at destination port
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading plans for project-specific delivery schedules
Requesting a Fabrication-Ready Quotation
Submit your project drawings in PDF or DWG format along with steel grade requirements, surface treatment specifications, and target quantity to receive a detailed quotation within 24 hours — including material costs, fabrication charges, coating, packing, and shipping estimates. Our engineering team will review shop drawings, confirm dimensional tolerance feasibility, and advise on grade equivalence if your specification crosses EN, ASTM, or GB standards. Third-party inspection and complete MTC documentation packages are confirmed at the quotation stage, not after production begins.
Frequently Asked Questions
Q: What is the difference between DX51D and S235JR for C channel applications?
A: DX51D is a cold-forming galvanized steel grade suited for secondary framing, purlins, and shelving where corrosion resistance is the primary requirement. S235JR is a structural steel grade with certified yield strength for load-bearing frames, bridges, and industrial platforms. The two grades are not interchangeable — S235JR provides structural capacity that DX51D cannot guarantee.
Q: Can non-standard C channel dimensions be produced with a 3-ton minimum order?
A: Yes. Custom sizes within the 20×20–200×200mm range and 3–24mm thickness can be fabricated to engineering drawings. The 3-ton MOQ applies to both standard and custom profiles. Lead times for non-standard dimensions may vary based on tooling requirements.
Q: How does vertical integration guarantee material traceability?
A: XJY Structure operates its own steel mill and fabrication workshop under one quality management system. Every galvanized C channel traces to a single heat number from raw coil through forming, galvanizing, and fabrication — eliminating the documentation gaps that occur when material is sourced from multiple third-party suppliers.
Q: What galvanized coating thickness options are available?
A: Hot-dip galvanized coating is available per project specifications, with standard options ranging from Z80 to Z275 zinc coating weight. Coating thickness is verified before shipment and documented in the quality inspection report. Third-party testing by SGS or BV can be arranged for destination-country compliance.
Q: How are 12-meter galvanized C channels packed for container shipment?
A: Long-length profiles are bundled with steel strips, separated by rubberized spacers to protect the zinc coating, and secured on wooden cradles with lashing belts. Container loading plans account for weight distribution and oversized dimensions to prevent shifting during transit. Breakbulk shipping is available for project volumes exceeding container capacity.
Get Your Galvanized C Channel Quotation With Full MTC
Share your project specifications, steel grade, and destination port to receive a detailed quotation with Mill Test Certificate confirmation and fabrication timeline.
