Description
Direct Mill Supply for Galvanized C-Channel Profiles — Vertically integrated production from raw coil to finished galvanized sections eliminates material traceability gaps and coating inconsistencies.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized C-Channel Steel Profile |
| Product Type | C-Channel / U-Channel Steel |
| Steel Grade | Q195, Q235, Q345, ASTM A36, ASTM A53, DC01, API 5L, SPCC |
| Standard | ASTM, AISI, JIS, GB, DIN, GB/T2101-89, GB9787-88, GB9788-88, JIS G3192-94, DIN 17100-80 |
| Section Shape | C Channel / U Channel |
| Size Range | Equal: 20×20–200×200mm; Unequal: 25×16–200×125mm |
| Wall Thickness | 3–24mm |
| Length | 1–12m or customized |
| Technique | Bending, Welding, Punching, Cutting, Decoiling |
| Surface Treatment | Galvanized / Painting |
| Tolerance | ±1% |
| Application | Construction structures, Building frames, Bridges, Transmission towers, Industrial platforms, Warehouse shelves, Container frames, Cable trench supports |
| MOQ | 3 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| General Construction | Building frames, structural support columns, roof purlins |
| Infrastructure | Bridge components, transmission tower cross-arms, cable trench supports |
| Industrial Facilities | Warehouse shelving systems, industrial platforms, mezzanine structures |
| Logistics & Storage | Container frames, racking uprights, pallet support beams |
Where Coating Thickness Determines Site Acceptance on Galvanized C-Channel Steel Orders
A 40-micron zinc layer instead of the specified 80 microns means the entire shipment gets rejected on arrival.
I learned this the hard way on a Riyadh warehouse project. The galvanized C-channel arrived, the client pulled out his coating thickness gauge, and the numbers didn’t match the contract. The whole batch went back for rework. Air-freighting replacement pieces ate the entire margin. Since then, every batch leaving our galvanizing line gets checked before loading — coating thickness reports travel with the container. When sourcing galvanized channel steel from fragmented suppliers, material traceability gaps and inconsistent coating quality create exactly this kind of exposure. A single-source, mill-to-fabrication supply chain removes that variable entirely [NEED_CITE: hot-dip galvanizing coating thickness standards for structural steel].
Matching Structural Load Paths in Building and Bridge Frameworks
Galvanized C-Channel Steel Supplier capabilities must align with how these profiles actually perform in the field. In building frames and bridge components, the C-channel geometry carries bending loads along its strong axis while the open section allows straightforward bolted connections to gusset plates and bracket assemblies. The Q235 and Q345 grades cover the majority of structural framing requirements across Middle Eastern and Southeast Asian projects, where yield strength differentiation directly affects member sizing. Our CNC bending and punching operations hold ±1% tolerance on hole positioning — critical when field crews are bolting up transmission tower cross-arms with pre-drilled connection plates.
Engineering Compliance and Corrosion Environment Selection
Structural C-channels in outdoor or high-humidity environments require galvanizing that meets project-specific corrosion protection specifications. Hot-dip galvanizing provides sacrificial zinc protection rated for decades of atmospheric exposure, while painted finishes suit interior applications or projects where color matching matters. For European projects, EN 1090 fabrication certification and material documentation packages become customs clearance prerequisites — missing CE marking on structural steel components triggers inspection holds at port [NEED_CITE: EN 1090 structural steel fabrication compliance requirements]. ASTM A36 and A53 grades serve North American and Middle Eastern specifications where imperial dimension standards apply. Custom lengths from 1–12m reduce on-site cutting waste and welding connections that compromise galvanized coating integrity.
Steel Grade Selection and Fabrication Process Fundamentals
The Q-series grades (Q195, Q235, Q345) follow Chinese GB standards where the number indicates minimum yield strength in MPa. Q235 remains the workhorse grade for general structural applications — adequate strength, excellent weldability, and broad availability. Q345 steps up yield strength for heavier load conditions in transmission towers and industrial platforms without requiring thicker sections. ASTM A36 serves as the direct equivalent for projects specifying American standards. SPCC and DC01 are cold-rolled commercial grades suited to lighter-gauge C-channel profiles for warehouse shelving and container frames where forming quality matters more than structural load capacity. The bending, punching, and cutting processes we apply to these profiles maintain dimensional accuracy across the full thickness range from 3mm to 24mm — thin sections require controlled bending radii to prevent flange distortion, while heavy sections demand adequate press capacity for clean punching operations.
Hidden Costs When Material Certification Falls Short
Ordering structural C-channels without verified mill test certificates creates downstream exposure that rarely appears in initial price comparisons. Coating thickness below specification triggers full-batch rejection and re-galvanizing costs at destination — or worse, structural installation followed by costly teardown. Steel grade substitution without documentation fails EN 1090 or AISC audit requirements, halting project handover. Negative tolerance stacking on wall thickness reduces actual section modulus below design assumptions, forcing engineering re-evaluation mid-construction [NEED_CITE: structural steel material traceability requirements for international projects]. These costs compound when replacement material must cross borders on accelerated shipping terms.
Why Project Teams Source Galvanized C-Channel Steel From Our Mill
We operate both the steel production facility and the fabrication workshop under one roof — raw material procurement, profile forming, galvanizing, and quality inspection happen within a single quality management system. This vertical integration means every heat number traces directly from coil certificate to finished bundle. Our galvanizing line produces coating thickness consistent with contract specifications, verified by in-house testing before any shipment leaves Jinan. The engineering team reviews shop drawings for C-channel connection details, flagging potential fabrication sequencing issues before production begins. For international projects requiring EN 1090 or AWS welding certification documentation, we provide complete quality packages including WPS, PQR, weld maps, and dimensional inspection reports. Custom lengths and non-standard dimensions get produced to project-specific requirements rather than forcing field adaptation from catalog sizes.
Documentation & Compliance
- Mill Test Certificate documenting Q235/Q345 chemical composition and mechanical properties per GB standards, or ASTM A36/A53 test results for export projects
- Galvanizing coating thickness inspection report with measurement locations and average values per bundle
- CE certificate and EN 1090 fabrication compliance documentation for European market shipments
- SGS or BV third-party inspection reports available for pre-shipment verification at our facility
- Material traceability by heat number linking each bundle to original coil test certificates
- Complete export documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

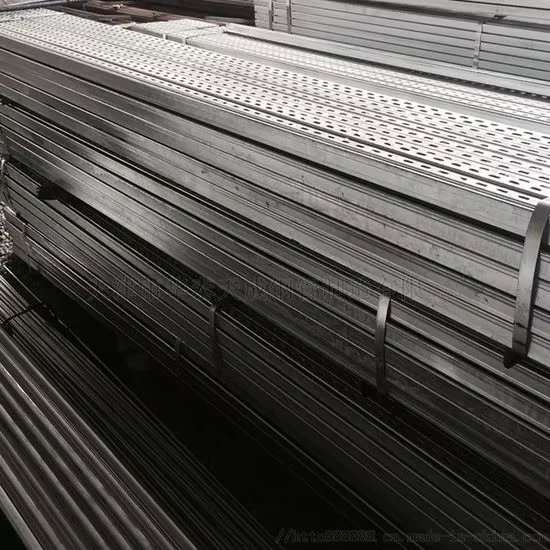

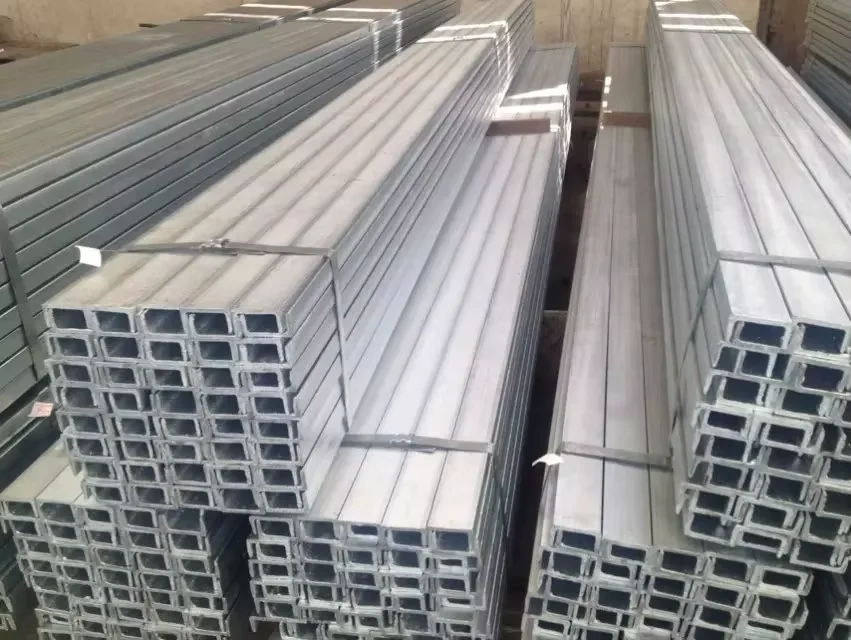

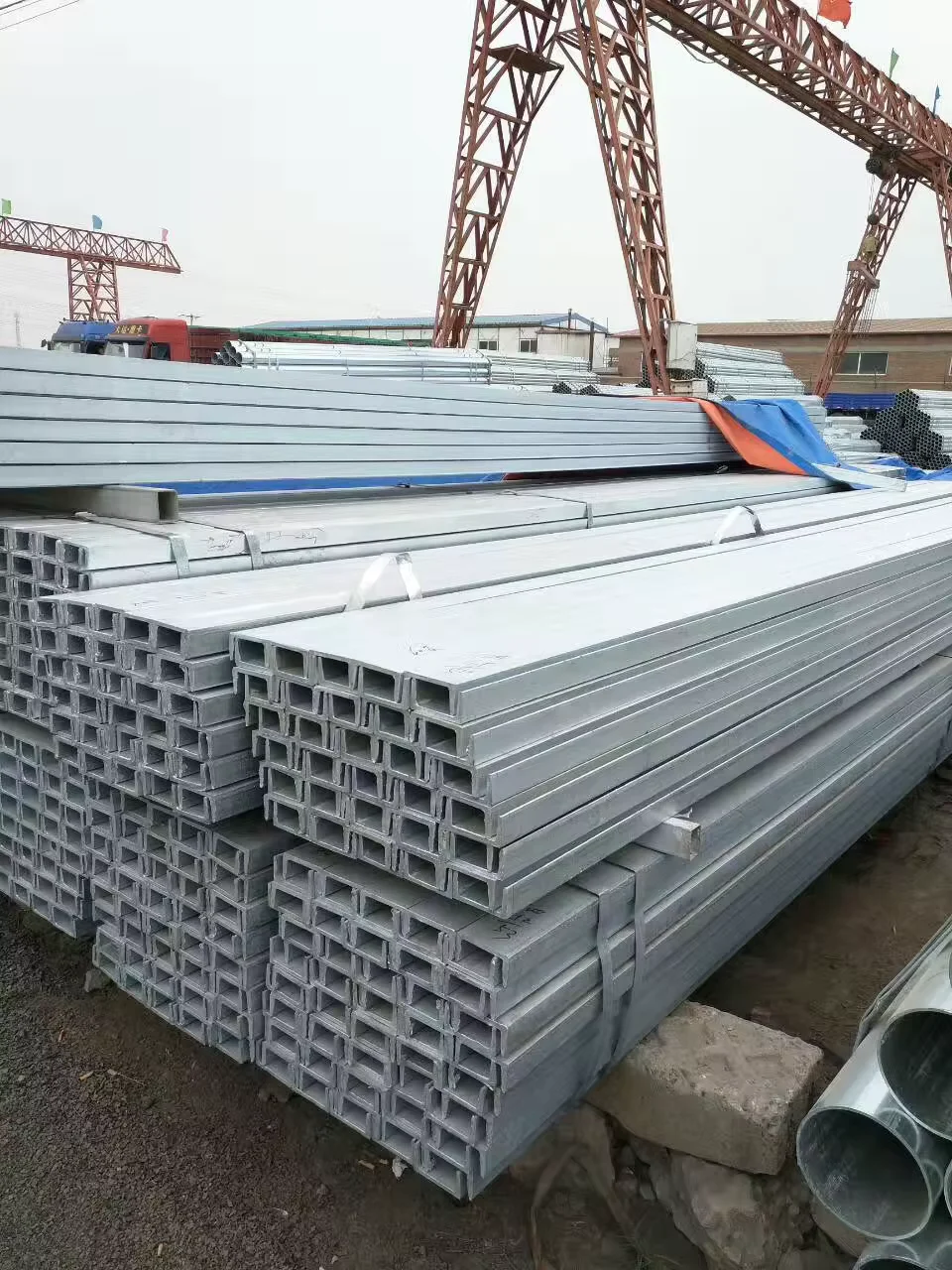

- Galvanized C-channels bundled with steel strips and edge protectors to preserve zinc coating integrity during ocean transit
- Surface protection with waterproof wrapping for galvanized profiles to prevent white rust formation in humid container conditions
- Container loading optimization for 6m and 12m lengths maximizing 20ft and 40ft GP capacity with proper weight distribution
- Custom cut-to-length service available for 1–12m requirements reducing on-site waste and handling
- Heat number and steel grade markings stenciled on each bundle for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional oversized cargo handling for heavy-wall sections
Initiating Your Galvanized C-Channel Procurement
Submit project drawings or specifications indicating steel grade, dimensions, coating requirements, and destination port. We respond within 24 hours with preliminary assessment including material availability, fabrication timeline, and complete quality documentation scope. For non-standard dimensions or custom fabrication requirements, our engineering team provides shop drawing review and production sequencing recommendations before contract commitment.
Request Quotation with Mill Test Certificates
Share your C-channel specifications, quantities, and project standards to receive detailed pricing with complete material certification packages.
Mobile/WhatsApp/WeChat: +86 188 5315 7756 | Email: admin@xjystructure.com
Frequently Asked Questions
Q: What steel grades are available for galvanized C-channel profiles?
A: We produce galvanized C-channels in Q195, Q235, Q345, ASTM A36, ASTM A53, DC01, API 5L, and SPCC grades. Each grade carries full mill test certificates documenting chemical composition and mechanical properties. Grade selection depends on structural load requirements and project specification standards.
Q: Can you provide custom sizes beyond standard dimensions?
A: Yes. Our C-channel profiles cover equal sections from 20×20mm to 200×200mm and unequal sections from 25×16mm to 200×125mm with thickness from 3–24mm. Custom lengths from 1–12m and non-standard dimensions are available based on project drawings and engineering requirements.
Q: What is the difference between hot-dip galvanized and painted finishes?
A: Hot-dip galvanizing provides sacrificial zinc coating for long-term corrosion protection in outdoor and high-humidity environments, typically specified for infrastructure and industrial applications. Painted finishes suit interior applications or projects requiring specific color matching. Surface treatment selection depends on environmental exposure conditions and project specifications.
Q: Do you provide EN 1090 or ASTM certification for international projects?
A: Yes. We provide EN 1090 fabrication certification for European projects and complete ASTM documentation for North American specifications. Quality packages include mill test certificates, coating thickness reports, dimensional inspection reports, and welding procedure documentation as required by project standards.
Q: What is the lead time from order confirmation to delivery?
A: Typical production lead times depend on order quantity, custom fabrication requirements, and surface treatment specifications. Standard galvanized C-channels in common sizes ship faster than custom dimensions or special coating requirements. We provide detailed production schedules with quotations.
