Description
Factory-direct laser cut steel tube supply — raw ERW tubes produced in our own mill are machined, chamfered, and deburred in the same facility, eliminating third-party material gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Laser Cut Tube |
| Product Type | Machined Steel Product (Laser Cut Tube) |
| Steel Grade | Non-Alloy |
| Standard | ASTM / EN / AISI / JIS / GB / DIN |
| Section Shape | Round / Custom profiles (per laser cutting) |
| Outer Diameter | 8 – 121 mm |
| Wall Thickness | 0.8 – 8.25 mm |
| Length | 0.1 – 2 m |
| Technique | ERW + Laser Cutting |
| Surface Treatment | Cold Rolled Surface |

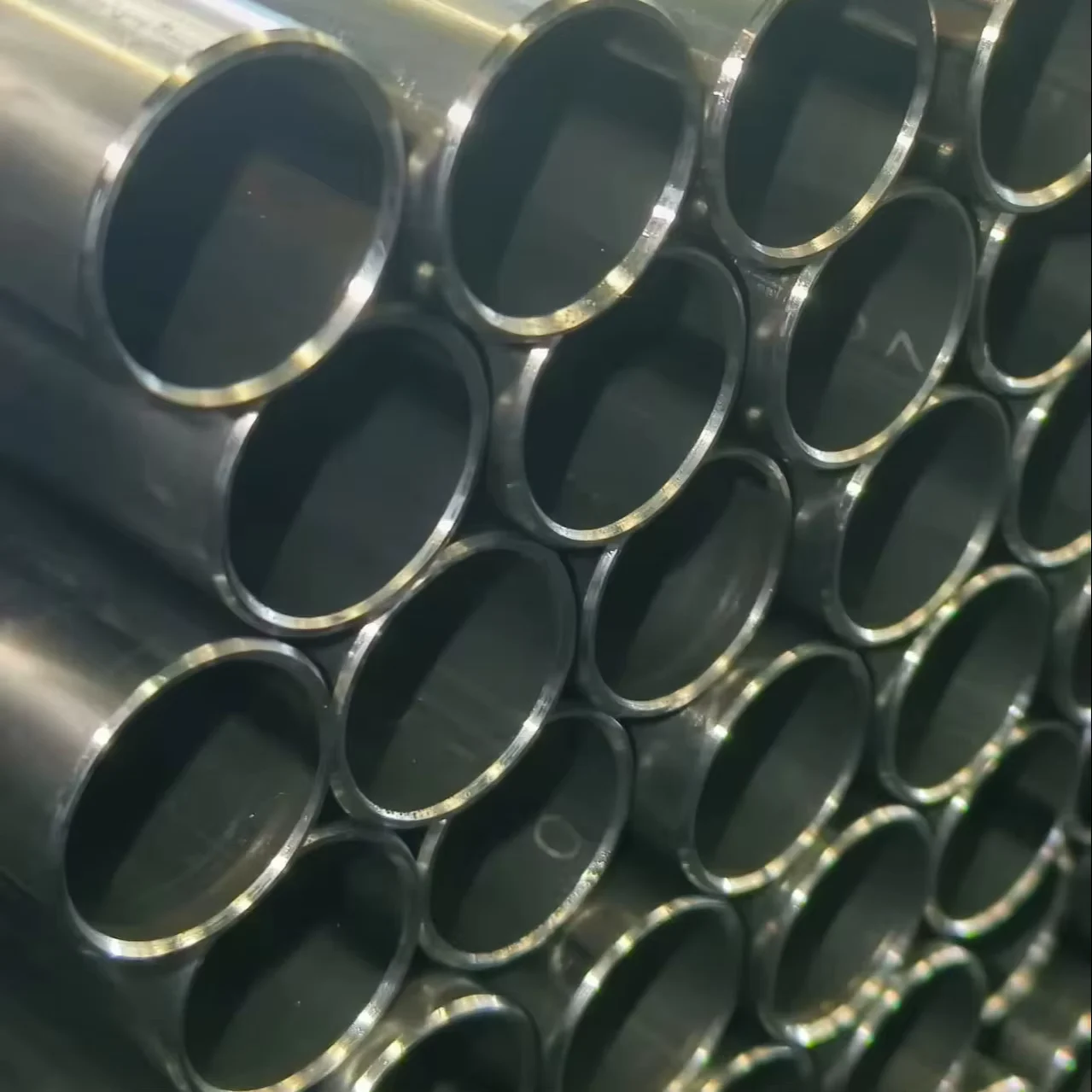

| Ends | Chamfered / Deburred |
| Tolerance | ±1% / ±5% / ±10% / ±15% / ±20% (as request) |
| Application | Structural fabrication / Mechanical parts / Architectural components / Industrial frames / Custom steel assemblies |
| MOQ | Multiple of 10 items |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC & Construction | Structural steel connections, node plates, column base assemblies |
| Industrial Machinery | Equipment frames, conveyor support members, machine base structures |
| Architectural & Infrastructure | Decorative steel elements, handrail posts, canopy support members |
| Custom Steel Assemblies | Fabricated brackets, precision-cut gusset plates, welded sub-assemblies |
Where Material Traceability Gaps Turn Laser Cut Orders into Site Rework
When the fabricator does not own the tube mill, every cut piece carries an unverified heat number — and that is where dimensional disputes begin.
Outsourced laser cut steel tube orders often arrive at site with dimensional drift beyond tolerance because the machining workshop sources base tubes from multiple mills with inconsistent wall thickness and ovality. I have watched entire batches of machined components get rejected during incoming inspection because the mill test certificate could not be traced back to a single heat. For a laser cut steel tube supplier that controls both the ERW mill and the CNC cutting line, every chamfered end and every custom profile carries a heat number tied to our own production records — no guessing, no third-party certificates of convenience. [NEED_CITE: EN 10204 inspection document types for steel products]
Precision Matching for Structural Connections and Mechanical Frames
A laser cut steel tube in the 8–121 mm OD range serves two distinct engineering demands: structural node connections that require tight angular cuts for full-penetration welding, and mechanical frame components where deburred edges prevent stress concentration at assembly joints. Our CNC laser cutting follows DWG/DXF files directly, holding ±1% tolerance on critical profiles, while chamfered and deburred ends arrive ready for welding without secondary site machining. As a laser cut steel tube supplier with vertically integrated production, we verify every base tube against the same heat before it enters the cutting line.
Engineering Compliance and Standard Alignment
Structural applications demand alignment with EN 10219 or ASTM A500 frameworks depending on the destination market, and the laser cut steel tube must carry documentation that satisfies both the cutting accuracy and the base material certification. Cold rolled surface finish provides clean coating adhesion for painted or powder-coated architectural elements, while the ERW base tube conforms to the welding requirements of AWS D1.1 for structural connections. Third-party inspection by SGS, BV, or TÜV is available before shipment to verify dimensional reports and surface treatment records. [NEED_CITE: ASTM A500 cold-formed structural tubing requirements]
ERW Base Tube and Laser Cutting Process Explained

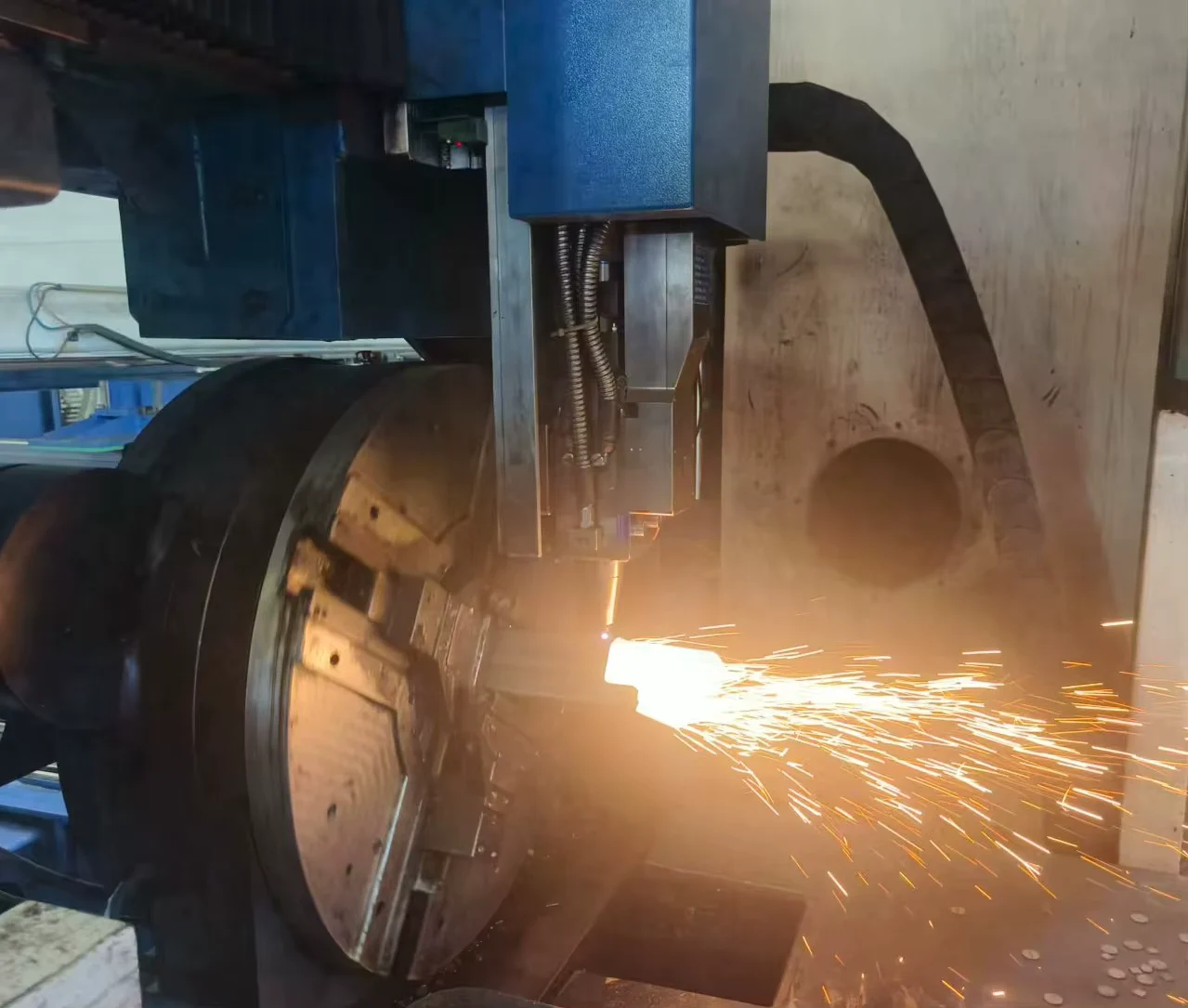

The ERW (Electric Resistance Welded) process forms the base tube from cold rolled coil, producing a longitudinal weld seam suitable for structural and mechanical applications in the 8–121 mm OD range. Laser cutting then replaces traditional sawing or plasma for custom profiles, delivering kerf widths below 0.2 mm and edge quality that eliminates the need for secondary grinding on most components. Cold rolled surface treatment preserves the mill finish for applications where appearance matters, while chamfering at specified angles prepares each end for butt or fillet welding without site preparation. Tolerance selection from ±1% to ±20% allows buyers to balance precision requirements against machining cost — structural node plates typically demand ±1% to ±5%, while general mechanical frames may accept ±10% to ±15%.
Hidden Costs of Sourcing Laser Cut Tubes from Disconnected Suppliers
When a machining workshop sources base tubes from third-party mills, the material traceability chain breaks at the first link — and that is where engineering inspectors reject entire batches regardless of cutting accuracy. A laser cut steel tube without verifiable heat number documentation fails customs clearance in markets requiring EN 10204 3.1 certificates, while tolerance drift beyond ±5% on structural connections forces on-site re-cutting that delays erection schedules. Non-alloy grades without proper certification create liability exposure in load-bearing applications where design codes require documented material properties. [NEED_CITE: EN 10204 3.1 inspection certificate requirements for structural steel]
Why Buyers Source Laser Cut Tubes from Our Vertically Integrated Facility
Our own steel mill produces the ERW base tubes that feed directly into our CNC laser cutting workshop — one facility, one quality system, one mill test certificate covering both the base material and the finished machined component. The cold rolled surface passes through our in-house inspection before cutting, and every laser cut steel tube leaves with chamfered and deburred ends verified against the approved shop drawing. We hold ISO 9001 and IATF 16949 certification, and third-party inspection by SGS, BV, or TÜV is arranged on-site before container loading. Custom profiles from DWG/DXF files are cut to ±1% tolerance when structural connections demand it, while standard mechanical components are processed at ±10% to ±15% for cost efficiency. Professional packing in wooden crates protects the cold rolled surface and chamfered edges during ocean transit, and full export documentation travels with every shipment.
Documentation & Compliance
- Mill test certificate documenting non-alloy steel chemical composition and dimensional inspection per ASTM / EN / AISI standards
- EN 10204 3.1 inspection certificate with heat number traceability to our own ERW tube mill
- ISO 9001 and IATF 16949 quality management system certificates covering both tube production and laser cutting operations
- SGS / BV / TÜV third-party inspection report available before shipment for dimensional verification and surface treatment compliance
- Material traceability by heat number from cold rolled coil to finished laser cut steel tube
- Full customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Laser cut steel tubes packed in wooden crates with edge protectors to preserve chamfered and deburred ends during ocean transit
- Cold rolled surface wrapped in anti-rust paper and plastic film to prevent moisture damage across the 0.8–8.25 mm wall thickness range
- Custom length cutting from 0.1–2 m optimized for container loading, maximizing payload per shipment for 8–121 mm OD profiles
- Heat number and steel grade marked on each piece for site identification and inspection traceability
- FOB / CIF / DDP terms available from any major China port with full export documentation and container tracking
Start Your Laser Cut Tube Inquiry with Drawings and Specifications
Submit your project drawings in DWG/DXF format along with steel grade, outer diameter, wall thickness, length, and required tolerance to receive a detailed quotation including material, cutting, chamfering, and shipping costs. We confirm shop drawing approval before production begins, and the mill test certificate travels with every shipment for site inspection and customs clearance.
Get Your Laser Cut Steel Tube Quote with Full Material Traceability
Share your drawings and specifications to receive pricing and mill test certificates within 24 hours.
