Q195-Q345 Galvanized Square Steel Tube Manufacturer ASTM A500 EN10219 SHS

Description

Factory-direct galvanized SHS — no trader markup, full heat-number traceability from our own steel mill to finished Q195–Q345 square tubes.

Technical Specifications

Application Suitability

What Wall-Thickness Tolerance Costs on a Structural Frame Order

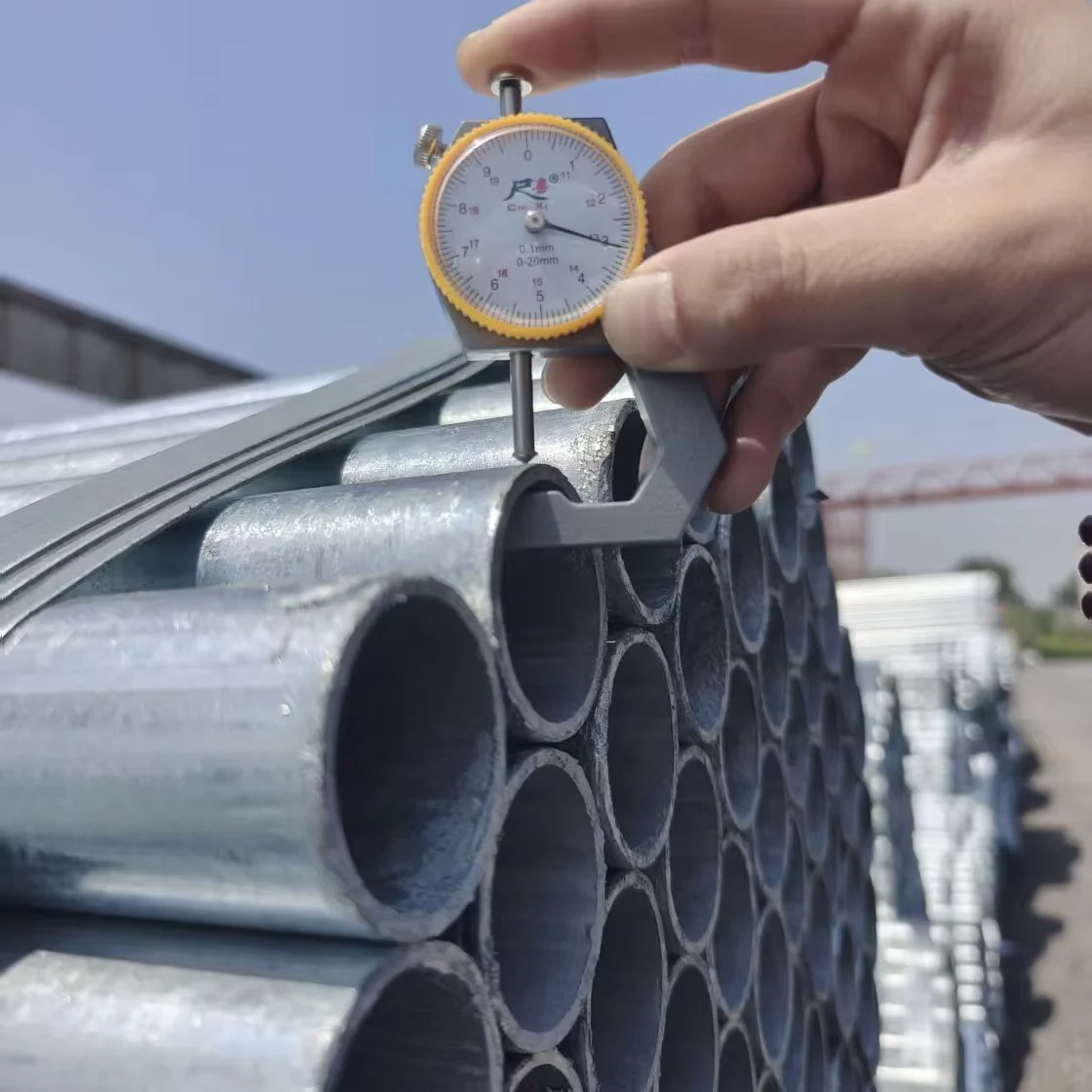

A ±1% tolerance on a 6 mm wall SHS means the difference between passing dimensional inspection and getting an entire container rejected at site.

I once watched a batch of 3-inch galvanized square tubes get held up at Dubai port because the buyer’s inspector pulled out a caliper and found wall thickness running negative beyond acceptable limits. The whole container sat there for weeks. When you source galvanized square steel tube from a third-party trader who sub-contracts the rolling and galvanizing separately, there is no single point of accountability for coating weight, dimensional accuracy, or material traceability. The gap between the mill test certificate and the actual product sitting on your job site becomes a project risk — and that risk compounds when EN 10219 or ASTM A500 compliance is required for customs clearance. [NEED_CITE: EN 10219 cold-formed structural hollow section dimensional tolerances]

Matching Galvanized SHS to Structural and Corrosive Environments

Hot-dipped galvanized square steel tube in Q345 or S355JR grades serves load-bearing frames in warehouses and industrial plants where both structural capacity and long-term corrosion resistance matter. The zinc coating — typically ≥65 µm for hot-dipped — protects against atmospheric corrosion in coastal and humid environments, while the ERW welded seam ensures consistent mechanical properties across the full 21.3 mm to 660 mm size range. For indoor scaffolding or short-service-life temporary structures, pre-galvanized options at ≥25 µm coating thickness reduce cost without sacrificing formability. Our in-house CNC cutting, bending, and welding services mean these tubes arrive on site as fabricated assemblies — not raw stock requiring secondary processing.

Engineering Compliance Across EN, ASTM, and GB Standards

Galvanized square steel tube orders for European projects must carry CE marking per EN 10210 (hot-finished) or EN 10219 (cold-formed), with full Declaration of Performance documentation for customs. North American specifications typically call for ASTM A500 Grade B or C, where chemical composition and tensile requirements differ from the S-series EN grades. [NEED_CITE: steel grade equivalence between EN 10219 and ASTM A500 standards] The Q-series (Q195, Q235, Q345) maps broadly to S235/S355 in yield strength tiers, but cross-referencing requires attention to elongation and impact testing requirements. Our engineering team reviews shop drawings against the specified standard before production begins, catching grade mismatches early rather than at the inspection stage.

Steel Grade Selection and Galvanizing Process Fundamentals

The Q195–Q345 range covers light structural to heavy-load applications — Q195 suits non-critical framing and fencing, Q235 handles general construction, and Q345 provides higher yield strength for loaded columns and beam assemblies. When international projects specify S355JR or A500 Grade C, the underlying principle is the same: higher yield grades reduce section size for equivalent load capacity, saving weight and shipping cost. ERW welded construction offers cost efficiency for square and rectangular profiles in the 21.3–660 mm range, with the weld seam fully covered by the galvanizing layer in hot-dipped processing. Hot-dipped galvanizing immerses the formed tube in molten zinc, producing a metallurgically bonded coating that covers both external and internal surfaces — critical for hollow sections exposed to moisture from condensation. Pre-galvanized tube, coated from pre-galvanized coil before forming, delivers a smoother finish at lower coating weight, suitable for indoor or painted-over applications. Wall thickness tolerance of ±1% ensures that theoretical weight calculations align with invoiced weight, avoiding disputes over material quantity. [NEED_CITE: hot-dip galvanizing coating thickness standards for structural steel]

Hidden Costs of Sourcing Without Verified Traceability

When galvanized square steel tube arrives without proper mill test certificates or with unverified coating thickness, the consequences extend far beyond the product itself. Customs authorities in the EU increasingly require CE-marked hollow sections with EN 10204 3.1 certificates — non-compliant shipments face rejection or re-export at the importer’s expense. On-site, wall thickness below specified tolerance compromises structural load calculations, potentially triggering engineer-mandated rework or replacement of already-installed frames. Material traceability gaps — where heat numbers on the MTC cannot be linked to the delivered bundles — create liability exposure for general contractors and EPC firms. [NEED_CITE: EN 10204 inspection document types for steel products]

Why Integrated Mill-to-Fabrication Sourcing Reduces Project Risk

Our own steel mill produces the raw material, and our fabrication division processes it into finished galvanized square steel tube — one facility, one quality system, one point of accountability. This vertical integration means every heat number on the mill test certificate traces directly back to our production records, eliminating the documentation gaps that occur when material passes through multiple traders. We stock over 2,800 specifications across square, rectangular, and round profiles, so multi-grade project orders — say Q345 for columns and S355JR for beams — ship from a single source with consistent coating quality. Certified welding procedures (AWS/EN) and qualified welders handle any fabrication beyond standard cutting and drilling. Third-party inspection through SGS, BV, or TÜV is available for coating thickness, dimensional verification, and mechanical testing before shipment.

Documentation & Compliance

• Mill test certificate documenting Q195–Q345 and S355JR chemical composition and mechanical properties per EN 10219 / ASTM A500, with full heat-number traceability
• CE certificate per EN 10210 and EN 10219 for European market customs clearance and structural compliance
• ISO 9001 quality management system certificate covering the integrated steel production and galvanizing process
• SGS or BV third-party inspection report verifying zinc coating thickness, dimensional tolerance, and surface quality
• Material traceability documentation linking each bundle to its production heat number and galvanizing batch
• Complete export documentation including packing list, bill of lading, and certificate of origin for destination customs

Packaging, Loading & Delivery

• Galvanized square steel tubes bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit and prevent bundle shift
• Hot-dipped galvanized surfaces wrapped with waterproof paper at cut ends to prevent white rust formation at exposed zinc edges
• 5.8 m and 6 m lengths loaded in 20ft containers with optimized nesting for 21.3–168 mm OD profiles; 11 m lengths shipped in 40ft open-top or flat-rack for larger 300–660 mm sections
• Cut-to-length processing available per project drawing, with each piece marked by heat number, steel grade, and length for on-site identification

-唛头 (shipping marks) printed on each bundle showing steel grade, specification, heat number, and purchase order reference

• FOB, CIF, and DDP delivery terms available with professional oversized cargo loading plans for fabricated SHS assemblies

Start Your Galvanized SHS Procurement

Share your project drawings, steel grade requirements, specifications, and destination port — we respond within 24 hours with pricing, shop drawing review, and a production schedule. Confirm your certification requirements (CE EN 10219, ASTM A500, or GB/T 3091) and we include the corresponding mill test certificate package in the quotation.

Request a Quote with Full Documentation

Send your specifications and drawings to admin@xjystructure.com or contact us via WhatsApp at +86 188 5315 7756.
