Description
One-Source Seamless Pipe Procurement — XJY Structure operates its own steel mill with 3 production lines and 2,800+ specifications, delivering Q195 through Q345B and international equivalents as a single accountable supplier for API 5L ASTM A106 A53 seamless steel pipe orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Seamless Round Steel Pipe |
| Product Type | Seamless Steel Pipe |
| Steel Grade | Q195, Q235, Q235B, Q345, Q345B, St37, St37-2, St35, St35.4, St42, St52.4, S235JR, S275JR, S355JR |
| Standard | API 5L, ASTM A106, ASTM A53, GB |
| Section Shape | Round |
| Outer Diameter | 20–250 mm |
| Wall Thickness | 0.9 mm |
| Length | 6 m / 6.4 m / 12 m |
| Technique | Seamless (Hot Rolled) |
| Surface Treatment | Hot Rolled / Galvanized / Epoxy Coated |
| Tolerance | ±1% |
| Ends | Plain |
| Application | Gas Pipe, Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Oil Pipe, Chemical Fertilizer Pipe, Structure Pipe |
| MOQ | 10 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Transmission pipelines, gathering lines, and wellhead piping per API 5L |
| Industrial Construction | High-temperature fluid lines, boiler feed systems, and steam distribution per ASTM A106 |
| Infrastructure & Utilities | Water supply networks, fire protection mains, and drainage structures per ASTM A53 |
| Petrochemical Plants | Chemical fertilizer process piping and hydraulic conveyance systems |
| Structural Engineering | Load-bearing columns, truss members, and platform supports in commercial and industrial frames |
Where Wall-Tolerance Drift Costs More Than the Pipe Itself
A ±1% tolerance on a 6-inch Sch40 API 5L ASTM A106 A53 seamless steel pipe sounds tight on paper — until a batch arrives at site and third-party inspectors flag every joint as underweight.
When overseas fabricators source pipe from third-party mills, the mill certificate may show compliant chemistry while actual wall thickness rides the negative tolerance floor across an entire heat. The result is not a paperwork exercise: SGS or BV inspectors reject the lot, air-freight replacements follow, and the project schedule absorbs weeks of delay. [NEED_CITE: third-party inspection rejection rates for dimensional non-compliance in seamless pipe] Material traceability gaps between the fabricator and the steel source make it nearly impossible to isolate which heats are affected, turning a quality issue into a full supply-chain audit.
Matching Pressure and Structural Demands Across Project Types
The Q195 through Q345B range, paired with European equivalents St37–St52 and S235JR–S355JR, allows a single API 5L ASTM A106 A53 seamless steel pipe order to serve both pressure-rated process lines and non-pressure structural members without splitting procurement across multiple vendors. Hot-rolled seamless construction eliminates the weld seam that would otherwise become a corrosion initiation point in buried or submerged service, while the 20–250 mm outer diameter range covers everything from instrument taps to main headers. Surface treatment selection — bare hot-rolled for indoor structural use, galvanized for atmospheric exposure, or epoxy for aggressive chemical environments — is coordinated at the mill stage so that downstream fabrication welding proceeds without coating removal delays.
Engineering Compliance and Certification Pathways
Structural engineers specifying S235JR or S355JR for frame members need documentation that maps cleanly to EN 1993 design assumptions, while pipeline engineers working to API 5L require heat-level traceability back to the original melt. [NEED_CITE: EN 10219 and API 5L documentation requirements for structural and pipeline applications] The seamless hot-rolled process with ±1% dimensional tolerance satisfies both the geometric precision demanded by bolted or welded moment connections and the pressure integrity required by ASME B31.3 process piping codes. Standard export lengths of 6 m and 12 m align with container loading optimization, while custom cutting to erection lengths reduces on-site waste and secondary handling.
Steel Grade Selection and Seamless Process Fundamentals
The Q-series (Q195, Q235B, Q345B) follows the Chinese GB system where the designation reflects minimum yield strength in MPa, making Q345B the direct functional counterpart to S355JR in the European EN system and broadly equivalent to ASTM A572 Gr50 in North American practice. St35 and St52.4 represent the German DIN legacy grades still specified on Middle East and African refinery projects, while S235JR and S275JR serve as the default structural grades for warehouse frames and platform supports where impact toughness at room temperature is sufficient. Seamless hot-rolled manufacturing pierces a solid billet and elongates it over a mandrel, producing a homogeneous grain structure with no longitudinal weld seam — a critical distinction for boiler pipe and high-pressure fluid service where weld integrity under cyclic thermal loading cannot be assumed. Wall thickness at 0.9 mm minimum with ±1% tolerance means that theoretical weight calculations remain reliable for structural design, avoiding the hidden cost of underweight pipe that passes chemistry checks but fails dimensional inspection.
The Hidden Price of Unverified Material Sources
Procuring API 5L ASTM A106 A53 seamless steel pipe from a broker rather than an integrated mill introduces three failure modes that surface only at site inspection: chemistry certificates that do not correspond to the physical heat, wall thickness concentrated at the negative tolerance boundary across an entire shipment, and missing or forged third-party inspection stamps. [NEED_CITE: material certification fraud risks in international steel trade] The consequences are not abstract — customs authorities in the EU and Middle East routinely hold shipments lacking valid CE marking or EN-compliant MTCs, while structural engineers will reject any pipe without heat-number traceability regardless of visual quality. Rework, replacement air-freight, and project delay penalties routinely exceed the original pipe cost by a multiple that no procurement saving can justify.
Why Integrated Mill and Fabrication Changes the Accountability Equation
XJY Structure operates its own steel production facility with 3 production lines and over 2,800 raw material specifications, meaning the API 5L ASTM A106 A53 seamless steel pipe delivered to your project originates from a single quality system rather than a chain of subcontractors. Every heat carries a Mill Test Certificate generated in-house, with chemical composition and mechanical properties traceable to the original melt through heat-number marking on each pipe end. The vertically integrated model eliminates the gap between material supplier and fabricator — shop drawing review, material optimization, and welding procedure qualification all proceed under one engineering team, so that a change in steel grade or wall thickness triggers an immediate internal revision rather than a week of cross-company correspondence. Third-party inspection by SGS, BV, or TUV is coordinated directly at the mill before shipment, and complete export documentation including packing lists, bills of lading, and certificates of origin is prepared alongside the quality package. Professional loading planning for 6 m and 12 m lengths maximizes container utilization while protecting pipe ends and surface coatings during ocean transit.
Documentation & Compliance
- Mill Test Certificate documenting Q235B, Q345B, S235JR, or S355JR chemical composition and mechanical properties per GB, EN, or ASTM standards with heat-number traceability
- API 5L compliance certificate for pipeline-grade seamless pipe including hydrostatic test results and chemical analysis for Gr.B and higher grades
- ASTM A106 / A53 test reports covering tensile strength, yield point, and elongation for high-temperature and standard fluid service applications
- SGS / BV / TUV third-party inspection report confirming dimensional tolerance, surface quality, and coating thickness prior to shipment
- CE marking documentation and Declaration of Performance for seamless steel pipe destined for European structural and pressure applications
- Full customs document package: commercial invoice, packing list, bill of lading, and certificate of origin aligned with destination-country import requirements
Packaging, Loading & Delivery

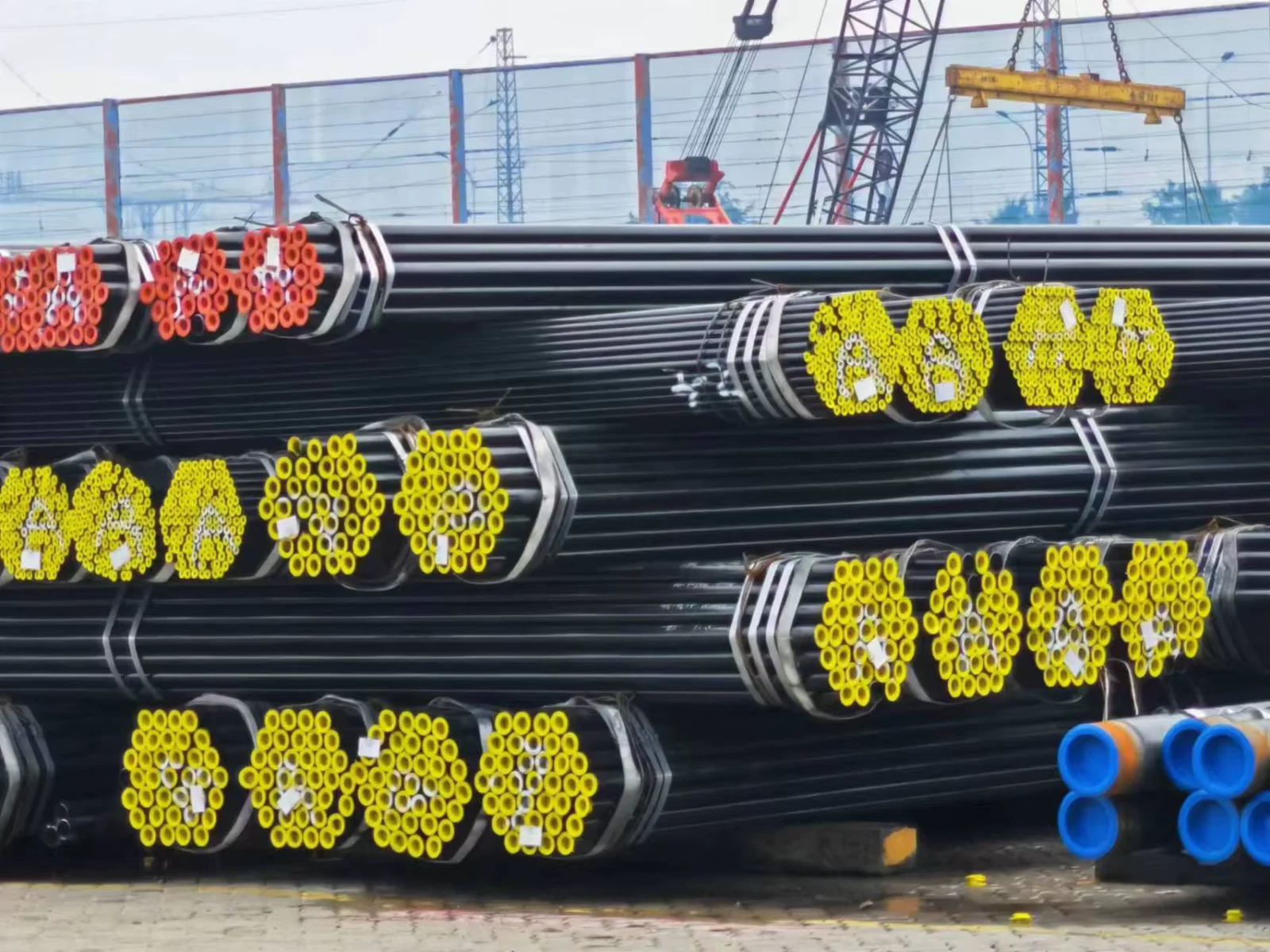

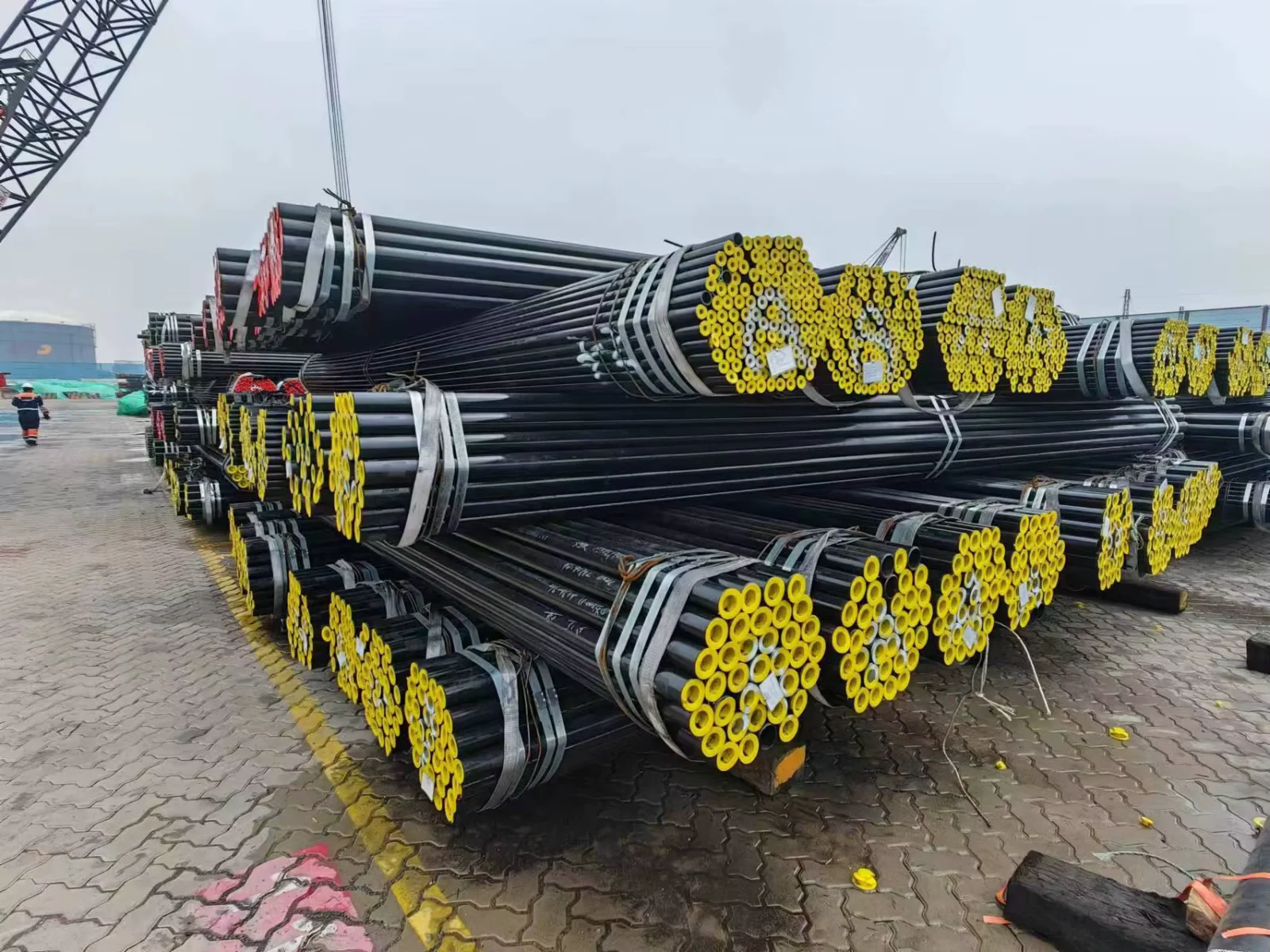

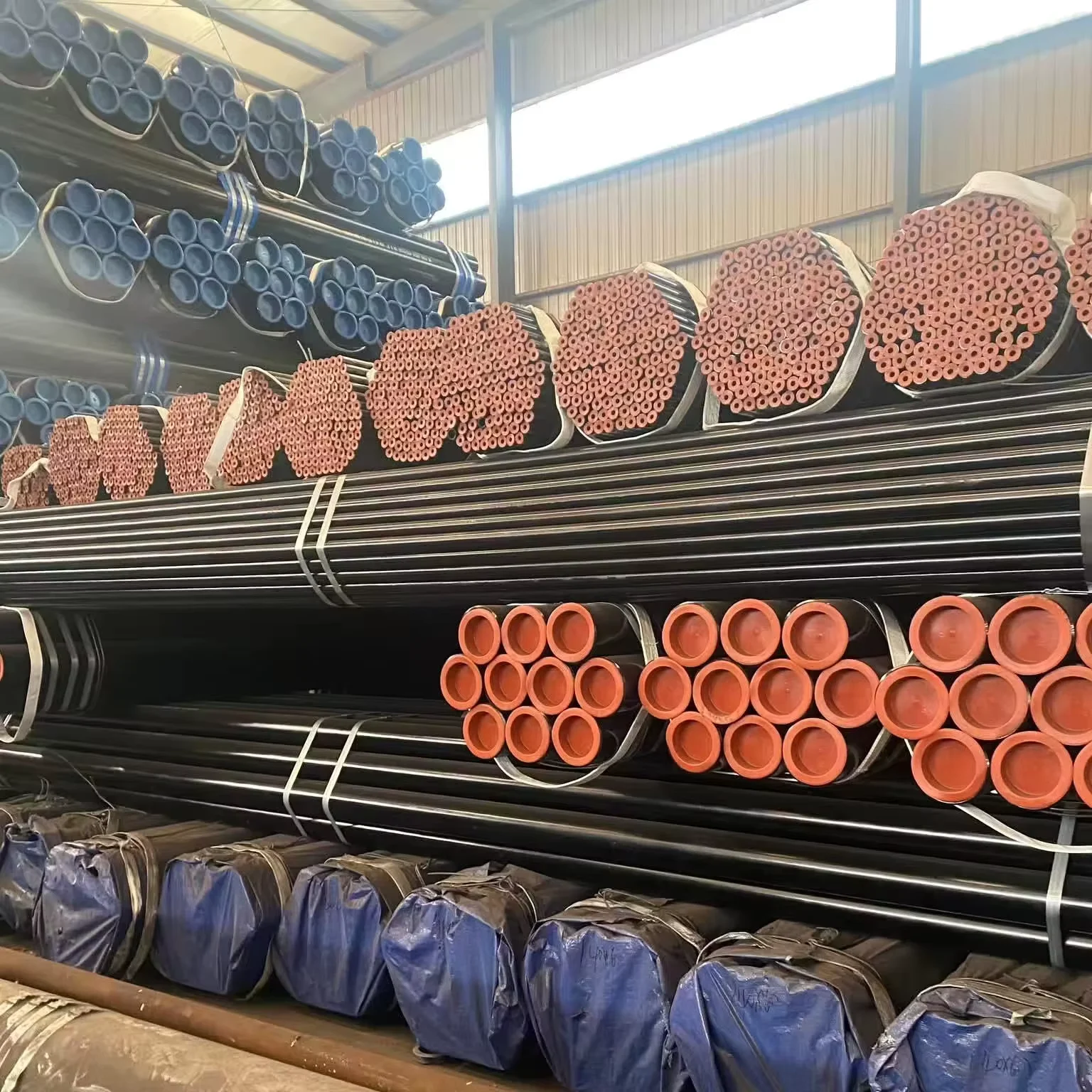

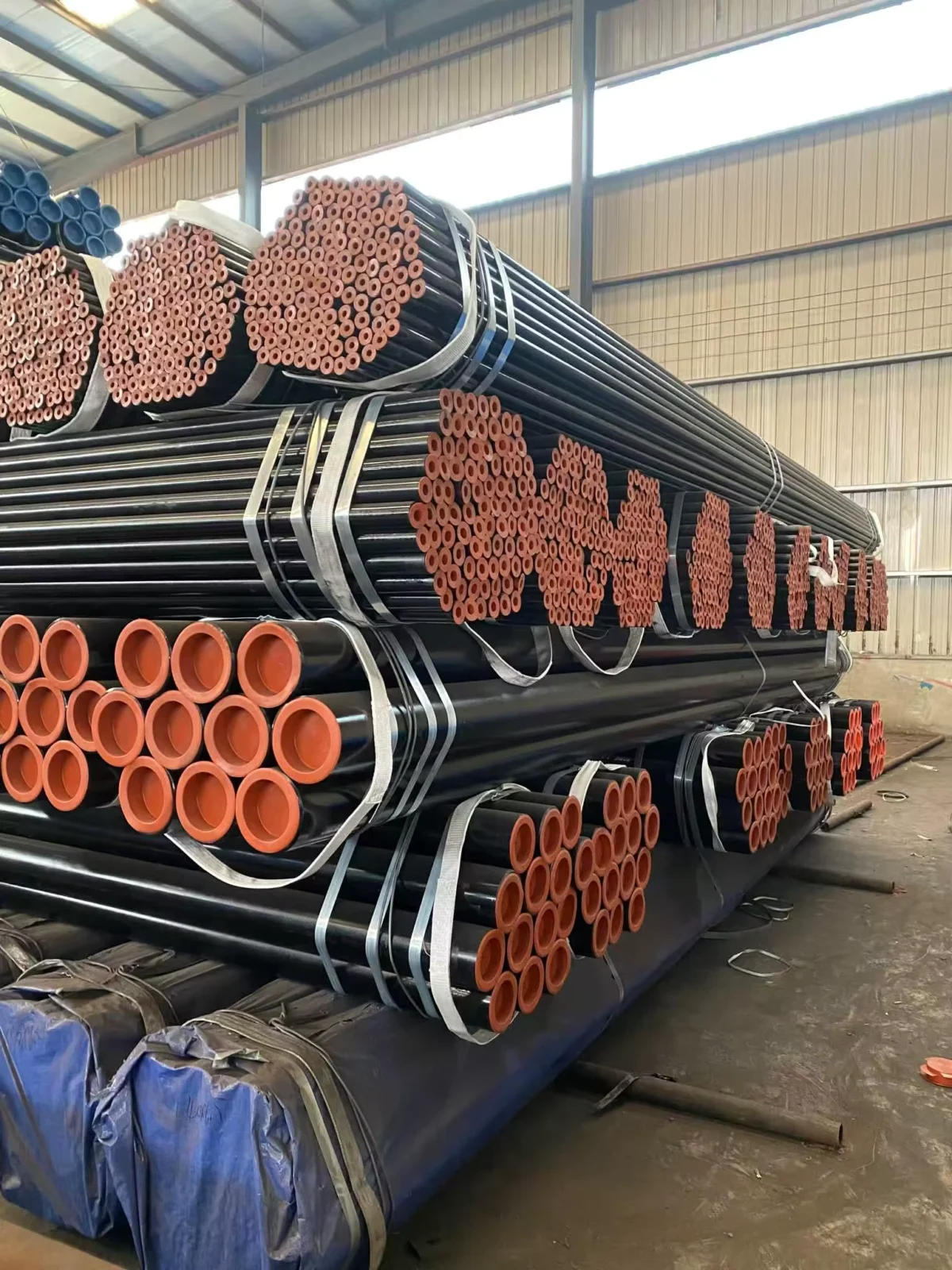

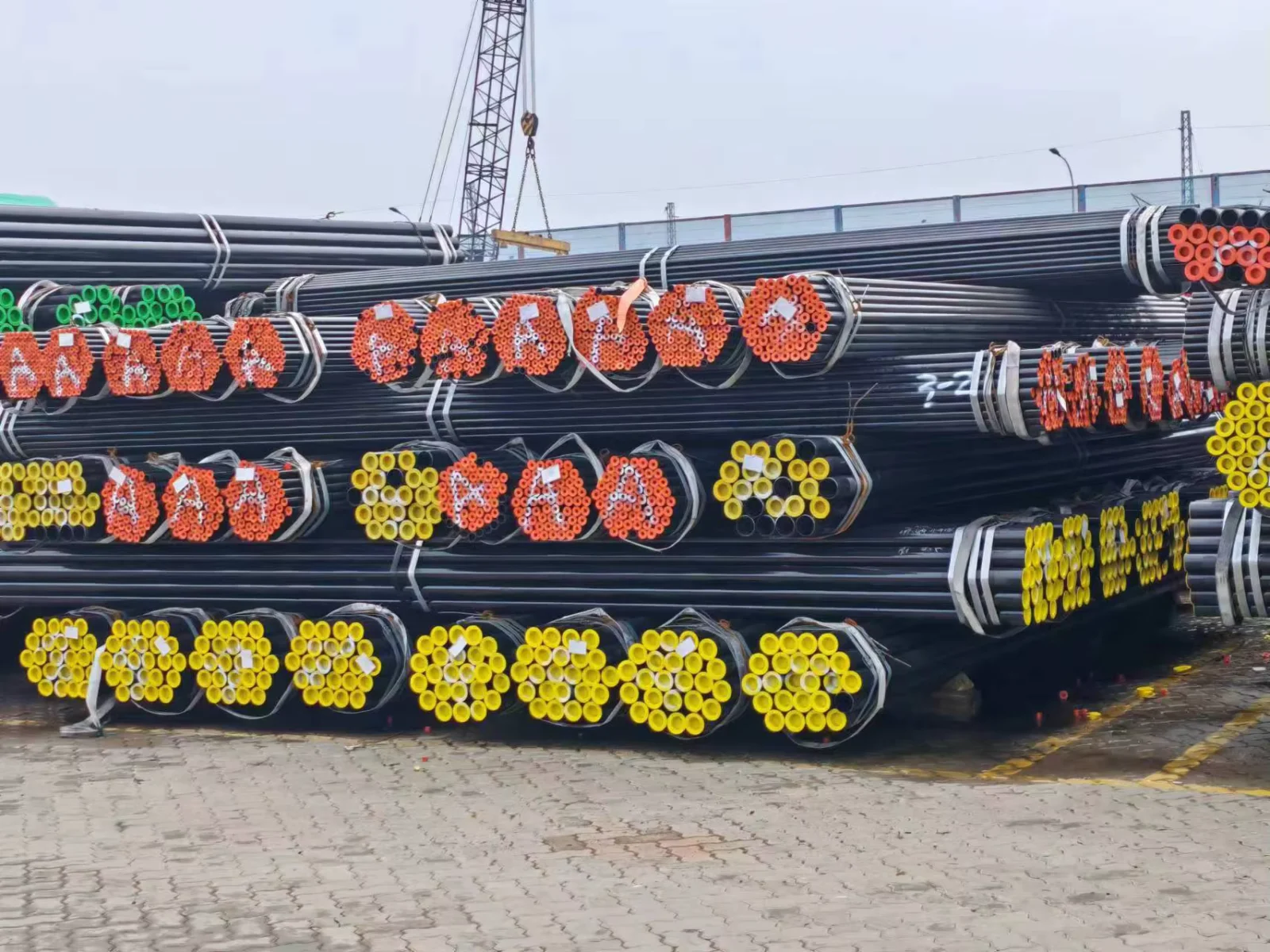

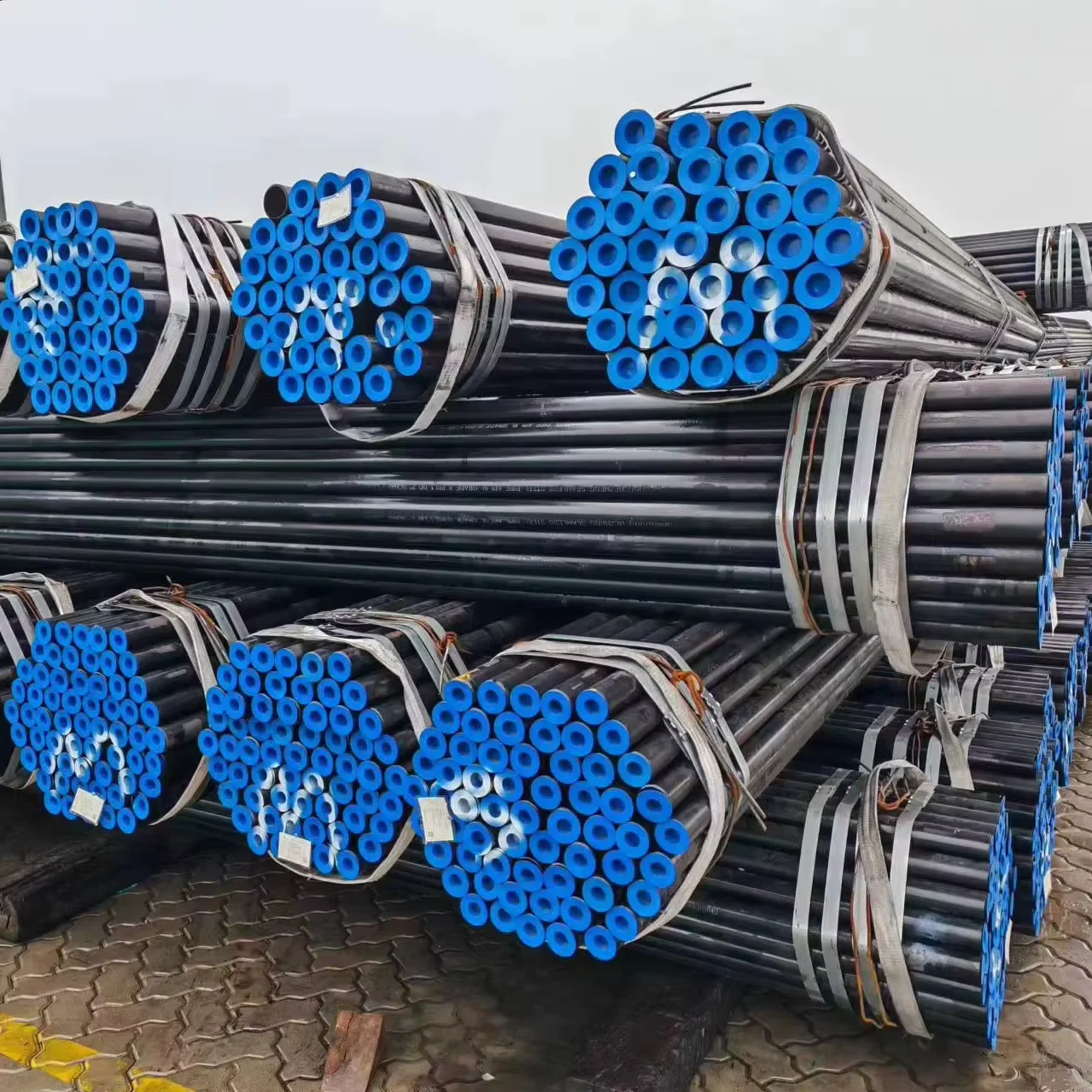

- Hot-rolled Q235B and Q345B seamless pipes bundled with high-tensile steel strips and padded at contact points to prevent surface scoring during ocean transit
- Galvanized seamless pipe ends fitted with plastic protectors and interleaved with rubber separators to preserve the zinc coating against abrasion in bundled loads
- 6 m and 12 m standard lengths loaded into 20-foot and 40-foot open-top or flat-rack containers with calculated weight distribution to meet port handling limits
- Custom cutting to erection lengths available before packaging, with each bundle tagged by heat number, steel grade, and project designation for site identification
- Epoxy-coated pipe for chemical fertilizer and aggressive environment applications wrapped in waterproof kraft paper and UV-resistant shrink film
- FOB, CIF, and DDP terms supported with professional oversized-cargo planning for mixed-diameter shipments and door-to-door tracking to final destination
From Drawing to Mill Test Certificate in Six Steps
Submit your project drawings in PDF or DWG format along with required steel grades, applicable standards, and quantity — the engineering team responds within 24 hours with a preliminary assessment and shop drawing timeline. A detailed quotation follows covering material, fabrication, coating, packing, and shipping costs, leading to contract execution upon drawing approval and deposit. Production proceeds under certified welding procedures with in-process dimensional checks and NDT testing, culminating in a complete quality documentation package and professional loading for site delivery.
Frequently Asked Questions
Q: How do Q235B, S235JR, and St37 compare, and which should I specify for a European structural project?
A: Q235B (Chinese GB), S235JR (European EN), and St37 (German DIN legacy) are functionally equivalent structural grades with similar yield strength levels. For EU-bound projects, S235JR with CE marking and EN-compliant Mill Test Certificates simplifies customs clearance and engineer approval.
Q: Can you provide third-party inspection before shipment for API 5L seamless pipe?
A: Yes. SGS, BV, and TUV inspections are coordinated directly at the mill, covering dimensional verification, visual surface check, coating thickness measurement, and MTC review. Inspection reports are issued before container loading.
Q: What surface treatment options are available for seamless pipe in corrosive environments?
A: Three options are offered: bare hot-rolled for indoor or buried structural use, hot-dip galvanized for atmospheric corrosion protection, and epoxy coating for chemical plant and aggressive soil conditions. Selection depends on the service environment and project specification.
Q: Do you supply seamless pipe in ASTM A106 for high-temperature boiler service?
A: Yes. ASTM A106 Grade B seamless pipe is available in the 20–250 mm outer diameter range with full Mill Test Certificates covering chemical composition, tensile properties, and hydrostatic test results per the standard.
Q: What is the minimum order quantity and can you mix diameters in one shipment?
A: The MOQ is 10 Tons. Mixed-diameter and mixed-length shipments are supported within a single order, with professional loading planning to maximize container utilization and protect each pipe size during transit.
Secure Your API 5L ASTM A106 A53 Seamless Steel Pipe with Full Mill Traceability
Share your project specifications, steel grades, and destination port to receive a detailed quotation and Mill Test Certificate sample within 24 hours.
