Description
Factory-Direct HD Plate Supply — All Q205HD to Q420HD grades rolled and processed under one roof, eliminating third-party material sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | High Strength Steel Plate Q205HD-Q420HD |
| Product Type | Steel Plate |
| Steel Grade | Q205HD, Q230HD, Q250HD, Q275HD, Q345HD, Q420HD |
| Standard | Chinese GB standard for high strength construction steel, CE |
| Thickness Range | 8 mm ~ 120 mm |
| Yield Strength | 205 MPa ~ 420 MPa (graded by HD mark) |
| Tensile Strength | 410 MPa ~ 705 MPa |
| Elongation Rate | ≥18% |
| Low Temperature Impact | -30℃ |
| Carbon Content | 0.12% ~ 0.20% |
| Manganese Content | 1.20% ~ 1.60% |
| Sulfur Content | ≤0.015% |
| Phosphorus Content | ≤0.020% |
| Tolerance | ±1% |

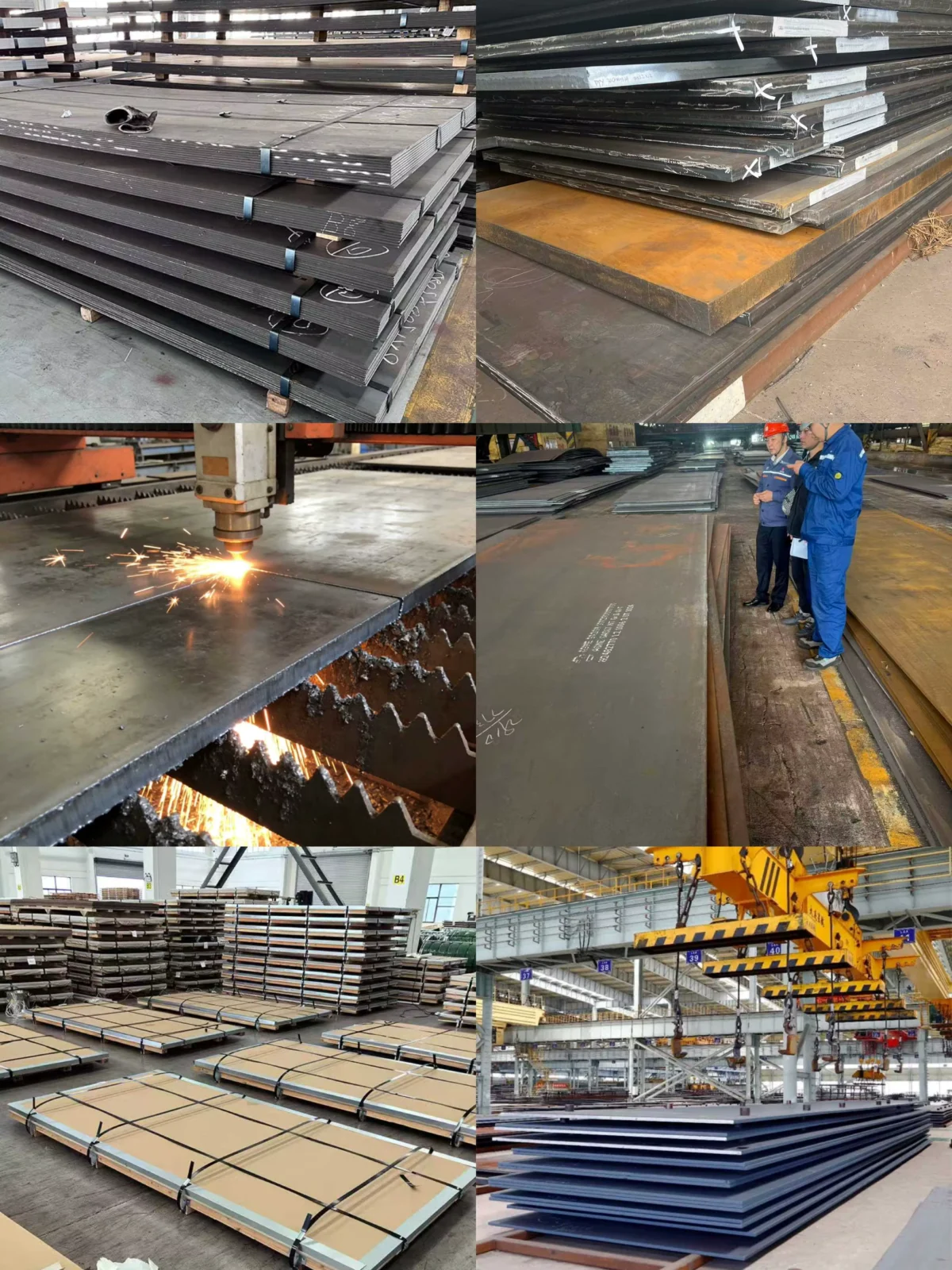

| Processing Service | Plasma cutting, flame cutting, hole drilling, bending |
| Surface Treatment | Hot rolled surface, shot blasting optional |
| Application | Structural frames of heavy-duty mechanical equipment, load-bearing components in large construction projects, custom fabrication per engineering drawings |
| MOQ | Flexible (trial orders and bulk orders accepted) |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Heavy Machinery Manufacturing | Structural frames for cranes, excavators, and mining equipment requiring high yield strength |
| Large-Scale Construction | Load-bearing columns, transfer beams, and base plates in commercial and industrial buildings |
| Infrastructure & EPC Projects | Bridge support structures, conveyor gantries, and pipe rack frameworks |
| Industrial Facility Building | Warehouse portal frames, mezzanine platforms, and equipment support structures |
When Mill Cert and Actual Test Results Don’t Match on High Strength Steel Plate Q345HD Q420HD Custom Cutting Processing
A 40 MPa yield gap between certificate and SGS retest can hold an entire container at the destination port.
I once watched a batch of Q345HD plate get stuck at Jeddah port for two months because the buyer’s third-party inspector found yield strength 40 MPa below what the mill cert claimed. The root cause was fragmented sourcing — the fabricator bought plates from a trader who bought from a mill, and nobody verified the chemistry matched the mechanical test. With High Strength Steel Plate Q205HD-Q420HD Custom Cutting Processing, the HD series demands tight trace element control: sulfur capped at 0.015% and phosphorus at 0.020% to guarantee consistent weldability and impact toughness across every heat. When material passes through multiple hands, that chain breaks. [NEED_CITE: material traceability requirements in EN 1090 structural fabrication standard]
Matching HD Grade Selection to Structural Load-Bearing Demands
The HD series spans six yield grades from 205 MPa to 420 MPa, letting engineers select precisely the strength level a structural node requires without over-specifying. For High Strength Steel Plate Q205HD-Q420HD Custom Cutting Processing, we map each grade to its load zone: Q205HD and Q230HD serve secondary framing and non-critical bracing, while Q345HD and Q420HD handle primary load-bearing columns and transfer girders. Our engineering team reviews shop drawings to confirm grade placement before cutting begins, preventing the common mistake of using one grade across an entire frame when only specific nodes need the higher strength.
Structural Code Compliance and Surface Preparation for HD Plates
Engineering specifications for heavy construction increasingly reference EN 1090 execution classes and AISC welding requirements, both of which demand verifiable material properties from the plate supplier. The Q345HD and Q420HD grades in our HD series meet the chemical and mechanical thresholds these codes require, with low-temperature impact validation at -30℃ for projects in cold climates or offshore environments. Surface preparation matters equally — hot-rolled mill scale must be removed by shot blasting before welding or coating, and our workshop offers this as an integrated step rather than outsourcing it to a separate contractor. [NEED_CITE: EN 1090 execution class requirements for structural steel fabrication] Dimensional tolerance of ±1% across 8 mm to 120 mm thickness ensures that CNC-cut components fit assembly jigs without field rework.
Understanding the HD Grade System and Trace Element Control
The HD designation in Chinese GB high-strength construction steel indicates a controlled-chemistry plate where sulfur and phosphorus are held well below standard carbon steel limits. Sulfur at ≤0.015% reduces the risk of hot cracking during submerged arc or MIG welding on thick sections, while phosphorus at ≤0.020% preserves low-temperature toughness — critical when Q345HD or Q420HD plates serve in outdoor structures facing winter conditions. Manganese content between 1.20% and 1.60% provides solid solution strengthening without sacrificing the ≥18% elongation rate needed for seismic or dynamic load applications. Carbon held between 0.12% and 0.20% keeps the carbon equivalent low enough for field welding without preheat on moderate thicknesses. This chemistry discipline is what separates a reliable HD plate from a generic high-strength label.
Hidden Costs of Sourcing High Strength Plate Without Verified Chemistry
When a fabricator sources Q345HD plate through a trader rather than directly from the rolling mill, the heat number on the certificate may not correspond to the physical plates delivered. The consequences are not abstract: customs authorities in the EU and Middle East increasingly reject shipments where mill test certificates cannot be cross-referenced to heat-level chemistry records. [NEED_CITE: customs documentation requirements for structural steel imports in EU and GCC markets] On-site, a plate that fails ultrasonic inspection or shows inconsistent hardness across the width forces cutting line shutdowns and weld procedure requalification. With High Strength Steel Plate Q205HD-Q420HD Custom Cutting Processing sourced from an integrated producer, every plate carries a heat number traceable from ladle analysis to finished dimensional report.
Why Procurement Teams Choose Our Integrated Mill and Fabrication Model

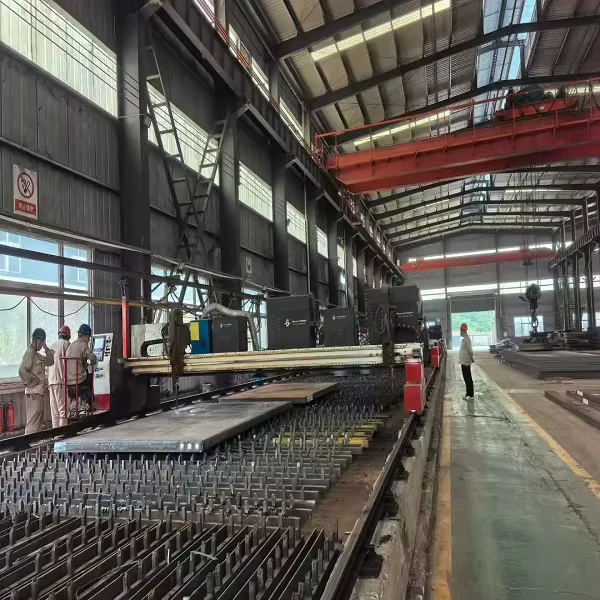

We operate our own steel production facility with three rolling lines, meaning the plates we cut and weld come from heats we control — not from spot-market purchases through traders. Our workshop handles the full sequence from plate receipt through CNC cutting, drilling, bending, and welding under one quality management system, so shop drawing revisions don’t trigger material re-sourcing. The fabrication division maintains certified welding procedures qualified to AWS and EN standards, with weld maps and NDT reports generated in-house. For international projects, we compile complete documentation packages including chemical composition reports, mechanical test results, dimensional inspection records, and coating thickness measurements — all organized by heat number and piece mark. This vertically integrated model is why EPC firms and general contractors across the EU, Middle East, Southeast Asia, and Africa specify us as their China-based fabrication partner.
Documentation & Compliance
- Mill test certificate documenting Q205HD through Q420HD chemical composition, yield strength, tensile strength, and -30℃ impact values per heat number
- CE certification file supporting customs clearance for structural steel plate entering EU member states
- ISO 9001 quality management certificate covering the integrated rolling and fabrication process
- SGS or BV third-party inspection report available for buyer-nominated verification of chemistry and dimensions
- Full material traceability from heat number through cutting, welding, and final assembly documentation
- Export documentation package including packing list, bill of lading, and certificate of origin matched to heat-level test reports

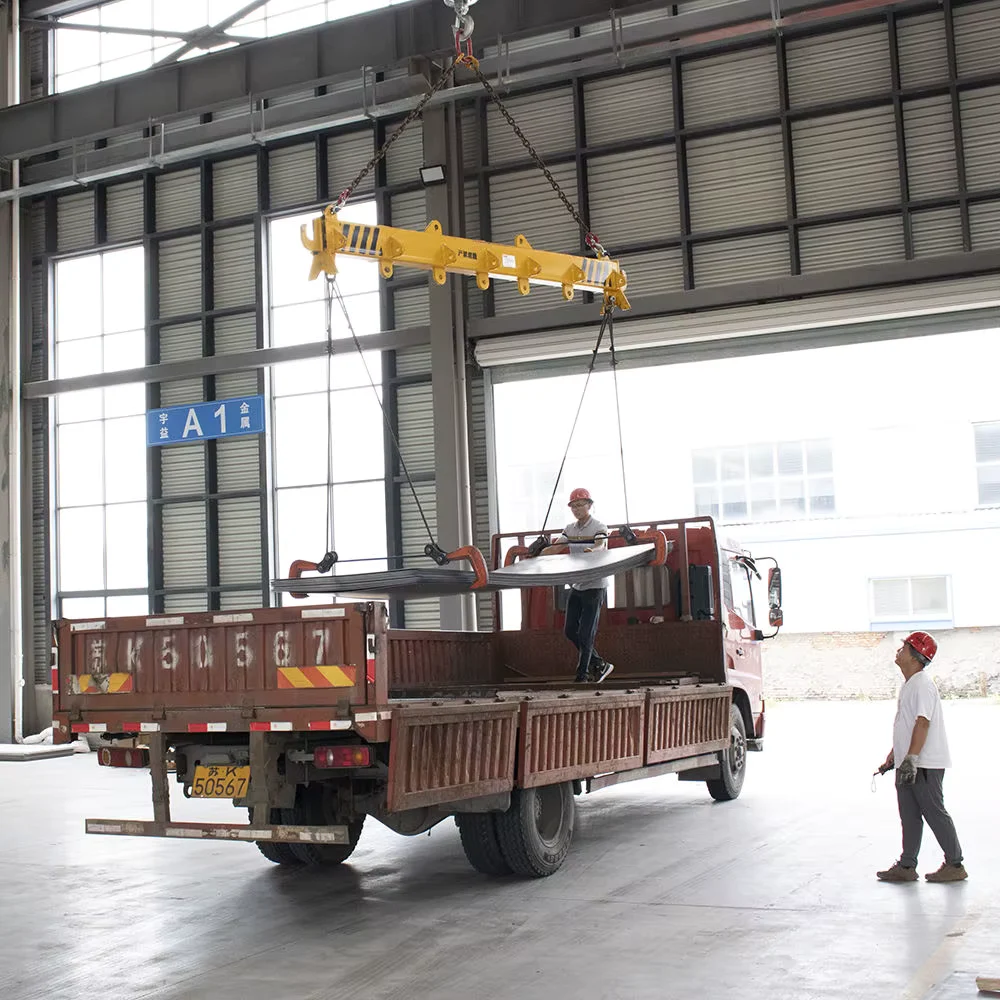

Packaging, Loading & Delivery
- High strength plates bundled with steel straps and edge protectors to prevent surface damage to the hot-rolled finish during ocean transit
- Shot-blasted plates wrapped in waterproof paper and plastic sheeting to preserve surface preparation quality before site welding
- Custom-cut plates nested and stacked by thickness group (8-20 mm, 20-60 mm, 60-120 mm) to optimize container weight distribution for 20ft and 40ft open-top shipments
- Each plate marked with heat number, steel grade (e.g., Q345HD), and thickness for on-site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading plans for plates exceeding standard container dimensions
- Production lead times communicated at quotation stage with rolling schedule visibility for bulk orders across multiple HD grades
Starting Your High Strength Steel Plate Q345HD Q420HD Custom Cutting Processing Inquiry
Share your project drawings in PDF or DWG format along with the required HD grade, thickness, quantity, and destination port. Our team responds within 24 hours with a preliminary assessment covering material availability, cutting feasibility, and a detailed quotation including fabrication, coating, packing, and logistics costs.
Request Your HD Plate Quotation with Mill Test Certificate
Send your specifications and engineering drawings to receive a detailed quote with complete material documentation.
Mobile/WhatsApp/WeChat: +86 188 5315 7756 | Email: admin@xjystructure.com
Frequently Asked Questions
Q: What is the difference between Q205HD, Q345HD, and Q420HD grades?
A: The HD number indicates the minimum yield strength in MPa. Q205HD provides 205 MPa yield for secondary structures, Q345HD delivers 345 MPa for primary load-bearing frames, and Q420HD offers 420 MPa for heavy-duty applications requiring maximum strength-to-weight ratio. All grades share the same tight sulfur and phosphorus limits for weldability.
Q: Can you provide third-party inspection for material verification?
A: Yes, we accommodate SGS, BV, or buyer-nominated inspection agencies for chemistry verification, dimensional checks, and ultrasonic testing before shipment. Inspection scope and cost are confirmed at the quotation stage.
Q: What is the lead time for custom-cut plates versus standard stock sizes?
A: Standard stock sizes ship faster as plates are already in inventory. Custom-cut plates require additional time for CNC programming, cutting, and edge finishing. Exact timelines are provided in the quotation based on order volume and processing complexity.
Q: Do you offer shot blasting and primer coating before shipping?
A: Shot blasting is available as an integrated processing step to remove mill scale and prepare the surface for welding or coating. Primer application can be arranged based on project specifications and destination climate requirements.
Q: How do you ensure material traceability from mill to finished plate?
A: Every plate is assigned a heat number at the rolling stage. This number follows the plate through cutting, welding, and inspection, with all test reports and documentation cross-referenced to the original heat-level chemistry and mechanical properties.
