Description
Factory-direct galvanized tubes — XJY Structure operates its own steel mill and fabrication workshop, delivering Q235 Q345 Galvanized Rectangular Steel Tube ASTM EN Manufacturer products with full material traceability from raw steel to finished sections.
Technical Specifications
| Parameter | Value |
|---|---|

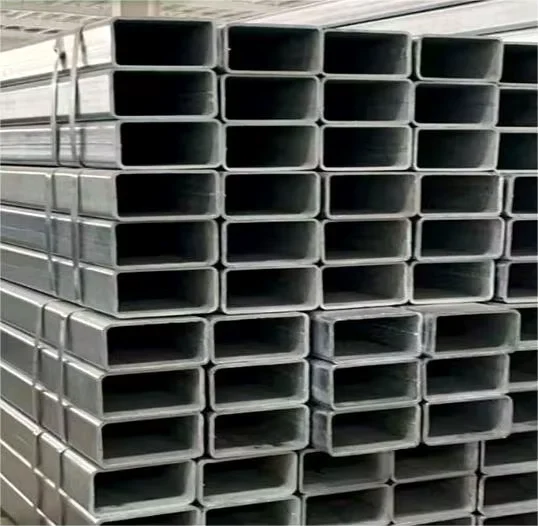

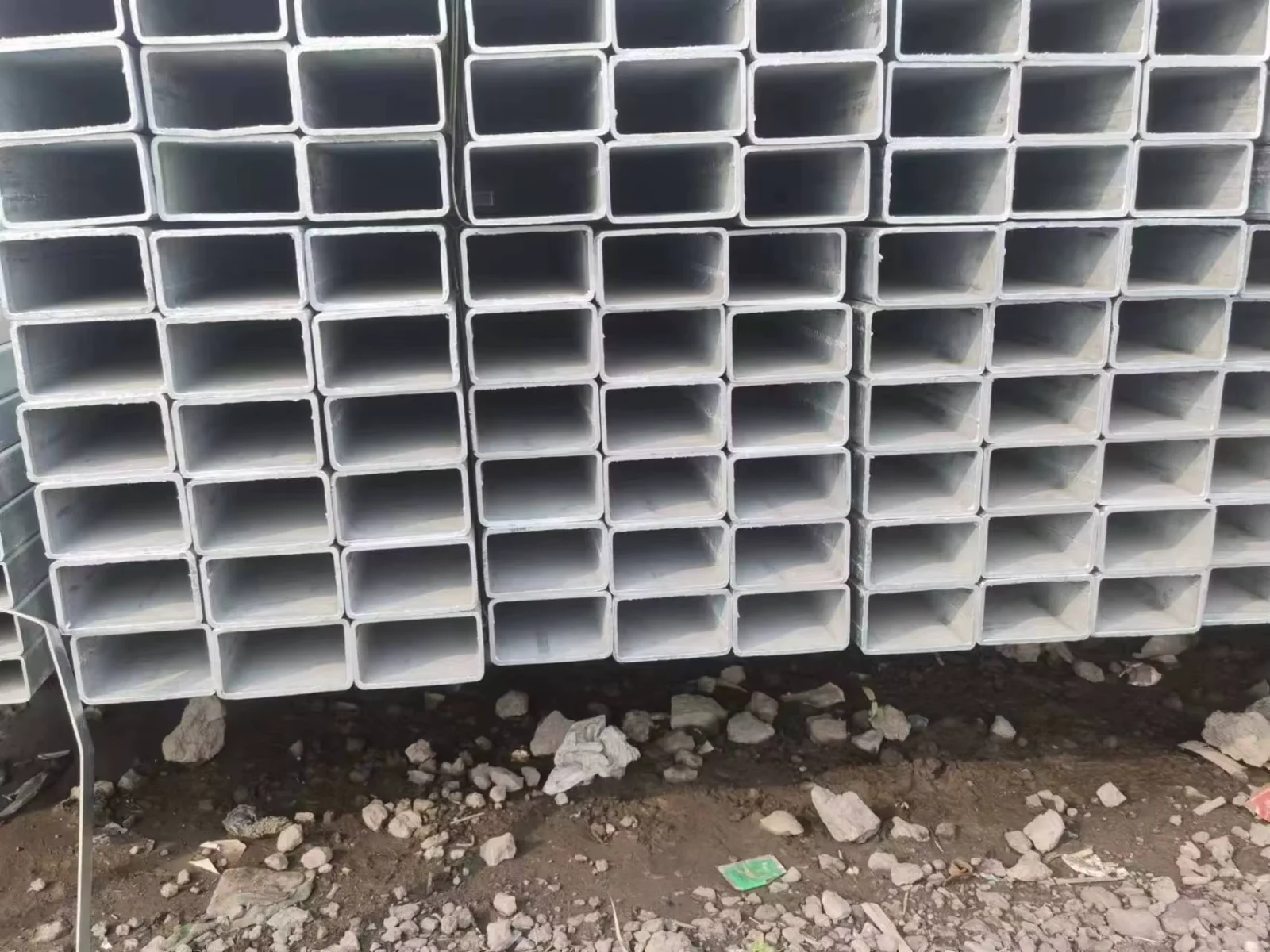

| Designation | Q235 Q345 Galvanized Rectangular Steel Tube |
| Product Type | Galvanized Rectangular Steel Tube (Hollow Section) |
| Steel Grade | Q235B, Q345B, SS400 |
| Standard | ASTM, EN, API, CE, JIS, ISO 9001 |
| Section Shape | Square / Rectangular / Round |
| Size Range | Wall Thickness 0.5–200mm |
| Length | 6m / 6.4m / 12m (or customer required) |
| Technique | Cold Rolled / Hot Rolled, Zinc Coated (Hot Dipped Galvanized) |
| Surface Treatment | Galvanized (Silver Colour) |
| Tolerance | ±1% |
| Ends | Plain |
| Application | Construction structures / Bridges / Railways / Ships / Vehicles / Machinery manufacturing / Petrochemical industry / Marine development |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, structural columns, warehouse support systems, bridge components |
| Industrial & Petrochemical | Machinery frames, processing platforms, pipe rack structures, marine platforms |
| Transportation & Logistics | Vehicle chassis frames, railway support structures, conveyor systems |
| Energy & Utilities | Solar panel mounting structures, transmission tower bracing, substation frameworks |
What Wall-Thickness Tolerance Costs on a Structural Frame Order
±1% tolerance means the difference between passing inspection and facing rejection at site.
When sourcing Q235 Q345 Galvanized Rectangular Steel Tube ASTM EN Manufacturer products from fragmented suppliers, buyers encounter inconsistent wall thickness that compounds across hundreds of pieces. A tube specified at 6mm wall may arrive at 5.4mm — technically within some mill’s “commercial tolerance” but insufficient for structural calculations signed off by engineers. The zinc coating thickness varies between batches, creating uneven corrosion protection on exposed structural members. Material certificates from third-party traders rarely trace back to the original heat number, leaving project managers unable to verify compliance during audits. [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerance requirements]
How Galvanized Rectangular Tubes Match Structural Frame Requirements
Hot dipped galvanizing provides zinc coating that bonds metallurgically to the Q235B and Q345B steel substrate, offering corrosion resistance suitable for outdoor structural applications without field painting. The rectangular hollow section geometry delivers high torsional rigidity for building frames and column systems where bidirectional loading occurs. Our integrated production from steel mill to finished galvanized sections ensures the zinc coating thickness remains consistent across the full length — critical for projects in coastal or industrial environments where atmospheric corrosion accelerates. Each Hot Dipped Galvanized Rectangular Steel Tube ASTM EN Manufacturer shipment includes dimensional inspection reports verifying the ±1% tolerance holds across the entire order quantity.
Engineering Compliance and Certification Pathways
Structural engineers specifying Q235 Q345 Galvanized Rectangular Steel Tube ASTM EN Manufacturer products for load-bearing frames require documentation proving compliance with design codes. The Q235B grade corresponds to S235JR in EN standards and offers adequate strength for general construction frames, while Q345B provides higher yield strength for heavily loaded columns and long-span trusses. For European projects, EN 10219 certification confirms the hollow sections meet cold-formed structural tube requirements, enabling customs clearance and site acceptance without additional testing. Third-party inspection by SGS or BV verifies both the galvanized coating thickness and dimensional accuracy before shipment, providing independent confirmation that satisfies project specifications. [NEED_CITE: steel grade equivalence between Chinese Q series and European S series standards]
Understanding Steel Grade Selection and Galvanizing Process
The Q235B and Q345B designations follow the Chinese GB standard system where the number indicates minimum yield strength in MPa — Q235B offers approximately 235 MPa yield while Q345B provides 345 MPa, making the latter suitable for structures requiring higher load capacity or reduced section sizes. SS400, the Japanese industrial standard grade commonly specified for export projects, falls between Q235B and Q345B in strength characteristics. Hot dipped galvanizing immerses the fabricated rectangular tubes in molten zinc bath, creating a metallurgical bond where zinc-iron alloy layers form beneath the pure zinc outer coating — this layered structure provides both barrier protection and sacrificial cathodic protection if the coating is scratched. The silver-colored finish typical of hot dipped galvanizing indicates proper coating formation, distinguishing it from electroplated alternatives that offer thinner zinc layers unsuitable for structural outdoor applications. Wall thickness tolerance of ±1% ensures structural engineers can rely on published section properties for load calculations without applying additional safety factors for dimensional uncertainty.
Hidden Costs of Sourcing Non-Compliant Galvanized Tubes
Purchasing Hot Dipped Galvanized Rectangular Steel Tube ASTM EN Manufacturer products from traders rather than integrated factories introduces risks that surface during project execution. Material certificates may list correct chemical composition but lack traceability to specific production heats, creating gaps when auditors request proof of origin. Undersized wall thickness passing “commercial tolerance” at the mill fails structural verification on site, forcing replacement orders that delay project timelines by weeks. Inconsistent zinc coating thickness — thin on inside corners, thick on edges — leads to premature corrosion at weld joints and connection points, compromising the structure’s design life. Customs authorities in destination countries increasingly reject shipments lacking proper CE marking or EN certification documentation, stranding containers at port until supplementary testing completes. [NEED_CITE: structural steel fabrication quality documentation requirements for international projects]
Why Project Teams Source From XJY Structure
Our vertically integrated operation eliminates the gap between material supplier and fabricator — the same facility producing the steel plate also rolls it into rectangular tubes and galvanizes the finished sections, ensuring chemical composition and mechanical properties remain consistent from mill test certificate to final product. With over 2,800 specifications in our raw material inventory, we maintain stock of common Q235B and Q345B sizes while custom-rolling non-standard dimensions to match project-specific requirements, reducing lead times compared to sourcing from traders who must coordinate multiple subcontractors. Our engineering team reviews shop drawings before fabrication begins, identifying potential issues with connection details or material optimization that prevent costly field modifications. Certified welding procedures and qualified welders holding AWS and EN certifications ensure any fabrication work — cutting, drilling, welding connections — maintains the structural integrity and coating protection specified in design documents. Professional loading plans developed from our logistics experience prevent the tube deformation and coating damage that plagued my early shipments to West Africa, where improper stacking crushed bottom layers and cracked the galvanized coating during ocean transit. Complete quality documentation packages including mill test certificates, dimensional inspection reports, coating thickness measurements, and material traceability by heat number travel with every shipment, satisfying the most stringent project audit requirements.
Documentation & Compliance
- Mill Test Certificate documenting Q235B and Q345B chemical composition and mechanical properties per GB/T 700 and GB/T 1591 standards, with heat number traceability to original steel production
- CE certificate confirming EN 10219 compliance for cold-formed structural hollow sections, enabling European market access and project acceptance
- ISO 9001 quality management system certificate covering the integrated production process from steelmaking through tube rolling and galvanizing
- SGS or BV third-party inspection report verifying galvanized coating thickness, dimensional accuracy, and surface quality against project specifications
- Material traceability documentation linking each Hot Dipped Galvanized Rectangular Steel Tube ASTM EN Manufacturer piece to its production heat through marked identification
- Complete customs documentation package including packing list, bill of lading, certificate of origin, and commercial invoice formatted for destination country requirements
Packaging, Loading & Delivery

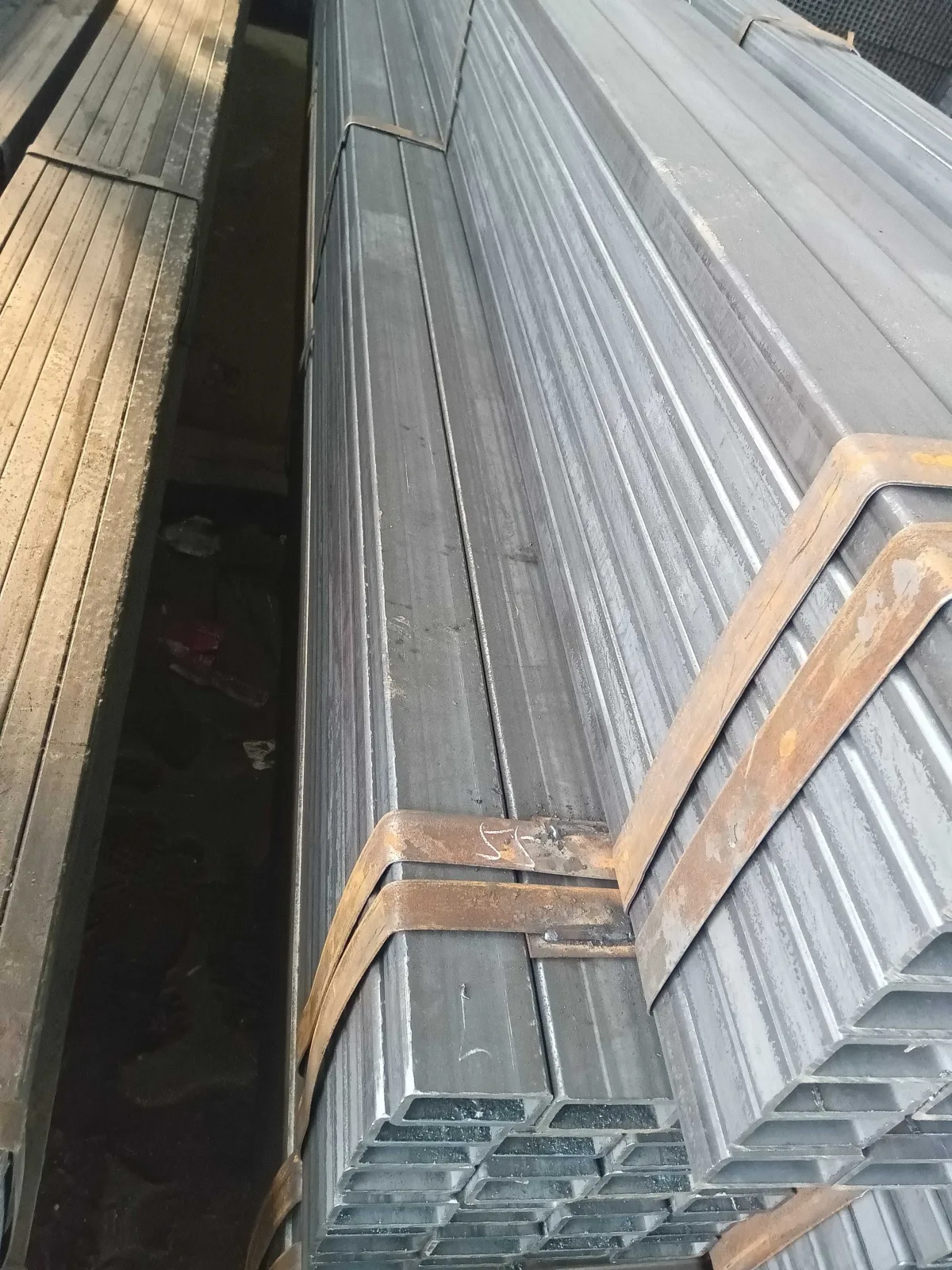

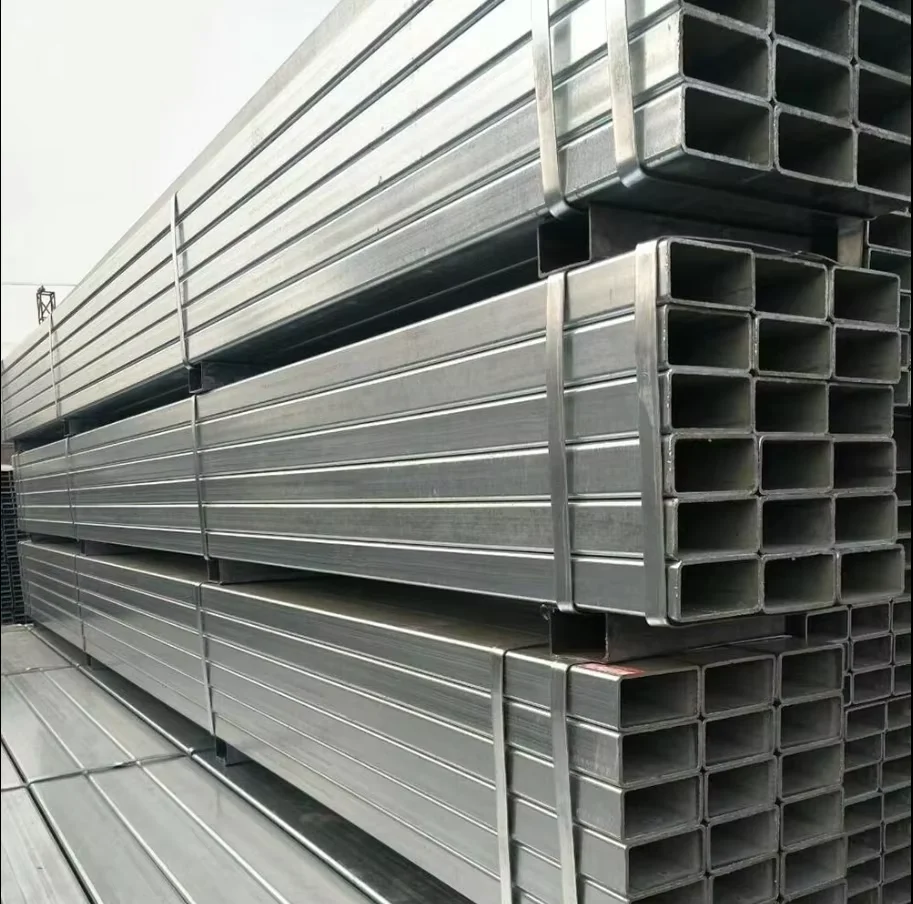

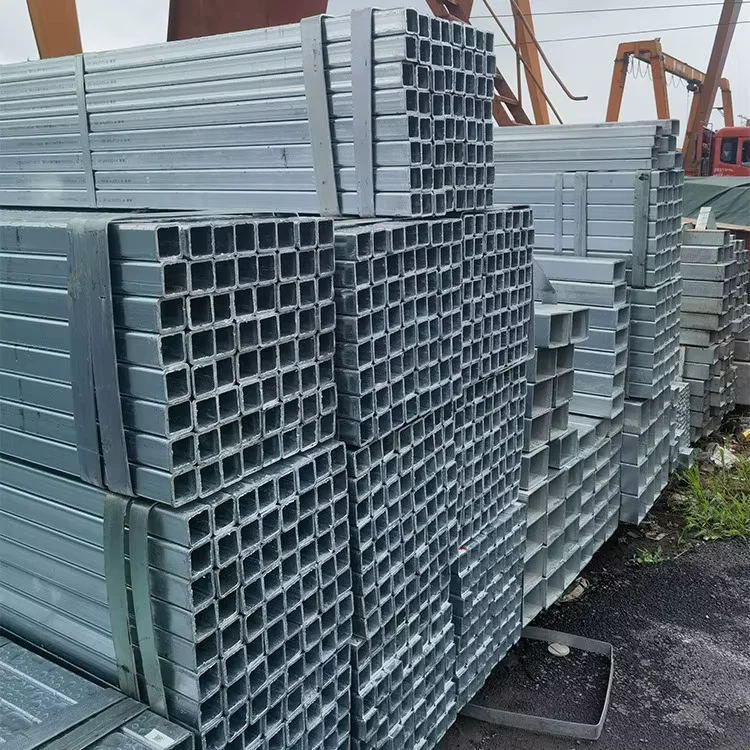

- Q235B and Q345B galvanized rectangular tubes bundled with steel strips and edge protectors to preserve the zinc coating during handling and ocean transit
- Hot dipped galvanized surface protected by waterproof wrapping for container shipments, preventing moisture contact that causes white rust formation during extended sea voyages
- Loading plans optimized for 6m and 12m lengths maximize container utilization while preventing tube deformation — critical lesson learned from West African warehouse projects where improper stacking damaged bottom layers
- Custom cut-to-length service available for 6.4m or project-specific dimensions, reducing on-site cutting waste and maintaining galvanized coating integrity at cut edges
- Heat number and steel grade marked on each tube bundle for site identification and material traceability verification during installation
- FOB, CIF, and DDP shipping terms available with professional export packing suitable for Hot Dipped Galvanized Rectangular Steel Tube ASTM EN Manufacturer products destined for construction sites worldwide
How to Initiate Your Procurement Process
Submit your project specifications including steel grade requirements (Q235B, Q345B, or SS400), section dimensions, wall thickness, total quantity, and destination port to receive a detailed quotation within 24 hours. Our engineering team reviews your drawings and provides shop drawing confirmation before production begins, ensuring the Hot Dipped Galvanized Rectangular Steel Tube ASTM EN Manufacturer products match your structural design requirements. Request mill test certificates, third-party inspection reports, and certification documents specific to your project’s compliance needs during the inquiry stage.
Start Your Galvanized Tube Procurement
Share your project drawings and specifications to receive pricing, material certification details, and production timelines for Q235 Q345 Galvanized Rectangular Steel Tube ASTM EN Manufacturer products.
