Description
Factory-Direct SSAW Pipe Production — XJY Structure manufactures Q235 and Q355 SSAW coated steel pipes from our own steel mill, delivering 3PE, epoxy, and PP lined pipes with full material traceability from raw plate to finished coating.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q355 SSAW Coated Steel Pipe |
| Product Type | Spiral Submerged Arc Welded (SSAW) Coated Steel Pipe |
| Steel Grade | Q235, Q355 |
| Standard | ASTM, GB, AISI, DIN, EN |
| Section Shape | Round |
| Outer Diameter | Large Diameter |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | 3PE (3-layer Polyethylene) Coating / PE / EP / PP Lining |
| Tolerance | ±1% |
| Application | Municipal water supply & drainage / Fire protection systems / Oil & gas transmission / Power & telecommunications / Chemical corrosion protection / Dredging & mining / Bridge & marine projects |
| Delivery Time | 15-21 days |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Bridge & Marine Engineering | Pile foundation casings, fender systems, cathodic protection conduits in saltwater environments |

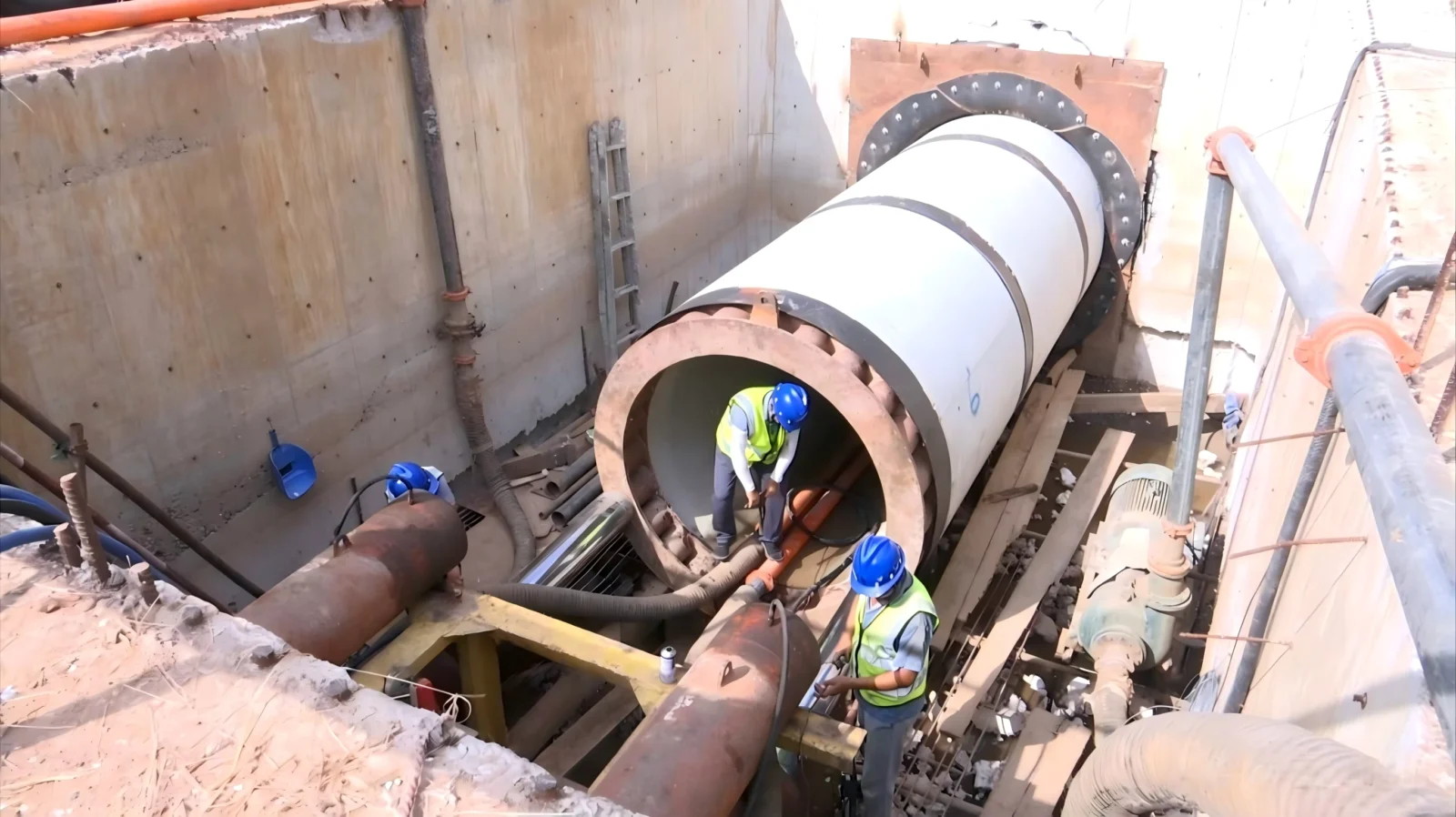

| Municipal Infrastructure | Buried water mains, stormwater drainage, fire hydrant supply lines |
| Oil & Gas Transmission | Long-distance pipeline transport, gathering lines with 3PE external corrosion protection |
| Chemical & Industrial Plants | Process piping with PP or EP internal lining for acid and alkali resistance |
| Dredging & Mining | Slurry discharge pipes, dewatering systems with abrasion-resistant PE lining |
| Power & Telecommunications | Cable protection conduits, cooling water circulation systems |
Separating Coating Adhesion Failures from Material Supply Gaps
When coating and pipe body come from different vendors, delamination risk rises — one integrated source eliminates the blame game.
On a bridge pile foundation project in Vietnam, a shipment of large diameter spiral pipes got rejected at the dock. The PE lining thickness failed third-party inspection, and in that marine salt environment, the client refused to accept the risk. The entire lot went back for rework. I came up through the material testing lab before moving into trade, so I know exactly where these things go wrong — a few microns short on coating thickness out at sea means rust-through in a few years. Now every pipe’s lining spec gets personally verified before it ships. When material production and coating application sit under one roof, the Q235/Q355 SSAW coated steel pipe supplier controls surface preparation temperature, anchor profile depth, and polyethylene extrusion parameters in a single quality loop. [NEED_CITE: 3PE coating adhesion requirements per DIN 30670]
Matching Lining Chemistry to Corrosion Exposure

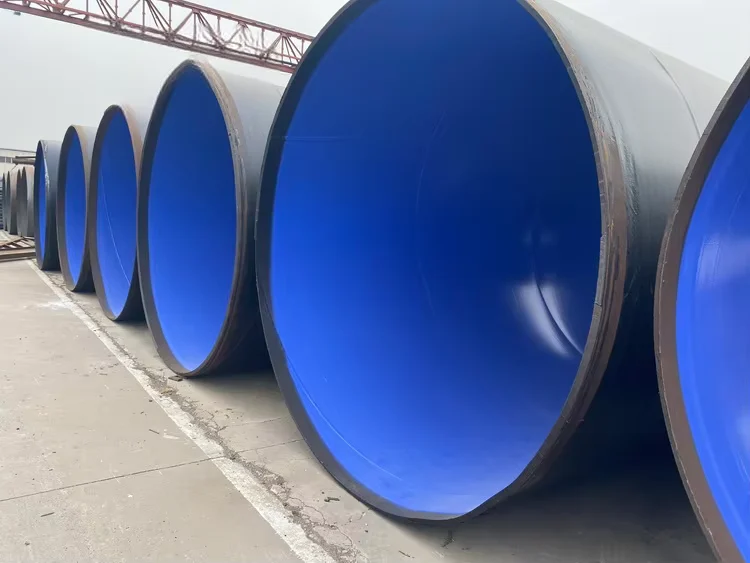

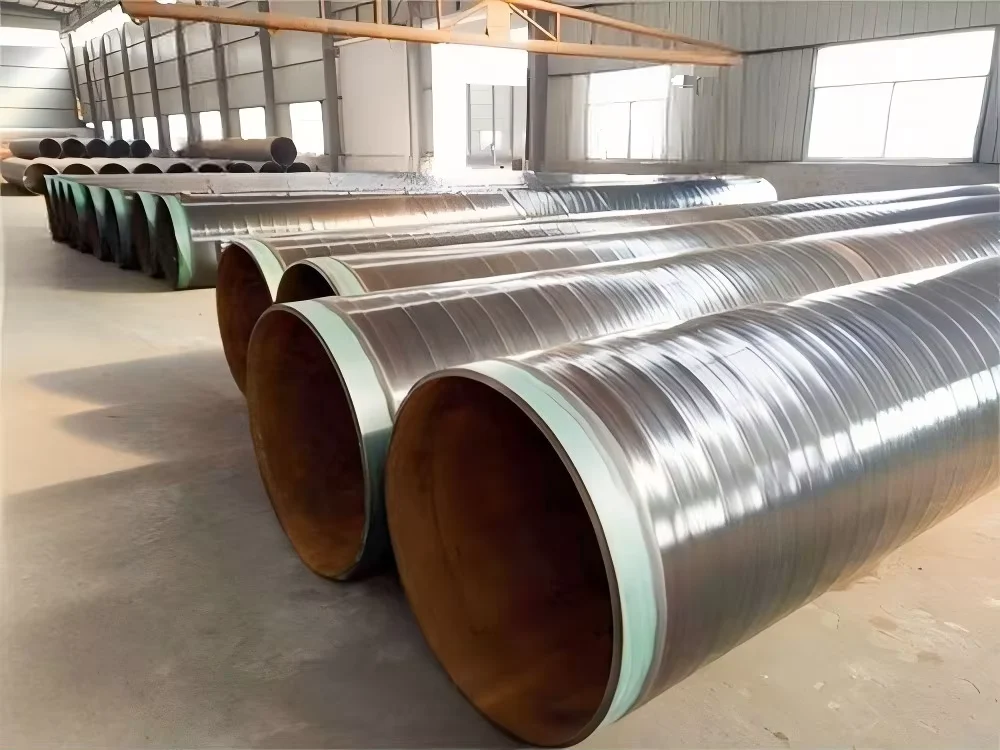

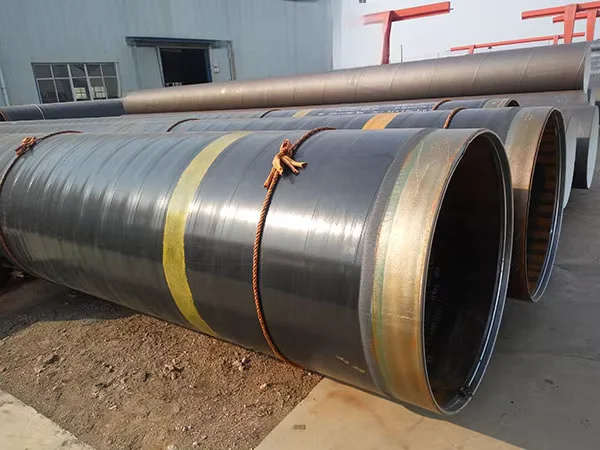

A Q235 Q355 SSAW coated steel pipe with 3PE external coating handles the constant immersion and splash zone conditions typical of marine pile foundations and offshore platforms. The three-layer system — epoxy primer, copolymer adhesive, and polyethylene outer shell — resists cathodic disbondment and mechanical damage during driving. For internal transport of aggressive media, epoxy (EP) lining provides flame-retardant chemical resistance in fire protection systems, while PP lining withstands higher operating temperatures in industrial process lines. Municipal water supply projects often specify food-grade PE lining to meet potable water contact standards. Each lining option is matched to the project’s specific corrosion mechanism, temperature range, and regulatory requirements rather than applied as a default.
Engineering Compliance Across Standards and Environments
The Q235/Q355 SSAW coated steel pipe conforms to ASTM, GB, AISI, DIN, and EN standards, enabling direct specification substitution across international projects. For European market entry, EN-compliant documentation supports CE marking requirements; for North American infrastructure, ASTM material certifications satisfy AISC fabrication codes. The ±1% dimensional tolerance ensures fit-up compatibility with standard flange connections and field welding procedures. Large diameter SSAW production allows single-piece lengths that reduce field joint counts on long pipeline runs, while certified welding procedures (WPS/PQR) guarantee weld integrity per project-specific requirements. [NEED_CITE: SSAW pipe manufacturing tolerances per API 5L and EN 10219]
Steel Grade Selection and Spiral Welding Mechanics
Q235 and Q355 represent the two most widely specified carbon steel grades in Chinese infrastructure projects, with Q355 offering higher yield strength for pressure-containing applications and structural load-bearing requirements. The SSAW (Spiral Submerged Arc Welded) process forms pipe from coiled steel plate through continuous spiral forming and submerged arc welding, enabling large diameter production beyond the capability of ERW mills. The helical weld seam distributes stress more evenly than longitudinal seams under external loading conditions typical of buried and marine applications. Surface preparation before coating involves shot blasting to Sa 2.5 standard, creating the anchor profile necessary for 3PE adhesion — a step often shortened by subcontract coaters working to tight margins. The ±1% tolerance on diameter and wall thickness maintains dimensional consistency across production heats, preventing field fit-up problems during installation.
Hidden Costs of Fragmented Sourcing and Certification Gaps
Purchasing coated SSAW pipes from separate material suppliers and coating applicators creates documentation gaps that surface during project inspection. Missing heat number traceability between pipe body and coating application voids material certifications; inconsistent surface preparation between batches causes premature coating failure in corrosive environments. Projects requiring third-party inspection (SGS/BV) face rejection when coating thickness measurements fall outside specification — rework costs multiply when pipes have already been transported to site. [NEED_CITE: coating inspection requirements per NACE SP0188 and ISO 21809]
Integrated Production from Mill to Coated Pipe
XJY Structure operates as a Q235/Q355 SSAW coated steel pipe supplier with vertically integrated production — our own steel mill produces the raw plate, our fabrication workshop forms and welds the pipe, and our coating line applies 3PE/EP/PP lining in a continuous workflow. This eliminates the material handoff gaps that cause traceability failures. Our in-house理化实验室 generates Mill Test Certificates documenting chemical composition and mechanical properties per heat number. With 2,800+ specifications in inventory, we maintain stock of common diameters and wall thicknesses to support urgent project timelines. Professional loading teams handle oversized cargo stowage for ocean shipment, ensuring coating protection during transit.
Documentation & Compliance
- Mill Test Certificate documenting Q235/Q355 chemical composition and mechanical properties per heat number, traceable from raw plate to finished coated pipe
- Coating adhesion test reports and thickness measurement records per DIN 30670 or project-specified standard
- Third-party inspection certificates from SGS or BV covering dimensional verification, weld quality (NDT reports), and coating integrity
- Welding procedure specifications (WPS) and procedure qualification records (PQR) for SSAW production per AWS D1.1 or EN ISO 15614
- Export documentation package including commercial invoice, packing list, bill of lading, and certificate of origin for customs clearance
- Material traceability matrix linking each pipe’s heat number to coating batch records and inspection reports
Packaging, Loading & Delivery

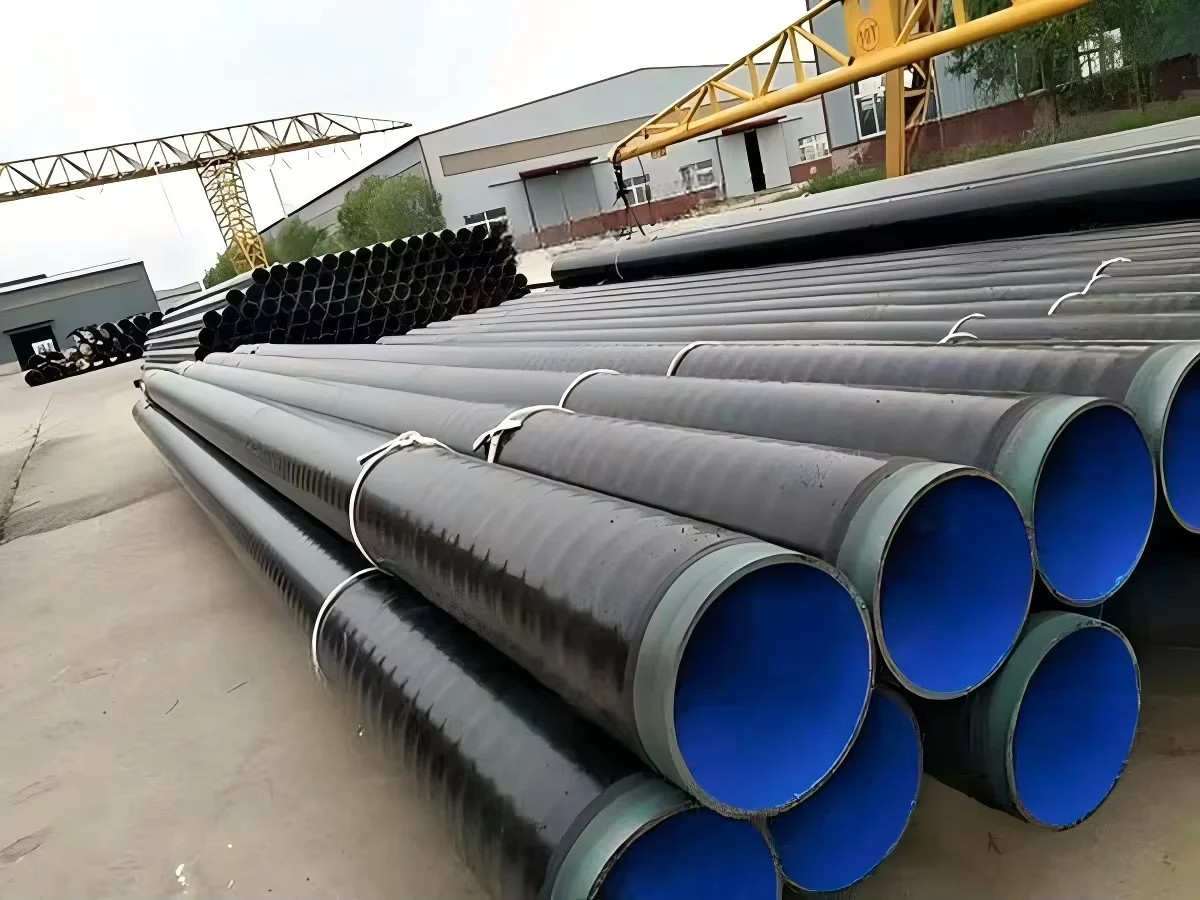

- 3PE coated SSAW pipes bundled with steel strips and protected by edge guards to prevent coating damage during handling and ocean transit
- PE/EP/PP lined pipes sealed at both ends with plastic caps to prevent moisture ingress and contamination of internal lining during storage and shipping
- Large diameter pipes loaded in single-layer stowage on flat racks or in open-top containers to avoid coating compression damage
- Heat number and steel grade (Q235/Q355) marked on each pipe end with stenciled identification for site traceability

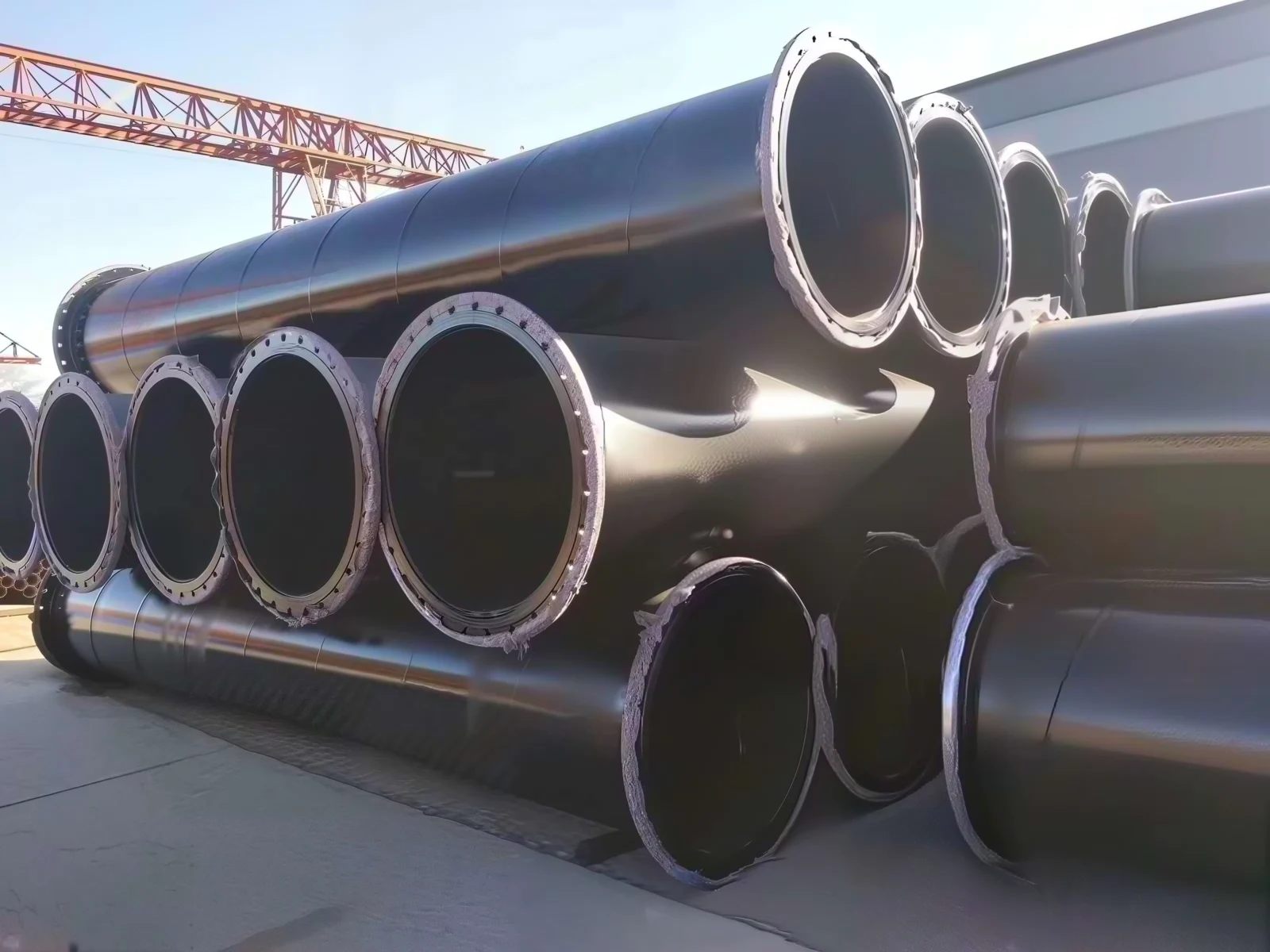

- Custom cutting to project-specified lengths available, with beveled or grooved ends prepared per welding procedure requirements
- FOB, CIF, and DDP delivery terms supported with professional export packing and door-to-door logistics coordination
Initiating Your Coated Pipe Inquiry
Submit your project specifications — including diameter, wall thickness, steel grade (Q235/Q355), coating type (3PE/EP/PP), quantity, and destination port — to receive a detailed quotation with Mill Test Certificate samples and production timeline. Our engineering team reviews shop drawings to confirm coating coverage at connection details and provides material optimization recommendations. Certification requirements for your target market (EN/ASTM/GB) are confirmed upfront to prevent customs documentation delays.
Frequently Asked Questions
Q: What is the difference between 3PE, epoxy (EP), and PP coatings for SSAW pipes?
A: 3PE (3-layer polyethylene) provides external corrosion protection for buried and marine applications with excellent adhesion and mechanical resistance. Epoxy (EP) lining offers chemical and flame resistance for internal pipe surfaces in fire protection and industrial systems. PP (polypropylene) lining withstands higher operating temperatures and aggressive chemical environments in process piping applications.
Q: Can internal and external coatings be specified independently?
A: Yes. External 3PE coating protects against soil-side or water-side corrosion, while internal lining (PE, EP, or PP) is selected based on the transported medium’s chemical composition and temperature. Municipal water pipes typically use food-grade PE internally with 3PE externally; chemical process lines may specify PP internally with 3PE externally.
Q: How does vertically integrated production ensure coating quality?
A: When pipe fabrication and coating application occur in the same facility under one quality system, surface preparation (shot blasting to Sa 2.5) and coating application happen in controlled sequence without intermediate storage or handling damage. Material traceability from raw plate heat number through welding to coating batch eliminates documentation gaps that cause inspection failures.
Q: What quality documentation accompanies a coated SSAW pipe order?
A: Each shipment includes Mill Test Certificates with chemical composition and mechanical properties per heat number, coating thickness and adhesion test reports, welding procedure qualifications (WPS/PQR), dimensional inspection records, and third-party inspection certificates (SGS/BV) when specified. Complete export documentation supports customs clearance in destination countries.
Q: What is the typical production lead time for coated SSAW pipes?
A: Standard delivery time is 15-21 days from order confirmation and drawing approval. Custom coating specifications, large-diameter production, or third-party inspection scheduling may extend timelines. Early inquiry allows material reservation and production slot confirmation.
Start Your Q235/Q355 SSAW Coated Steel Pipe Project
Send your project drawings and specifications to receive a detailed quotation with material certifications and production timeline within 24 hours.
