Description
Q235 Sheet Metal Laser Cutting Fabrication Supplier — In-house steel plate production and full-process fabrication under one roof, from raw Q235 material to powder-coated finished components.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Sheet Metal Laser Cutting & Bending Fabrication |
| Product Type | Machined Steel Product (Sheet Metal Processing) |
| Steel Grade | Q235 |
| Material | Q235 Iron Plate |

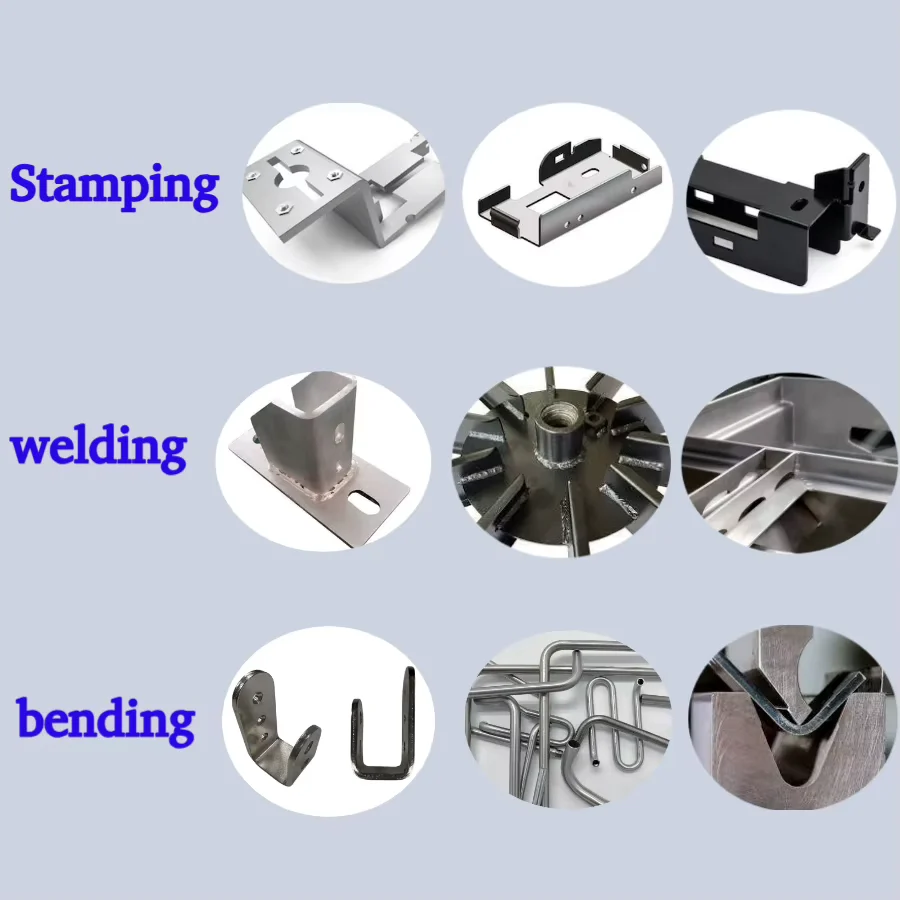

| Manufacturing Process | Laser Cutting – Bending – Welding – Grinding – Powder Coating – Packing |
| Surface Treatment | Powder Coating (custom color available) |
| Packaging | Bubble Bag and Carton |
| Single Package Size | 100 × 50 × 60 cm |
| Single Gross Weight | 15.0 kg |
| Applications | Industrial enclosures, equipment covers, display racks, architectural metalwork, custom fabrication components |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Equipment enclosures, control panel housings, machine guards, platform grating supports |
| Infrastructure & EPC Projects | Cable tray brackets, junction box frames, structural connection plates |
| Commercial Architecture | Decorative metal panels, column cladding, custom railing inserts, signage frames |
| Warehouse & Logistics | Pallet rack end connectors, conveyor side guards, mezzanine infill panels |
Why Material Traceability Decides Whether Your Sheet Metal Parts Pass Site Inspection
When the fabricator does not own the steel mill, the certification chain breaks — and customs or site inspectors will catch it.
Outsourcing sheet metal fabrication overseas often means the processor buys plates from a third-party trader. The mill test certificate that arrives with the raw material rarely follows the part through bending, welding, and coating. By the time the component reaches the job site, there is no verifiable link between the Q235 base material and the finished piece. [NEED_CITE: material traceability requirements in EN 1090 structural fabrication] Buyers who have faced rejected shipments at destination ports know this gap well — the Q235 sheet metal laser cutting fabrication supplier that controls its own steel production eliminates this risk entirely.
Matching Q235 Fabricated Components to Engineering Requirements
Q235 is the most widely specified carbon structural steel in Chinese GB standards, with yield strength suitable for non-pressure-bearing enclosures, equipment covers, and architectural metalwork. The full-process chain — laser cutting, bending, welding, grinding, and powder coating — allows a single Q235 sheet metal laser cutting fabrication supplier to deliver finished, surface-treated components ready for bolt-up or weld-on at site. For industrial project developers, this means one purchase order covers material, fabrication, and coating, with dimensional consistency maintained across every step.
Compliance Considerations for Q235 Sheet Metal in International Projects
Q235 roughly corresponds to S235JR in the EN system and ASTM A36 in North American specifications, though formal equivalence requires project engineer approval. [NEED_CITE: steel grade equivalence between GB Q235 and EN S235JR] For projects requiring EN 1090 execution class compliance, the fabricator must provide weld procedure qualifications, dimensional inspection records, and coating thickness reports alongside the mill test certificate. Powder coating adds corrosion resistance for indoor and moderate outdoor environments; for aggressive coastal or chemical exposure, buyers should specify additional surface preparation or alternative finishes during the inquiry stage.
Understanding Q235 Material Behavior Through the Fabrication Process
Q235 is a low-carbon structural steel (carbon content below 0.22%) that offers good weldability and formability — essential for the bending and welding steps in sheet metal processing. Laser cutting produces clean edges with minimal heat-affected zone distortion, holding tight tolerances on complex geometries that would be difficult with plasma or flame cutting. The bending stage requires attention to bend radius relative to plate thickness; Q235’s ductility allows relatively tight radii without cracking, but springback must be compensated in the CNC program. Welding follows qualified procedures (WPS) with matching filler materials, and post-weld grinding ensures smooth transitions before powder coating adhesion. [NEED_CITE: laser cutting tolerance standards for structural steel sheet]
Hidden Costs of Sourcing from Non-Integrated Fabricators
When the fabricator sources Q235 plates from the spot market rather than producing them in-house, material certificates may be mixed, forged, or simply unavailable for specific heat numbers. Site inspectors enforcing EN 1090 or project-specific quality plans will reject components lacking traceable documentation — regardless of whether the physical part is dimensionally correct. Rework, re-fabrication, and air-freight replacements can multiply the original component cost severalfold. A Q235 sheet metal laser cutting fabrication supplier that operates its own steel mill provides an unbroken chain from slab to finished part, making audit and inspection straightforward. [NEED_CITE: EN 1090 factory production control requirements for structural steel components]
Procurement Confidence Through Vertical Integration
XJY Structure operates as the dedicated fabrication division of a steel producer with three production lines and access to over 2,800 raw material specifications. This vertical integration means Q235 plates are sourced directly from the company’s own mill — every heat number is recorded, and the mill test certificate travels with the material through every fabrication step. The in-house engineering team reviews shop drawings, optimizes nesting for material utilization, and sequences fabrication to match project timelines. Certified welding procedures and qualified welders (AWS/EN) ensure joint integrity, while the internal quality department prepares complete documentation packages including weld maps, dimensional reports, and coating thickness measurements. Professional packing and oversized cargo loading experience across EU, Middle East, Southeast Asian, and African projects reduces transit damage risk.
Documentation & Compliance
- Mill test certificate documenting Q235 chemical composition and mechanical properties per GB/T 700, with heat number traceability from steel production to finished fabricated component
- Welding procedure specifications (WPS) and procedure qualification records (PQR) per AWS D1.1 or EN ISO 15614, applicable to all welded Q235 sheet metal assemblies
- Dimensional inspection report verifying laser cutting tolerances, bend angles, and overall assembly dimensions against approved shop drawings
- Powder coating thickness report with adhesion test results, confirming surface treatment meets project specification requirements
- Complete export documentation package: commercial invoice, packing list, bill of lading, and certificate of origin for customs clearance at destination port
Packaging, Loading & Delivery
- Each Q235 fabricated component wrapped in bubble bag protection and packed in export cartons, sized at 100 × 50 × 60 cm per package to optimize container loading efficiency
- Powder-coated surfaces protected with interleaving materials to prevent scratching during transit, critical for maintaining finish quality on architectural metalwork and display rack components
- Single gross weight of 15.0 kg per package allows manual handling at site without mechanical lifting equipment for industrial enclosure and equipment cover installations
- Custom color powder coating applied per project specification, with touch-up paint provided in sealed containers for minor field repairs
- FOB, CIF, and DDP shipping terms available, with professional container loading plans for mixed-size shipments of Q235 sheet metal fabricated components to project sites worldwide
Start Your Q235 Fabrication Inquiry
Submit your project drawings (PDF or DWG format) along with material specifications, required surface treatment, and target standards. The engineering team responds within 24 hours with a preliminary assessment, shop drawing timeline, and detailed quotation covering material, fabrication, coating, packing, and shipping costs for your Q235 sheet metal laser cutting fabrication supplier order.
Frequently Asked Questions
Q: How does XJY Structure ensure Q235 material traceability from mill to finished part?
A: As a vertically integrated operation with in-house steel production, every Q235 plate used in fabrication carries a recorded heat number. The mill test certificate follows the material through laser cutting, bending, welding, and powder coating, and is included in the final documentation package delivered with the shipment.
Q: Can you fabricate custom components from my engineering drawings with non-standard dimensions?
A: Yes. The engineering team reviews submitted drawings, prepares shop drawings for approval, and fabricates to your exact specifications. CNC laser cutting handles complex geometries, and the bending and welding stages are programmed to match your dimensional requirements.
Q: What surface treatment options are available beyond powder coating?
A: Powder coating is the standard finish offered in custom colors. For projects requiring different corrosion protection levels, buyers can discuss alternative options such as hot-dip galvanizing or liquid painting during the quotation stage, depending on the application environment.
Q: What quality documentation is included with delivery?
A: Each shipment includes the mill test certificate for Q235 base material, dimensional inspection reports, welding records per qualified procedures, powder coating thickness reports, and complete export documents for customs clearance.
Q: What is the typical production lead time for custom Q235 sheet metal fabrication?
A: Lead time depends on order complexity, quantity, and current production scheduling. After shop drawing approval and deposit receipt, the team provides a detailed production schedule. Typical production lead times apply once all engineering approvals are confirmed.
Get Your Q235 Sheet Metal Fabrication Quote Today
Send your drawings and specifications to receive a detailed quotation with material certification and production timeline.
