Description

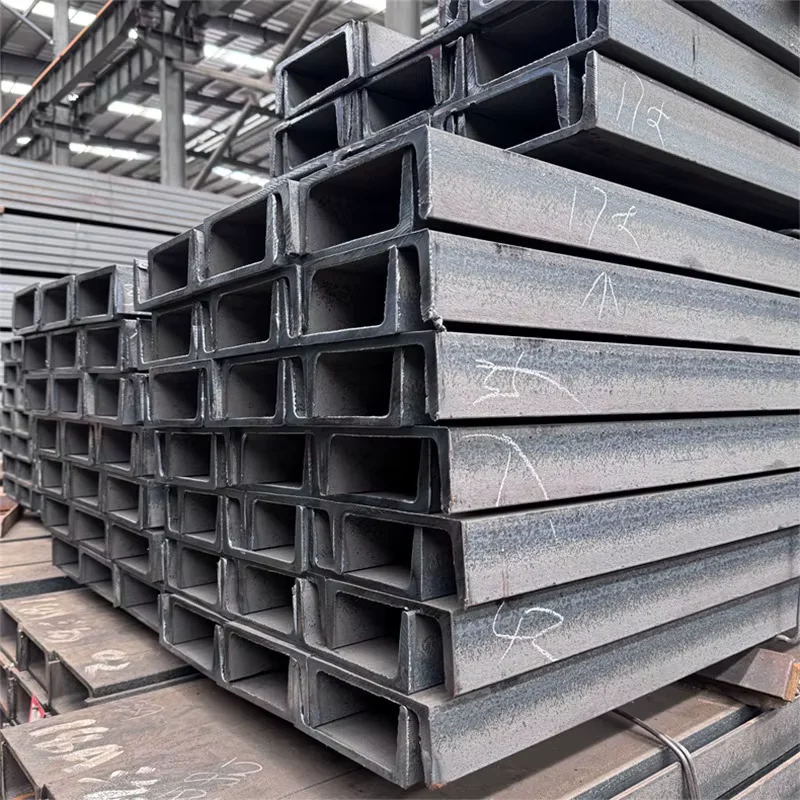

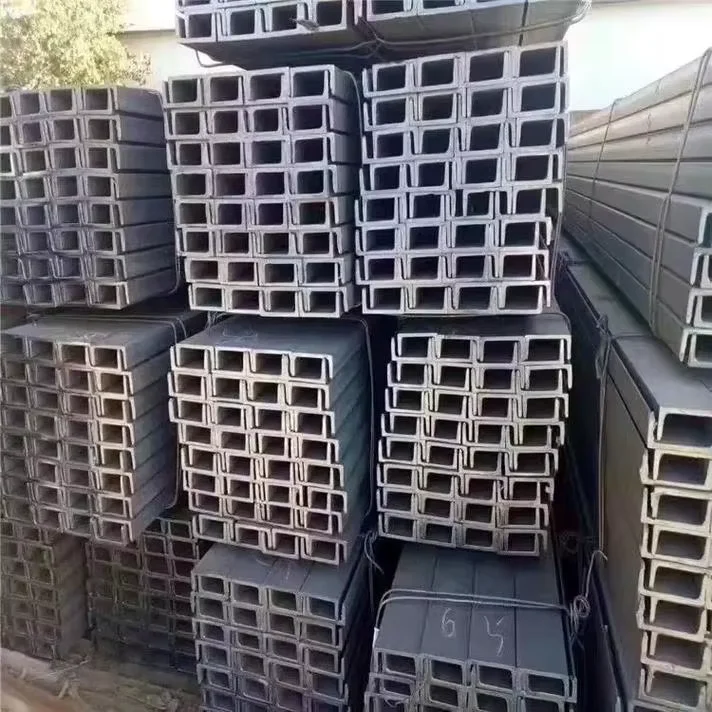

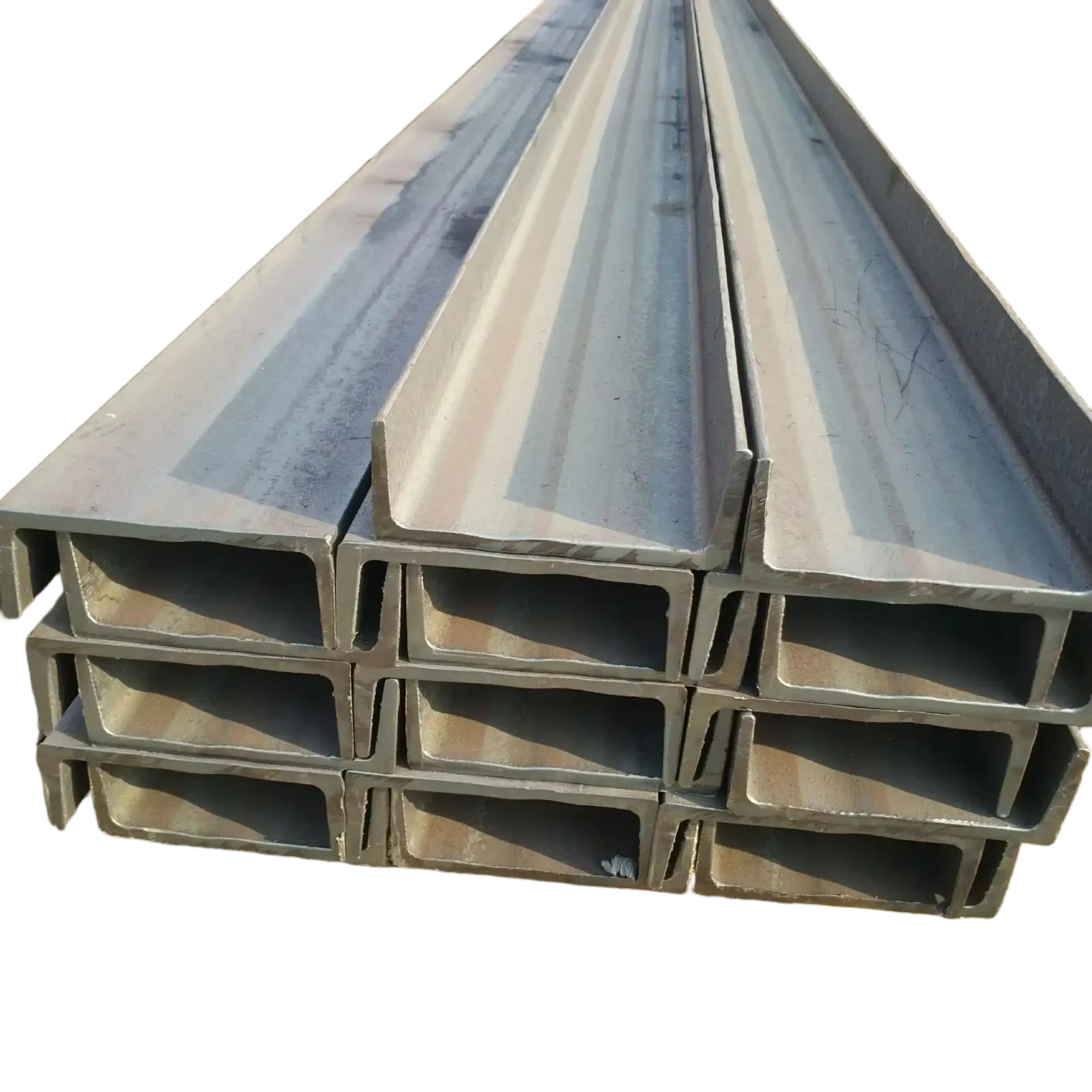

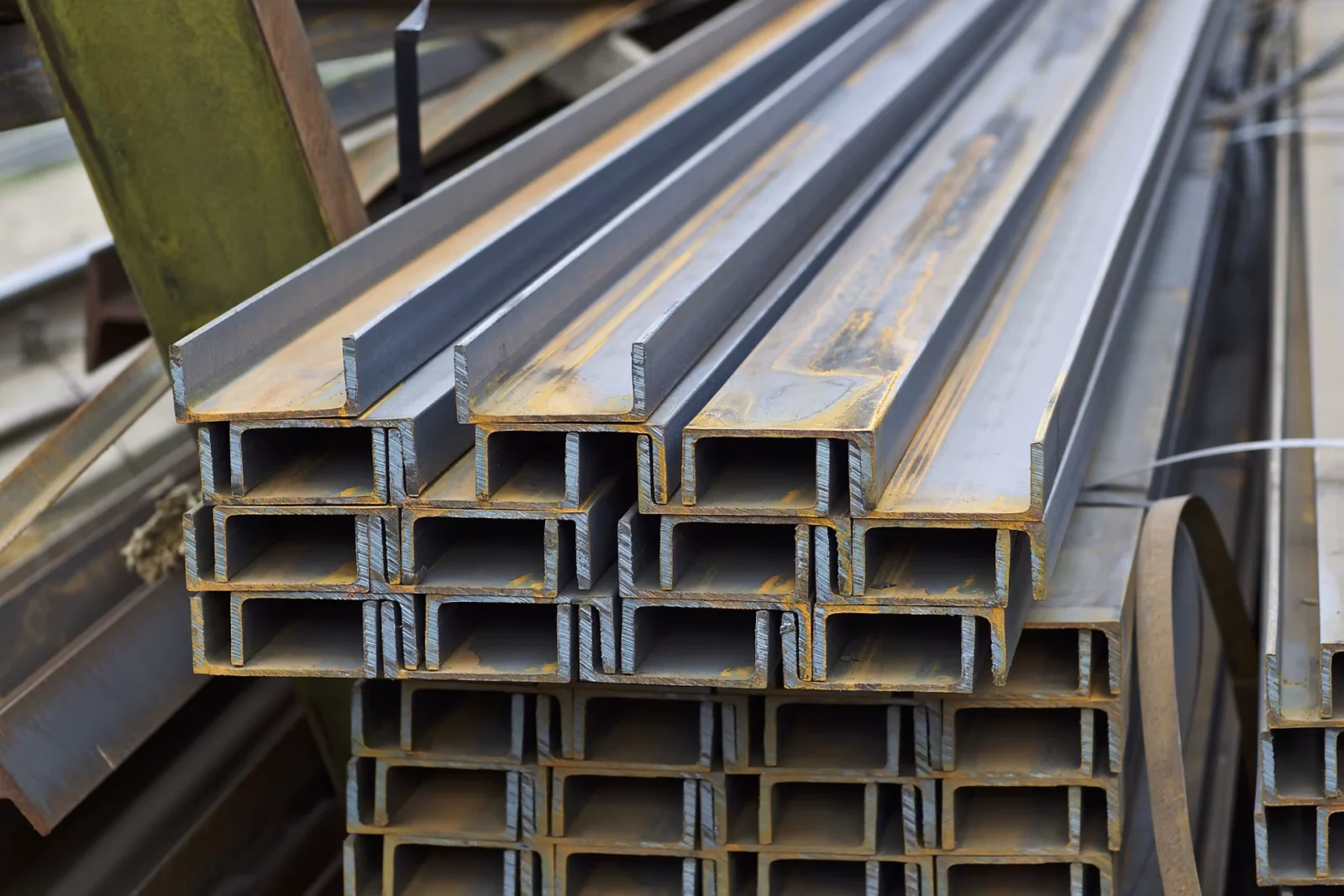

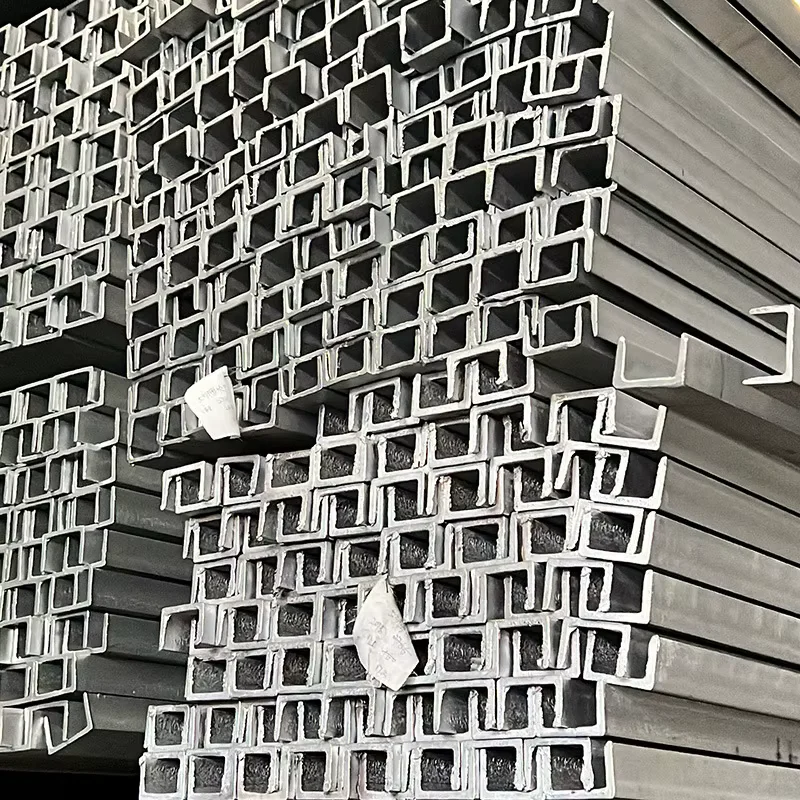

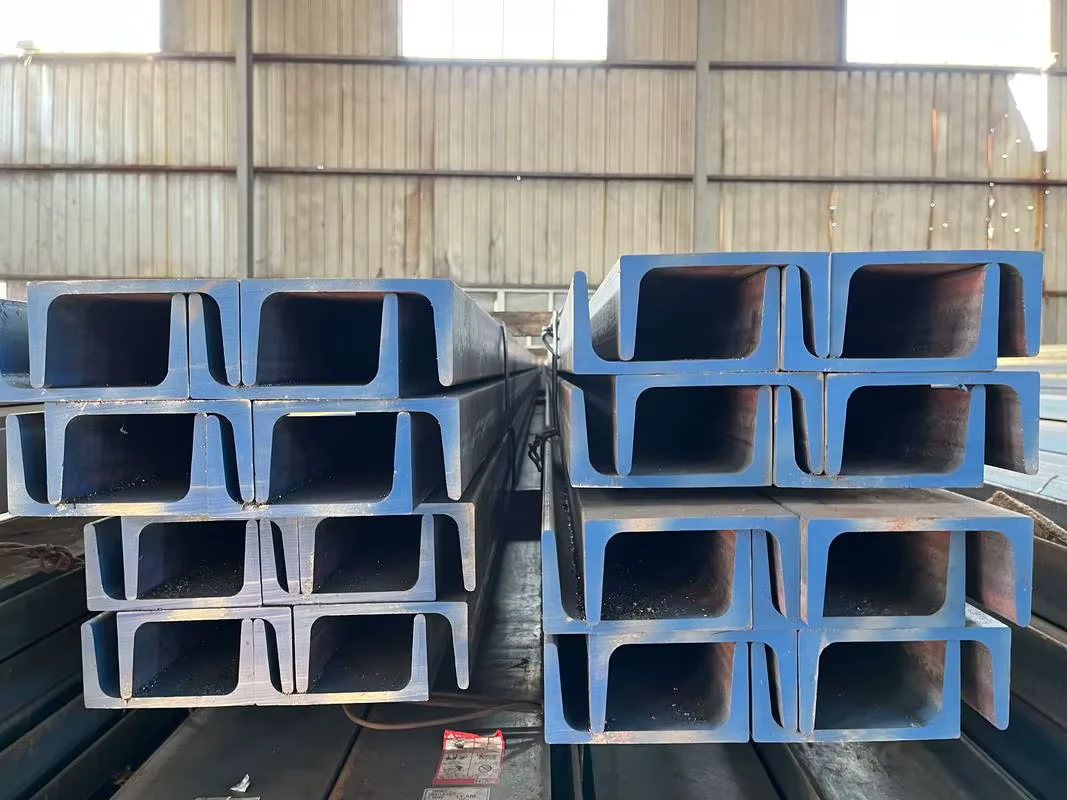

Factory-Direct U Channel Steel Supply — Hot rolled and cold rolled Q235 U channels produced in-house from raw slab to finished section, eliminating third-party material sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 U Channel Steel |
| Product Type | U Channel Steel |
| Steel Grade | Q195, Q215, Q235, 10#, 20#, 35#, 45# |
| Standard | GB707-88, JIS G3192-2008, ASTM A36/A36M-08 |
| Section Shape | U Channel |
| Size Range | Height 50–400mm, Width 30–150mm |
| Wall Thickness | 4.5–14.5mm |
| Length | 5–19m |
| Technique | Hot Rolled / Cold Rolled |
| Surface Treatment | As rolled |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Punching, Decoiling, Cutting |
| Application | Industrial structures, Building frames, Construction support, Infrastructure projects |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Commercial Construction | Building frames, column bracing, roof purlin support systems |
| Industrial Facilities | Equipment platforms, conveyor support structures, mezzanine framing |
| Infrastructure | Bridge cross-beam supports, utility rack frameworks, transit station structures |
| EPC Projects | Structural steel packages for warehouse and logistics center construction |
Material Traceability Gaps That Cost Projects Weeks of Delay
When your U channel steel arrives without heat-number-linked mill test certificates, customs holds and site rejections follow.
Sourcing Q235 U channel steel supplier for structural building from fragmented supply chains means the fabricator buys from one mill, the coating from another, and the documentation from a trading desk. Material traceability breaks at every handoff. [NEED_CITE: material traceability requirements in international steel procurement] Dimensional tolerance drifts without in-house production control, and coating thickness varies between batches — all invisible until the third-party inspector shows up on site.
Matching Load Requirements Across Building Frame Applications
The Q235 U channel steel supplier for structural building covers height ranges from 50mm to 400mm with wall thickness between 4.5mm and 14.5mm, allowing engineers to specify sections that match calculated load demands without over-ordering heavier grades. For building frames in commercial construction, the hot rolled process delivers consistent surface quality and weldability, while cold rolled options provide tighter dimensional accuracy for precision-fit connections. Our in-house processing — bending, welding, punching, and cutting — means channels arrive on site pre-fitted to shop drawing specifications, reducing secondary handling and field modification costs.
Structural Compliance and Certification Pathways
Engineering specifications for U channel steel in structural building projects typically reference GB707-88 for domestic Chinese standards, JIS G3192-2008 for projects following Japanese industrial norms, or ASTM A36/A36M-08 for North American and international EPC contracts. [NEED_CITE: steel grade equivalence between GB Q235 and ASTM A36] The tolerance of ±1% across height, width, and thickness dimensions ensures sections meet dimensional inspection requirements for load-bearing structural applications. For projects requiring third-party verification, SGS or BV inspection can be arranged per heat number, with full chemical composition and mechanical property documentation included in the QC package.
Steel Grade Selection and Rolling Process Implications
The Q-series grading system — spanning Q195, Q215, and Q235 — follows Chinese national standards where the “Q” prefix indicates yield point, and the number represents the minimum yield strength in MPa. For structural building applications, Q235 remains the most widely specified grade due to its balance of formability, weldability, and load-bearing capacity across moderate structural demands. The additional grades 10#, 20#, 35#, and 45# represent carbon steel designations with increasing carbon content, offering higher strength for machined connections and heavy-load bearing points. [NEED_CITE: carbon content effects on structural steel weldability]
Hot rolled U channels are produced above the recrystallization temperature, yielding a mill scale surface finish suitable for applications where subsequent painting or coating will be applied. Cold rolled channels undergo additional processing at room temperature, producing smoother surfaces and tighter dimensional tolerances — preferred for exposed architectural applications or precision-fit bolted connections. The choice between processes affects both cost and field installation requirements.
Hidden Costs of Unverified Channel Steel Procurement
Specifying the correct steel grade matters less than verifying it arrives as documented. Material substitution — receiving Q195 when Q235 was ordered — compromises structural load calculations and triggers rejection during engineering inspection. Missing or mismatched mill test certificates delay customs clearance on international shipments, particularly for projects requiring ASTM or EN compliance documentation. [NEED_CITE: customs documentation requirements for structural steel imports] Negative tolerance abuse — where actual wall thickness falls below specified minimums — reduces load capacity while maintaining theoretical weight pricing, creating both safety risks and financial losses that surface only during fabrication or structural testing.
Integrated Production and Quality Control
Our vertically integrated operation combines raw steel production with U channel rolling and fabrication services, meaning every heat of steel is traceable from slab to finished section. The in-house mill test laboratory issues certificates per heat number, documenting chemical composition and mechanical properties against GB707-88, JIS G3192-2008, or ASTM A36 standards as specified. With over 2,800 steel specifications in our inventory system, we maintain stock of common Q235 U channel dimensions while producing non-standard sizes and lengths to project requirements. Certified welding procedures and qualified welders handle any pre-fabrication work, with WPS, PQR, and weld maps included in the documentation package. Professional loading planning addresses the shipping complexity of long-length channels up to 19m, with specialized lashing and container optimization for international delivery.
Documentation & Compliance
- Mill Test Certificate documenting Q235 chemical composition and mechanical properties per GB707-88, linked to specific heat numbers for full material traceability
- Standard compliance certificates confirming conformance to JIS G3192-2008 or ASTM A36/A36M-08 as required by project specifications
- Third-party inspection reports from SGS or BV covering dimensional verification, surface quality, and material testing per international standards
- Welding procedure specifications (WPS) and procedure qualification records (PQR) for any pre-fabricated or welded U channel assemblies
- Complete export documentation including packing lists, bills of lading, and certificates of origin for customs clearance in destination countries
- Dimensional inspection reports and coating thickness measurements for processed or surface-treated channel steel components
Packaging, Loading & Delivery
- Hot rolled Q235 U channels bundled with steel strips in seaworthy packaging, with edge protectors applied to preserve section geometry during ocean transit
- Surface protection through anti-rust oil coating for as-rolled finishes, preventing corrosion during extended shipping periods to Middle East and Southeast Asian ports
- Container loading optimization for 5–12m lengths in standard 20ft and 40ft containers, with specialized flat rack or breakbulk arrangements for 13–19m long sections
- Custom cutting to project-specified lengths available before shipment, reducing on-site waste and handling requirements for building frame installation
- Heat number and steel grade markings applied to each bundle for on-site identification and traceability verification during engineering inspection
- FOB, CIF, and DDP shipping terms available with professional loading supervision and complete tracking through to site delivery
Initiating Your U Channel Steel Procurement
Submit your project drawings in PDF or DWG format along with specified steel grades, dimensions, quantities, and required standards to receive a detailed quotation within 24 hours. Our engineering team reviews shop drawings for material optimization and fabrication sequencing before production begins, ensuring dimensional accuracy and standard compliance from the first heat.
Request Your Q235 U Channel Steel Quotation
Share your specifications, steel grade requirements, and destination port to receive pricing with mill test certificates and delivery timelines. Contact us at admin@xjystructure.com or WhatsApp +86 188 5315 7756.
Frequently Asked Questions
Q: What is the difference between Q235 and ASTM A36 for U channel steel applications?
A: Q235 and ASTM A36 are considered equivalent grades for most structural building applications, with similar yield strength and chemical composition requirements. Both standards specify carbon structural steel suitable for welding, bending, and fabrication. We provide mill test certificates documenting compliance to either standard based on your project specifications.
Q: Can you provide custom lengths and processing for U channel steel?
A: Yes, we offer cutting, bending, punching, and welding services for Q235 U channel steel to match your shop drawing requirements. Standard lengths range from 5m to 19m, and we can process to specific dimensions before shipment to reduce on-site fabrication work.
Q: How do you ensure material traceability for U channel steel orders?
A: Each heat of steel receives a unique identification number, and our mill test certificates document the chemical composition and mechanical properties for that specific heat. This traceability chain continues through rolling, processing, and delivery, ensuring full material certification for engineering inspection.
Q: What surface treatment options are available for U channel steel?
A: Standard delivery is as-rolled with anti-rust oil protection. For projects requiring enhanced corrosion resistance, we can arrange hot dip galvanizing or painting services through our integrated processing partners, with coating thickness documentation included in the QC package.
Q: Do you handle international shipping for long-length U channel steel?
A: Yes, we specialize in export packaging and loading for structural steel up to 19m length. Our logistics team plans container optimization for standard lengths and arranges flat rack or breakbulk shipping for oversized sections, with complete export documentation for customs clearance.
