Description
Factory-Direct Galvanized SHS/RHS — Q235B tubes formed and coated under one roof, eliminating third-party material gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B Galvanized Square / Rectangular Steel Tube |
| Product Type | Galvanized Square / Rectangular Steel Tube (SHS / RHS) |
| Steel Grade | Q195, Q215, Q235, Q235B, Q345, GR.A, GR.B, S235, S355 |
| Standard | ASTM A213-2001, DIN EN 10217-1-2005 |
| Section Shape | Square / Rectangular |
| Size Range | Customized (OEM / ODM) |
| Wall Thickness | 0.8 – 30 mm |
| Length | 0.5 m – 11.8 m (customizable) |
| Technique | Welded (formed from galvanized steel sheet/coil/strap) |
| Surface Treatment | Pre-galvanized / Hot-dip galvanized / Bare / Oiled / Black original steel |
| Tolerance | ±1% |
| Ends | Plain / Beveled (per project requirement) |
| Application | Structure Pipe, Steel Fence, Steel Post, Steel Construction, Warehouse Construction, Building Construction |
| MOQ | 10 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC / General Contracting | Warehouse portal frames, industrial building columns and beams, mezzanine support systems |
| Infrastructure | Highway guardrail posts, lighting pole bases, bridge access structures |
| Commercial Construction | Steel fencing, perimeter security posts, canopy and carport frames |
| Industrial Facilities | Equipment support platforms, conveyor structure frames, pipeline rack uprights |
Why Third-Party Sourcing Breaks Galvanized Tube Quality on Site
A Q235B galvanized square steel tube supplier that does not own its steel mill cannot guarantee zinc coating continuity from coil to finished section.
Overseas buyers routinely discover dimensional drift and zinc-layer shortfalls only after the container reaches the destination port — because the fabricator sourced black tube from one vendor, sent it out for galvanizing to another, and no single party owned the full quality chain. [NEED_CITE: hot-dip galvanized coating thickness verification per ISO 1461] When material traceability breaks at any hand-off point, MTCs become paperwork exercises rather than real accountability tools, and project teams absorb re-galvanizing costs or full-container rejections.
Matching Wall Thickness and Zinc Layer to Structural and Corrosion Demands
A Q235B galvanized square steel tube must carry both structural load and environmental exposure simultaneously. Wall thickness from 0.8 mm to 30 mm covers light-gauge fencing posts through heavy-duty warehouse frame columns, while the ±1% tolerance ensures connection plates and bolt holes align on site without field reaming. For outdoor and industrial atmosphere exposure, hot-dip galvanizing delivers substantially thicker zinc than pre-galvanized coil, extending service life where maintenance access is limited. [NEED_CITE: corrosion protection design life for hot-dip galvanized structural steel]
Engineering Compliance Across EN, ASTM, and Chinese Grade Systems
Specifying Q235B on a drawing destined for EU customs requires documented equivalence to S235JR under EN 10219, while North American projects call for ASTM A500 Gr.B alignment. The Q235B galvanized square steel tube supplied here is produced to DIN EN 10217-1 and ASTM A213 frameworks, with full chemical and mechanical traceability per heat number — the documentation package that decides whether a container clears customs or sits at the port pending re-inspection. [NEED_CITE: steel grade equivalence mapping between GB, EN, and ASTM standards]
Steel Grade Selection, Welded Forming, and Galvanizing Process Logic
The Q-series grades (Q195 through Q345) follow the Chinese yield-strength naming convention, where the number indicates minimum yield in MPa — Q235B sits in the mid-range suitable for most building and warehouse frames, while Q345 steps up for heavier load paths. European S235 and S355 grades map closely to this system and are interchangeable with proper documentation. These tubes are welded from pre-galvanized or hot-dip galvanized coil/strap, meaning the zinc layer is already present before cold-forming into square or rectangular profile — this produces a more uniform coating on the outer surface but requires careful weld-seam management to maintain corrosion protection at the corners. Hot-dip galvanizing after forming, by contrast, coats all surfaces including the weld zone and interior, making it the preferred choice for heavy-wall sections and aggressive environments. Wall thickness tolerance of ±1% directly affects theoretical weight calculations and, more importantly, the actual load-bearing capacity that structural engineers rely on in their design models.
The Hidden Cost of Wrong-Grade or Under-Coated Galvanized Tubes
Ordering Q235B and receiving Q195 material looks identical on the outside but yields meaningfully lower structural capacity — a gap that only testing reveals, typically after the steel is already erected. Similarly, a contract specifying 60 μm hot-dip coating with actual delivery at 30 μm cuts expected corrosion life in half, forcing either premature repainting or full section replacement. [NEED_CITE: consequences of substandard galvanized coating on structural steel service life] Beyond the material itself, missing or falsified MTCs trigger customs holds, third-party inspection rejections, and project schedule delays that dwarf the original purchase price difference between a verified Q235B galvanized square steel tube supplier and an unverified one.
Why Project Teams Source Galvanized SHS/RHS from XJY Structure
XJY Structure operates as the fabrication division of a mill that runs three production lines and stocks over 2,800 raw material specifications — meaning the Q235B galvanized square steel tube you order is formed, welded, and coated within a single quality system rather than passed between independent vendors. Every heat of steel carries its own MTC from slab through finished tube, and third-party inspection by SGS, BV, or TÜV is arranged before shipment rather than after dispute. Certified welding procedures (WPS/PQR) and qualified welders support any secondary fabrication — punching, bending, cutting — that the project requires before dispatch. Professional loading plans handle the full 0.5 m to 11.8 m length range, with oversized and heavy-wall bundles secured to prevent transit damage to the galvanized surface. Complete export documentation — packing list, bill of lading, certificate of origin, coating thickness reports — travels with every shipment to clear customs without delay.
Documentation & Compliance
- Mill Test Certificate documenting Q235B chemical composition (C, Si, Mn, P, S) and mechanical properties per heat number, traceable from raw coil to finished galvanized tube
- CE certificate covering EN 10210 (hot-finished) and EN 10219 (cold-formed) hollow section requirements for EU market customs clearance
- ISO 9001 quality management certificate covering the full fabrication and galvanizing process chain
- SGS / BV / TÜV third-party inspection report verifying zinc coating thickness, dimensional tolerance, and surface quality before container sealing
- Material traceability report linking each bundle to its heat number, coil certificate, and galvanizing bath record
- Full customs document set including packing list, bill of lading, and certificate of origin matched to the destination country’s import requirements
Packaging, Loading & Delivery

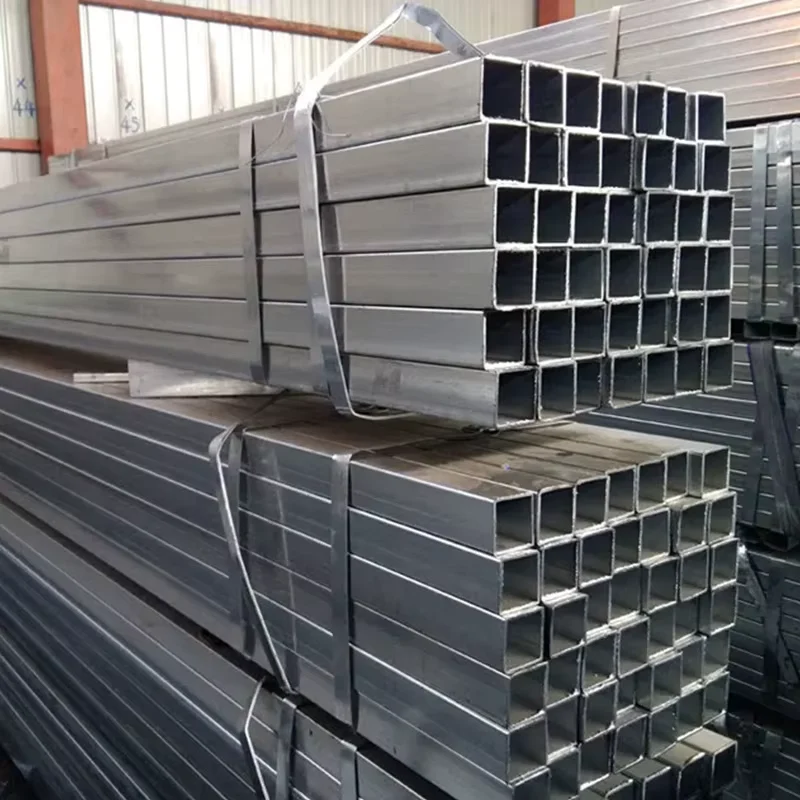

- Q235B galvanized square and rectangular tubes bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit and prevent corner damage
- Hot-dip galvanized sections wrapped with waterproof paper and placed on timber sleepers to avoid direct contact with container flooring and moisture accumulation
- 0.5 m to 6 m lengths loaded in standard 20ft containers; 6 m to 11.8 m lengths planned for 40ft OT or flat-rack containers with lashing points secured per seaworthy export standards
- Custom cut-to-length service available within the 0.5 m – 11.8 m range, with each piece marked by heat number, steel grade, and wall thickness for on-site identification
- Heat number and steel grade stenciled on each bundle tag, matching the MTC provided with the shipment for immediate site verification
- FOB, CIF, and DDP terms supported, with door-to-door logistics coordinated for project sites in the Middle East, Southeast Asia, Africa, and South America
Starting Your Galvanized SHS/RHS Procurement
Send project drawings (PDF or DWG), required steel grade, section dimensions, wall thickness, length, surface treatment preference, and destination port — a detailed quotation including material, fabrication, coating, packing, and shipping costs follows within 24 hours, along with the shop drawing timeline and production schedule.
Request Your Q235B Galvanized Tube Quotation and MTC
Submit your specifications, steel grade, and destination port to receive a detailed quotation with full mill test certificates and third-party inspection options.
