Description

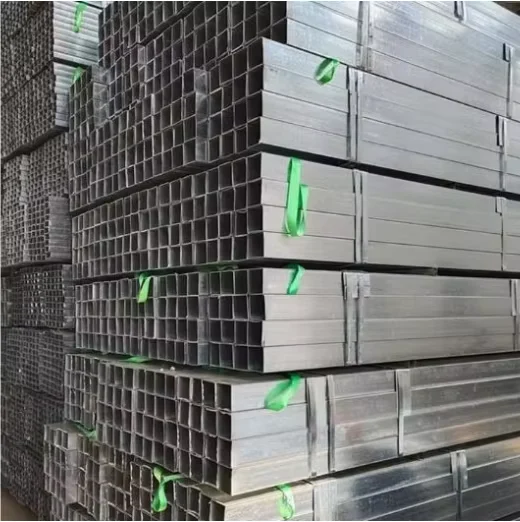

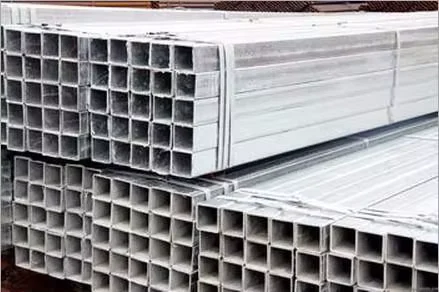

S235 Q345B A500 Hot-dip Galvanized Square Rectangular Steel Tube Supplier
Full-Range Stock & Mill-Direct Supply — Over 2,800 specifications of hot-dip galvanized square and rectangular steel tubes held in our own warehouse, covering S235, Q345B, A500 Grade A/B/C, and A53 Grade B from a single vertically integrated source.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Hot-dip Galvanized Square/Rectangular Steel Tube |
| Product Type | Square / Rectangular Steel Tube (SHS/RHS) |
| Steel Grade | S235, S275, Q235B, Q345B, SS400, STK400, A500 Grade A/B/C, A53 Grade B |
| Standard | ASTM A53, ASTM A500, ASTM A36, BS1387, EN10255, ISO65, ANSI C80, DIN2440, JIS G3444, GB/T3091, GB/T13793 |
| Section Shape | Square / Rectangular |
| Size Range | 21.3mm–660mm (1/2″–26″) |
| Length | 5.8m / 6m / 11m or customized |
| Technique | Hot-dip Galvanizing / ERW |
| Surface Treatment | Hot-dip Galvanized |
| Tolerance | ±1% |
| Ends | Plain / Beveled / Threaded / Grooved |
| Application | Construction / Steel structures / Fencing / Machinery parts / Fluid transportation / Hydraulic systems / Industrial frames |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, column systems, beam assemblies, bridge support structures |
| Fencing & Outdoor Structures | Highway guardrail posts, perimeter fencing, solar panel mounting frames |
| Industrial Facilities | Warehouse portal frames, equipment platforms, conveyor support structures |
| Machinery & Hydraulic Systems | Machinery frames, hydraulic cylinder housings, industrial rack systems |
Why Material Traceability Gaps Cause Customs Rejection on Galvanized Tube Orders
A missing heat number on a mill test certificate can halt an entire container at the port of discharge.
When buyers source hot-dip galvanized square rectangular steel tube from trading companies rather than integrated mills, the chain of material certification often breaks somewhere between the galvanizing line and the shipping container. I have seen Middle East fencing projects delayed by weeks because the SGS inspector at destination could not match the zinc coating thickness report to a verifiable heat number [NEED_CITE: EN 10219 cold-formed hollow section documentation requirements]. The galvanized surface looks identical across suppliers, but the paperwork behind it determines whether your cargo clears customs or sits in a bonded warehouse accumulating demurrage charges.
Matching Galvanized SHS/RHS to Structural and Fencing Applications
Hot-dip galvanized square rectangular steel tube in S235 and Q345B grades serves two distinct engineering demands. For structural frames in warehouses and industrial buildings, the zinc coating must withstand cutting, welding, and drilling at site without peeling — our hot-dip process bonds the zinc metallurgically to the steel substrate, so field modifications do not expose bare metal. For fencing and outdoor infrastructure, the galvanized layer must resist continuous atmospheric corrosion in coastal or industrial environments, where S235 grade combined with a minimum zinc coating provides decades of maintenance-free service. The ±1% dimensional tolerance ensures that connection plates and base brackets fabricated to drawing dimensions fit without on-site reaming.
Engineering Compliance Across EN, ASTM, and GB Standards
Structural engineers specifying hot-dip galvanized square rectangular steel tube often work across multiple standard systems simultaneously. A European EPC contractor may require EN10255 compliance for the tube dimensions while the client’s structural calculations follow EN 1993, and the galvanizing thickness must satisfy ISO 1461 [NEED_CITE: steel grade equivalence between EN and ASTM standards]. Our mill produces S235, S275, Q235B, and Q345B to their respective national standards while maintaining cross-reference documentation that satisfies ASTM A500 and A53 equivalence requests. For Middle East and African infrastructure projects, the CE marking under EN10210/EN10219 often determines whether the shipment enters the country at all — a compliance detail that fragmented suppliers frequently overlook.
Understanding Hot-dip Galvanizing and ERW Process Selection
The hot-dip galvanizing process immerses the finished ERW square or rectangular tube in molten zinc at approximately 450°C, creating a series of zinc-iron alloy layers that provide cathodic protection far superior to electro-galvanized or pre-galvanized alternatives. For S235 and Q235B grades, the silicon content in the steel chemistry influences the coating thickness and appearance — higher silicon steels tend to produce thicker but sometimes duller coatings, which actually enhances corrosion resistance in harsh environments. The ERW welding technique used to form the square and rectangular sections from strip steel produces a continuous longitudinal weld seam that, after hot-dip galvanizing, becomes fully encapsulated in the zinc layer. Wall thickness tolerance of ±1% applies to the base steel before galvanizing; the zinc coating adds approximately 45–85 microns per side depending on immersion time and steel chemistry. For projects requiring threaded or grooved ends, the galvanizing is performed first, and then the ends are machined to specification with touch-up zinc-rich paint applied to exposed threads.
Hidden Costs of Procuring Non-Compliant Galvanized Tubes
Purchasing hot-dip galvanized square rectangular steel tube based on price alone, without verified mill test certificates and third-party inspection reports, creates costs that surface only at the construction site. Zinc coating thickness below the specified minimum fails SGS or BV inspection at destination, forcing the buyer to either accept non-compliant material or arrange return shipping — neither option is economical. Steel grade substitution without documentation means the structural engineer cannot certify the load-bearing capacity, potentially requiring costly redesign or supplementary reinforcement [NEED_CITE: consequences of material non-compliance in structural steel procurement]. Negative tolerance abuse — where the actual wall thickness falls below the ordered specification — reduces both the structural capacity and the zinc coating adhesion, creating a double failure risk that only dimensional inspection at receipt can catch.
Why Integrated Mill-Fabrication Eliminates Procurement Risk
Our facility operates both the steel production lines and the galvanizing workshop under one roof, which means the mill test certificate you receive is generated from our own理化实验室 testing equipment, not forwarded from a third-party subcontractor. We hold over 2,800 specifications of hot-dip galvanized square rectangular steel tube in stock across S235, Q345B, A500, and A53 grades, so urgent project requirements do not force you into extended production lead times. Every bundle carries the heat number stenciled on both the steel and the packing slip, enabling full traceability from the raw coil through the galvanizing bath to the shipping container. Our welding procedures are certified to AWS and EN standards, and our quality documentation package includes WPS, PQR, weld maps, dimensional inspection reports, and coating thickness measurements — the complete file that customs inspectors and site engineers require. We have supplied galvanized structural tubes to projects across the EU, Middle East, Southeast Asia, and Africa, with professional loading plans that maximize container utilization for 5.8m and 6m lengths while protecting the galvanized surface during ocean transit.
Documentation & Compliance
- Mill test certificate documenting S235, Q345B, or A500 chemical composition and mechanical properties per the applicable standard (EN10255, ASTM A500, GB/T3091)
- CE certificate confirming compliance with EN10210 for hot-finished or EN10219 for cold-formed structural hollow sections
- ISO 9001 quality management system certificate covering the integrated steel production and galvanizing process
- SGS or BV third-party inspection report verifying zinc coating thickness, adhesion test results, and dimensional accuracy
- Full material traceability linking each bundle to its heat number, coil origin, and galvanizing batch record
- Export documentation package including packing list, bill of lading, and certificate of origin formatted for destination country customs requirements
Packaging, Loading & Delivery
- Hot-dip galvanized square and rectangular tubes bundled with high-tensile steel strips and separated by rubberized edge protectors to prevent zinc coating damage during handling and ocean transit
- Each bundle tagged with weather-resistant labels showing steel grade (S235/Q345B/A500), heat number, dimensions, length, and bundle weight for site identification
- End caps installed on all plain-end tubes to protect the internal surface from moisture accumulation and to maintain the galvanized coating at the tube extremities
- Container loading plans optimized for 5.8m and 6m lengths in 20-foot containers and 11m lengths in 40-foot open-top containers, maximizing payload while maintaining weight distribution
- Custom cutting to project-specific lengths available before galvanizing, with machined ends (beveled, threaded, or grooved) wrapped individually to preserve thread integrity
- Delivery terms available as FOB, CIF, or DDP to major ports worldwide, with complete export documentation prepared for destination country clearance
Initiating Your Procurement Inquiry
To receive a detailed quotation for hot-dip galvanized square rectangular steel tube, submit your project specifications including steel grade, section dimensions, wall thickness, total quantity, and destination port. We respond within 24 hours with pricing, available stock positions, production scheduling for non-stock items, and the complete mill test certificate format for your review. For projects requiring third-party inspection or specific certification packages, confirm these requirements in your initial inquiry so we can include the associated costs and lead time in our proposal.
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and pre-galvanized square rectangular steel tube?
A: Hot-dip galvanizing immerses the finished tube in molten zinc, creating a metallurgical bond with coating thickness typically exceeding 45 microns per side, suitable for outdoor and corrosive environments. Pre-galvanized tube is manufactured from already-coated strip steel, resulting in thinner zinc coverage at the weld seam and cut edges, making it appropriate for indoor or mild environmental conditions only.
Q: Can you provide steel grade equivalence documentation between EN, ASTM, and GB standards?
A: Yes, we supply cross-reference documentation showing the chemical composition and mechanical property equivalence between S235 (EN), A500 Grade B (ASTM), and Q235B (GB) for our hot-dip galvanized square rectangular steel tube, enabling your structural engineer to verify compliance with the design specification regardless of the standard system used.
Q: What is the minimum order quantity and typical production lead time?
A: The minimum order quantity is 1 Ton. For stock items in S235, Q345B, or A500 grades, dispatch can occur within days of order confirmation. Non-stock sizes or custom lengths require production scheduling, with typical lead times confirmed at quotation stage based on current mill capacity.
Q: Do you arrange third-party inspection before shipment?
A: Yes, we accommodate SGS, BV, TÜV, or other nominated third-party inspection agencies to verify zinc coating thickness, dimensional accuracy, and visual quality before container loading. The inspection scope and associated costs are confirmed in the quotation, and the inspection report becomes part of the shipping documentation package.
Q: How do you ensure the galvanized coating is not damaged during shipping?
A: Each bundle is protected with rubberized edge protectors at contact points, end caps seal the tube extremities, and our loading plans distribute weight to prevent bundle movement during ocean transit. The hot-dip galvanized coating’s metallurgical bond to the steel substrate provides inherent resistance to handling damage compared to painted or electroplated surfaces.
Request Your Quotation with Mill Test Certification
Submit your hot-dip galvanized square rectangular steel tube specifications — including steel grade, dimensions, quantity, and destination — to receive pricing and complete mill documentation within 24 hours.
