Description
Factory Direct Mill Supply — Hot-dip galvanized square tubes produced from our own steel mill with full material traceability from billet to finished SHS.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square Steel Tube |
| Product Type | Square Steel Tube |
| Steel Grade | 20#, S235, S275 |
| Standard | JIS, API (ASTM A53 referenced) |
| Section Shape | Square |
| Size Range | Customized Size |
| Length | 6 m / 12 m (customizable) |
| Technique | Hot-dip Galvanizing |
| Surface Treatment | Hot-dip Galvanized |
| Tolerance | ±1% |
| Ends | Plain / Beveled / Threaded / Grooved |
| Processing Service | Welding / Punching / Cutting / Bending |
| Application | Steel structures / Construction frames / Machinery parts / Fluid transport / Scaffolding |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frame columns, beam assemblies, portal frames for commercial and industrial buildings |
| Industrial Facilities | Machinery support frames, maintenance platforms, conveyor structures in factories and warehouses |
| Scaffolding & Access | Scaffolding uprights, cross braces, and temporary support structures on construction sites |
| Fluid Transport | Corrosion-resistant piping systems for water, air, and low-pressure fluid conveyance |
What Negative Tolerance on Wall Thickness Costs on a Galvanized SHS Order
Dimensional accuracy on galvanized square tubes directly determines whether your structural connections fit on site or require costly rework.
Overseas buyers sourcing galvanized square steel tube from fragmented suppliers often discover that wall thickness falls below specification only after third-party inspection at the destination port. The zinc coating masks the problem during visual checks, and material certificates from third-party traders rarely trace back to a specific heat number. When dimensional tolerance exceeds ±1%, beam-to-column connections designed for precise fit-up fail alignment, forcing field cutting and re-welding that delays the entire erection schedule. [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerance requirements]
How Galvanized SHS Matches Structural Frame Requirements
Hot-dip galvanized square tubes in S235 and S275 grades provide the corrosion resistance needed for exposed structural frames in industrial buildings and infrastructure projects. The zinc coating formed through hot-dip galvanizing creates a metallurgical bond with the steel substrate, protecting both exterior and interior surfaces — critical for hollow sections where internal corrosion cannot be inspected or maintained. Our vertically integrated production line controls every stage from raw steel rolling through galvanizing, ensuring coating thickness consistency across the full length of each galvanized square steel tube. For projects requiring welded connections, we supply shop drawings with pre-approved welding procedure specifications so field crews can weld directly without coating removal concerns at connection points.
Engineering Compliance and Certification Requirements
Structural applications demand compliance with recognized engineering standards. S235 and S275 grades conform to European EN standards and cross-reference to ASTM A36 and A500 Grade B respectively, enabling material acceptance across EU, Middle East, and Southeast Asian projects [NEED_CITE: steel grade equivalence between EN and ASTM standards]. For projects specifying EN 10210 or EN 10219, our mill test certificates document chemical composition and mechanical properties per heat number, satisfying both structural engineer specifications and customs clearance requirements. The ±1% dimensional tolerance on our galvanized square steel tube meets the fit-up precision demanded by bolted and welded structural connections. Custom end preparations — beveled for welding, threaded for mechanical joints, or grooved for grooved couplings — arrive ready for installation without secondary processing on site.
Steel Grade Selection and Hot-Dip Galvanizing Process
S235 offers adequate strength for general structural framing and non-load-bearing applications, while S275 provides higher yield strength for primary load-bearing members in multi-story buildings and industrial platforms. The 20# grade serves mechanical applications requiring good formability and weldability. Hot-dip galvanizing immerses the fabricated square tube in molten zinc at approximately 450°C, creating a zinc-iron alloy layer bonded to the steel surface. This process differs fundamentally from electro-galvanizing or paint coating — the metallurgical bond provides cathodic protection that continues working even if the coating surface is scratched. For square sections, the galvanizing process must account for zinc drainage at corners and internal venting to ensure complete coverage on all four faces and the internal cavity.
Hidden Costs of Procuring Non-Conforming Galvanized Tubes
Material substitution — receiving S235 when S275 was specified — passes visual inspection but fails structural load calculations during engineer review, triggering complete batch rejection. Missing or incomplete mill test certificates delay customs clearance at destination ports, generating demurrage charges that exceed the original material cost. Wall thickness below tolerance means the theoretical weight calculation overstates actual material delivered, yet the structural member cannot carry the design load. These failures trace back to sourcing from trading companies without direct mill access, where material traceability breaks between the rolling facility and the galvanizing line [NEED_CITE: material traceability requirements for structural steel certification].
Why Source Galvanized Square Steel Tube from Our Mill
Our facility operates three production lines with direct control from steel billet through hot-dip galvanizing, eliminating the material traceability gap that occurs when fabricators source raw tubes from third parties. Each heat of steel receives chemical analysis and mechanical testing in our on-site laboratory before rolling begins, with results documented in mill test certificates traceable by heat number. We maintain over 2,800 specifications in inventory, enabling single-source procurement for projects requiring mixed sizes and grades. Our welding procedures are certified to AWS and EN standards, with qualified welders performing fabrication under approved WPS. For international shipments, we prepare complete documentation packages including dimensional inspection reports, coating thickness measurements, and material traceability records — satisfying both structural engineer requirements and import customs authorities.
Documentation & Compliance
- Mill test certificate documenting S235/S275 chemical composition and mechanical properties per heat number, traceable from our own steel production facility
- CE certificate confirming compliance with EN 10210 for hot-finished structural hollow sections or EN 10219 for cold-formed sections as applicable
- ISO 9001 quality management certificate covering the full production process from steelmaking through galvanizing
- SGS or BV third-party inspection report available for independent verification of dimensional accuracy and zinc coating thickness
- Material traceability documentation linking each galvanized square steel tube to specific heat numbers and production batches
- Complete customs documentation including packing list, bill of lading, and certificate of origin for destination country clearance
Packaging, Loading & Delivery

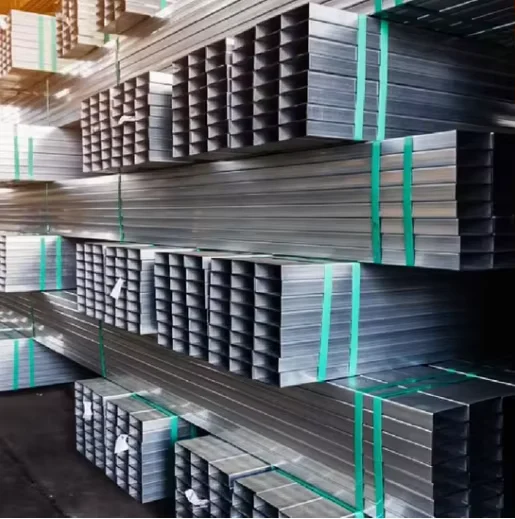

- Galvanized square steel tubes bundled with steel strips and edge protectors to preserve the zinc coating surface during handling and ocean transit
- Hot-dip galvanized surface protected by appropriate packaging materials that prevent moisture trapping and white rust formation during container shipping
- Loading plans optimized for 6 m and 12 m standard lengths to maximize container utilization for S235 and S275 grade shipments
- Custom cut-to-length service available for galvanized square steel tube, with cuts made before galvanizing to ensure full zinc coverage on cut ends
- Heat number and steel grade marked on each tube for on-site identification and traceability verification during installation
- FOB, CIF, and DDP shipping terms available with professional export packing and complete documentation for global delivery
Starting Your Galvanized SHS Procurement
Submit your project specifications including steel grade requirements, dimensions, quantities, and destination port to receive a detailed quotation with production timeline. Our engineering team reviews your drawings and provides shop drawing confirmations before production begins, ensuring dimensional accuracy and coating specifications match your project requirements. Request mill test certificate samples and third-party inspection procedures to verify our quality documentation meets your project standards.
Request Quotation and Material Certification
Send your galvanized square steel tube specifications to receive pricing with full material traceability documentation.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between S235 and S275 grades for galvanized square steel tube applications?
A: S275 provides higher yield strength than S235, making it suitable for primary structural members requiring greater load-bearing capacity. Both grades undergo the same hot-dip galvanizing process, ensuring equivalent corrosion protection. Selection depends on structural engineering calculations and project specifications.
Q: Can you provide third-party inspection for galvanized square steel tube shipments?
A: Yes, we arrange SGS or BV third-party inspection for dimensional verification, zinc coating thickness measurement, and visual quality checks. Inspection occurs at our facility before shipment, with reports included in the documentation package for customs clearance and project acceptance.
Q: What is the minimum order quantity for customized sizes?
A: The standard MOQ is 1 Ton. For non-standard dimensions outside our regular inventory, we discuss production feasibility based on your specific size requirements and total quantity.
Q: How does hot-dip galvanizing differ from other surface treatments for square steel tubes?
A: Hot-dip galvanizing creates a metallurgical zinc-iron alloy bond providing cathodic protection, unlike paint or electro-galvanizing which offer only barrier protection. This makes hot-dip galvanized square steel tube suitable for outdoor and corrosive environments where long-term protection is critical.
Q: Do you provide mill test certificates for international projects?
A: Yes, every shipment includes mill test certificates documenting chemical composition and mechanical properties per heat number. Our certificates trace material from our own steel production facility through galvanizing, ensuring complete material traceability for structural engineering compliance and customs documentation.
