Description

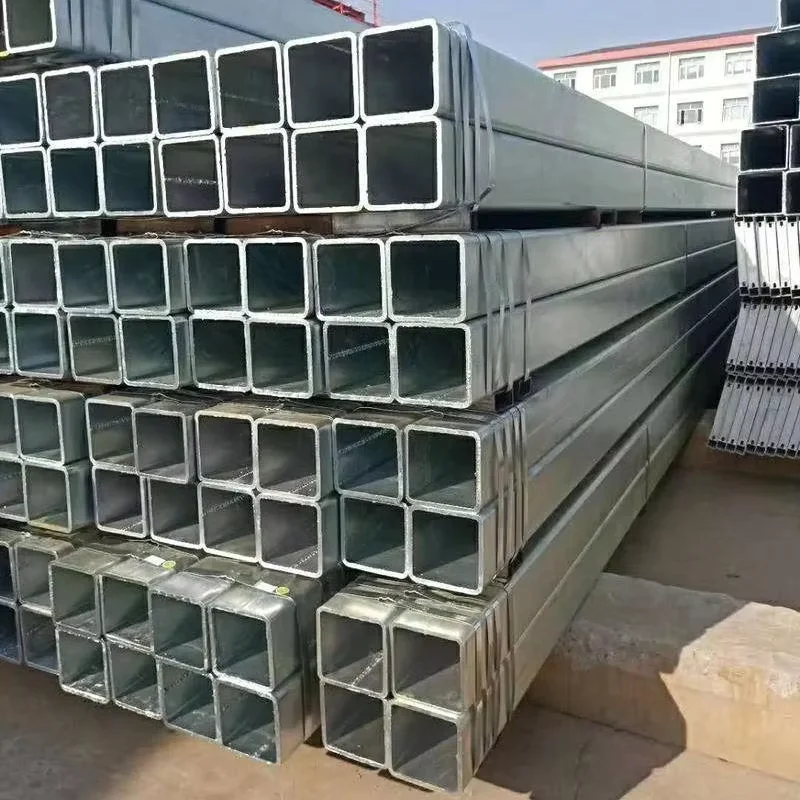

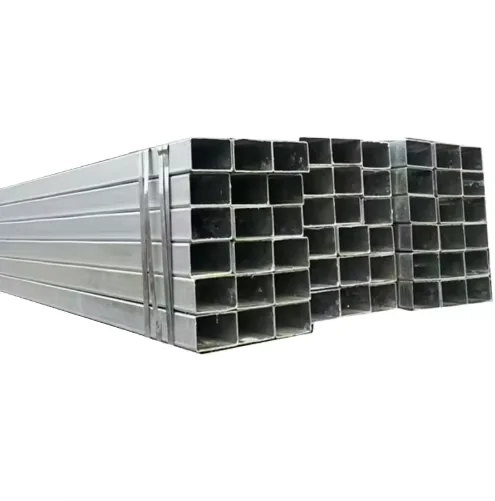

Factory-direct supply, no broker markup — XJY Structure produces S235 S275 SS400 galvanized square steel tubes from our own steel mill through hot-dip galvanizing, delivering full material traceability from billet to finished tube.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S235 S275 SS400 Galvanized Square Steel Tube |
| Product Type | Square Steel Tube (SHS) |
| Steel Grade | S235, S275, SS400, 20# |
| Standard | JIS, ASTM A53 |
| Section Shape | Square |
| Size Range | Customized |
| Length | 6 m, 12 m (customizable 5.8 m / 6 m / 11 m) |
| Technique | Hot-dip galvanizing |
| Surface Treatment | Hot-dip Galvanized |
| Tolerance | ±1% |
| Ends | Plain, Beveled, Threaded, Grooved |
| Application | Steel structures, Construction frames, Machinery parts, Fluid transport, Hydraulic systems |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, column supports, roof trusses, pedestrian bridge railings |
| Industrial Facilities | Conveyor structures, equipment support platforms, warehouse mezzanines |
| Machinery Manufacturing | Hydraulic cylinder housings, machine base frames, lifting equipment arms |
| Fluid Transport | Water supply pipelines, irrigation systems, low-pressure fluid conveyance |
What Coating Thickness Variance Costs on a Galvanized Square Steel Pipe Order
Inconsistent zinc coating leads to premature corrosion at weld joints and cut edges, triggering field rejection and costly rework.
When buyers source galvanized tubes from multiple suppliers, coating thickness varies between batches — some sections arrive with 60μm zinc, others barely 40μm. On a structural frame order, this means certain connection points corrode within months while the rest of the structure remains intact. The Galvanized Square Steel Pipe Supplier must control the galvanizing bath temperature, immersion time, and withdrawal speed to maintain uniform coating across all surfaces. Third-party fabricators sourcing raw tubes externally cannot guarantee this consistency, leaving buyers exposed to warranty claims and maintenance cost overruns [NEED_CITE: hot-dip galvanizing coating thickness standards for structural applications].
How Galvanized Square Tubes Match Structural Frame Requirements
Hot-dip galvanizing provides 60-80μm zinc coating that protects S235 and S275 steel grades against atmospheric corrosion in outdoor construction environments. The ±1% dimensional tolerance ensures square sections maintain geometric accuracy during welding and bolting connections. For construction frames and machinery parts, the Galvanized Square Steel Pipe Supplier delivers tubes with plain, beveled, or threaded ends ready for direct site installation without secondary cutting.
Engineering Compliance and Certification for Galvanized SHS
Structural applications require material certification traceable to specific heat numbers, ensuring chemical composition and mechanical properties meet project specifications. The Galvanized Square Steel Pipe Supplier provides mill test certificates documenting S235/S275 compliance with JIS and ASTM A53 standards. For European projects, EN 10219 cold-formed hollow section requirements dictate dimensional tolerances and welding qualifications that must be verified before customs clearance [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerance requirements]. Custom lengths of 5.8 m, 6 m, and 11 m reduce on-site cutting waste and accelerate assembly schedules.
Steel Grade Selection and Hot-Dip Galvanizing Process
S235 offers adequate strength for non-load-bearing frames and light structural applications, while S275 provides higher yield strength for columns and primary load-bearing members. SS400, the Japanese industrial standard equivalent, suits projects specifying JIS compliance. The 20# carbon steel grade serves fluid transport and hydraulic systems requiring machinability and weldability. Hot-dip galvanizing immerses fabricated tubes in molten zinc at approximately 450°C, creating a metallurgical bond that provides cathodic protection even if the coating is scratched. This process differs from pre-galvanizing (electro-galvanizing), which deposits thinner zinc layers unsuitable for outdoor structural exposure [NEED_CITE: hot-dip galvanizing vs electro-galvanizing corrosion protection comparison].
Hidden Costs of Sourcing from Unverified Galvanized Square Steel Pipe Suppliers
Material certificates from third-party traders often lack heat number traceability, making it impossible to verify whether delivered tubes match ordered specifications. Coating thickness below 60μm accelerates corrosion in humid or coastal environments, leading to structural degradation and safety hazards. Negative tolerance abuse — where actual wall thickness falls below nominal specifications — reduces load-bearing capacity while maintaining theoretical weight calculations, causing engineering miscalculations. Customs authorities in EU and Middle East markets increasingly reject shipments lacking proper CE marking or EN 10219 documentation, resulting in port demurrage costs and project delays [NEED_CITE: steel import customs compliance requirements for EN 10219 certification].
Why Project Teams Source from XJY Structure
Our vertically integrated operation eliminates material sourcing gaps — we produce raw steel in our own mill with three production lines covering 2,800+ specifications, then fabricate and galvanize in adjacent workshops. This integration means every galvanized square tube carries a mill test certificate traceable to the original heat number, with no breaks in the certification chain. Our engineering team reviews shop drawings before production begins, identifying connection details that require special end treatments or dimensional adjustments. Certified welding procedures (WPS/PQR) and qualified welders ensure structural integrity for applications requiring on-site modifications. We maintain complete quality documentation packages including dimensional inspection reports, coating thickness measurements, and surface preparation records — essential for projects requiring third-party inspection approval.
Documentation & Compliance
- Mill test certificate documenting S235/S275/SS400 chemical composition and mechanical properties per JIS and ASTM A53 standards
- Hot-dip galvanizing coating thickness report confirming 60-80μm zinc layer uniformity across all tube surfaces
- Dimensional inspection report verifying ±1% tolerance compliance for square section geometry and length specifications
- Material traceability sheet linking each bundle to specific heat numbers from our own steel production facility
- Third-party inspection reports from SGS or BV available upon request for projects requiring independent quality verification
- Complete export documentation including packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery

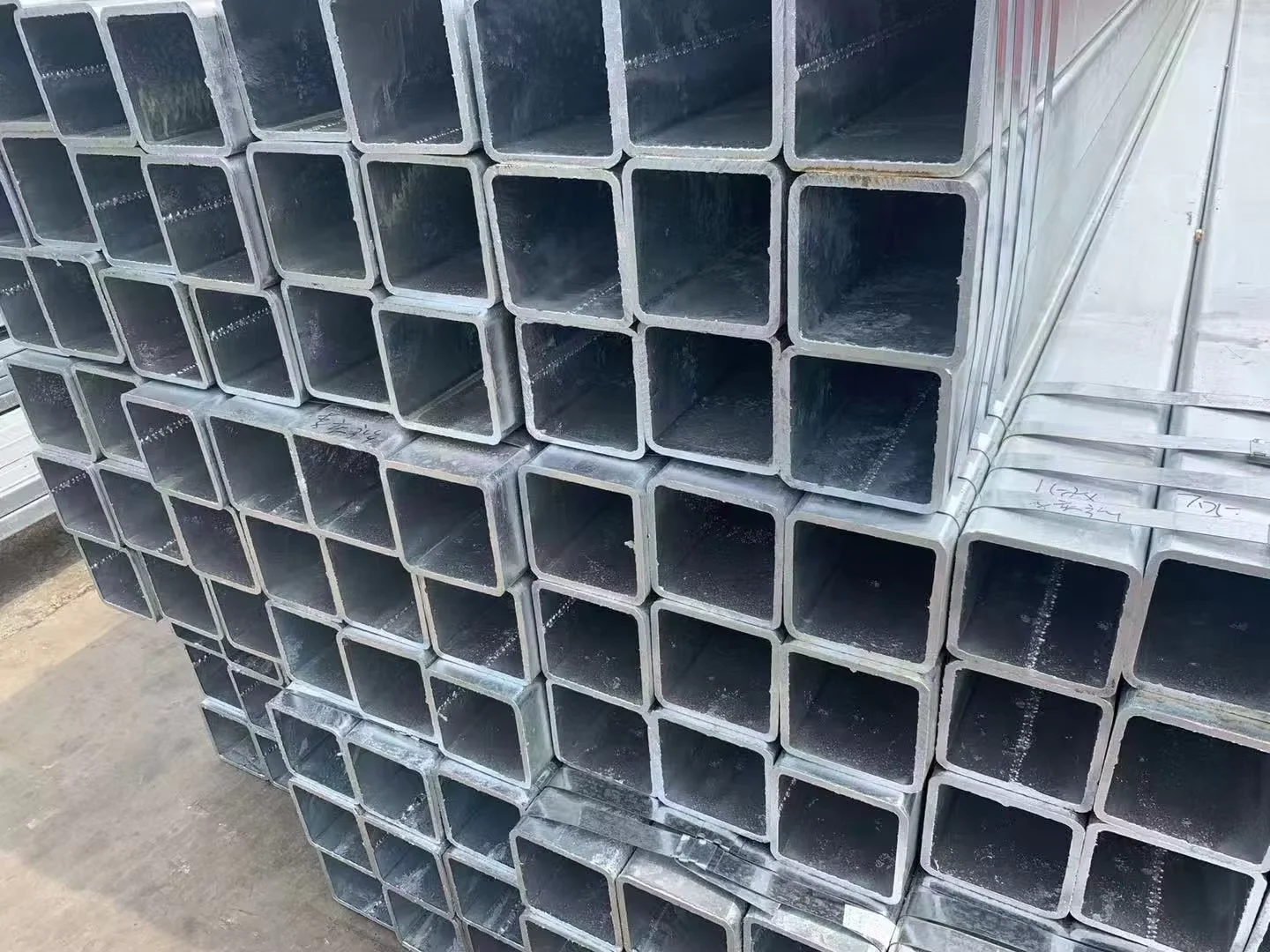

- Galvanized square tubes bundled with steel strips and edge protectors to prevent zinc coating damage during handling and ocean transit
- Layer separation using rubberized spacers for 6 m and 12 m lengths to avoid inter-layer friction that scratches galvanized surfaces
- Custom length optimization for 5.8 m containers maximizing payload while maintaining weight distribution for 20-ton shipping limits
- Heat number and steel grade markings stenciled on each bundle end for site identification and material verification
- Professional loading plans for oversized cargo with lashing points secured to prevent shifting during 20+ day sea voyages
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination to project sites or warehouse facilities
Initiating Your Galvanized Square Steel Pipe Inquiry
Submit your project drawings, steel grade requirements, dimensional specifications, and destination port to receive a detailed quotation including material costs, fabrication charges, galvanizing fees, and shipping estimates. Our engineering team responds within 24 hours with a preliminary assessment and shop drawing timeline. For non-standard lengths or custom end treatments, we provide fabrication feasibility analysis and lead time confirmation before contract signing.
Frequently Asked Questions
Q: What is the difference between hot-dip galvanizing and pre-galvanizing for square steel tubes?
A: Hot-dip galvanizing immerses fabricated tubes in molten zinc, creating a 60-80μm metallurgical coating that provides superior corrosion protection for outdoor structural applications. Pre-galvanizing (electro-galvanizing) deposits a thinner zinc layer suitable only for indoor environments. For construction frames and infrastructure projects exposed to weather, hot-dip galvanizing is the specified process.
Q: How does vertical integration eliminate material traceability gaps?
A: As a Galvanized Square Steel Pipe Supplier operating our own steel mill and fabrication workshop, we control the entire production chain from raw billet to finished galvanized tube. Every bundle carries a mill test certificate traceable to the original heat number, with no third-party sourcing that creates certification breaks. This ensures consistent material properties and complete quality documentation for project compliance.
Q: What is the MOQ and lead time for customized lengths and end treatments?
A: The minimum order quantity is 1 ton for standard specifications. Custom lengths (5.8 m, 6 m, 11 m) and special end treatments (beveled, threaded, grooved) require typical production lead times depending on order volume and complexity. We provide specific timeline confirmation after reviewing your technical requirements and quantity.
Q: How do S235, S275, and SS400 steel grades differ in application?
A: S235 provides adequate strength for light structural frames and non-load-bearing applications. S275 offers higher yield strength for primary structural members and columns. SS400, the Japanese industrial standard equivalent, suits projects specifying JIS compliance. The 20# carbon steel grade serves fluid transport and hydraulic systems requiring machinability.
Q: How are galvanized square tubes packed for ocean freight to prevent coating damage?
A: We bundle tubes with steel strips and rubberized edge protectors, then separate layers with spacers to prevent inter-layer friction. Each bundle is marked with heat numbers and steel grades for site identification. Professional loading plans secure cargo with lashing points to prevent shifting during transit, preserving the galvanized coating integrity upon arrival.
Request Your Galvanized Square Steel Pipe Quotation
Share your project specifications, steel grade requirements, and destination port to receive a detailed quotation with mill test certificates and shipping estimates. Contact our engineering team at admin@xjystructure.com or WhatsApp +86 188 5315 7756 for technical consultation and shop drawing review.
