S235JR S355 ERW Square Steel Tube Manufacturer EN10219 ASTM A500

Description

Direct Mill Supply — S235JR and S355 ERW square steel tubes produced, tested, and certified under one roof, eliminating third-party material gaps.

Technical Specifications

Application Suitability

What Negative Tolerance Actually Costs on a Square Tube Order

A ±1% tolerance on wall thickness sounds tight — until the third-party inspector pulls a caliper and the batch fails acceptance.

When procurement teams source ERW square tubes from traders who subcontract to multiple mills, wall thickness consistency becomes a gamble. One heat may hit nominal, the next runs minus. On a structural frame order running hundreds of tonnes, cumulative weight shortfalls trigger contract disputes, and dimensional drift forces on-site rework that no amount of price saving can offset [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerance requirements].

Matching Structural Load Paths in Commercial Frames

S355 ERW square steel tubes in EN10219 compliance provide the torsional stiffness that portal frames and truss systems demand. The cold-rolled ERW forming process produces sharp, consistent corners that sit flush against gusset plates and moment connections — reducing fit-up gaps that slow welding crews on site. Our own mill produces the strip steel, forms the tubes, and runs dimensional checks in-house, so the heat number on the test certificate traces back to the same facility that rolled the section.

Engineering Compliance Across Export Markets

Structural square tubes destined for EU projects must carry CE marking under EN10210 or EN10219, while North American specifiers call for ASTM A500 Grade B or C compliance. Selecting the correct steel grade equivalence — S355JR mapping to ASTM A572 Grade 50 in yield class, or S235JR aligning with A36 — determines whether customs clearance proceeds smoothly or the container sits at port pending supplementary documentation [NEED_CITE: steel grade equivalence mapping between EN 10025 and ASTM standards]. Third-party inspection bodies such as SGS, BV, or TÜV can verify dimensional and chemical compliance before shipment, closing the documentation loop that overseas buyers require.

Steel Grade Selection and ERW Process Fundamentals

The S-series grades (S235JR, S275JR, S355JR) follow the EN 10025 family where the number indicates minimum yield strength in MPa — S355 delivers roughly 50% higher yield than S235, directly affecting section sizing in load-bearing columns and primary beams. Q235B and SS400 serve equivalent roles in Chinese and Japanese specification systems respectively, allowing fabricators to source locally certified material without redesigning connections. ERW cold-formed welding joins the strip edges through resistance welding under pressure, producing a consistent weld seam suited to structural applications where internal pressure is absent — unlike SSAW or seamless processes reserved for high-pressure fluid conveyance. Surface treatment selection follows the exposure environment: black finish for indoor or painted structures, cold-rolled surface for architectural visibility, and hot-dip galvanizing for outdoor or corrosive atmospheres where coating longevity outweighs initial cost [NEED_CITE: corrosion protection selection for structural steel hollow sections].

Hidden Costs of Unverified Material Procurement

Purchasing square tubes without verified mill test certificates or third-party inspection creates downstream risk that rarely appears in the initial quotation. Material arriving with unconfirmed chemistry fails weld procedure qualification, forcing batch rejection after fabrication has begun. Sections running excessive negative tolerance reduce load-carrying capacity below design assumptions, triggering structural engineer re-evaluation and potential redesign — costs that dwarf any per-tonne saving achieved at purchase [NEED_CITE: structural steel acceptance criteria under EN 1090 execution classes].

Why Procurement Teams Consolidate with XJY Structure

Our facility operates three production lines covering over 2,800 specifications in raw material inventory, meaning S355 ERW square steel tubes in non-standard dimensions can be rolled from stock strip rather than waiting for external mill schedules. Every batch undergoes chemical analysis and mechanical testing in our on-site laboratory, producing EN 10204 3.1 certificates with full heat number traceability. CE certification under EN10219 and ISO 9001 quality management ensure that export documentation meets EU and international customs requirements without supplementary audits. Custom cutting, punching, and bending services reduce on-site secondary work, while professional loading teams plan container stowage around the specific lengths and section sizes in each order — minimizing transit damage and maximizing payload per shipment.

Documentation & Compliance

• Mill Test Certificate documenting S235JR and S355 chemical composition and mechanical properties per EN10219, with heat number traceability to our own steel production
• CE Certificate covering EN10219 cold-formed structural hollow sections for EU market placement and construction product regulation compliance
• ISO 9001 Quality Management System certificate covering the full production chain from strip procurement through ERW forming and final inspection
• SGS or BV third-party inspection report available upon request, verifying dimensional tolerance, surface quality, and coating thickness before shipment
• Full customs documentation package including packing list, bill of lading, and certificate of origin aligned with destination country import requirements

Packaging, Loading & Delivery

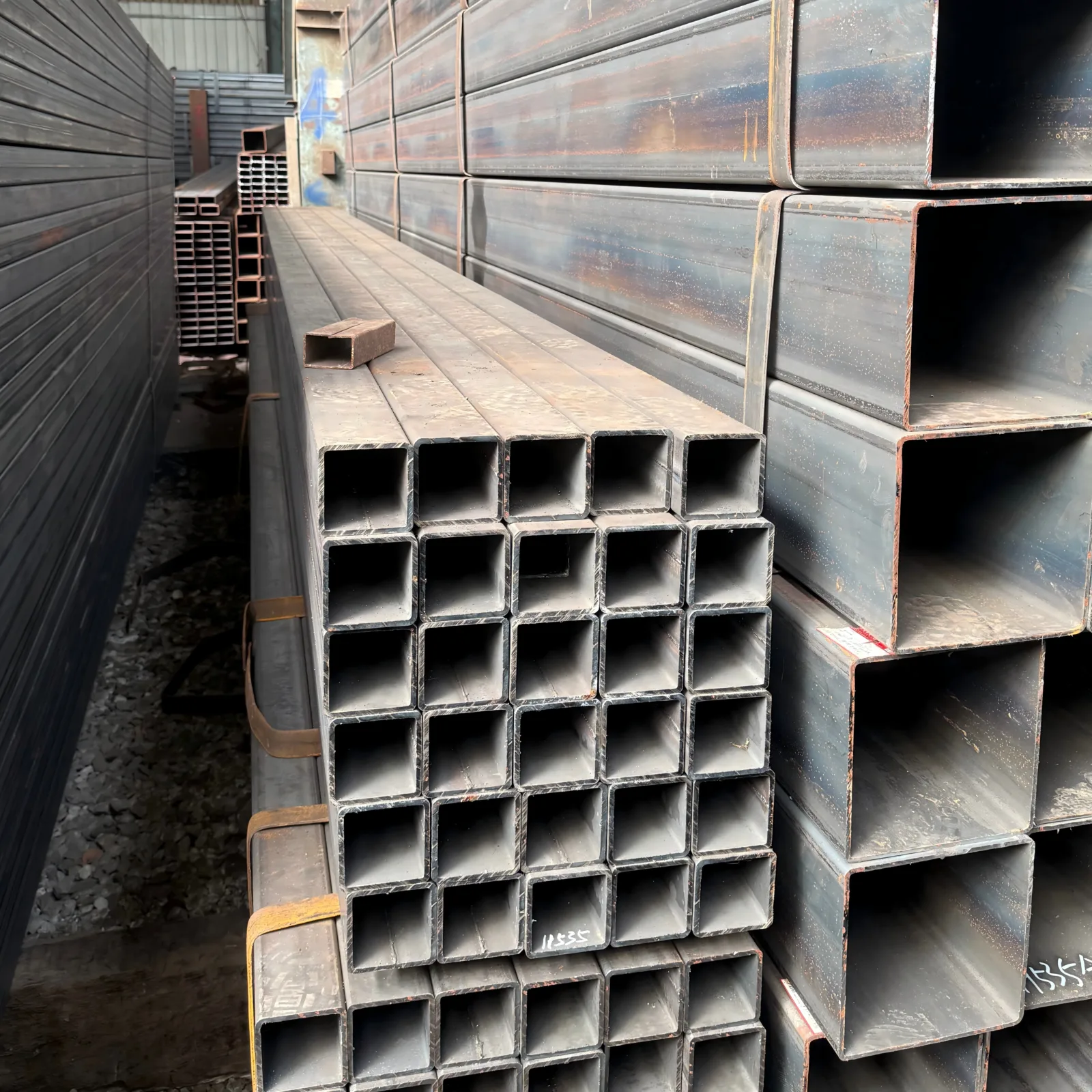

• S355 and S235JR square tubes bundled with high-tensile steel strips at regular intervals, preventing bundle shift during ocean transit across 6m, 8m, and 12m lengths
• Galvanized tube shipments include edge protectors and moisture-resistant wrapping to preserve zinc coating integrity throughout container loading and port handling
• Container loading plans optimized per section size and length combination, maximizing payload while maintaining weight distribution for 20ft and 40ft standard containers
• Custom cut-to-length service available before packing, reducing on-site cutting waste and supporting just-in-sequence delivery for project sites
• Each bundle marked with heat number, steel grade, section dimensions, and production date for site identification and traceability verification
• FOB, CIF, and DDP shipping terms supported with full export documentation and real-time shipment tracking until port arrival or site delivery

Starting Your Procurement Process

Submit your project drawings, required steel grades, section dimensions, and target quantity to receive a detailed quotation including material, fabrication, coating, and logistics costs. Our engineering team reviews specifications against EN10219 and ASTM A500 requirements, confirms shop drawing details, and provides mill test certificate samples before contract signing.

Request Your S355 ERW Square Steel Tube Quotation

Share your specifications, steel grade, and destination port to receive pricing and mill test certificate documentation within 24 hours. Contact us at +86 188 5315 7756 (WhatsApp/WeChat) or admin@xjystructure.com.
