EN S355JR Steel Beams for Warehouse Framework Wholesale Supplier

Buying the cheapest H-beam is often the most expensive mistake in warehouse construction.

To successfully source Steel Beams for Warehouse Framework, procurement managers must prioritize verified impact toughness grades (JR/J0/J2) and strict EN10219 compliance over base material price. The correct selection process involves reverse-engineering beam specifications from span and load requirements, validating Mill Test Certificates for chemical composition and Charpy impact values, and engaging manufacturers capable of precise non-standard cutting to minimize on-site waste and structural deflection risks.

I still remember the silence in a logistics hub near Hanover when the site manager pointed at an 18-meter main beam that had sagged visibly under its own weight before any inventory was even stored. The supplier had provided certificates stating S355 compliance, but a closer look at the Mill Test Certificate revealed a carbon equivalent value that was technically within range for general construction but dangerously high for the specific welding procedures used on site. The result was not just a delayed opening, but a costly batch rejection and re-fabrication cycle. That incident shifted my focus from simple price comparison to a rigorous validation of technical data, specifically how impact toughness grades interact with local climate conditions and structural loads. [NEED_CITE: relationship between carbon equivalent and weldability in structural steel]

This approach transforms procurement from a transactional task into a technical safeguard. When you understand why certain grades fail and how to verify them, you stop buying generic metal and start sourcing engineered solutions.

Why Do Warehouse Beams Fail? The Hidden Risk of Incorrect Impact Toughness Grades

Structural failure in warehouse frameworks rarely stems from insufficient tensile strength; it usually originates from overlooked impact toughness requirements.

Many buyers assume that if a beam is labeled S355, it is suitable for any application. However, the suffix letters—JR, J0, J2—indicate the temperature at which the steel maintains its ductility and resistance to brittle fracture. In colder climates or environments with dynamic loads, such as warehouses with heavy forklift traffic or crane systems, using a JR grade where a J2 is required can lead to catastrophic cracking. [NEED_CITE: EN 10025-2 impact energy requirements at different temperatures]

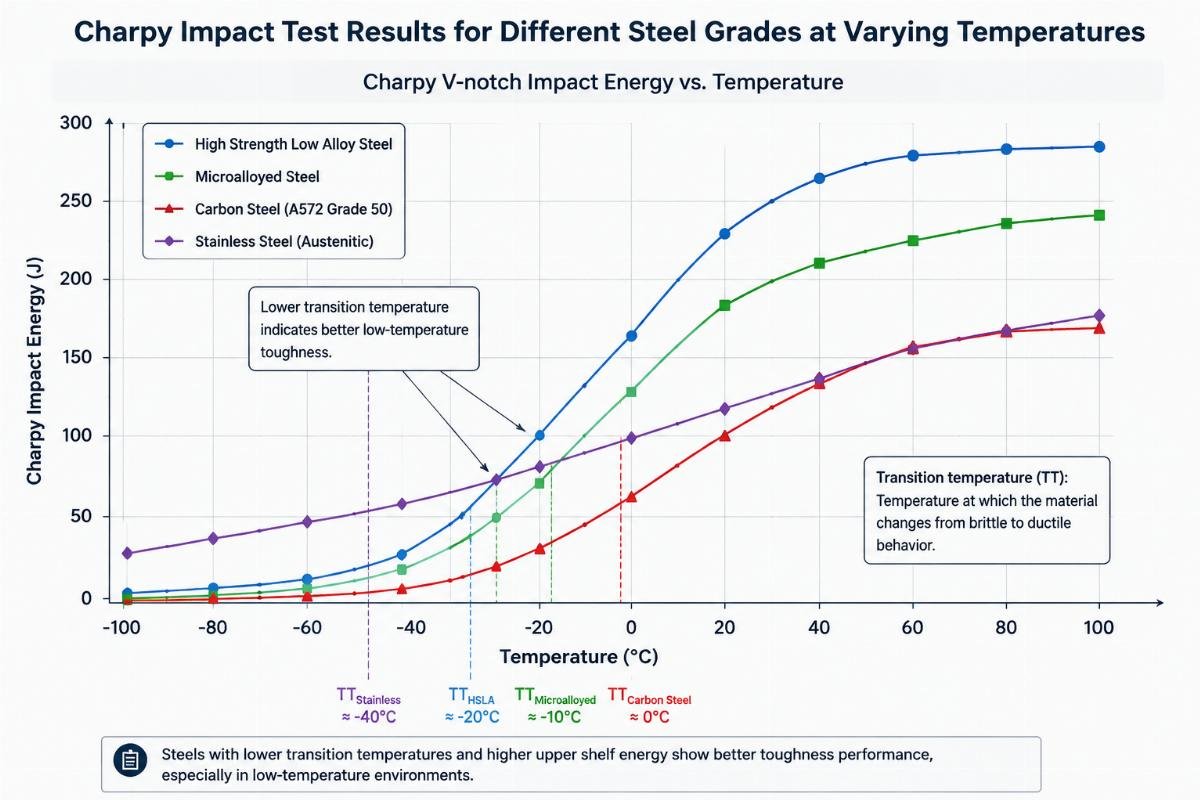

Consider a project in Northern Europe where a distributor supplied S355JR beams for a cold-storage facility. The tensile strength was perfect, but during a sudden temperature drop, several connections developed micro-cracks. The issue was not the steel’s strength, but its inability to absorb energy at sub-zero temperatures. The Charpy impact test data, which should have been the primary verification point, showed values adequate for +20°C but insufficient for -20°C.

This distinction is critical when selecting Steel Beams for Warehouse Framework. A lower initial cost for JR grade becomes a liability if the structure is subjected to thermal stress. Verification requires more than a glance at the grade name; it demands a cross-check of the actual Joule values in the Mill Test Certificate against the project’s environmental design parameters.

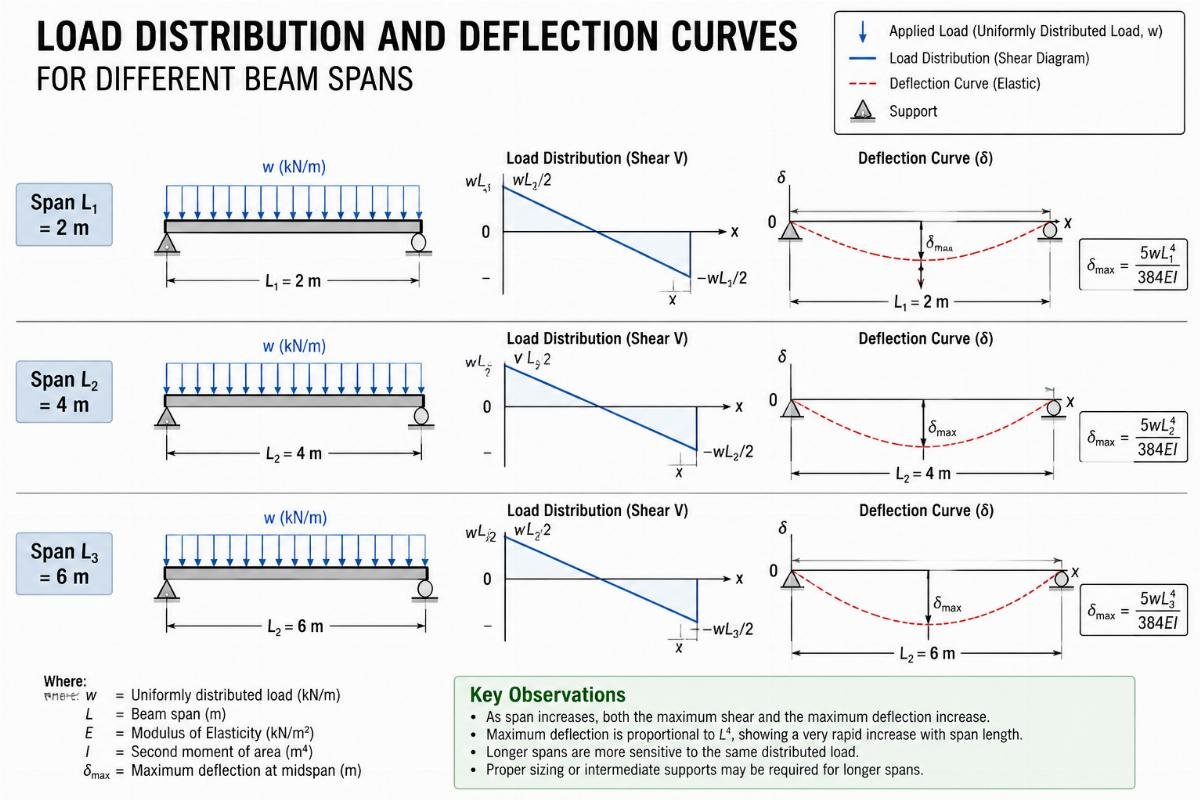

How to Calculate the Right Beam Specification for Your Span?

Accurate beam selection begins with reverse-engineering the section modulus from load and span requirements, not from catalog availability.

A common error in procurement is selecting a beam based on what is in stock rather than what the engineering calculations dictate. For an 18-meter span, the deflection limit is often more restrictive than the bending stress limit. If the section modulus is insufficient, the beam will sag, causing issues with cladding, roofing, and door operations long before it reaches its yield strength. [NEED_CITE: structural deflection limits for industrial buildings per Eurocode]

The process starts with determining the total load, including dead loads (self-weight, roofing) and live loads (snow, maintenance, storage). From there, you calculate the required section modulus. Only then do you select the material grade. For example, switching from S235 to S355 allows for a lighter section to achieve the same load-bearing capacity, but it requires stricter control over welding procedures due to higher carbon content.

In a recent project for a large distribution center, the initial design called for standard I-beams. However, by optimizing the selection towards high-strength S355 sections, we reduced the overall steel weight significantly. This required precise coordination with the manufacturer to ensure the available profiles matched the calculated section modulus exactly. The key was not just the material, but the geometric properties of the Steel Beams for Warehouse Framework chosen.

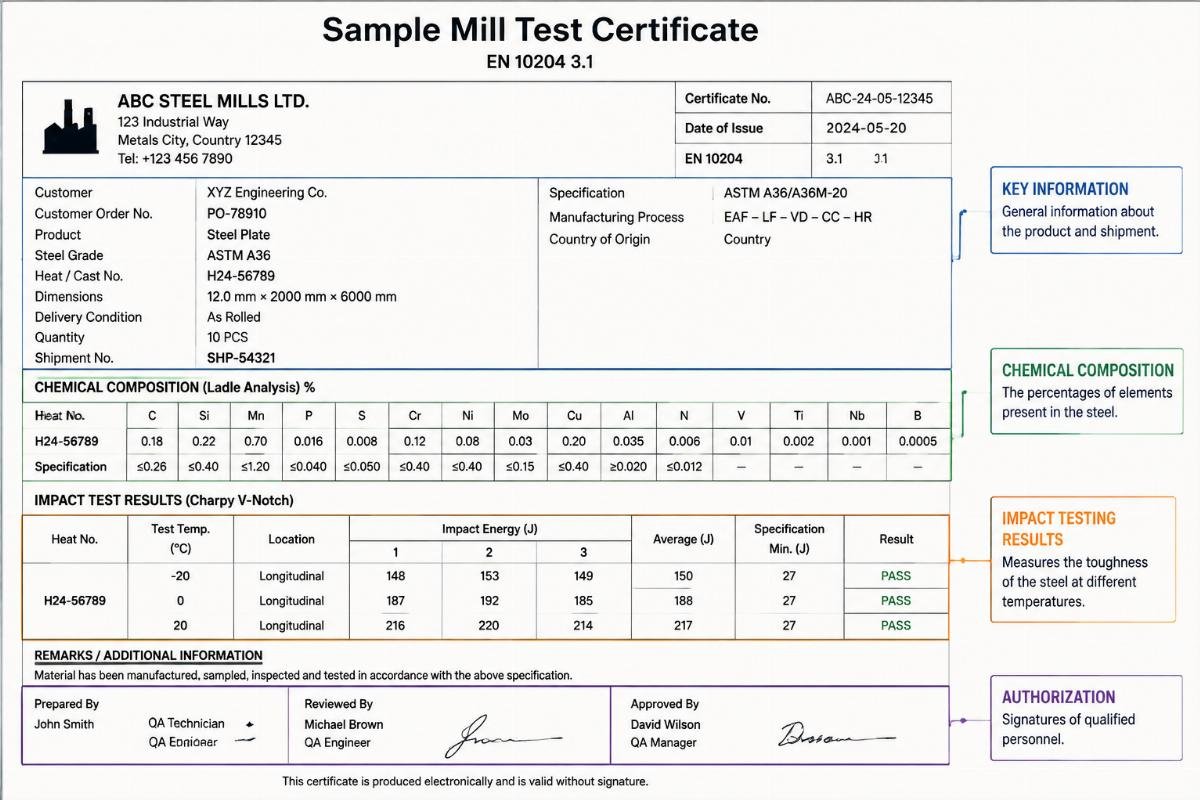

What Documents Prove Compliance? Navigating EN10219 Certification

A Mill Test Certificate is only valid if it explicitly details chemical composition and Charpy impact values, not just tensile strength.

Navigating the documentation landscape is where many procurement processes stall. EN10219 covers cold-formed welded structural hollow sections, while EN10210 covers hot-finished ones. Confusing these standards can lead to receiving products with different tolerance profiles and weldability characteristics. [NEED_CITE: differences between EN10219 and EN10210 manufacturing processes]

I once reviewed a set of documents for a shipment destined for the Middle East. The certificates listed tensile and yield strengths that looked perfect. However, the chemical composition section was vague, and the impact test data was missing entirely. When pressed, the supplier admitted they had substituted a batch without proper testing. This highlights the necessity of third-party inspection or rigorous in-house verification.

Essential elements to verify in the MTC include:

• Heat number traceability to the physical beam.
• Carbon equivalent (CEV) values to assess weldability.
• Charpy V-notch impact energy values at the specified temperature.
• Clear reference to the applicable EN standard (e.g., EN10219-2).

Without these details, the certificate is merely a piece of paper, not a guarantee of safety. When sourcing Steel Beams for Warehouse Framework, insist on full transparency in these documents. Any hesitation from the supplier should be treated as a red flag.

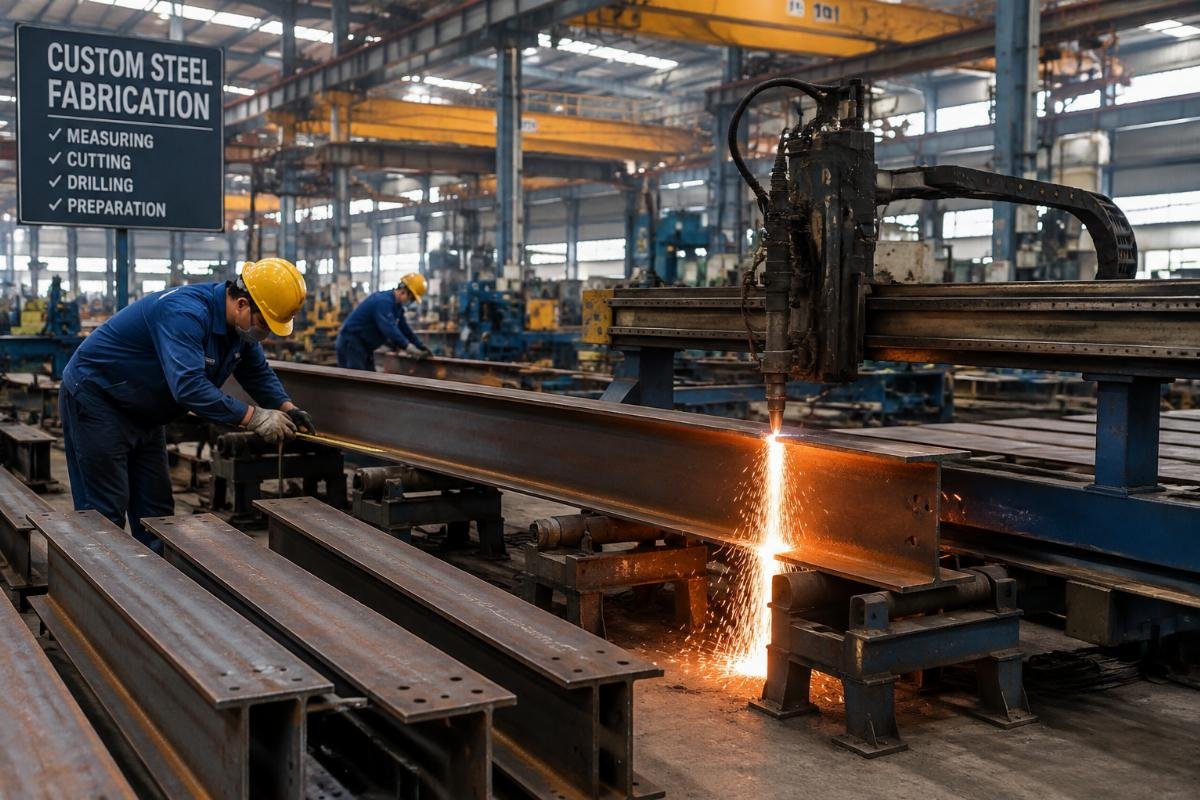

Sourcing Strategy: Balancing Customization, Lead Time, and Cost

Direct engagement with manufacturers allows for flexible MOQs and precise non-standard cuts, reducing on-site labor and waste.

Standard stock sizes rarely fit complex warehouse designs perfectly. Custom cutting and non-standard dimensions are often necessary to optimize structural integrity and reduce installation time. However, many traders cannot offer this flexibility, leading to excessive on-site modification, which compromises the steel’s protective coating and structural integrity.

Working directly with a manufacturer like Xin Jiyuan enables access to production lines that can handle custom non-standard sizes while maintaining EN10219 certification. This capability is crucial for projects with unique architectural requirements or tight tolerances. For instance, custom-cut beams for complex roof trusses can be prepared with precise hole drilling and end preparations, ready for immediate assembly upon arrival.

The trade-off is often lead time versus customization. Standard stock ships faster, but custom orders require careful planning. By integrating the manufacturing timeline into the project schedule, buyers can avoid the rush fees and quality compromises associated with last-minute sourcing. This strategic approach ensures that the Steel Beams for Warehouse Framework arrive not just as raw material, but as precision-engineered components ready for installation.

Conclusion

Sourcing structural steel is a technical discipline, not just a purchasing task.

Selecting the right Steel Beams for Warehouse Framework requires a deep understanding of impact toughness, strict verification of EN10219 compliance, and a sourcing strategy that balances customization with lead time. By focusing on technical validation and direct manufacturer engagement, buyers can avoid costly failures and ensure the long-term safety and efficiency of their warehouse structures.
