EN10219 S355JR Steel Structural Components for Multi-Level Car Park Wholesale Supplier

S355JR is not a universal fit for all climates, and “standard size” does not guarantee universal assembly compatibility.

For EPC contractors and fabrication shops sourcing Steel Structural Components for Multi-Level Car Park projects, the critical requirement is strict adherence to EN10219 dimensional tolerances and specific impact toughness grades (J0 or J2) rather than generic S355JR certification. Successful procurement depends on verifying mill test certificates for sub-zero impact energy and ensuring hole-position tolerances align with European assembly standards to prevent costly on-site rework.

Running logistics lines into Latin America and Europe, I have seen how a single mismatch in technical specifications can halt an entire project. Early in my career, I managed a shipment of RHS rectangular tubes destined for a parking structure in Guadalajara. The factory produced them according to national standard tolerances, which were slightly more lenient than the European norms specified in the contract. When the steel arrived, the bolt holes on the beams did not align with the columns. The client, holding a copy of EN10219, rejected the batch point by point. The cost of rework and delay far exceeded the initial savings. This incident shifted my perspective entirely. Now, when an inquiry specifies S355JR, the first question is never about price, but about the required impact temperature zone and the specific tolerance standard for assembly. [NEED_CITE: difference between EN10219 and ASTM/GB tolerance standards for hollow sections]

Understanding these nuances is essential for anyone acting as a Steel Structural Components for Multi-Level Car Park supplier or buyer. The following insights break down why material grade selection and tolerance control are the true drivers of project success, not just the base steel price.

Why Do Multi-Level Car Parks Require Specific Steel Standards?

Safety and speed of assembly dictate strict material compliance, making generic structural steel insufficient for modern parking frameworks.

Multi-level car parks are unique structures. They are exposed to the elements, subject to dynamic loads from moving vehicles, and require rapid construction to minimize urban disruption. Unlike enclosed warehouses, the structural skeleton is often visible and directly exposed to temperature fluctuations and humidity. This exposure demands materials that resist brittle fracture and maintain dimensional stability.

The primary driver for using specific standards like EN10219 is the need for prefabrication precision. In a typical multi-story parking garage, thousands of connections must be bolted or welded on-site. If the steel components vary even slightly in straightness or hole positioning, the assembly crew spends hours drilling new holes or forcing fits. This labor cost quickly eclipses the material cost. [NEED_CITE: impact of dimensional tolerance on on-site assembly time in steel construction]

Furthermore, safety regulations in many regions require proof of impact toughness. A car park in a temperate zone might face sudden cold snaps. Standard S355JR steel is tested at room temperature. If the ambient temperature drops below zero, the risk of brittle fracture increases significantly. Therefore, the standard alone is not enough; the sub-grade must match the environmental reality.

What Are the Critical Material Grades for Parking Structures?

S355JR is often insufficient for regions with temperature fluctuations; J0 and J2 grades are critical for preventing brittle fracture.

A common misconception among buyers is that S355JR is a catch-all grade for structural steel. While it offers a minimum yield strength of 355 MPa, the “JR” suffix indicates that the impact test was performed at +20°C. For a multi-level car park in Northern Europe, Canada, or even high-altitude regions in Latin America, this is inadequate.

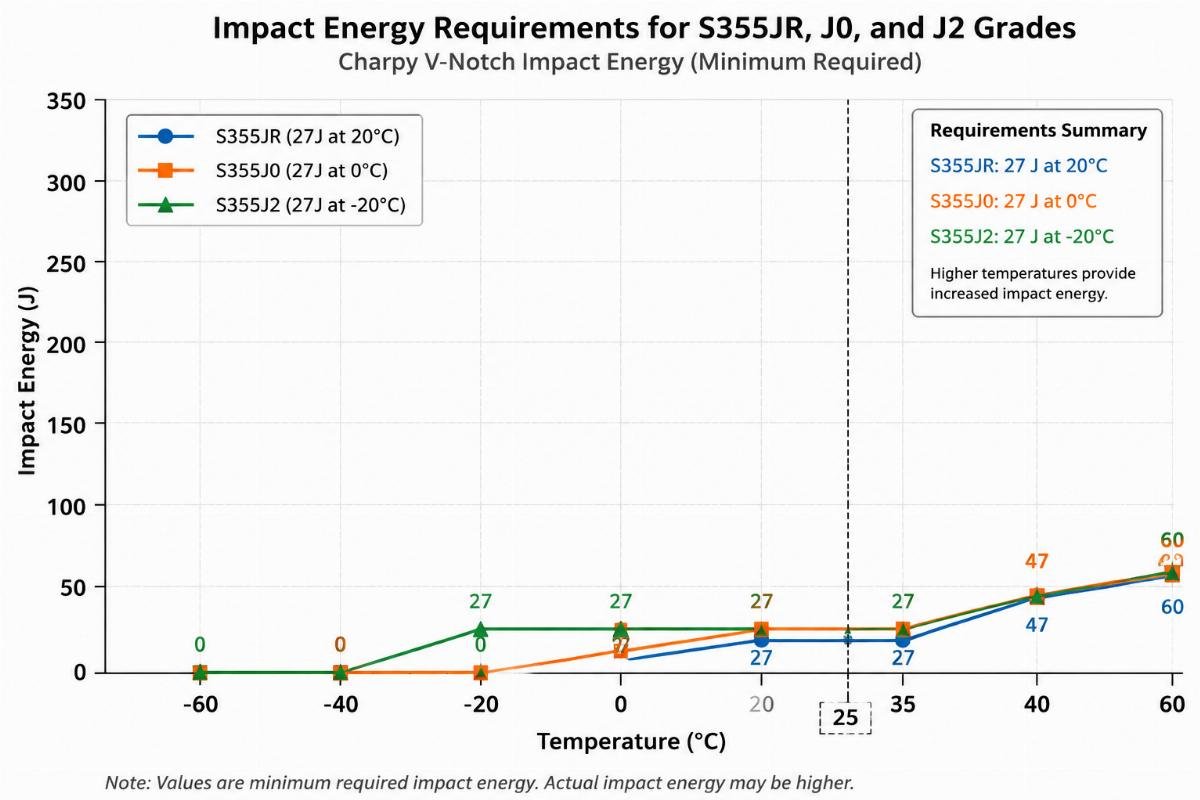

The correct specification depends on the lowest expected service temperature. S355J0 is tested at 0°C, and S355J2 is tested at -20°C. The difference in price is marginal compared to the risk of structural failure or tender rejection. I recall a European tender where a bidder offered S355JR because it was cheaper. The client rejected the offer immediately, citing the lack of J0 or J2 impact test certificates. The project required assurance that the steel would remain ductile during winter maintenance operations. [NEED_CITE: EN 10025-2 impact energy requirements for S355 sub-grades]

When sourcing Steel Structural Components for Multi-Level Car Park materials, always verify the Mill Test Certificate (MTC). Look for the impact energy values, which must meet the minimum of 27 Joules at the specified temperature. If the MTC only lists chemical composition and yield strength without impact data for the relevant sub-grade, the material is not compliant for cold-climate applications.

Selecting the right grade is not just about compliance; it is about long-term durability. A car park built with J2 steel in a fluctuating climate will have a longer service life and lower maintenance costs. This is a key value proposition for any Steel Structural Components for Multi-Level Car Park wholesale supplier advising clients on material selection.

How Do Tolerances Affect On-Site Assembly Efficiency?

EN10219 tolerances ensure bolt-hole alignment, reducing rework and accelerating project timelines.

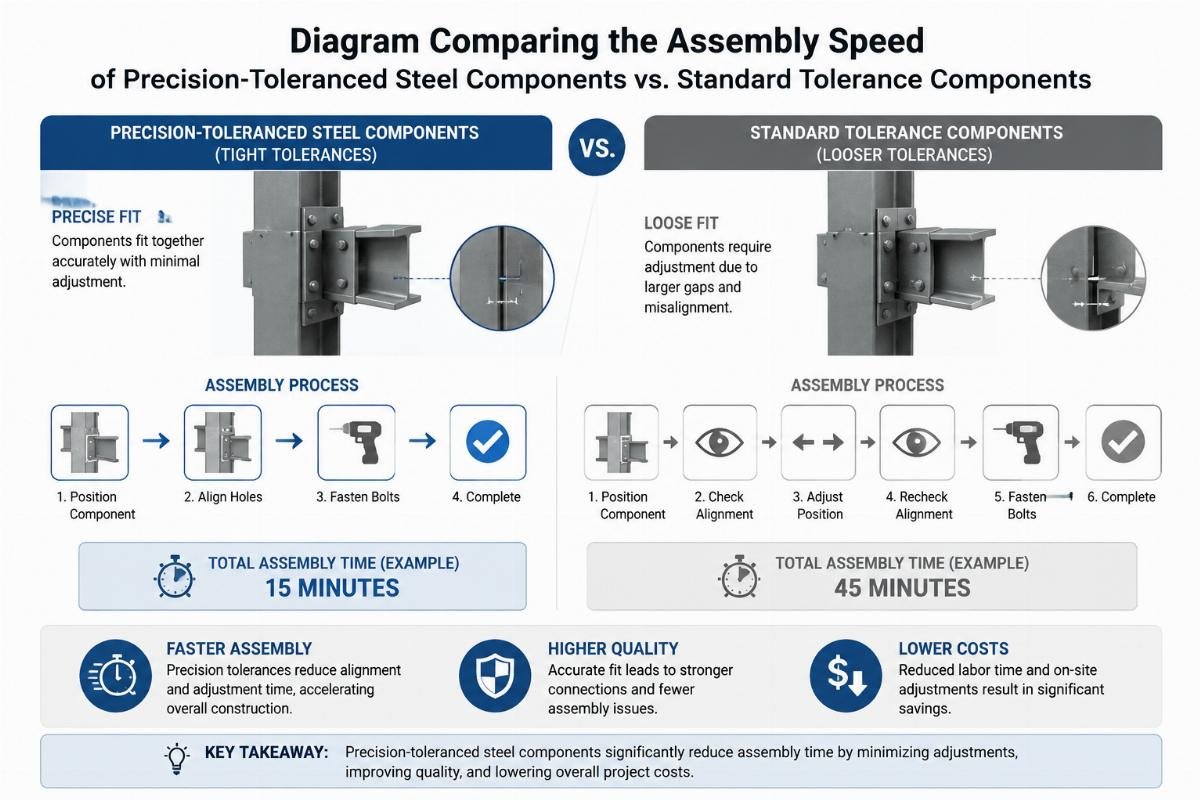

Dimensional tolerance is where many projects fail. As mentioned in my earlier experience, national standards often allow wider deviations in straightness, width, and hole positioning than EN10219. For a multi-level car park, where modules are repeated floor after floor, a small deviation in one column compounds into a major misalignment by the third level.

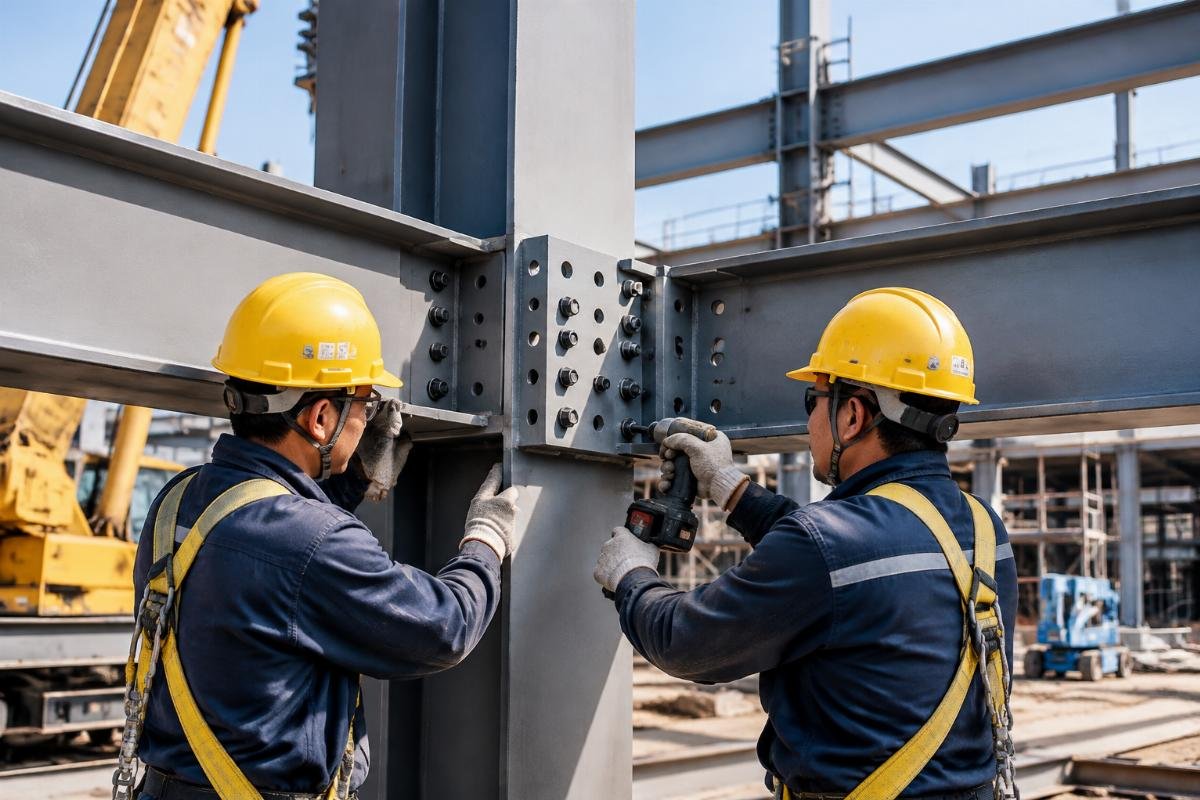

EN10219 specifies tighter tolerances for cold-formed welded structural hollow sections. This precision allows for “plug-and-play” assembly. Beams and columns arrive with pre-drilled holes that align perfectly, eliminating the need for on-site welding or drilling. This reduces labor costs and improves site safety. [NEED_CITE: EN10219 dimensional tolerance limits for RHS and SHS]

In a recent project converting a warehouse in Southeast Asia into a parking facility, we supplied mixed container loads of H-beams and machined nodes. The client emphasized the need for precise cutting to avoid site welding errors. By adhering to strict tolerance controls, the installation team completed the structural frame ahead of schedule. The precision of the components meant that the crane operators could place each piece directly into position without adjustment.

For a Steel Structural Components for Multi-Level Car Park supplier, maintaining these tolerances requires robust quality control. In-house laboratory verification is essential. It is not enough to rely on mill certificates; final dimensions must be checked before shipping. This level of attention to detail distinguishes a reliable partner from a commodity trader.

Which Certifications Are Non-Negotiable for Tenders?

Mill Test Certificates and CE marking are mandatory for EU and Latin American projects to ensure traceability and compliance.

Tender documents for public infrastructure projects are rigorous. They do not just ask for steel; they ask for proof. The two most critical documents are the Mill Test Certificate (MTC) and the CE mark (for European projects or those referencing EU standards).

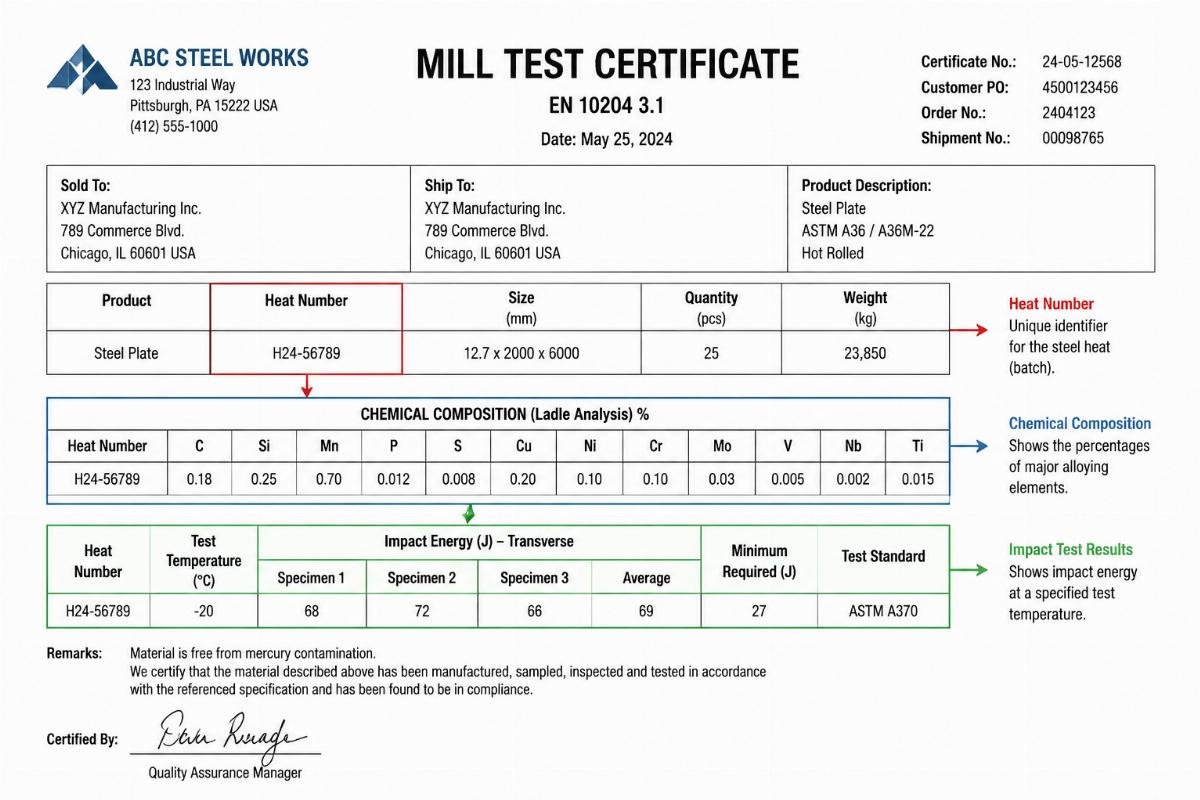

The MTC must be issued by the steel producer and include chemical composition, mechanical properties, and impact test results. It must be traceable to the specific batch of steel used. A generic certificate covering a whole month’s production is often rejected. Each bundle of steel should have a heat number that matches the MTC. [NEED_CITE: requirements for EN 10204 Type 3.1 Mill Test Certificates]

CE marking under EN 1090 indicates that the manufacturer has a factory production control system in place. It is a declaration of conformity with European harmonized standards. For projects in Latin America, which often reference EU standards due to historical trade ties, CE marking is increasingly becoming a de facto requirement.

I have seen bids disqualified because the supplier provided a self-declared certificate instead of an independent MTC. In another case, a buyer in the Middle East required third-party inspection reports from a recognized agency like SGS or Bureau Veritas. These checks verify that the steel meets the specified grade and tolerance.

When engaging with a Steel Structural Components for Multi-Level Car Park wholesale supplier, ask for sample MTCs early in the process. Verify that they include the necessary impact data and tolerance declarations. This due diligence prevents surprises at the port of destination.

Conclusion

Precision in material grade and dimensional tolerance is the foundation of efficient multi-level car park construction.

Sourcing Steel Structural Components for Multi-Level Car Park structures requires more than just finding a low price. It demands a deep understanding of EN standards, specifically the impact toughness requirements of S355 sub-grades and the dimensional tolerances of EN10219. By prioritizing these technical details, contractors can avoid costly rework and ensure the long-term safety of their projects.
