Description
Vertically Integrated Plate Supply — XJY Structure operates its own steel mill alongside the fabrication workshop, delivering ASTM A36 hot rolled steel plate with full heat-level traceability from slab to finished product.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | A36 Hot Rolled Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | A36 |
| Standard | ASTM A36 |
| Length | Up to 12m |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled |
| Application | Shipbuilding / Construction / Machinery |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Base plates, gusset plates, embedded anchor plates for EPC building and bridge projects |
| Shipbuilding | Structural deck plates, bulkhead stiffeners, hull framing components |
| Machinery Manufacturing | Equipment base frames, crane booms, conveyor support structures |
| Industrial Fabrication | Feedstock for CNC cutting into custom structural connections and brackets |
Where Material Traceability Gaps Cost EPC Projects Their Schedule
Disconnected supply chains create certification voids that halt customs clearance and site acceptance.
When overseas buyers source plates through trading companies rather than integrated producers, the mill test certificate often traces back to a broker’s warehouse — not the original heat number. Third-party inspectors flag missing chemical composition records, and project owners reject the entire batch. I have seen EPC teams in West Africa hold a full container of plates at port for weeks because the trader could not produce a valid EN 10204 3.1 certificate linking the plate to a specific melt. [NEED_CITE: material traceability requirements in EN 10204 inspection document types]
With an A36 hot rolled steel plate supplier operating its own melting and rolling lines, every plate carries a heat number that traces directly to the ladle analysis. The mill test certificate documents chemical composition and mechanical test results from the same facility that produced the slab. This eliminates the certification gap that causes customs holds and site rejections on international construction projects.
Matching ASTM A36 Plate to Structural Fabrication Demands
ASTM A36 hot rolled steel plate delivers reliable weldability and formability for general structural applications where yield strength requirements remain moderate. The hot rolled surface provides a clean, mill-scale finish that accepts cutting, drilling, and welding without additional surface preparation. For EPC contractors and steel structure companies sourcing an A36 hot rolled steel plate supplier, this grade serves as the standard feedstock for base plates, gussets, and connection assemblies that must conform to AISC fabrication tolerances.
XJY Structure supplies these plates directly from its own rolling mill, then fabricates them into finished structural components — columns, beam assemblies, and platform structures — within the same facility. This means the shop drawing review, CNC cutting, and welding all proceed from material that carries verified certification from the original melt.
Engineering Compliance and Certification for International Delivery
Structural steel plates destined for EU markets must carry CE marking under EN 1090-2, requiring the fabricator to hold Factory Production Control certification. North American projects referencing AISC 207 demand full material certification packages including WPS and PQR records for all welded connections. An A36 hot rolled steel plate supplier serving these markets must provide mill test certificates conforming to EN 10204 Type 3.1 or 3.2, with third-party inspection available from SGS, BV, or TÜV before shipment. [NEED_CITE: EN 1090-2 execution classes for structural steel fabrication]
Plates ordered in custom lengths up to 12 meters reduce on-site cutting waste and minimize field welding joints — a critical factor for projects in regions where certified field welders are scarce. The hot rolled process ensures uniform thickness tolerance across the plate width, preventing dimensional rejection during incoming inspection at the fabrication shop.
Understanding Hot Rolled Process and A36 Grade Selection
The hot rolling process heats steel slabs above recrystallization temperature and passes them through rolling mills to achieve the target thickness. This produces a plate with a characteristic mill scale surface and uniform internal grain structure. Unlike cold rolled plate, hot rolled A36 offers cost efficiency for structural applications where tight surface finish tolerances are not required.
ASTM A36 is a carbon structural steel grade widely specified across North American and international projects. It delivers adequate strength for building frames, equipment bases, and industrial platforms while maintaining excellent weldability under standard MIG, MAG, and SAW procedures. The grade’s carbon equivalent remains low enough to permit welding without preheating on moderate thicknesses — a practical advantage on congested fabrication shop floors.
When buyers compare A36 against European S275JR or Chinese Q235B, the key distinction lies in the standard framework rather than dramatic property differences. All three grades serve similar structural roles, but project specifications and customs authorities require documentation matching the named standard exactly. [NEED_CITE: steel grade equivalence between ASTM A36 and EN S275JR]
Hidden Costs of Sourcing Plates from Disconnected Traders
Plates sourced through brokers without direct mill access carry risks that surface only at project delivery. Missing heat numbers mean the mill test certificate cannot be verified against the physical plate markings. Negative thickness tolerance pushed to the maximum reduces actual weight delivered — a discrepancy that triggers rejection when the project specifies theoretical weight billing. In regions with strict import inspection, plates without proper certification face customs detention, demurrage charges, and potential return shipment at the buyer’s expense. [NEED_CITE: thickness tolerance standards for hot rolled steel plates]
An A36 hot rolled steel plate supplier operating as a vertically integrated producer eliminates these risks by controlling the entire chain from steelmaking to finished plate. Every heat is tested in the facility’s own laboratory, and certificates are generated from verified test data — not transferred from a third-party mill’s paperwork.
Why Project Procurement Teams Source from XJY Structure
XJY Structure operates both a steel production facility with three rolling lines and a dedicated structural steel fabrication workshop. This vertical integration means the A36 plates supplied for your project come from the same quality system that governs the cutting, welding, and assembly of your finished structural components. Material procurement, fabrication, and quality documentation all flow through a single point of accountability.
The facility maintains over 2,800 material specifications in stock, reducing lead times for standard plate sizes while custom orders proceed through the in-house rolling mill. Certified welding procedures and qualified welders holding AWS and EN certifications ensure that any downstream fabrication — whether CNC cutting, drilling, or welded assembly — meets international code requirements. Complete quality documentation packages, including weld maps, dimensional inspection reports, and coating certificates, accompany every shipment.
Documentation & Compliance
- Mill test certificate documenting A36 chemical composition and mechanical properties per ASTM A36, with heat number traceability to the original melt
- Third-party inspection report from SGS, BV, or TÜV verifying plate dimensions, surface quality, and test results before shipment
- ISO 9001 quality management system certificate covering both steel production and fabrication operations
- Material traceability records linking each plate to its heat number, ladle analysis, and rolling schedule
- Export documentation package including packing list, bill of lading, and certificate of origin for customs clearance
- Welding procedure specifications and welder qualification records for any fabricated components processed from the plate
Packaging, Loading & Delivery

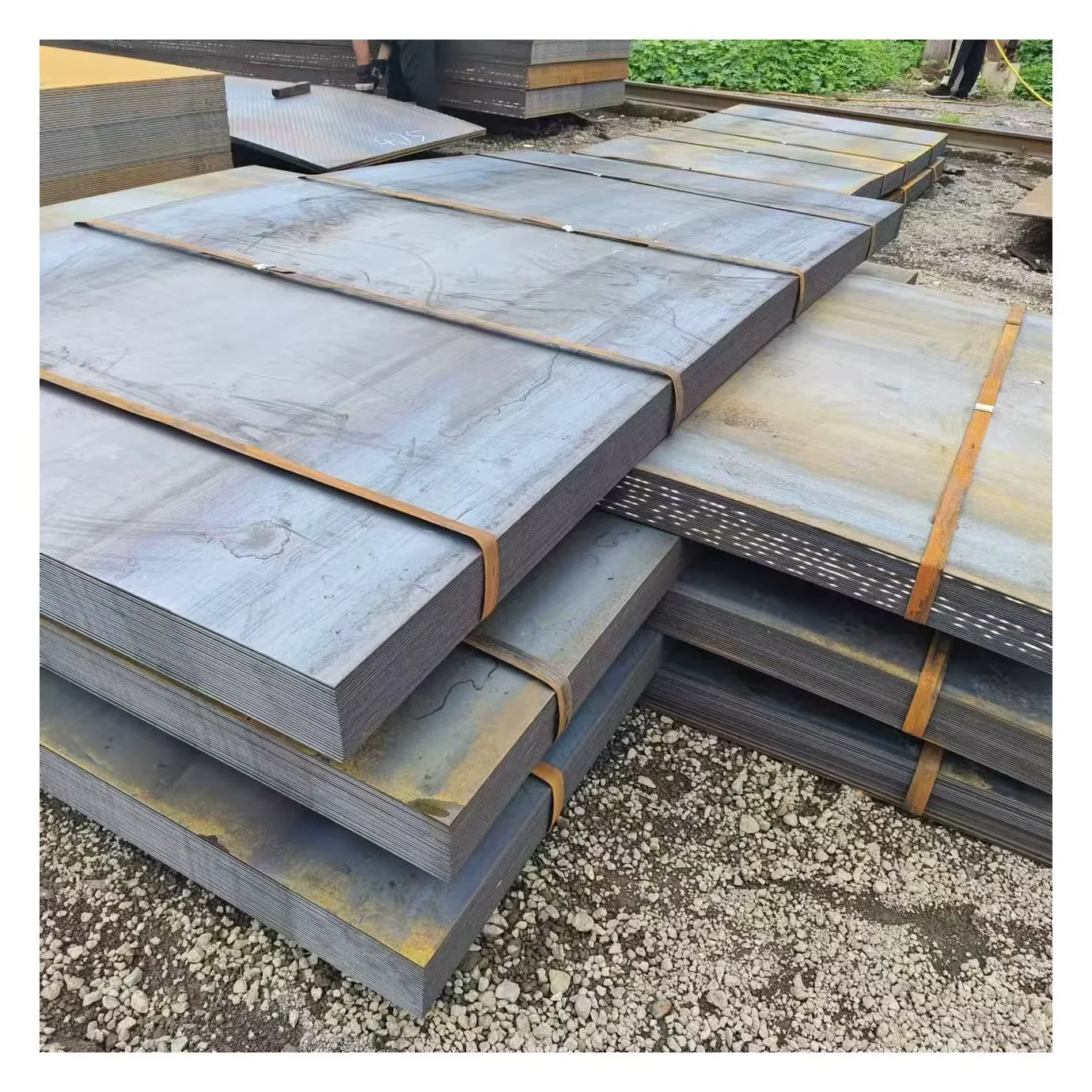

- Hot rolled A36 plates bundled with steel straps and edge protectors to prevent surface damage and mill scale flaking during ocean transit
- Custom-length plates up to 12m loaded with optimized stowage plans to maximize container utilization and minimize on-site cutting waste
- Each plate marked with heat number, steel grade A36, and dimensional identifiers for traceability verification at site receiving
- Surface protection through natural mill scale with optional oil coating for extended storage or humid climate destinations
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading and complete export documentation
Securing Your A36 Plate Supply with Verified Certification
Submit your project specifications — plate dimensions, quantities, steel grade A36, destination port, and required certification standards — to receive a detailed quotation including material, fabrication, coating, and logistics costs. The engineering team will review your shop drawings and confirm production scheduling against your project timeline.
Request Your A36 Hot Rolled Steel Plate Quotation
Share your project drawings and specifications to receive pricing, mill test certificate samples, and delivery scheduling within 24 hours.
