Description
Factory-direct hot rolled plates — Own steel mill with 3 production lines produces A36, S235, S355, Q235 plates with full material traceability from slab to finished sheet.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A36 / S235 / S275 / S355 / Q235 / Q345 / SS400 / St37 Hot Rolled Carbon Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | A36, S235JR, S275JR, S355JR, Q235B, Q345B, SS400, St37, St42, Q195, A283 GR.A, A283 GR.C, A285 GR.A, A285 GR.B, A285 GR.C, ST52, ST35, SS540, S275J2H, S355J2H, Q390, A516 GR.50, A516 GR.60, A516 GR.70 |
| Standard | ASTM, EN, JIS, GB, BS |
| Section Shape | Flat Plate |
| Thickness | 1.2 mm – 4.0 mm |
| Width | 800 mm – 1600 mm |
| Length | Customized as request |
| Technique | Hot Rolled |
| Surface Treatment | Acid Surface / Hot Rolled |
| Tolerance | ±1% |
| Application | Shipbuilding, Boiler & Pressure Vessels, Container Manufacturing, Pipe Making, Construction, Machinery, Bridge, Railway, Automobile |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC & Industrial Projects | Pressure vessel shells, boiler end caps, pipe-making blanks for oil & gas plants |
| Construction & Infrastructure | Bridge gusset plates, building column base plates, ship deck panels |
| Container & Logistics Equipment | Container floor frames, corrugated wall blanks, chassis cross members |
| Machinery & Manufacturing | Machine base plates, conveyor frame gussets, cold-rolled feedstock for further processing |
What Negative Tolerance Costs on a Hot Rolled Carbon Steel Plate Order
A plate that passes the mill gate but fails the project weighbridge creates disputes that no amount of paperwork can fix after the container is sealed.
When buyers source Hot Rolled Carbon Steel Plate A36 S235 S355 Q235 supplier from fragmented traders, the material passes through two or three hands before reaching the fabrication floor. Each transfer widens the gap between the mill test certificate and the plate sitting on the cutting table. Thickness tolerance drifts beyond ±1%, heat numbers get mixed, and the MTC no longer matches the physical stock. I have seen an entire shipment of S355JR plates held at port because the buyer’s third-party inspector found heat number mismatches between the bundle tags and the documentation — the plates were sound, but the traceability chain was broken. [NEED_CITE: EN 10204 inspection document types for steel products]
How Thickness Tolerance and Width Range Match Structural Fabrication Needs
Hot Rolled Carbon Steel Plate A36 S235 S355 Q235 supplier capability starts at the rolling mill, not the trading desk. Plates rolled between 1.2 mm and 4.0 mm with widths from 800 mm to 1600 mm cover the majority of light-to-medium structural fabrication — from container floor frames to machinery base plates. The ±1% thickness tolerance means that a 3.0 mm plate arrives between 2.97 mm and 3.03 mm, which keeps CNC plasma cutting parameters stable and avoids weld joint preparation surprises. When the same source supplies both raw plates and downstream CNC cutting, drilling, and bending, the dimensional data flows directly from the rolling schedule to the shop drawing — no reinterpretation, no tolerance stack-up between suppliers.
Engineering Compliance Across EN, ASTM, and GB Standards
Structural steel plates for international projects must satisfy different certification frameworks depending on the destination market. Hot Rolled Carbon Steel Plate A36 S235 S355 Q235 supplier documentation needs to align with EN 1090 for European construction, AWS D1.1 for American welded structures, or GB standards for domestic Chinese projects shipped overseas. The plate chemistry and mechanical properties must be verifiable through Mill Test Certificates conforming to EN 10204 3.1 or 3.2, with third-party inspection from SGS, BV, or TÜV available before shipment. [NEED_CITE: EN 1090 structural steel fabrication execution classes] Surface treatment selection — hot rolled scale versus acid pickled finish — affects both coating adhesion and welding spatter behavior, which matters when plates move directly from storage to the welding station.
Steel Grade Selection: S-Series, Q-Series, and ASTM Equivalents
The Hot Rolled Carbon Steel Plate A36 S235 S355 Q235 supplier range spans three major grading systems. The S-series (S235JR, S275JR, S355JR) follows European EN standards where the number indicates minimum yield strength in MPa for thickness ≤16 mm, and the suffix (JR, J2H) defines impact toughness at specific test temperatures. The Q-series (Q235B, Q345B) follows Chinese GB standards with a similar naming logic — Q235 yields at approximately 235 MPa, Q345 at 345 MPa. The ASTM system (A36, A283 GR.C, A516 GR.70) uses different designation conventions but covers overlapping strength ranges. For pressure vessel applications, A516 GR.60 and A516 GR.70 plates offer elevated-temperature performance that standard structural grades cannot provide. Grade equivalence mapping between these systems requires careful comparison of chemistry limits, tensile ranges, and impact test requirements — not just yield strength numbers. [NEED_CITE: steel grade equivalence between EN 10025 and ASTM A36]
The Hidden Cost of Unverified Plate Sourcing
Procuring Hot Rolled Carbon Steel Plate A36 S235 S355 Q235 supplier material through intermediaries introduces risks that surface only during project inspection. A plate with chemistry outside the specified grade range may pass visual inspection but fail ultrasonic testing or bend tests during fabrication. Missing heat number traceability triggers customs holds in markets requiring EN 10204 3.2 certification. Negative tolerance exceeding the contractual ±1% limit reduces load-bearing capacity and creates weight discrepancies between theoretical and actual delivery — disputes that delay payment and damage project timelines. [NEED_CITE: consequences of non-conforming steel material certification in construction projects]
Why Procurement Teams Source Directly from an Integrated Mill-Fabricator
Hot Rolled Carbon Steel Plate A36 S235 S355 Q235 supplier reliability depends on controlling the material from slab to finished plate. XJY Structure operates its own steel production facility with 3 production lines and maintains over 2,800 raw material specifications in stock, eliminating the sourcing gap between mill and fabricator. Every plate carries a heat number that traces back to the original slab cast, with full chemical composition and mechanical property records available in the Mill Test Certificate. The integrated model means that plates can be delivered as raw stock or processed through CNC cutting, plasma cutting, drilling, and bending — all under one quality system and one point of accountability. Certified welding procedures (WPS/PQR) and qualified welders (AWS/EN certified) ensure that downstream fabrication meets international standards without requiring the buyer to coordinate multiple vendors.
Documentation & Compliance
- Mill Test Certificate documenting S355JR chemical composition and yield strength per EN 10025-2, with heat number traceability from slab to finished plate
- CE marking and Declaration of Performance for plates supplied under EN 1090 execution class EXC2 or EXC3
- ISO 9001 quality management certificate covering the entire production and inspection process
- SGS or BV third-party inspection report verifying dimensional accuracy, surface quality, and coating thickness before shipment
- Material traceability report linking each plate bundle to its original heat number, rolling schedule, and test results
- Complete customs documentation package including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

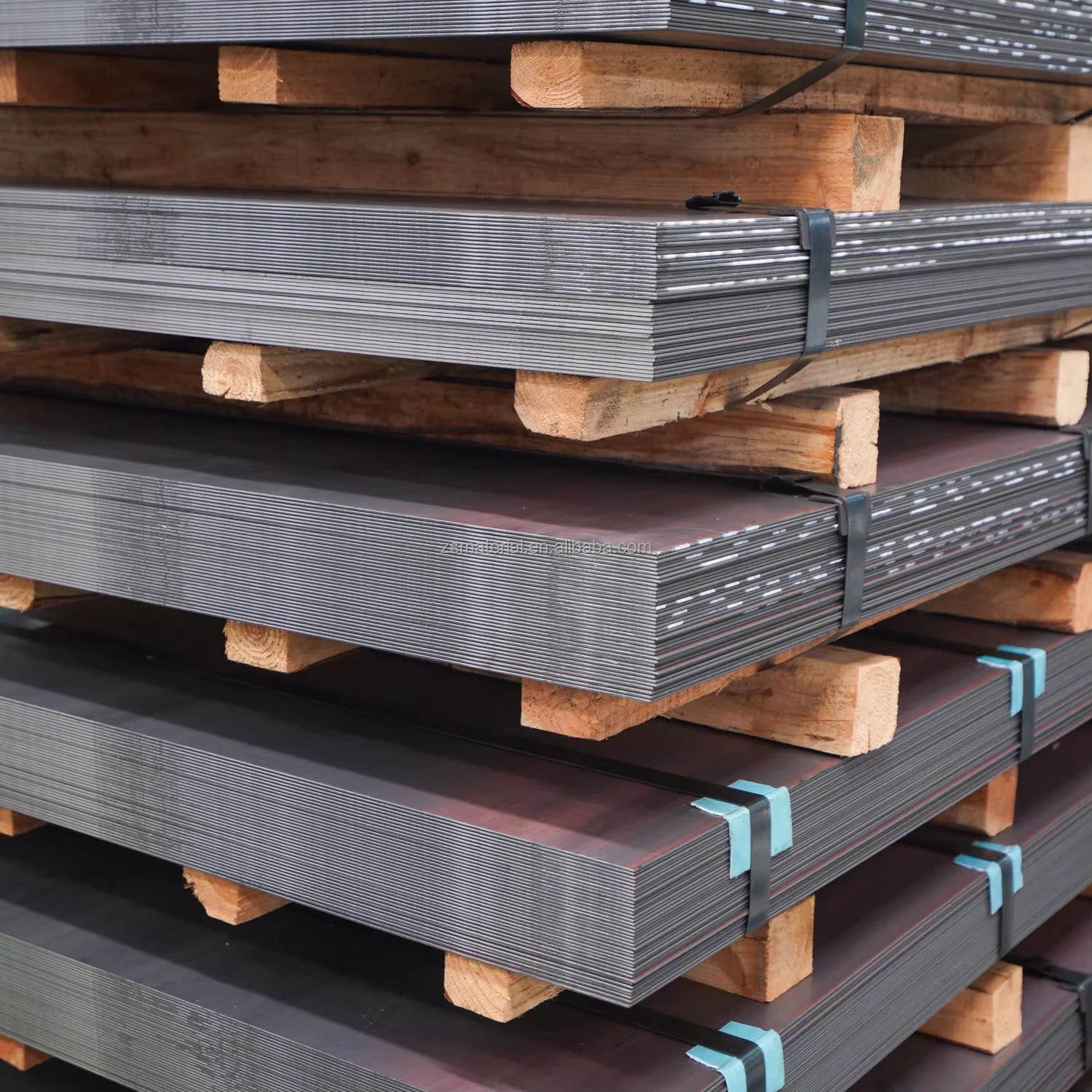

- Hot rolled plates bundled with steel strip ties and edge protectors to prevent surface scratching and maintain the mill scale finish during ocean transit
- Acid pickled plates wrapped in waterproof paper and plastic film to preserve the clean metallic surface against humidity and salt spray
- Container loading optimized for plates in the 1.2 mm – 4.0 mm thickness range, with wooden cradles and anti-slip separators to prevent shifting during transport
- Custom cut-to-length plates stacked by project drawing number with bundle tags showing heat number, steel grade, and piece count for easy site identification
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading plans for plates exceeding standard container dimensions
- Heat number and steel grade stenciled on each plate edge for traceability verification at the fabrication shop
Getting Your Quotation Started
Submit your project drawings (PDF/DWG) with specified steel grades, thickness, width, length, and required standards to receive a detailed quotation within 24 hours. The quotation includes material cost, fabrication processing (if applicable), surface treatment, packing, and shipping to your destination port. Confirm Mill Test Certificate requirements and any third-party inspection needs before production begins to avoid documentation delays.
Frequently Asked Questions
Q: What is the difference between S235JR and A36 for structural plate applications?
A: Both are mild structural steel grades with similar yield strength ranges. S235JR follows EN 10025-2 and specifies impact testing at 20°C (JR suffix), while A36 follows ASTM A36 with different chemistry limits and tensile requirements. The choice depends on the project specification and destination market certification requirements.
Q: Can you provide plates cut to specific dimensions with drilled holes?
A: Yes. Plates can be CNC cut, plasma cut, or flame cut to your drawing dimensions, with drilled holes, beveled edges, and bent profiles as needed. Shop drawings are prepared for your approval before fabrication begins.
Q: What surface treatment options are available for hot rolled plates?
A: Plates can be supplied in as-rolled condition with mill scale, acid pickled for a clean metallic surface ready for coating or painting, or shot blasted and primed for immediate welding or field application.
Q: How do you ensure material traceability from mill to delivery?
A: Every plate is traceable to its original heat number. The Mill Test Certificate includes chemical composition, mechanical properties, and test results per EN 10204 3.1 or 3.2. Third-party inspection from SGS, BV, or TÜV is available before shipment.
Q: What is the minimum order quantity for hot rolled carbon steel plates?
A: The minimum order quantity is 1 Ton. Mixed-grade orders are accepted for projects requiring multiple steel grades in a single shipment.
Send Your Drawings for a Mill-Direct Quote
Share your project specifications, steel grades, and dimensions to receive a detailed quotation with Mill Test Certificate documentation within 24 hours.
